Lors 4608 NA SPOT WELDERS, ALL TYPES

$3,950

Make:: Lors

Model:: 4608 NA

Year:: 2002

Ref #:: 160882

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

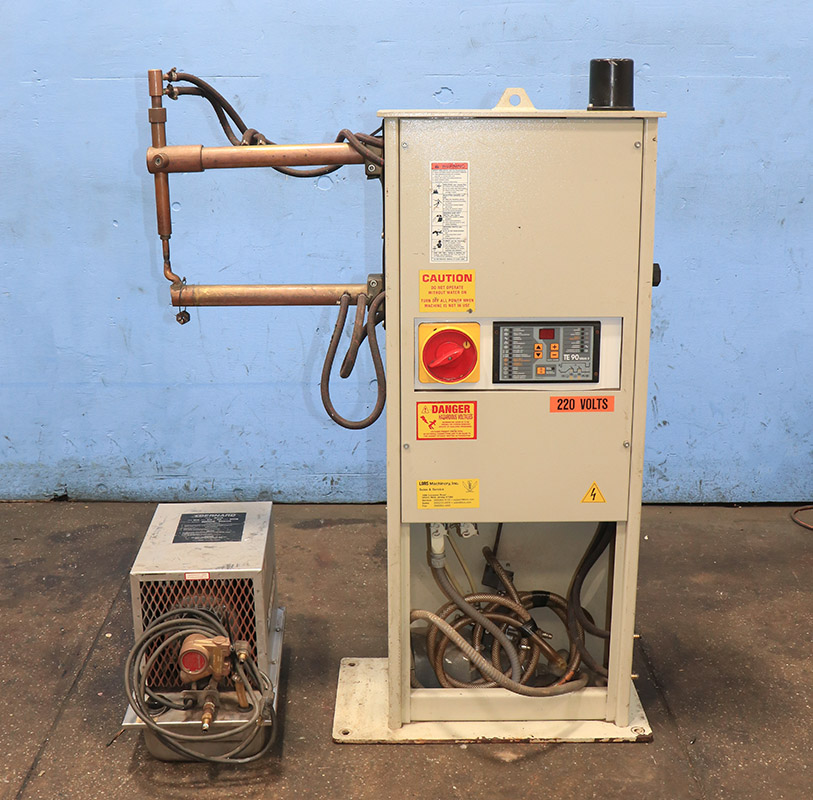

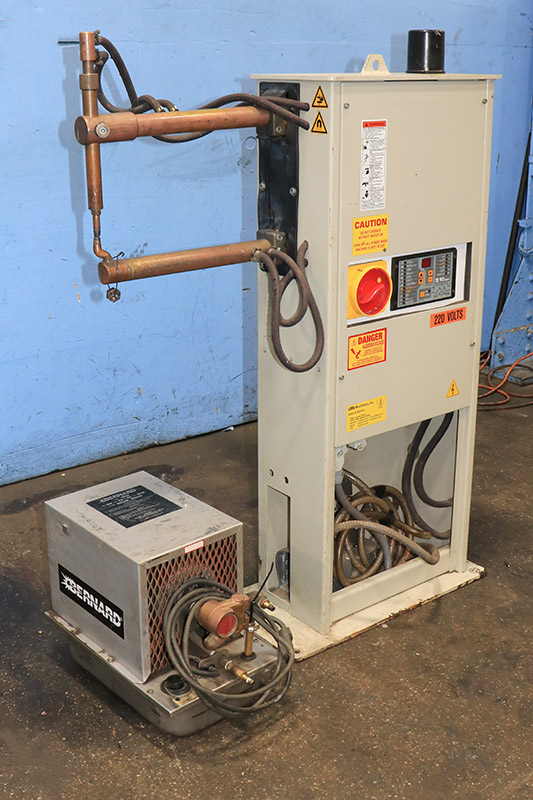

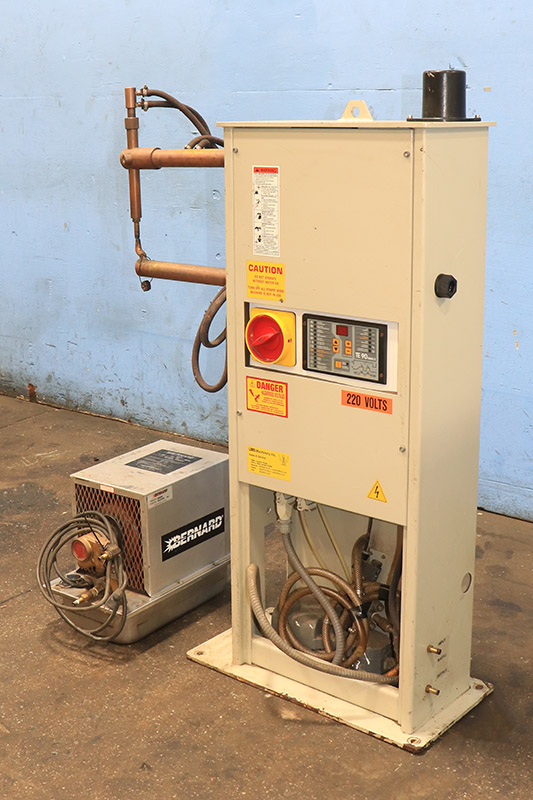

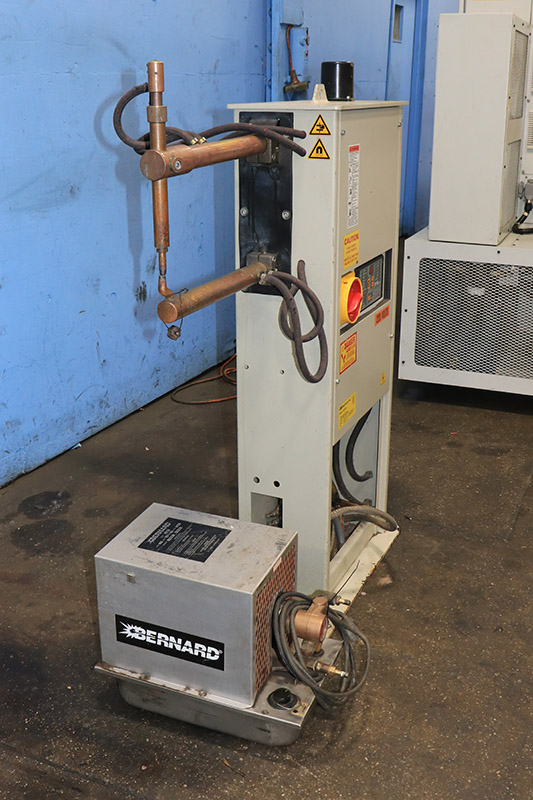

20 KVA LORS TECNA ROCKER TYPE SPOTWELDER

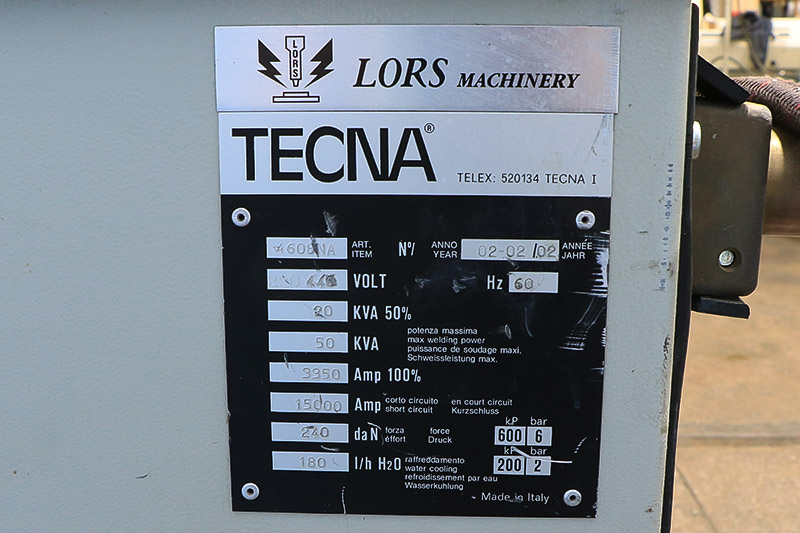

MODEL 4608NA        S/N 020202       NEW 2002

KVA ........................................... 20
VOLTAGE ....................................... 22O / 440
SECONDARY VOLTAGE ............................. 4.2
MAXIMUM WELDING CURRENY ON STEEL .............. 12
THROAT DEPTH .................................. 9"
MAXIMUM SHORT CIRCUIT ......................... 15
ELECTRO FORCE @ 87 PSI ........................ 209 LBS.
STROKE ........................................ 1-3/4" - 3-1/4"
HOLDER DIAMETER ............................... 1"

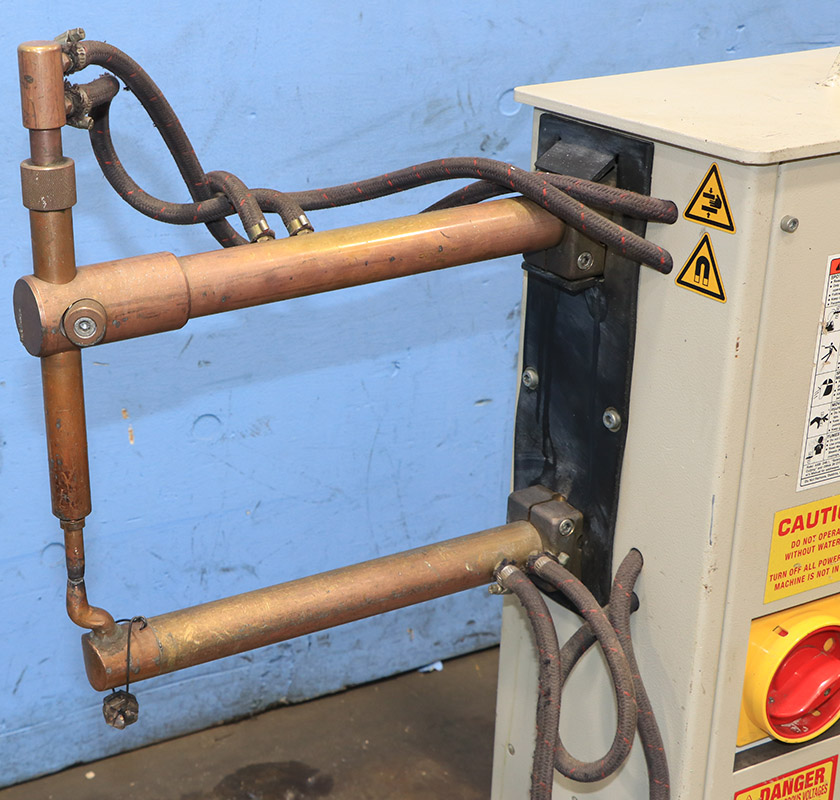

ARM DIAMETER .................................. 1.575"

MACHINE WEIGHT: 270 LBS.

MACHINE IS EQUIPPED WITH:

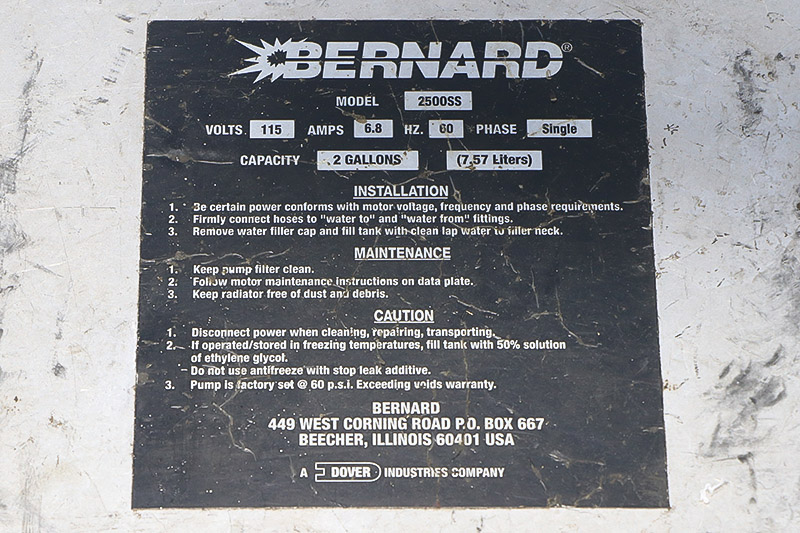

- Bernard Cooler

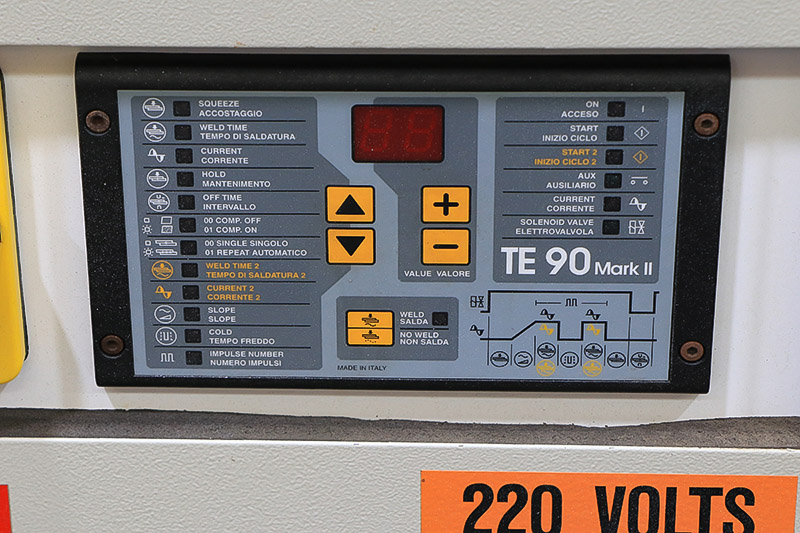

- TE-90 microprocessor welding control unit for single-phase resistance welders.
The welding control unit is used to control the welder components and in particular, the thyristor adjusting the welding current. The TE-90 working cycle is described through 12 programming parameters.
• Synchronous thyristor drive, phase shift control for welding current adjustment.
• Simplified programming by means of four push-buttons.
• Twin pre-setting for time and current, recallable by two independent controls.
• Slope and pulse functions.
• Single and automatic (repeat) operating mode.
• Secondary current compensation function for the welding of oxidized sheets and rods.
• First phase shift delay adjustment. It enables the machine line current best balance.
• Control of solenoid valve 24 Vdc 7.2 W Max with protected output against short circuits.
• "Watch-dog" safety circuit stopping the welder in case of control unit faulty operation, micro-interruptions or too high voltage drop.
