MITSUI MSG-250MH, 1990, ROLLER BEARING TABLE SURFACE GRINDERS, HAND FEED

Price on Request

Make:
MITSUI
Model:
MSG-250MH, 1990, ROLLER BEARING TABLE
Year:
1990
Ref #:
178071

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

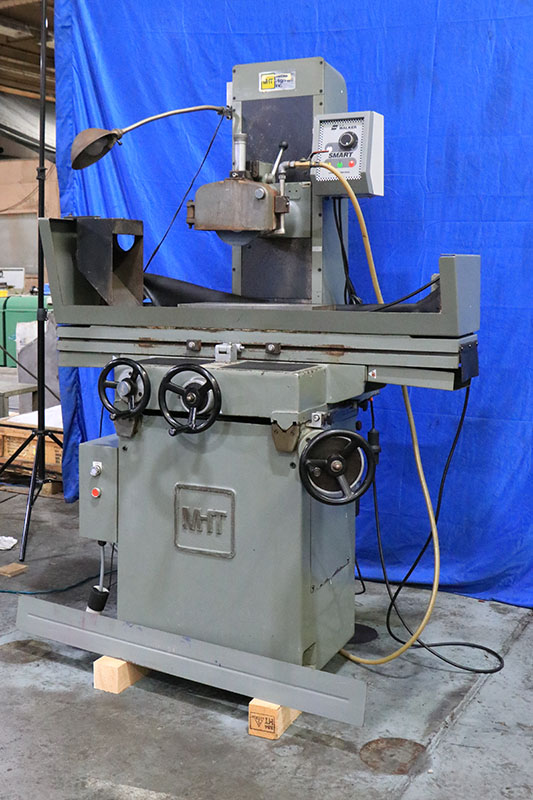

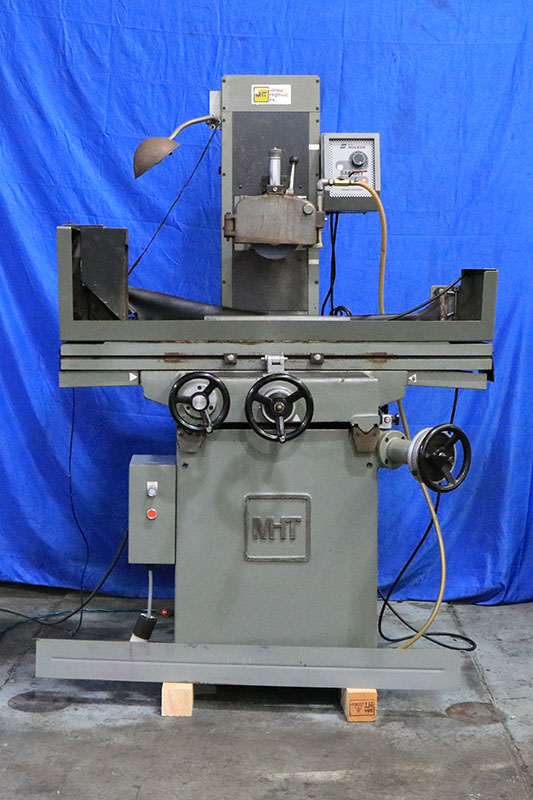

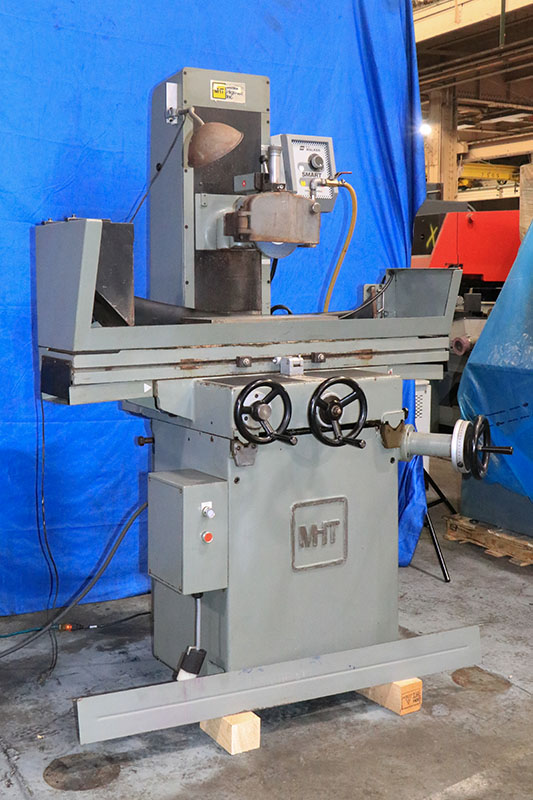

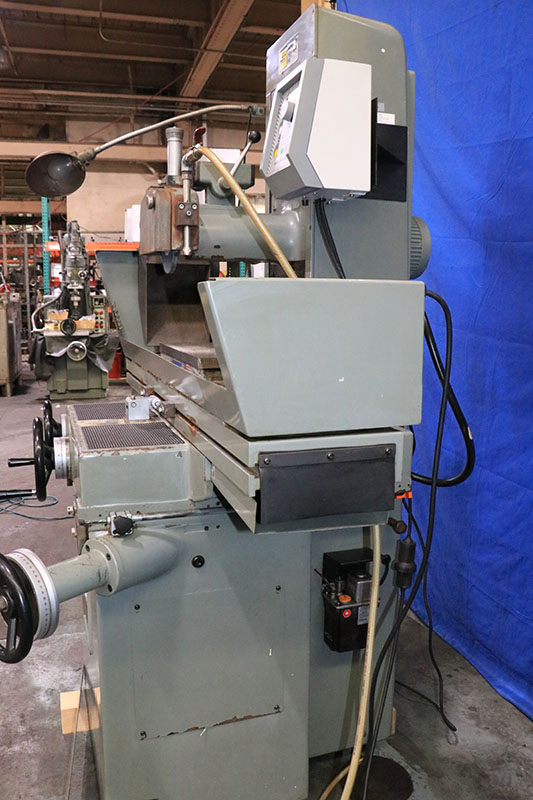

          8" X 18" MITSUI "SUPER-PRECISION"
                 "MADE IN JAPAN"

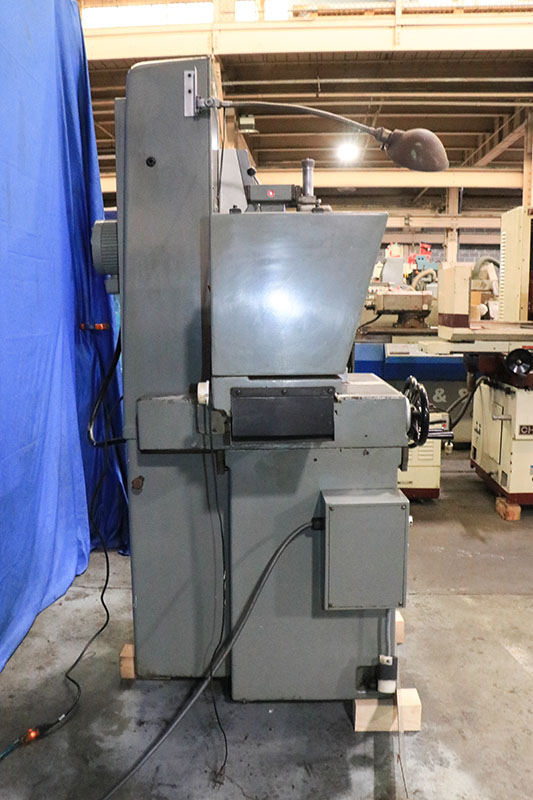

            HAND FEED SURFACE GRINDER

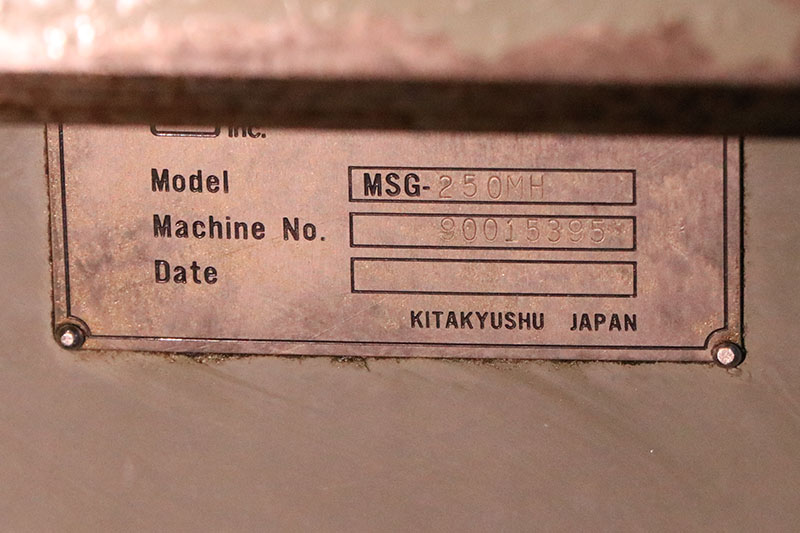

MODEL: MSG250-MH     S/N: 90015395      NEW: 1990


TABLE WORK SURFACE .................. 8" x 19"
LONGITUDINAL TABLE MOVEMENT ......... 20"
CROSS TABLE TRAVEL .................. 10"
HEIGHT, TABLE TO SPINDLE CENTER ..... 19.5"
GRINDING WHEEL ...................... 8" DIA. MAX.

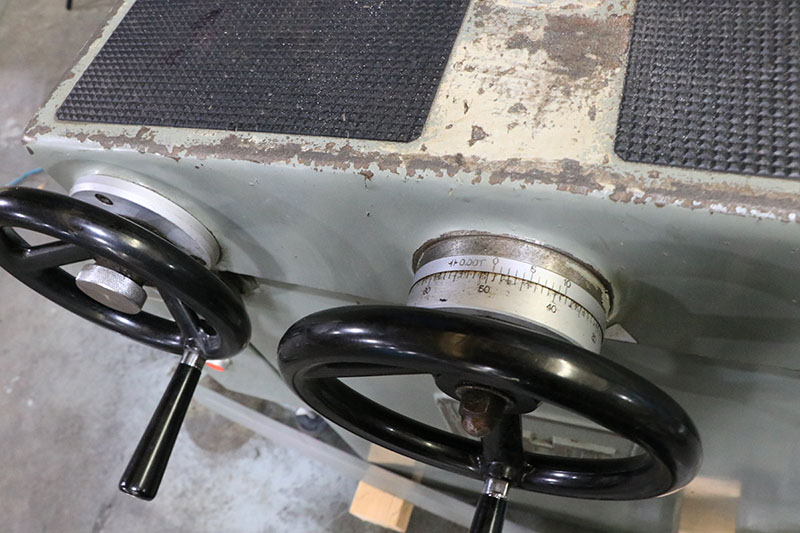

CROSS MOVEMENT, ONE REV. ............ 0.1"
                ONE DIV. ............ 0.001"
                BY VERNIER .......... 0.0001"

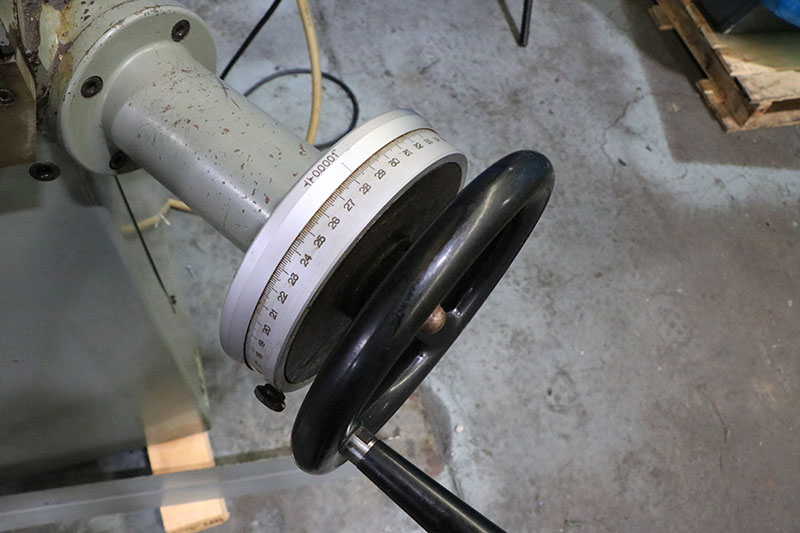

VERTICAL MOVEMENT, ONE REV. ......... 0.05"
                   ONE DIV. ......... 0.0001"
                   BY VERNIER ....... 0.00001"

APPROX. WEIGHT ...................... 2,200 LBS.


MACHINE FEATURES/ATTRIBUTES:
HAND FEEDS WITH VERY LOW FRICTION & EASE OF USE
TABLE MOVES ON LINEAR BALL BEARINGS
HARDENED & GROUND WAYS (REMOVEABLE) ON TABLE,
  CARRIAGE/SADDLE& COLUMN
TABLE, SADDLE & COLUMN MOVE ON LINEAR BALL BEARINGS

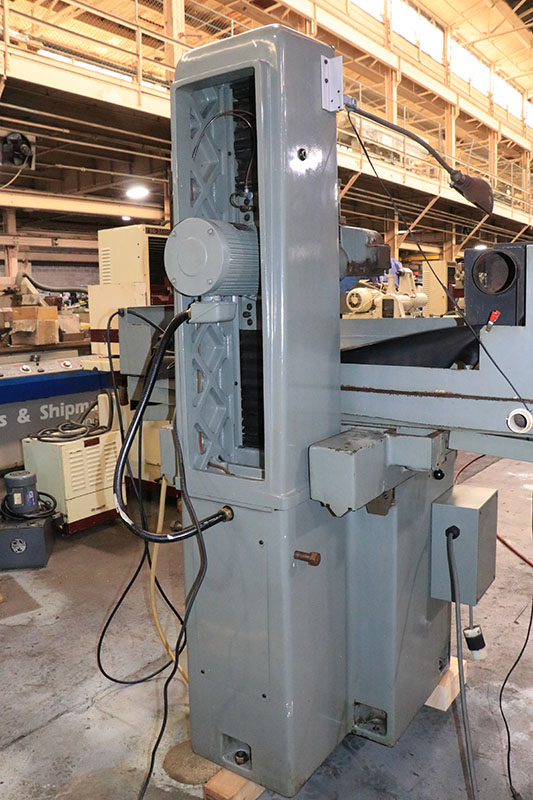

HIGH COLUMN DESIGN, BEAUTIFUL HEAVY CASTING

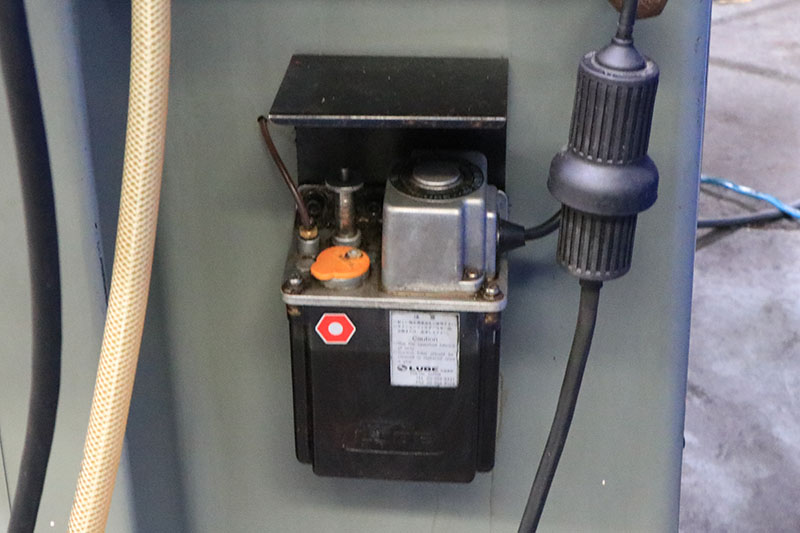

AUTOMATIC ONE SHOT LUBRICATION SYSTEM
1.3 H.P. "SUPER-PRECISION" DIRECT DRIVE SPINDLE,
 3/60/220 VOLTS


EQUIPPED WITH:

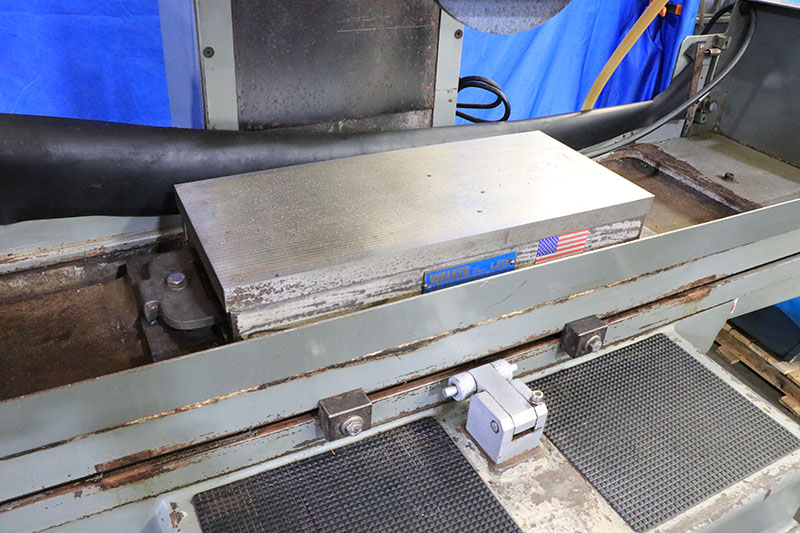

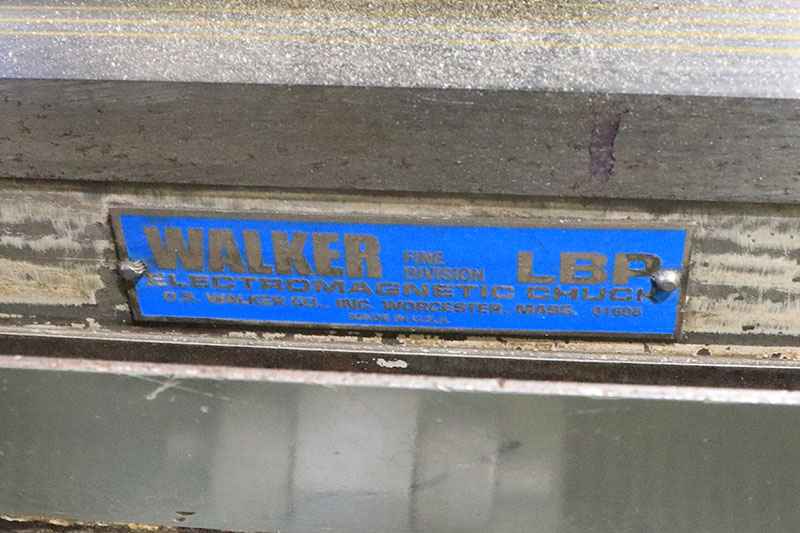

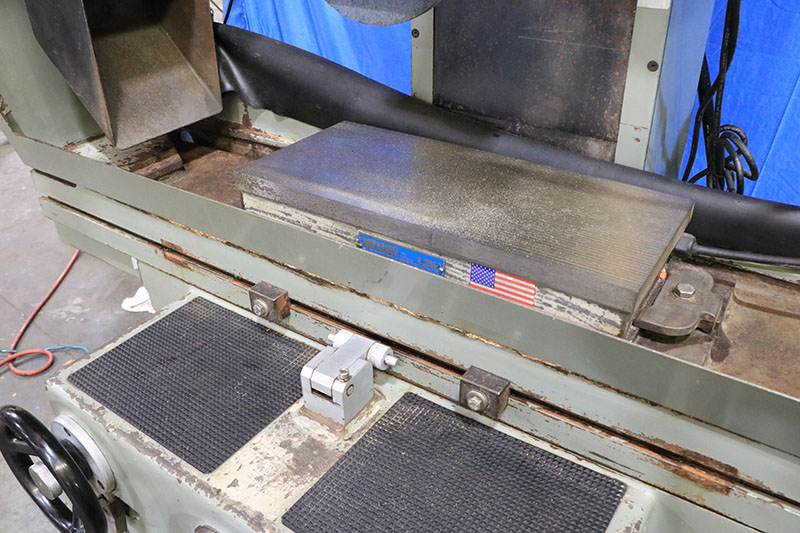

8" X 18" O.S. WALKER "LBP" FINE-DIVISION
  ELECTRO-MAGNETIC CHUCK

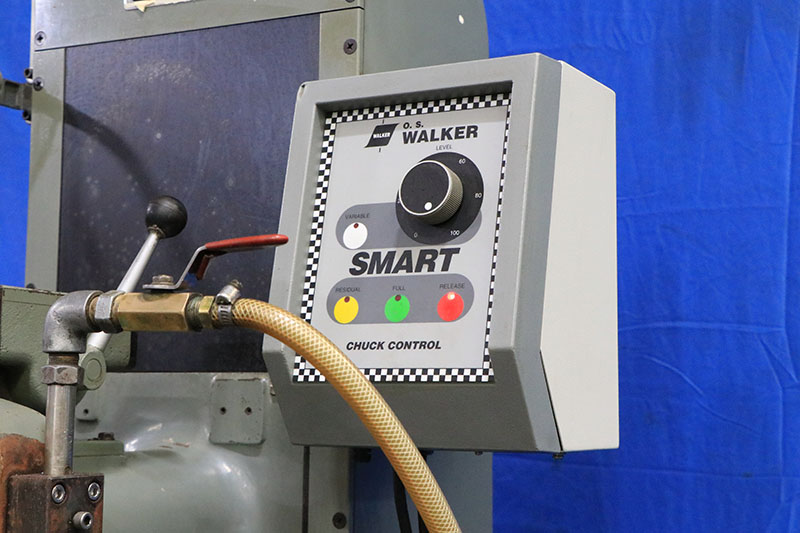

O.S. WALKER "SMART SERIES" VARIABLE HOLD NEUTROFIER CONTROL
COOLANT SYSTEM

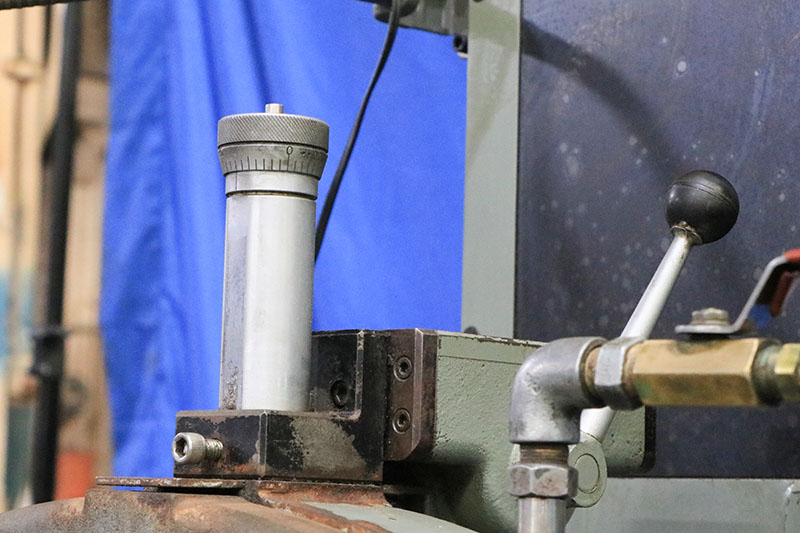

OVER-THE-WHEEL DRESSER WITH MICROMETER ADJUSTMENT
MACHINE IS WIRED FOR  VOLTS/3/60/220 ELECTRICS


** "EXCELLENT" CONDITION & APPEARANCE (ORIGINAL PAINT) **
