Moore R450 CP, REBUILT & RETROFITTED CNC JIG GRINDERS

Price on Request

Make:: Moore

Model:: R450 CP, REBUILT & RETROFITTED

Year:: 2024

Ref #:: 159375

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

Moore Model G-18  CNC Jig Grinder, Serial Number: G3794 ;

Work involved for Remanufacture....
Machine was completely disassembled
All castings were sanded and prepared for painting and painted
3 coats of hard enamel were applied.

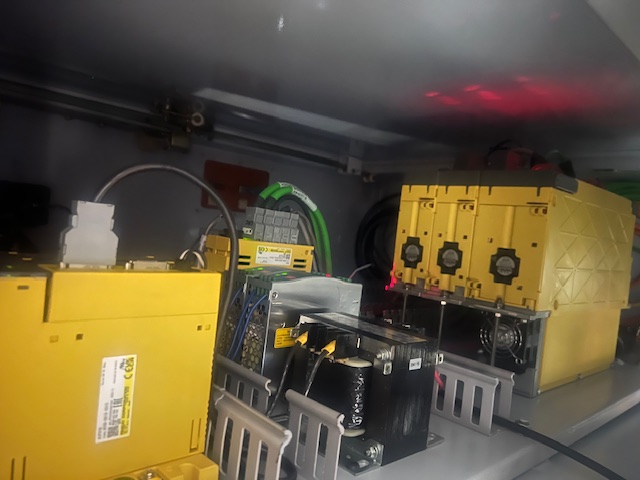

Electrical Cabinet refurbished to install New Fanuc electronics.

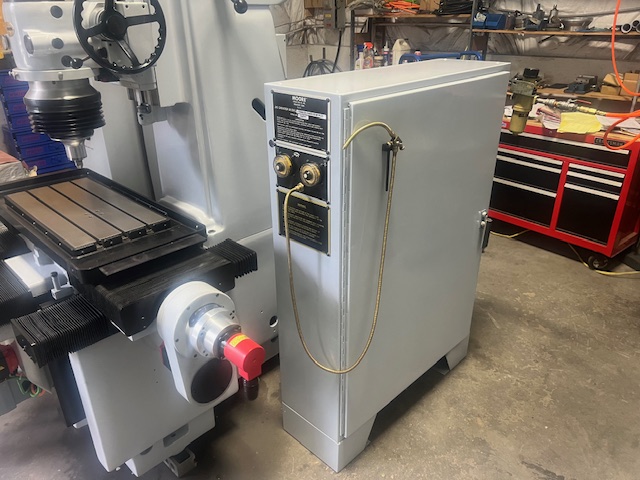

Control console custom built for Fanuc OiMF PLUS Control New side air conditioning unit added to side of cabinet for better cooling and dust control Air /Hydraulic Cabinet have been reconditioned and painted.
All new airlines and fittings in air cabinet.
Screws and nuts have been cleaned and reinstalled with new thrust bearings.

New Fanuc OIMF-PLUS 5 axis control with color touch screen Control options added:
DATA SERVER Option
Plus Control Upgrade. From 4 to 7 axis
BI DIRECTIONAL PITCH COMPENSATION Option U AXIS INTERUPT Option Detachable MPG Option for quick setup and operation Additional 5th axis drive installed Option

Rapid travel Rates X and Y are now 40IPM

Digital Scale Added to Reciprocation.
Separate encoders Added to X and Y For Contour reliability of true position High accuracy Micron Gear Box added to C axis Separate Encoder added to Main shaft for feed back to C axis to assure reliable and accurate C axis rotation and repeatability.

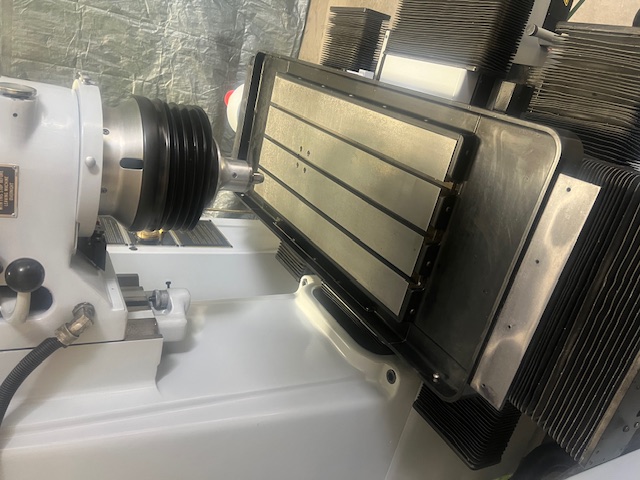

Table and Carriage underside have been diamond honed and reconditioned.
Reciprocation system has been fully rebuilt.

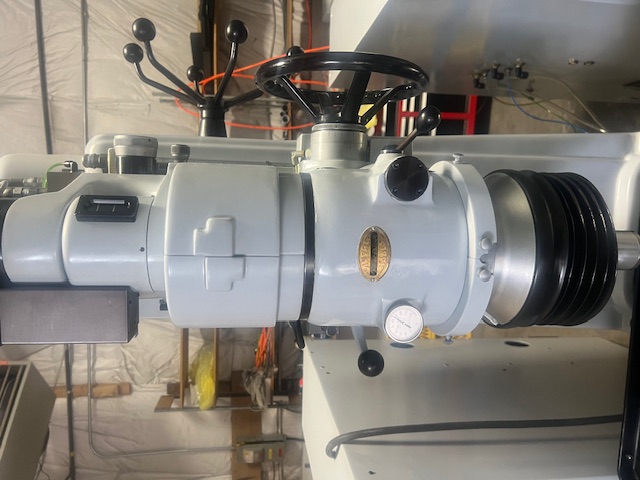

Rebuilt Main Spindle Bar and Sleeve
New Main Spindle Bearings.
Rebuilt Main Yoke Assembly.
Remanufactured U axis slide
New Universal and Pins.
New oil lines installed

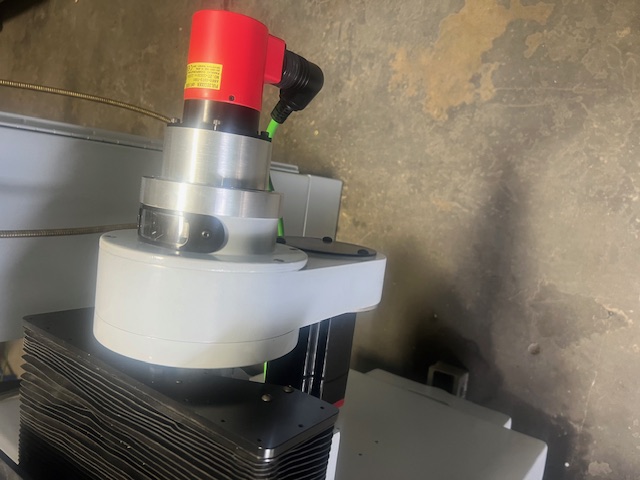

Direct coupled Fanuc motor For C axis. Using anti backlash coupler.
New Fully adjustable swivel hydraulic adjustable pendant arm.
4 Axis or RZ1 Control Drive Ready.
6 and 7 axis capable.
reconditioned accordion way covers. 8 total covers.
High Precision Roller Ways.

RZ1 can be added for  $9,500.00 Machine has 5 drives as built.
Additional drives can be added for 6th or 7th axis POR
2 YEAR FANUC Warranty
