O-M OMEGA 80 CNC VERTICAL BORING MILLS & VERTICAL TURRET LATHES

Price on Request

Make:: O-M

Model:: OMEGA 80

Year:: 2002

Ref #:: 159274

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

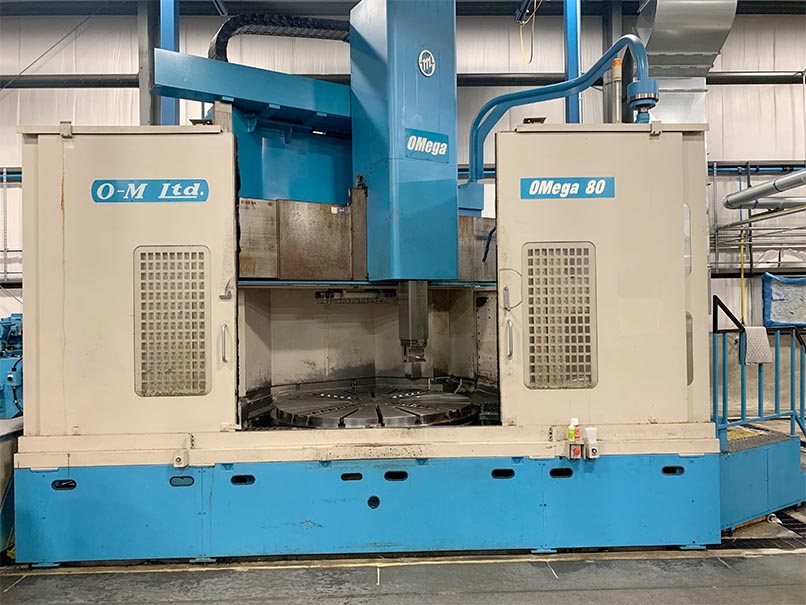

78" O-M CNC VERTICAL TURRET LATHE
MODEL: OMEGA 80, NEW: 2002

TURNING DIAMETER ............ 78 3/4"
SWING ....................... 78 3/4"
TURNING HEIGHT .............. 63"
VERTICAL RAM TRAVEL ......... 35 1/2"
MAXIMUM TORQUE .............. 14,750 LBS.­FT.
HORIZONTAL RAM TRAVEL
FROM PART CENTER: ........... ­4.0” – 61 ¾”
MAXIMUM CUTTING FORCE ....... 7,868 LBS.
TABLE SPEEDS (AUTOMATIC 2) .. 1.6 TO 320 RPM
MAIN MOTOR .................. 75/60 HP
ELECTRICS ................... 208/3/60;; 120 KVA
RAPID TRAVERSE RATES (X/Z) .. 472/393 IPM
MAX WEIGHT OF WORKPIECE .....  22,000 LBS.
NET WEIGHT OF THE MACHINE ... 41,890 LBS.

EQUIPPED WITH:
ADJUSTABLE CROSS RAIL TYPE, WITH FIVE (5) AUTOMATIC CROSS RAIL POSITIONS
FANUC SYSTEM CNC CONTROLLER
(16) SIXTEEN STATION AUTOMATIC TOOL CHANGER SYSTEM
8 ¼” (210MM) SQUARE STEEL FORGED RAM WITH 35 1/2” (900MM) STROKE
63" DIAMETER 4-­JAW MANUAL IND. CHUCK TABLE WITH TOP JAWS
75 HORSEPOWER AC MAIN DRIVE MOTOR
TELESCOPIC STEEL COVERS FOR CROSS RAIL
COOLANT SYSTEM AND COOLANT THROUGH THE RAM
CHIP COVER / SPLASH GUARDS
