OGP FOCUS 300, 2004, 10X/20X/50X LENSES, PWR TBL, COMPARATORS

Price on Request

Make:: OGP

Model:: FOCUS 300, 2004, 10X/20X/50X LENSES, PWR TBL,

Year:: 2004

Ref #:: 174539

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

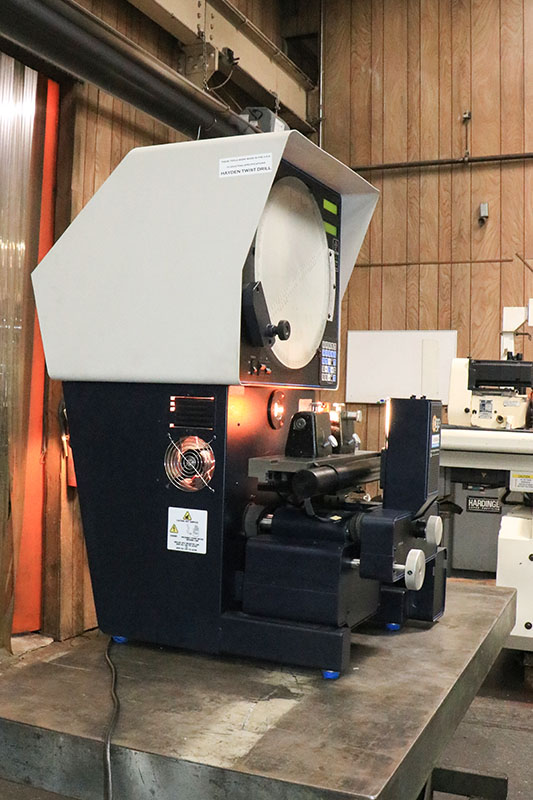

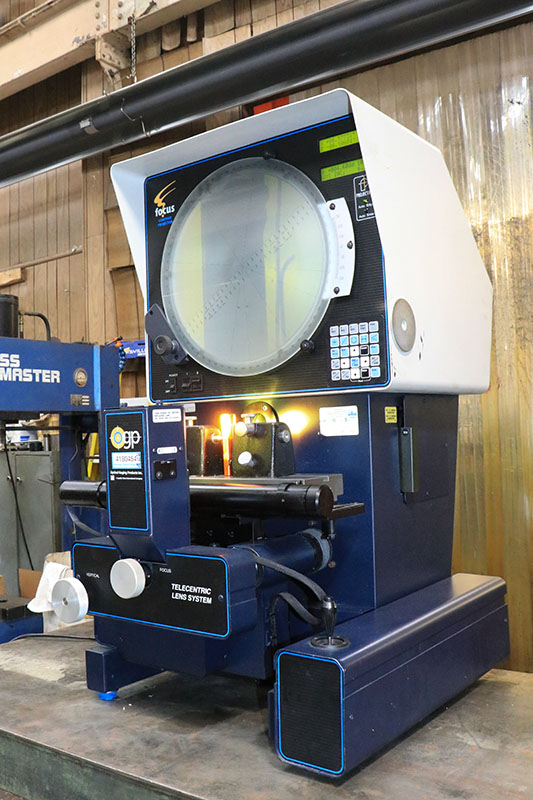

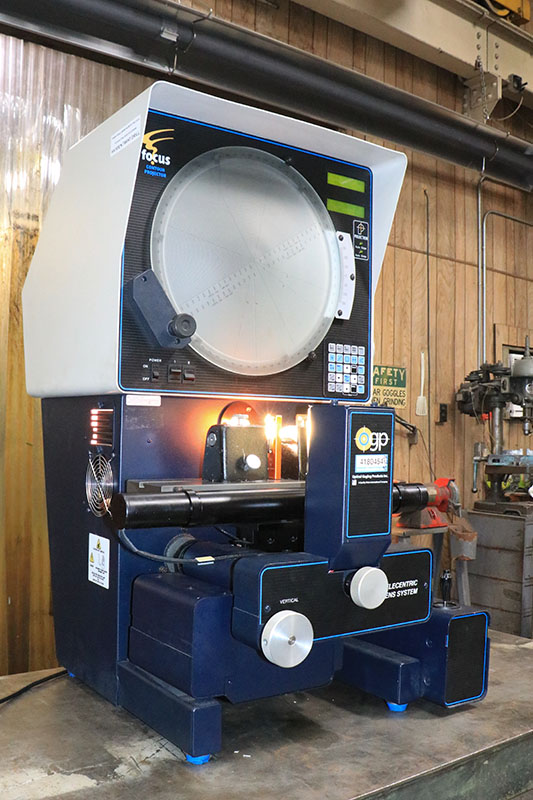

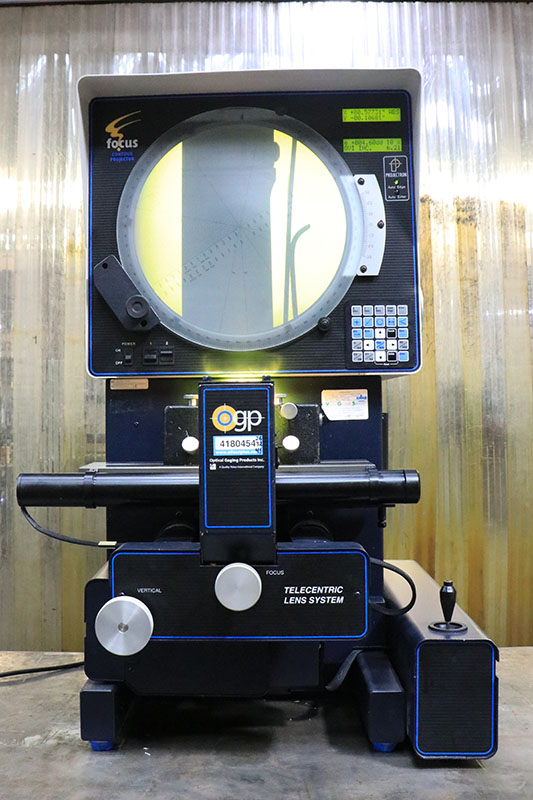

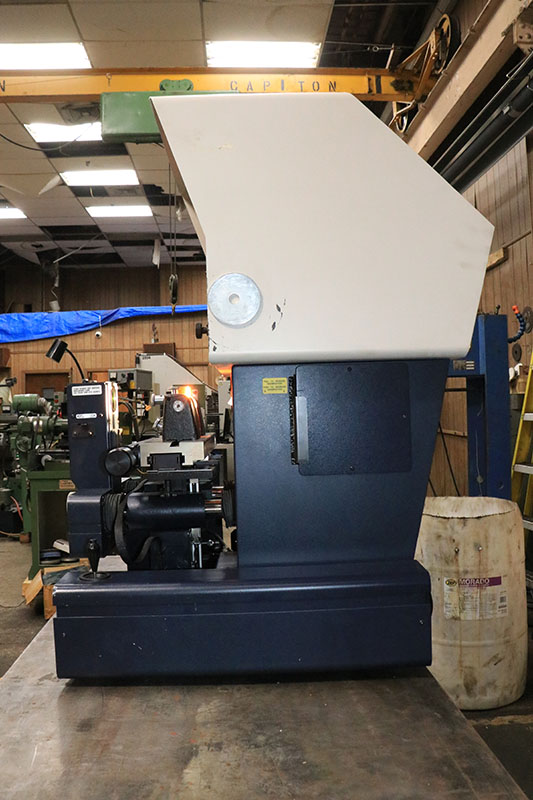

     14" OGP (OPTICAL GAGING PRODUCTS)
   OPTICAL COMPARATOR WITH OGP DIGITAL READOUT
  WITH OGP PROGRAMMABLE GEOMETRIC FUNCTIONS
   & "PROJECTRON" INTERNAL EDGE DETECTION

** POWER TABLE WITH JOYSTICK CONTROL **

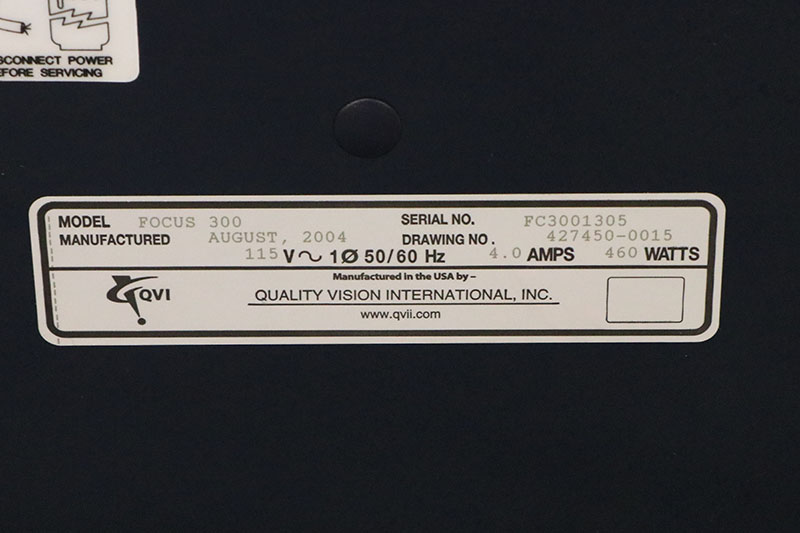

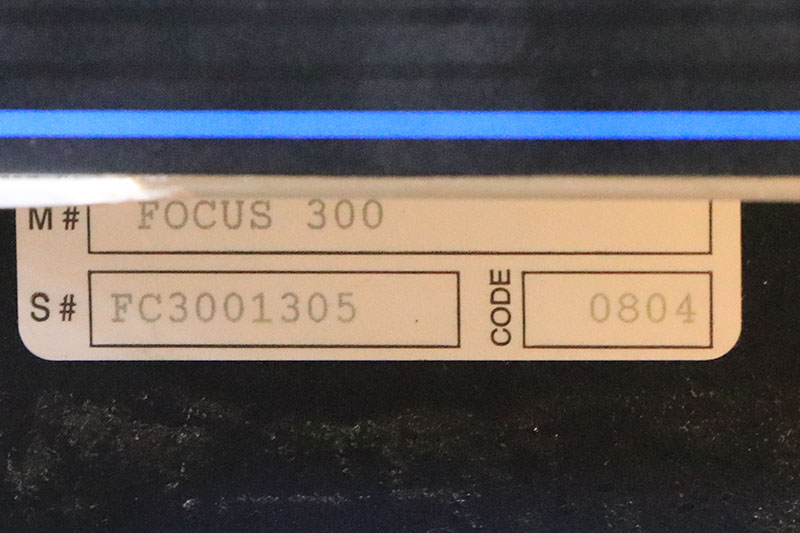

MODEL: FOCUS 300      S/N: FC3001305     NEW: AUGUST, 2004


SPECIFICATIONS:
SCREEN DIAMETER ..................... 14"
SIZE OF MEASURING TABLE ............. 17-3/4" x 4-1/4"
MEASURING CAPACITY
- LONGITUDINAL TABLE TRAVEL ......... 8"
- VERTICAL TABLE TRAVEL ............. 5"
ANGULAR MEASURING CAPACITY .......... 360 DEG. CHART ROTATION
CROSS TRAVEL FOR FOCUS .............. 1.5"
HELIX ADJUSTMENT - TABLE SWIVELS .... +/- 6.5 DEGREES
THROAT CLEARANCE .................... 9.8"
LOAD CAPACITY ON TABLE .............. 45 LBS.

MACHNE WEIGHT  ...................... 335 LBS. APPROX
APPROX. DIMS. ....................... 33" x 24" x 41"

CALIBRATED LAST ON 02/27/2020:
VISUAL GAGING SERVICES
JEFF (SERVICE ENGINEER)
(716) 628-5671

MACHINE'S DESIGN FEATURES:

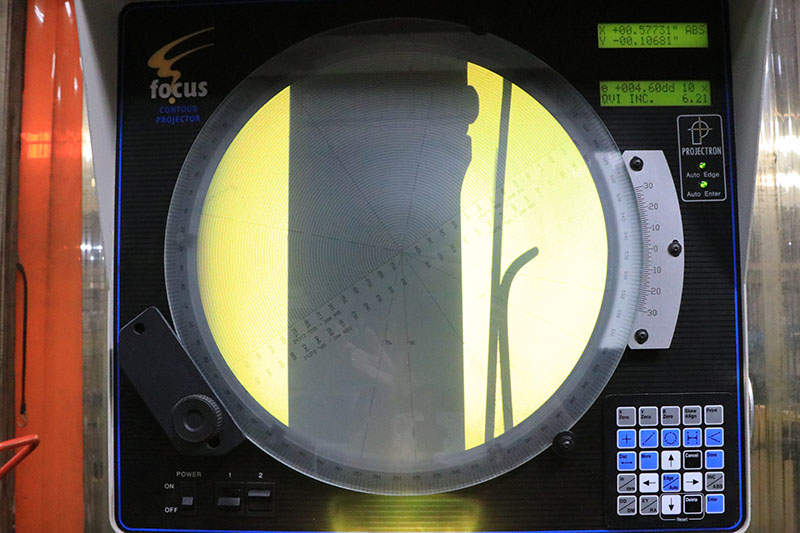

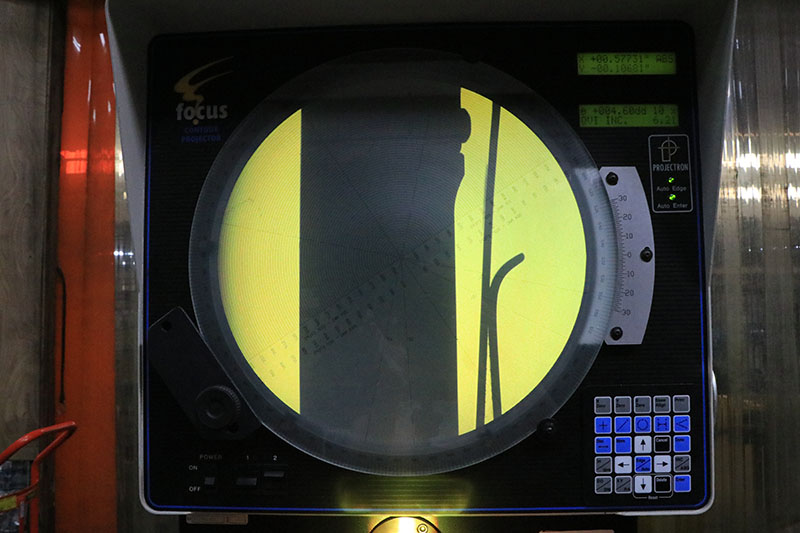

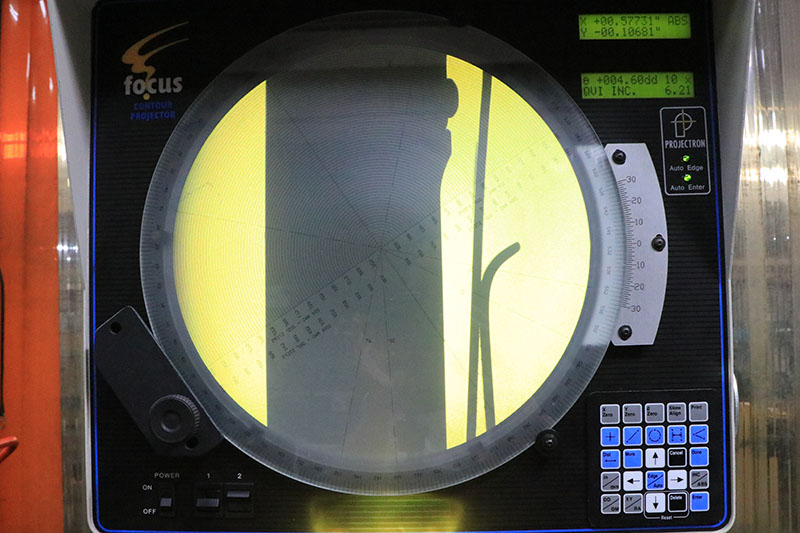

FULL 14" VIEWING AREA

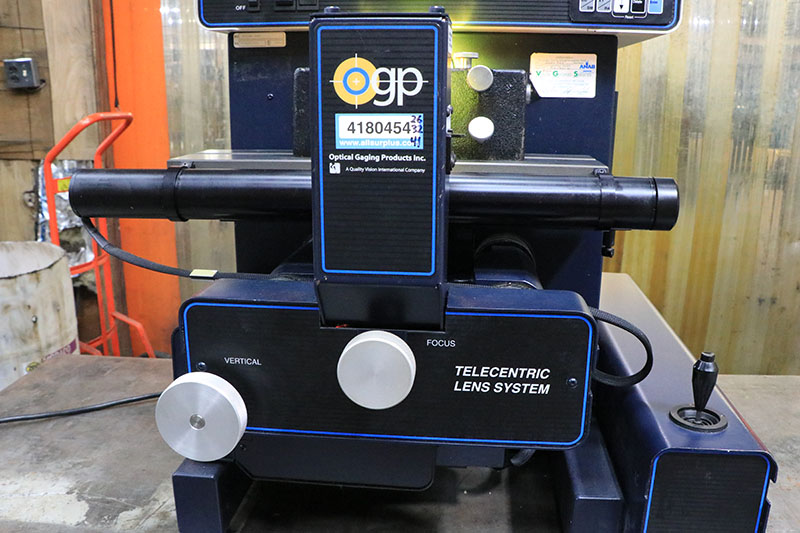

HORIZONTAL TELECENTRIC OPTICS, WITH CORRECT IMAGE
ALL-STEEL DESIGN
HEAVY DUTY CAST WORKTABLE WITH HARDCOAT ANODIZED ALUMINUM,
 WITH FIXTURING SLOT

EQUIPPED WITH:

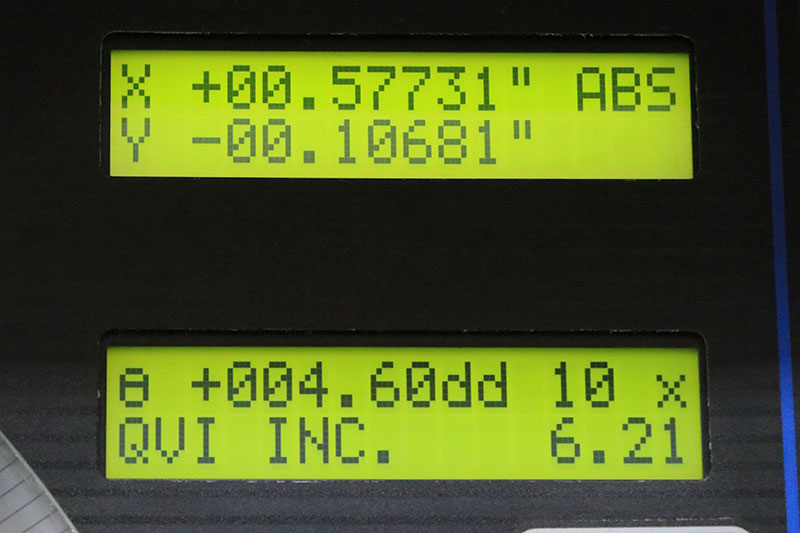

OGP DIGITAL READOUT WITH PROGRAMMABLE GEOMTERIC FUNCTIONS

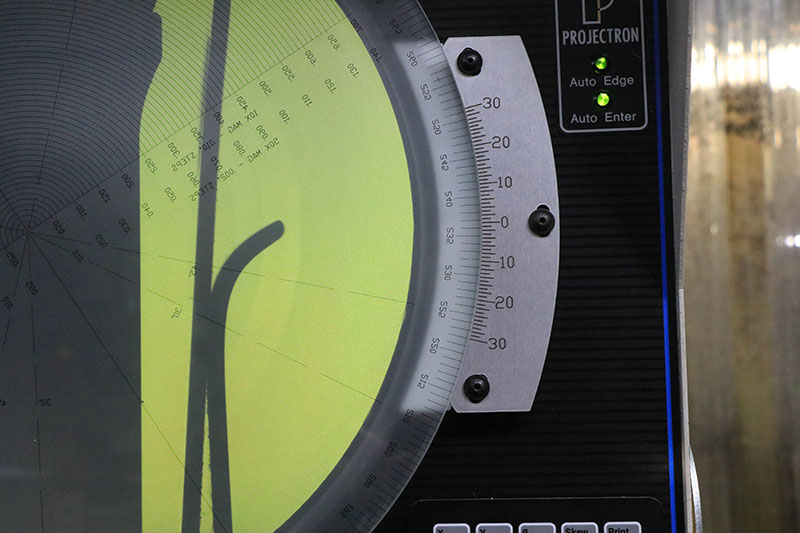

DIGITAL READOUT DISPLAY "Q" AXIS - FOR THE PROTRACTOR SCREEN
OGP COMPUTATIONAL 2-AXIS DIGITAL READOUT SYSTEM

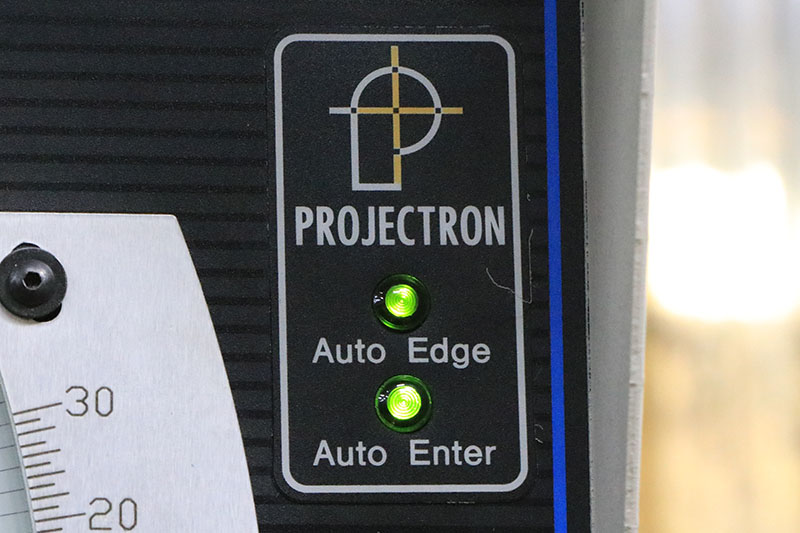

  WITH "PROJECTRON" INTERNAL OPTICAL EDGE DETECTION

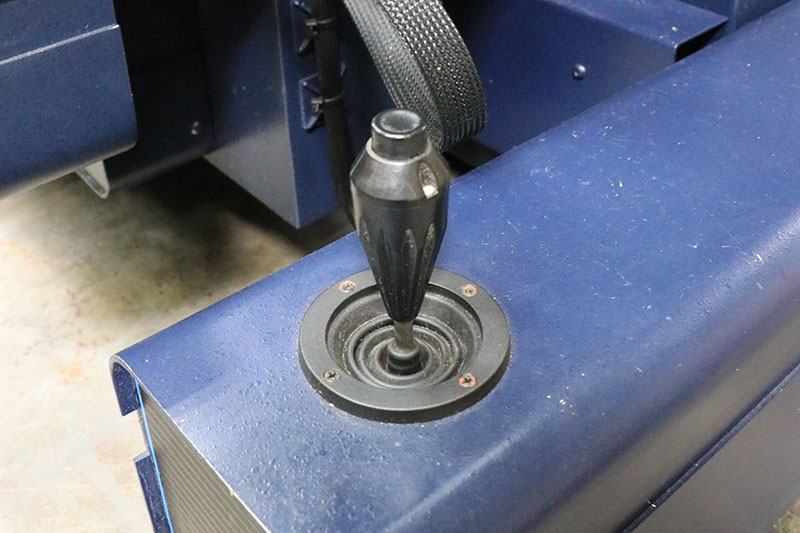

XY MOTION:  MOTORIZED, WITH VARIABLE SPEED JOYSTICK
  AND FINE ADJUSTMENT KNOBS IN X AND Y

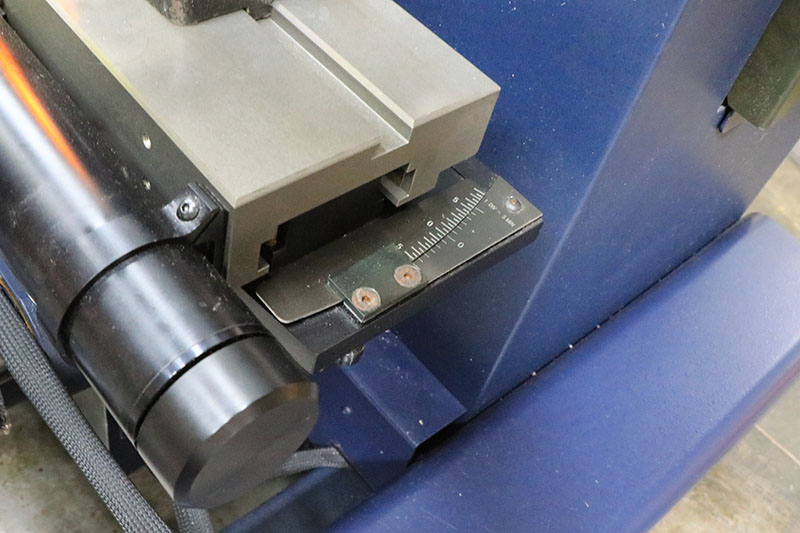

TABLE HELIX, +/- 6.5°
GLASS CHART

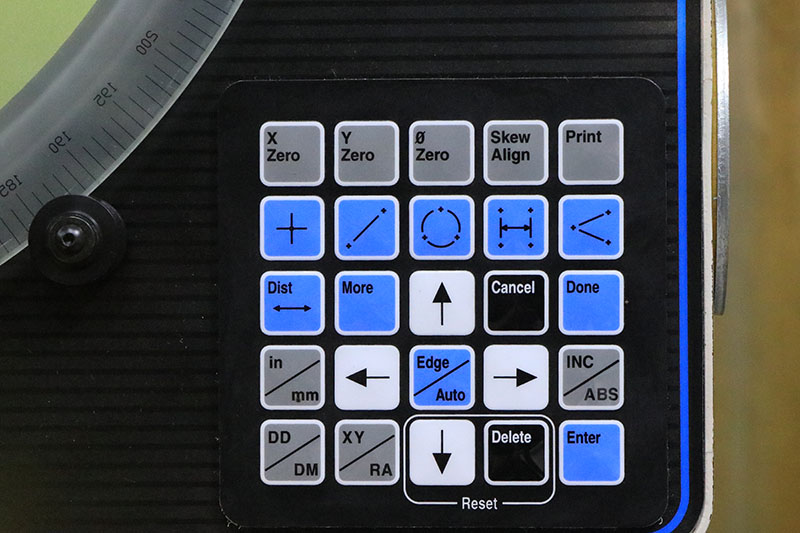

PUSHBUTTON MEMBRANE CONTROL PANEL

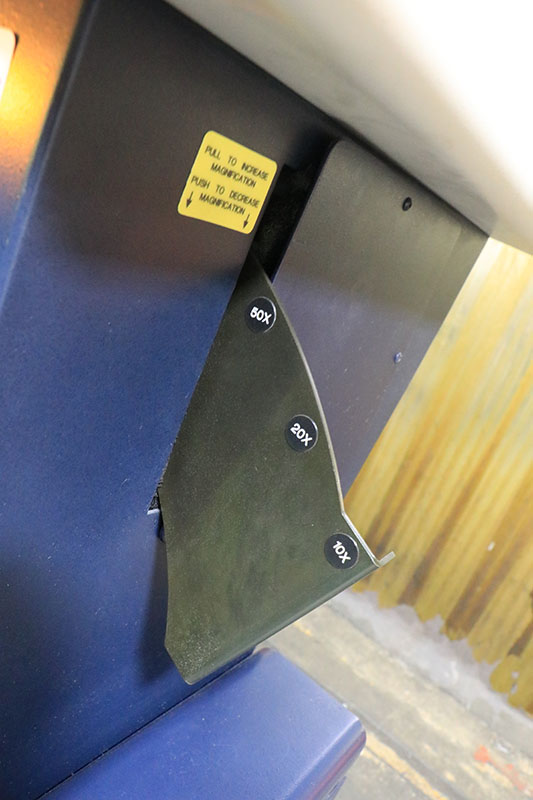

THREE POSITION MANUAL LENS TURRET
10X, 20X & 50X LENSES
ELECTRICAL 1/60/115 VOLTS AC, 4 AMPS

NOTE:CENTERS SHOW IN PHOTOS ARE NOT AVAILABLE

**  EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
