Okamoto ACC-1632DX, 2001, PROG. AUTO IDF, 3X AUTO FEEDS, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Okamoto

Model:: ACC-1632DX, 2001, PROG. AUTO IDF, 3X AUTO FEEDS,

Year:: 2001

Ref #:: 177848

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

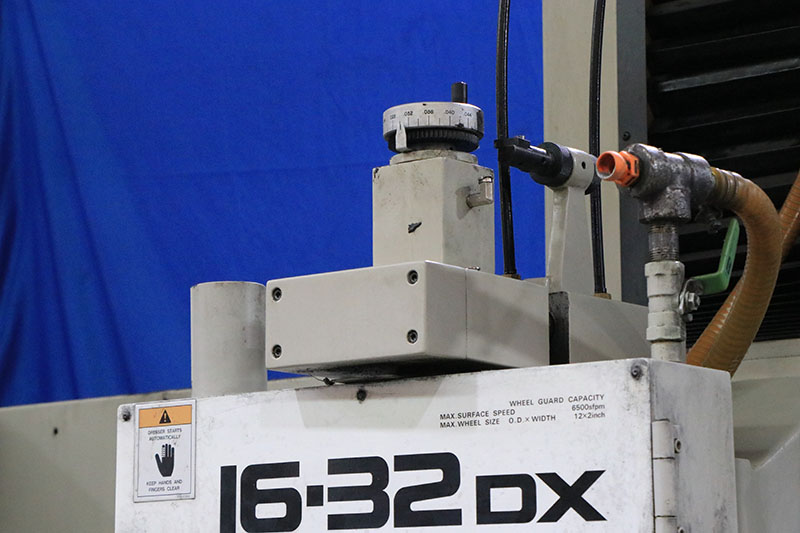

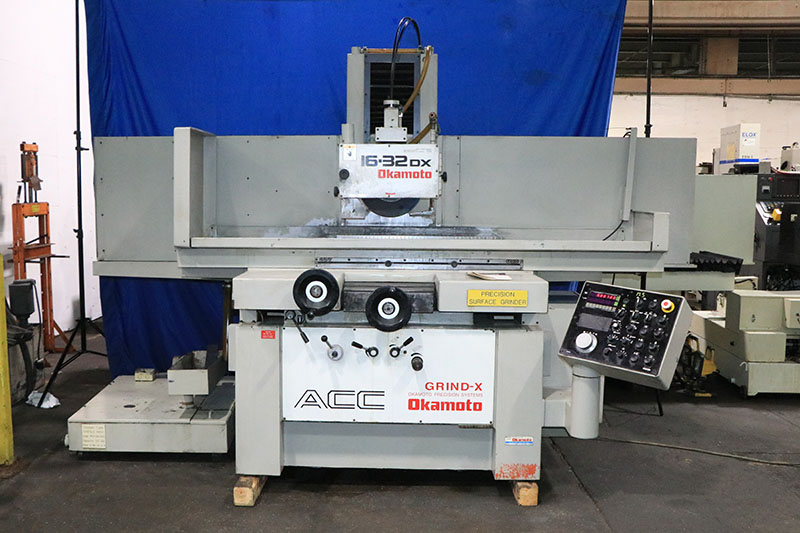

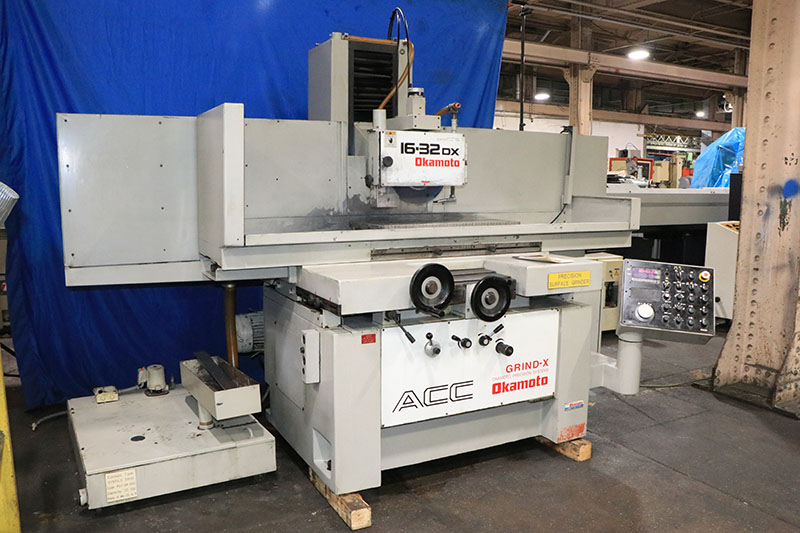

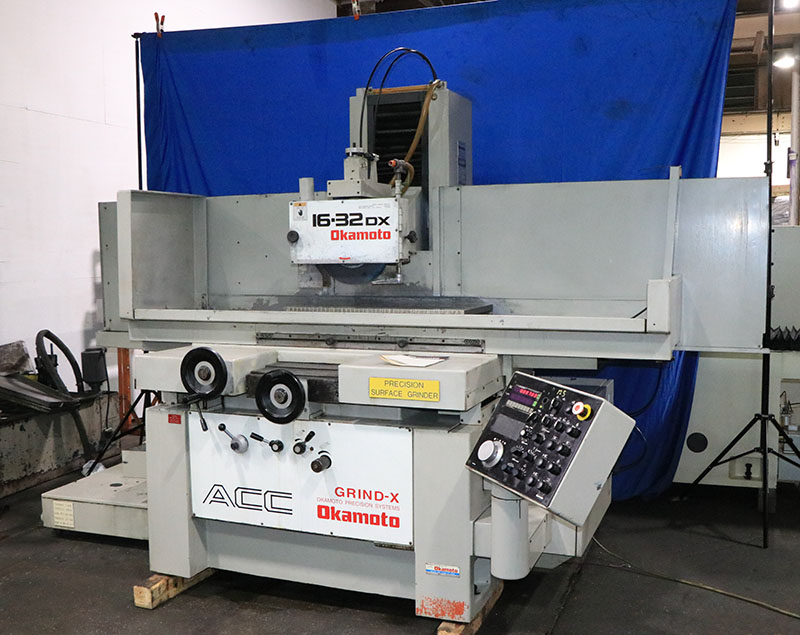

       16" X 32" OKAMOTO "HIGH-PRECISION"
     3-AXIS AUTOMATIC FEEDS SURFACE GRINDER
 ** "DX" PROGRAMMABLE AUTO INCREMENTAL DOWNFEED **

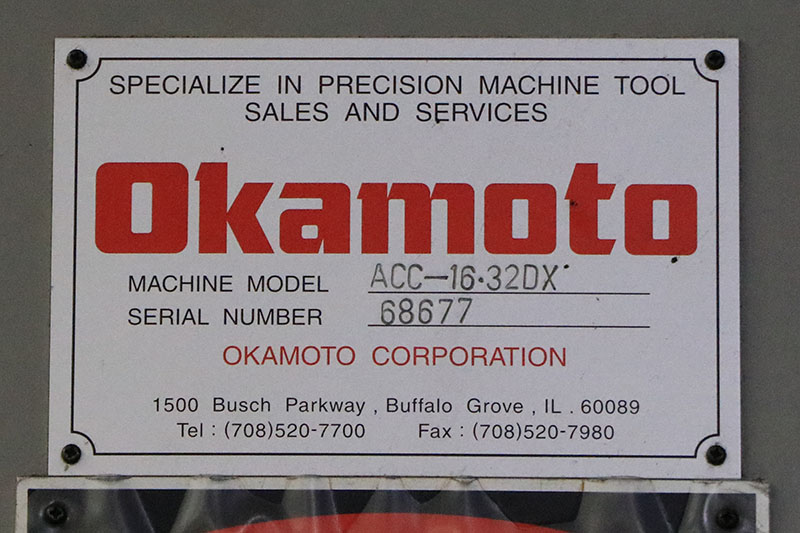

MODEL: ACC-1632DX      S/N: 68677      NEW: 2001

NOMINAL GRINDING CAPACITY .................. 16" x 32"
MAXIMUM HEIGHT UNDER STD. 12" WHEEL
  TO TABLE SURFACE ......................... 21.5"
TABLE SPEED, INFINITELY VARIABLE ........... UP TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 38"
AUTO CROSS FEED INCREMENT .................. 0.002" TO .80"
AUTO CONTINOUS CROSSFEED ................... 4' TO 40' FPM
CROSSFEED, MANUAL, HAND FEED PER REV. ...... 0.25"
                   GRAD. OF HANDWHEEL ...... 0.001"
MAX. CROSSFEED, MANUAL ..................... 18"
AUTO INCREMENTAL DOWNFEED INCREMENTS ... 0.00005" TO .0015"
POWER RAPID WHEEL POSITIONING RATE ......... 16" IPM
SPINDLE MOTOR .............................. 5 H.P.

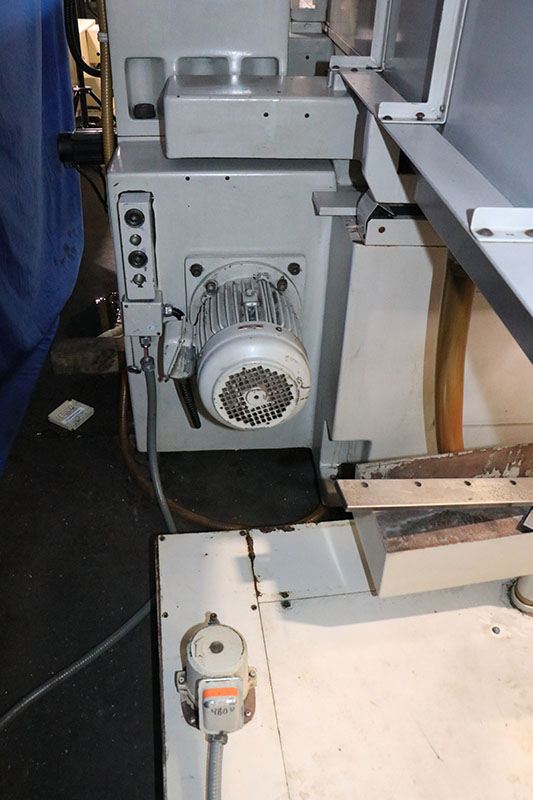

HYDRAULIC PUMP MOTOR ....................... 3 H.P.
VERTICAL RAPID FEED & DOWNFEED MOTOR ......  0.5 H.P.

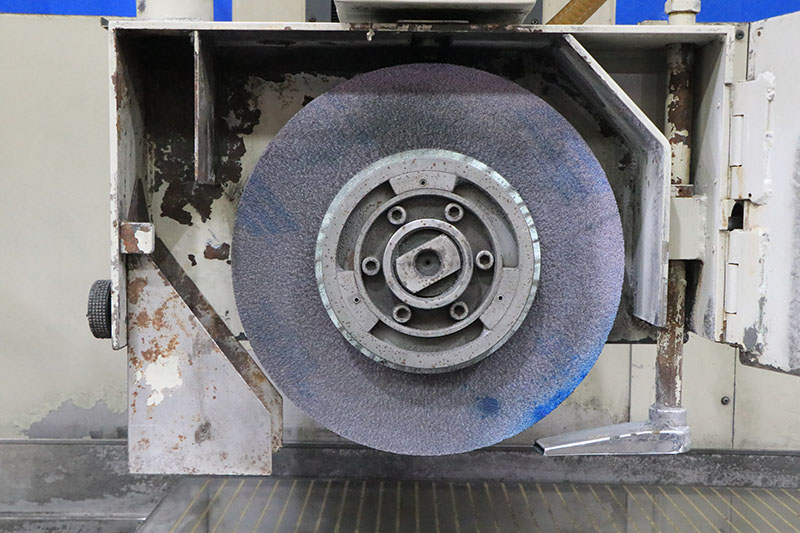

WHEEL SIZE ............................. 12" X 1.5" X 5"
WHEEL SPEED ................................ 6,500 SFPM
GRINDING WHEEL SPEED ....................... 1,800 RPM

APPROX. MACHINE WEIGHT ..................... 8,800 LBS.
MACHINE FLOOR SPACE (L x W x H)......... 132" x 87" x 82"

 MACHINE FEATURES:
HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

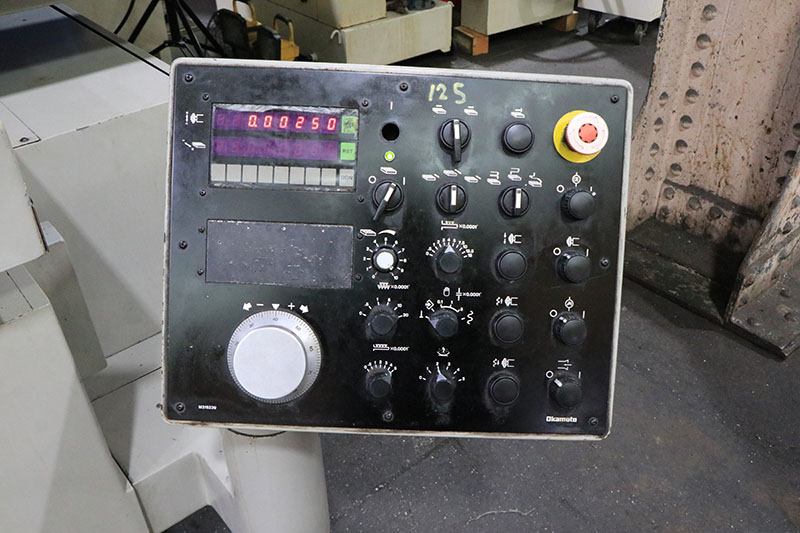

"DX" PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:
-SERVO DRIVEN DOWNFEED
-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE
  OPERATIONS
-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS
-DIGITAL DISPLAY FOR VERTICAL AXIS
-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT
  COMPLETION OF GRIND CYCLE
-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT
  W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"
-POWER RAPID WHEEL POSITIONING
-WHEEL RETRACTION

 EQUIPPED WITH:

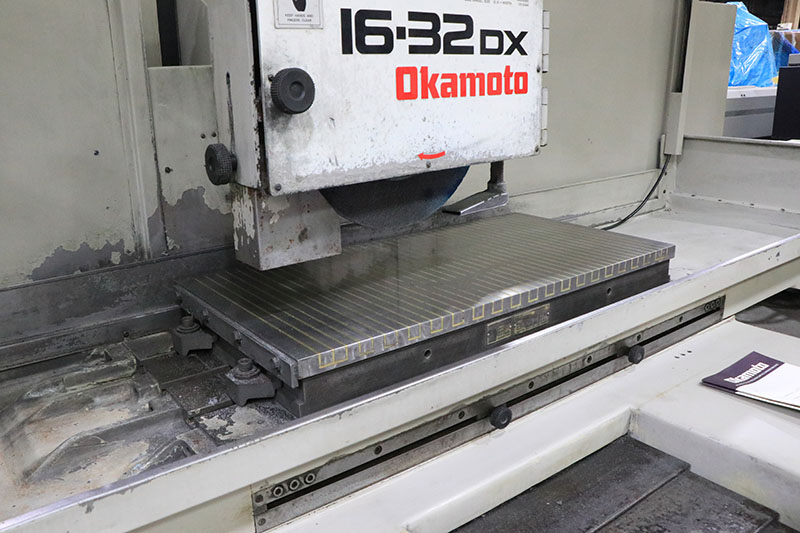

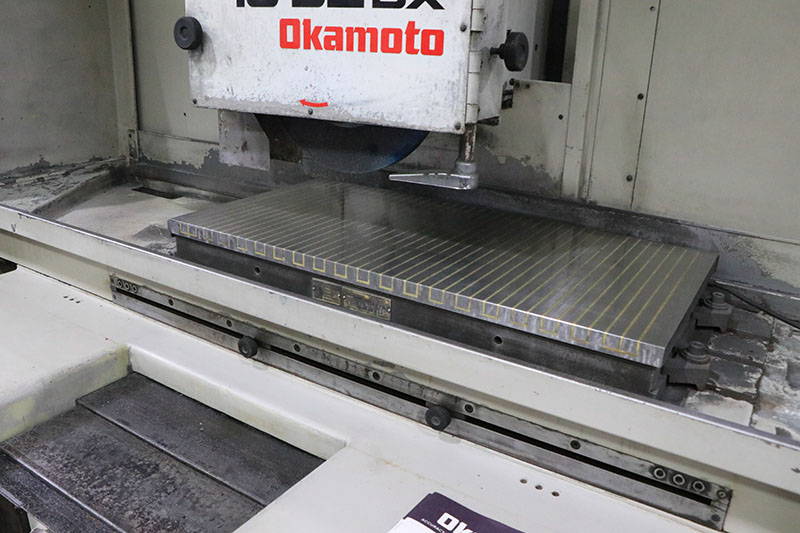

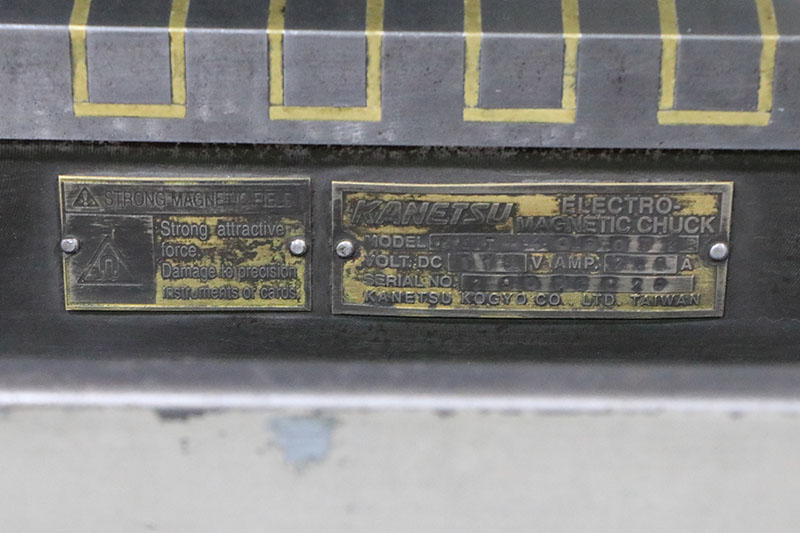

16" X 32" STD. POLE CROSS PATTERN, ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD CHUCK CONTROL

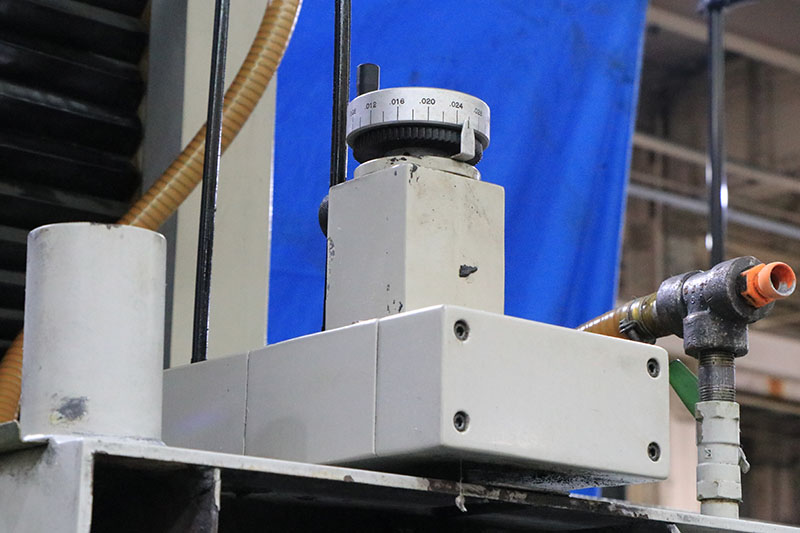

POWER OVER-THE-WHEEL DRESSER WITH MICROMETER ADJUSTMENT

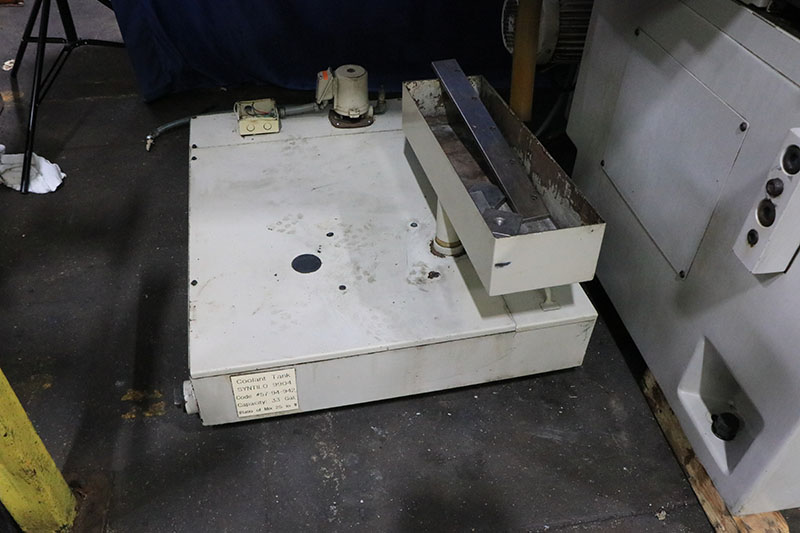

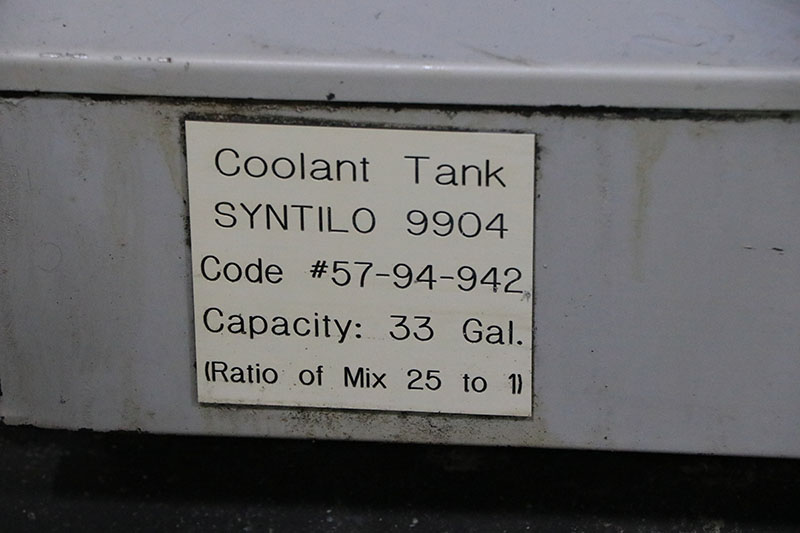

COOLANT SYSTEM, LOW PROFILE

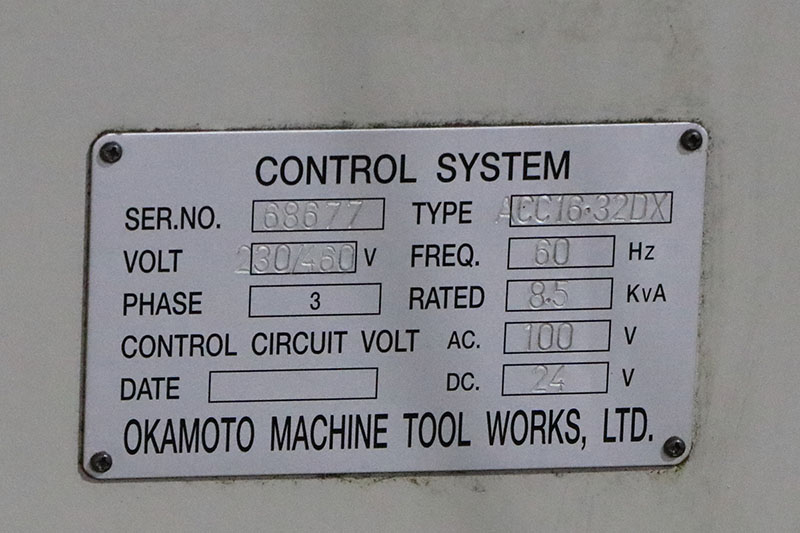

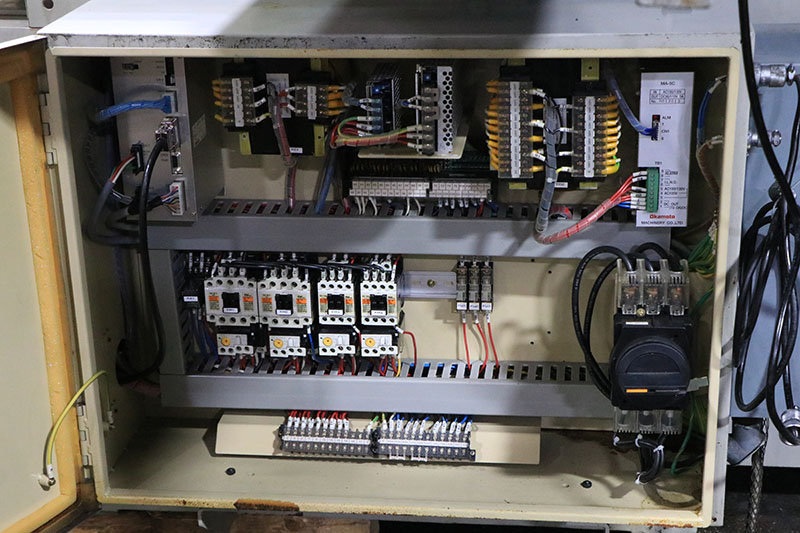

3/60/230-460 VOLT ELECTRICS, RATED 8.5 KVA
WIRED PRESENTLY FOR 3/60/460 VOLTS


** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
