Okuma MULTUS B550W/2000 CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: MULTUS B550W/2000

Year:: 2017

Ref #:: 174625

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

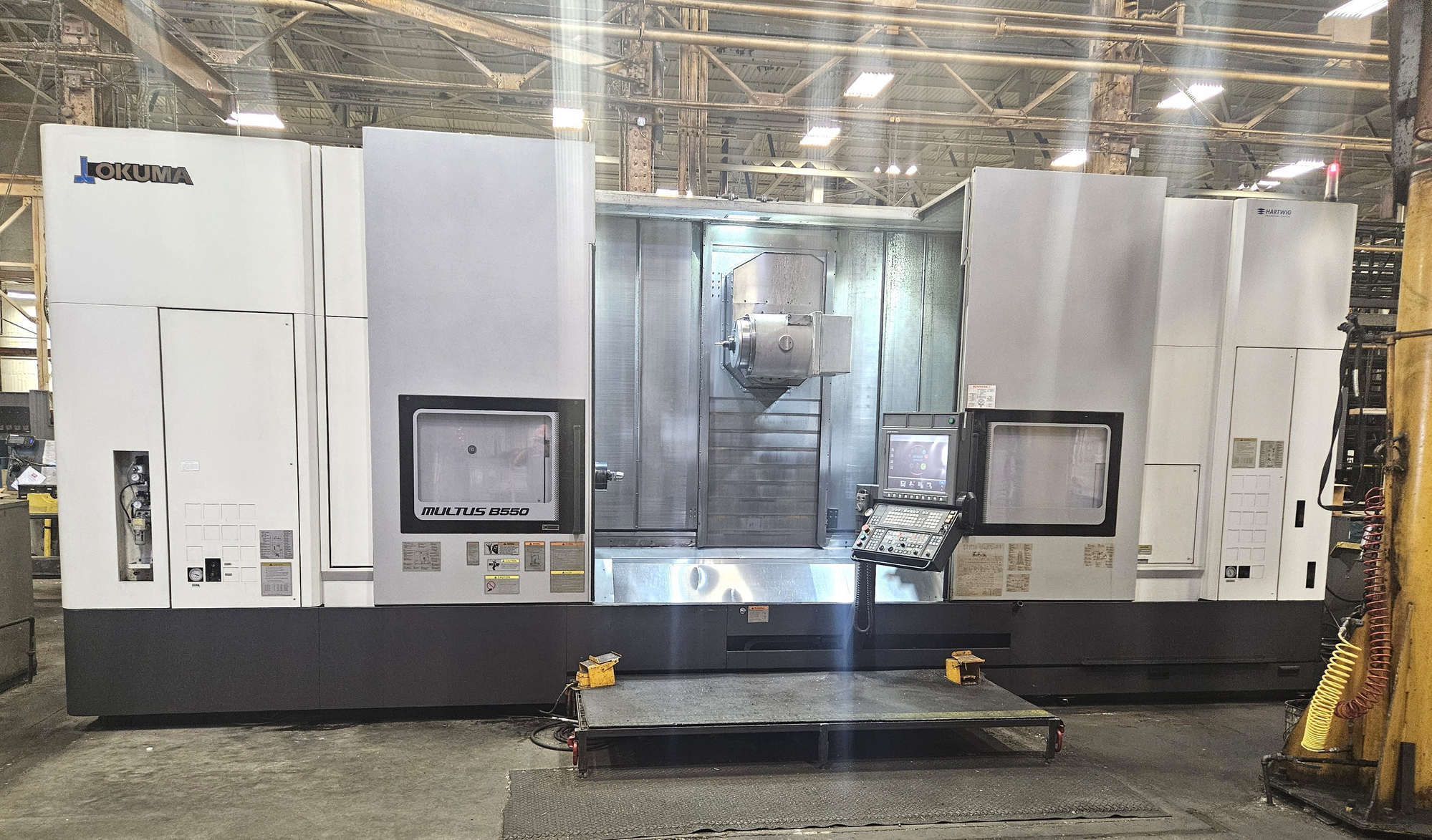

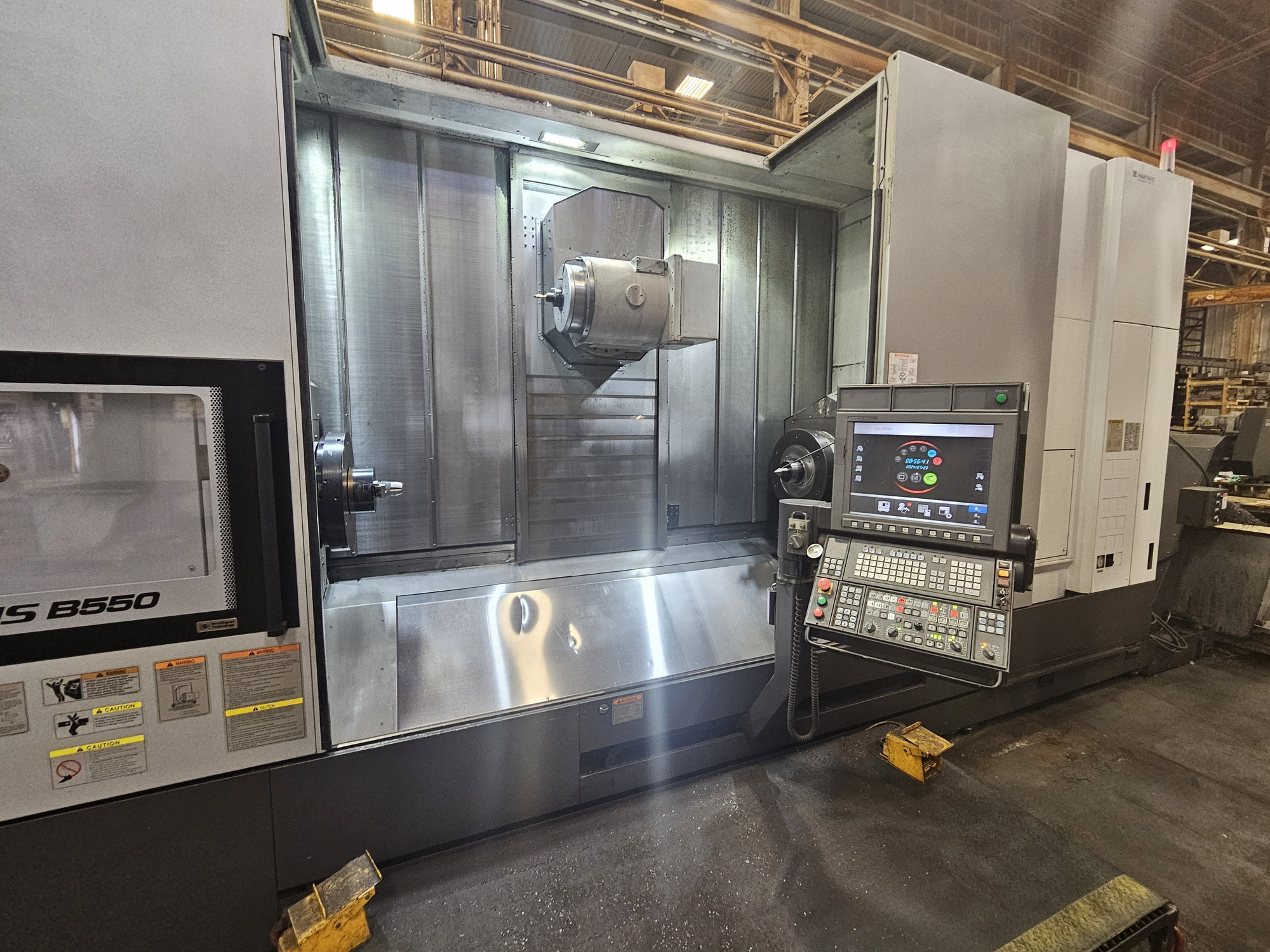

OKUMA MULTUS B550-W/2000 MULTIAXIS CNC TURNING/MILLING CENTER
NEW: 2017

DESCRIPTION:
OKUMA MULTUS B550, equipped with B-axis head, is a multifunction turning center that includes left and right spindles, a milling spindle, and an automatic tool changer. The MULTUS 550 has a broad scope of machining functions and is the embodiment of power, speed, and process flexibility. Complete the work in one setup and with tools to spare in the ATC.

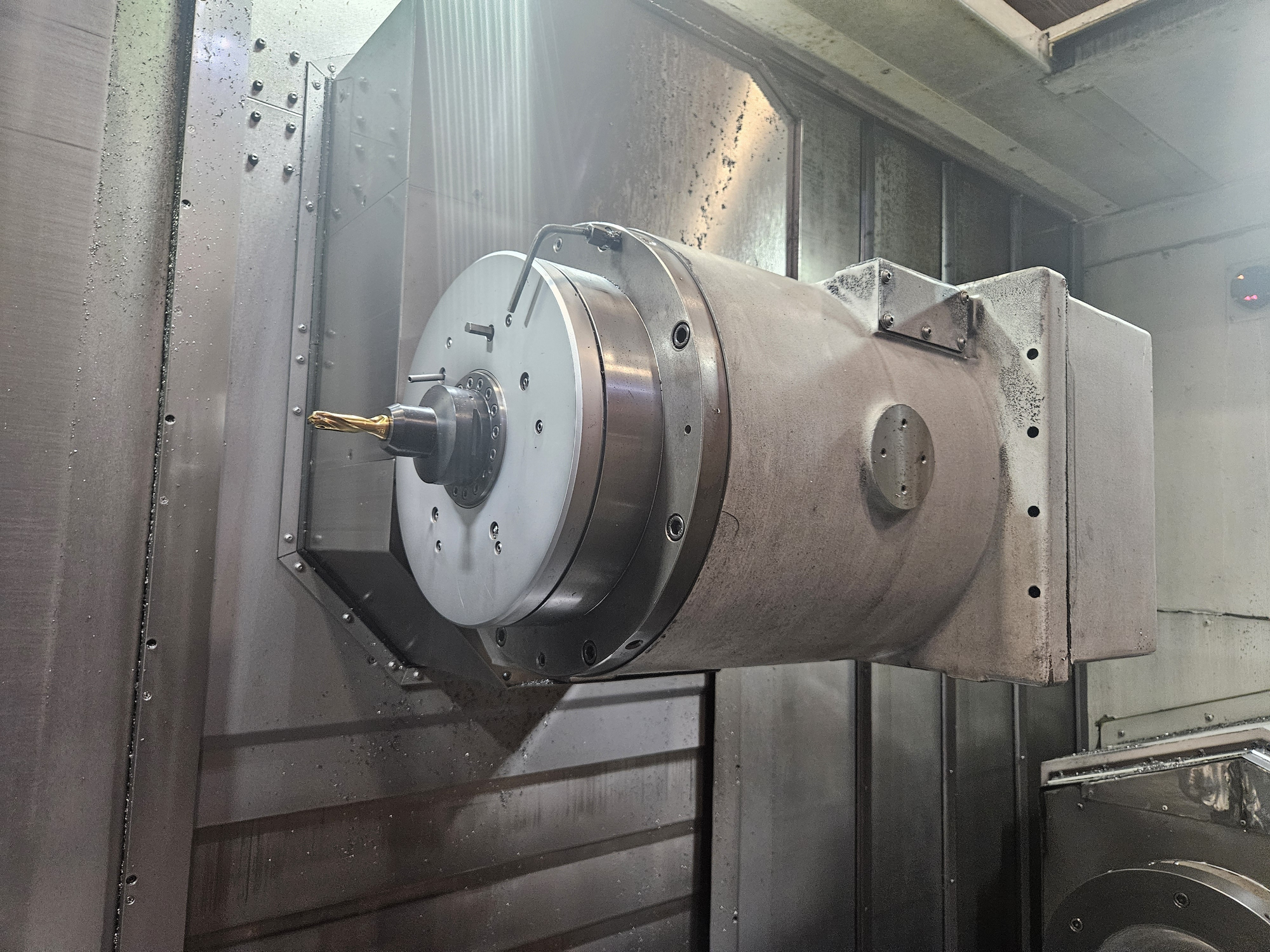

The MULTUS B550 has a 240° B-axis range with 10,000 rpm milling spindle with dual function (L/M). The standard dual function spindle head utilizes CAPTO C8 tooling and has a 50/30 hp VAC milling motor spindle . 80 tools available via the ATC . The turret has a 0.001-degree B-axis and traveling column Y-axis for machining flexibility.



SPECIFICATIONS:

Capacity:
Swing Over Saddle 32.68"
Distance Between Centers 100.16"
Max Machining Diameter 32.68"
X-Axis 36.42"
Z-Axis 87.2"
Y-Axis 10.24"
W-Axis 82.68"
C-Axis 360 (Min Controlled Angle 0.001 Degree)
B-Axis  -30 to +210 Degree (0.001 Controlled)

Spindle:
Spindle Speed 30 to 3,000 RPM
Spindle Motor 40/50 HP

Opposing Spindle:
Speed Range 30 to 3,000 RPM
Spindle Motor 40/50 HP

Turret:
Speed Range 40 to 10,000 RPM
Milling Tool Motor 30/40/50 HP



EQUIPPED WITH:

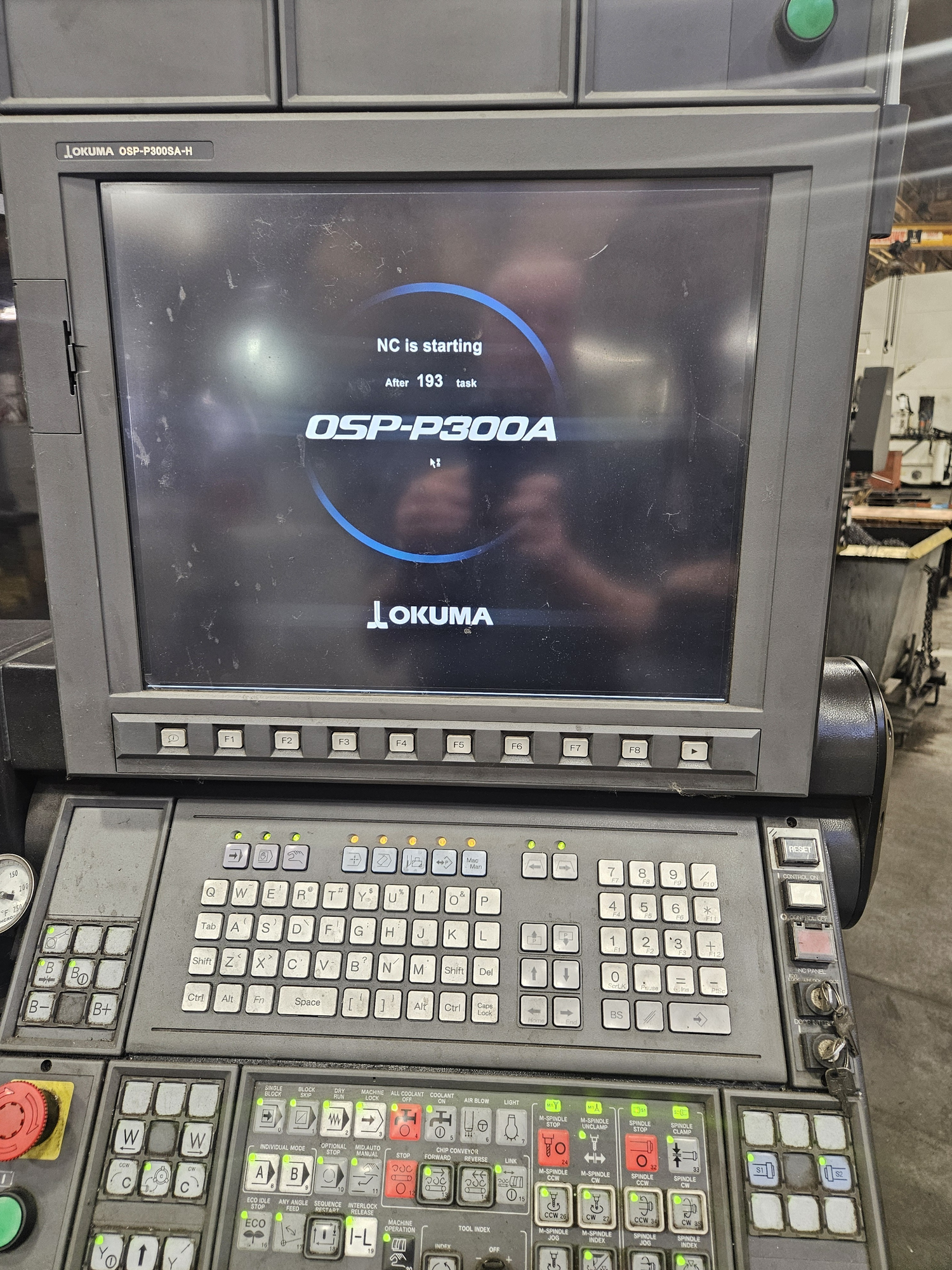

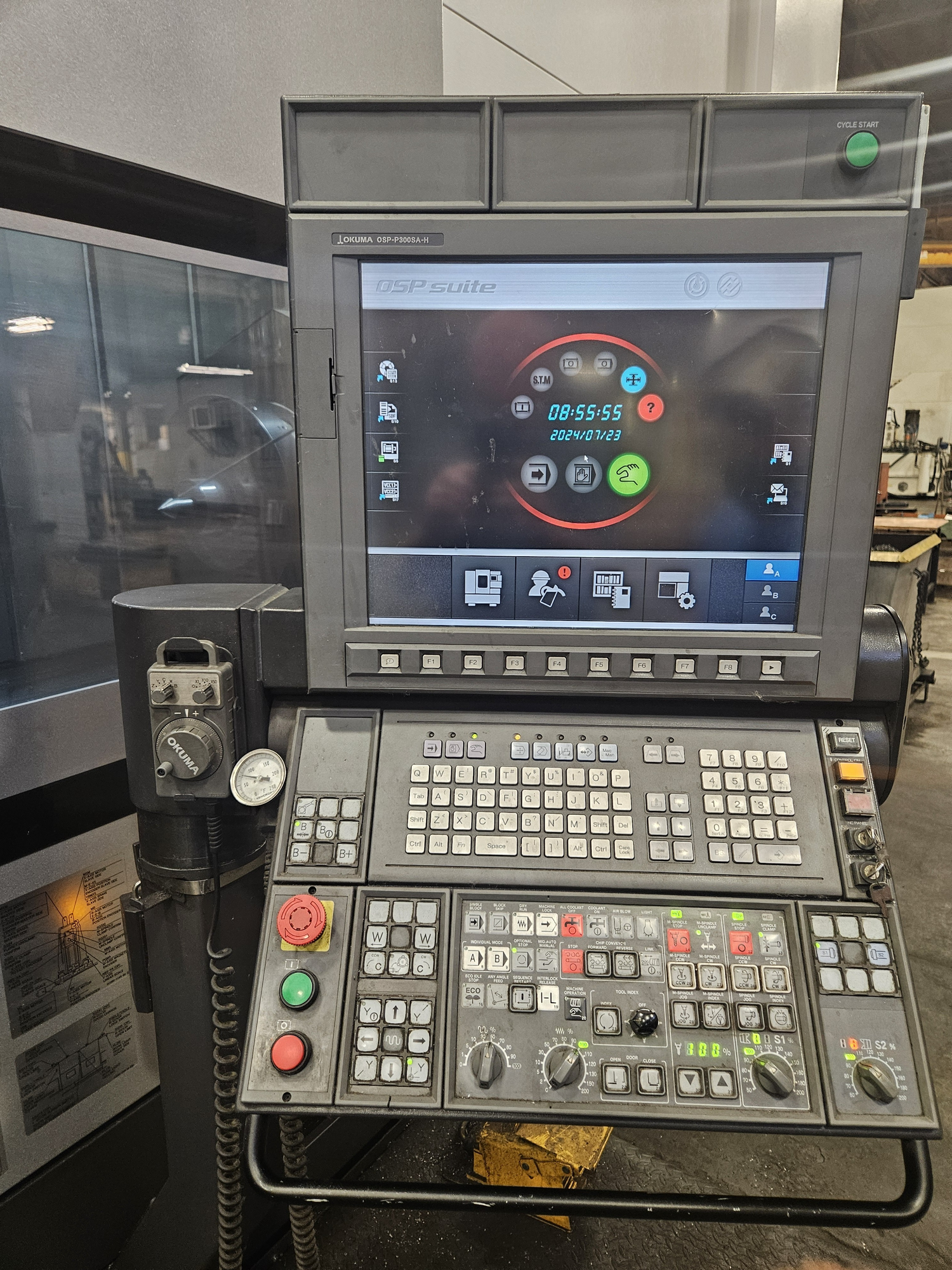

Okuma OSP P3000 SA-H 5-Axis CNC Control

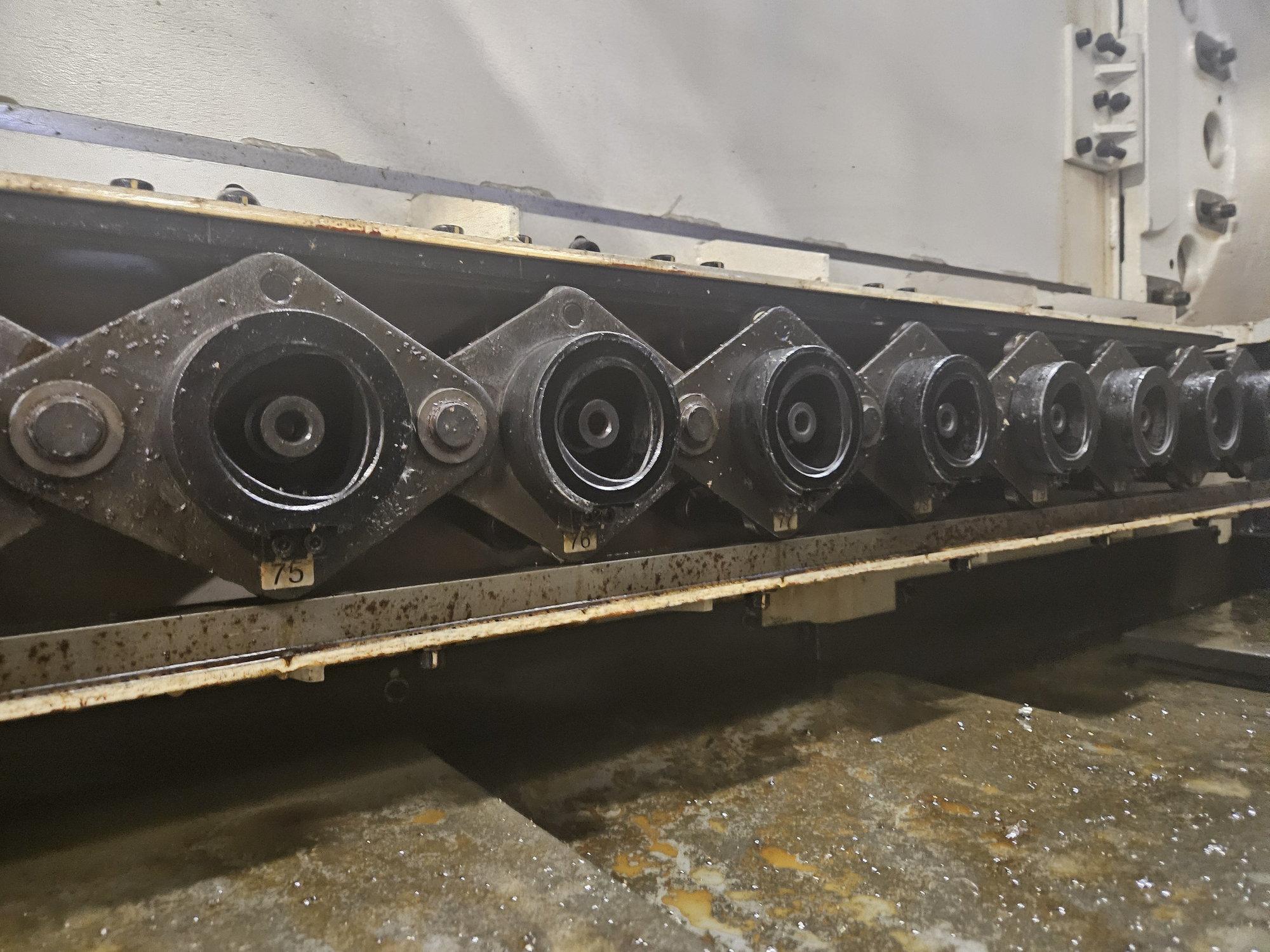

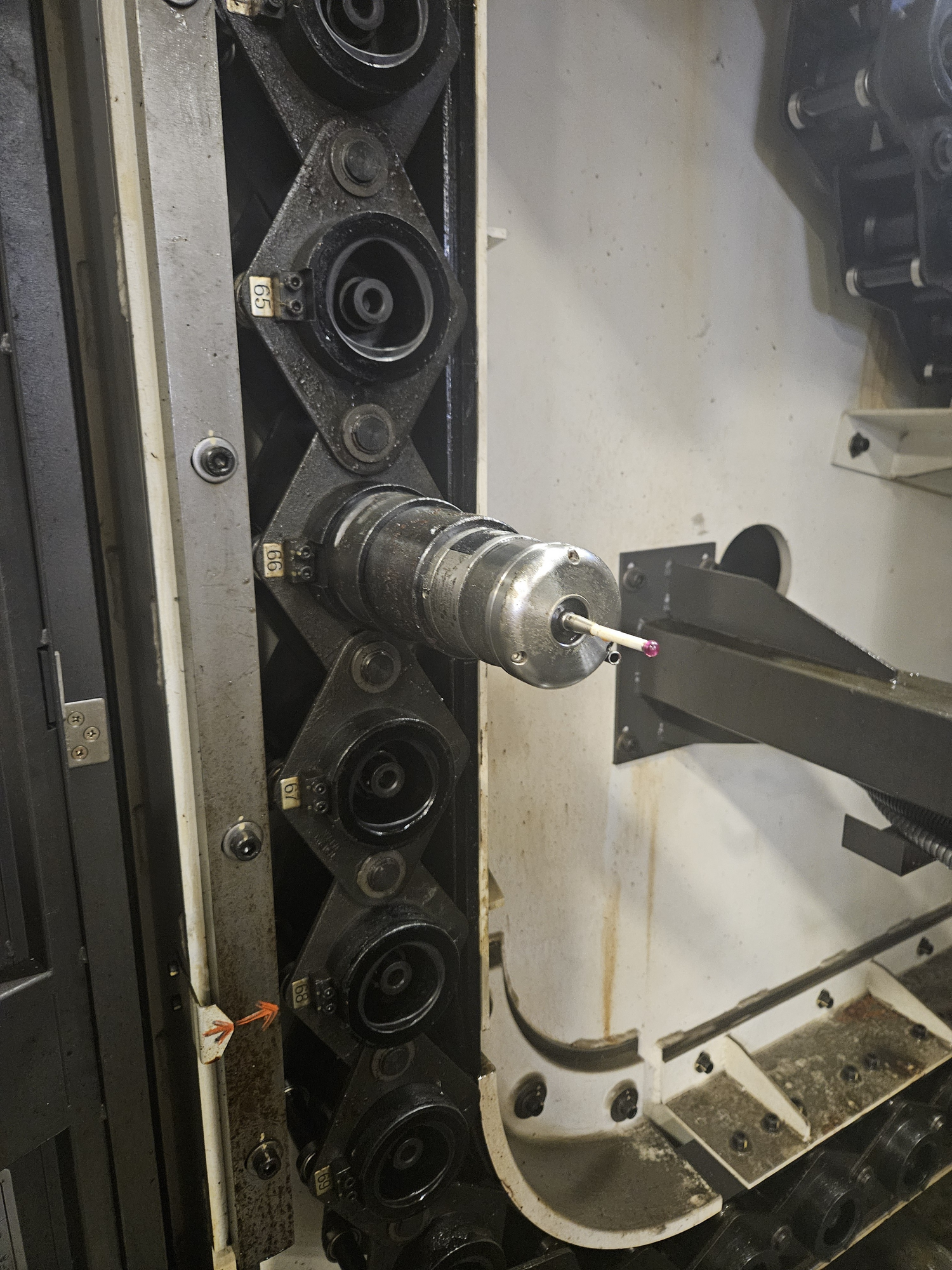

80 Position Tool Changer, Capto C8

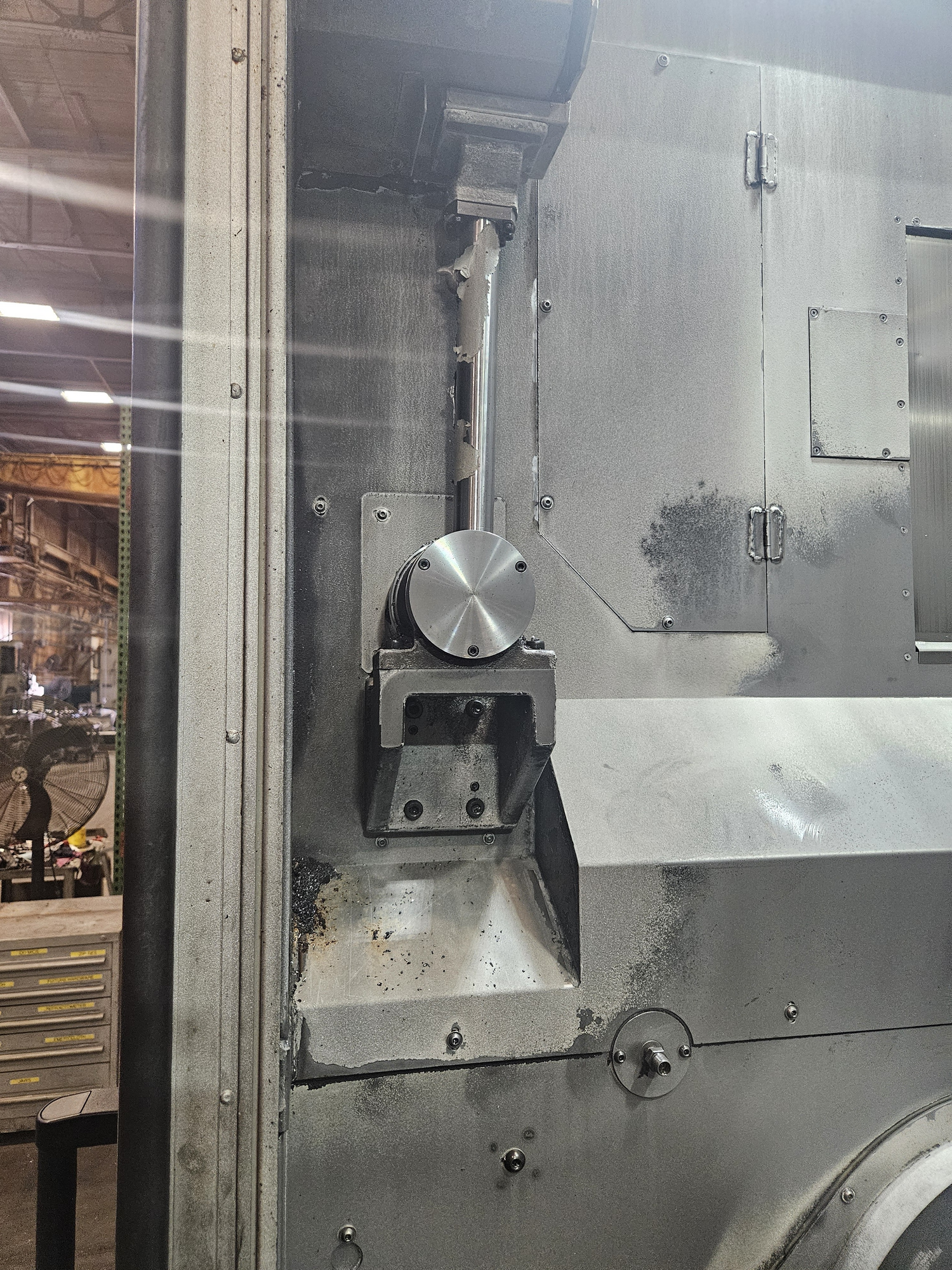

Tool Setter
High Pressure Coolant
Chip Conveyor

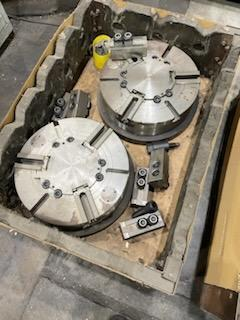

Spindle Fixtures in photos and Video do not go with the machine. The machine does have the Origional Chucks for the Main and Sub Spindle.
Inspect Under Power in Plant in the USA
Call for Pre-Removal Pricing
