Pines e40 PIPE, TUBE & BAR BENDERS

$249,500

Make:

Pines

Model:

e40

Year:

2021

Ref #:

178006

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

---

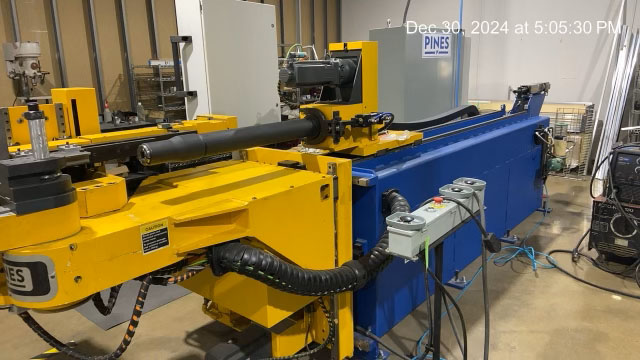

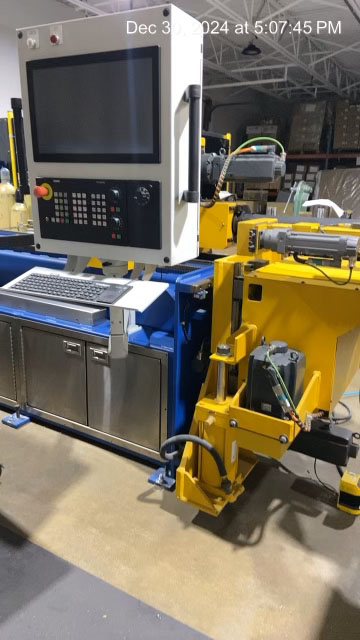

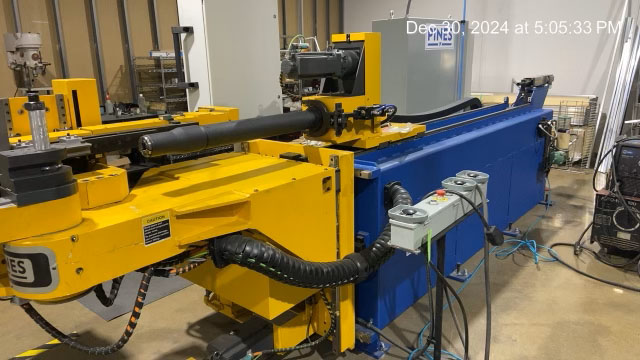

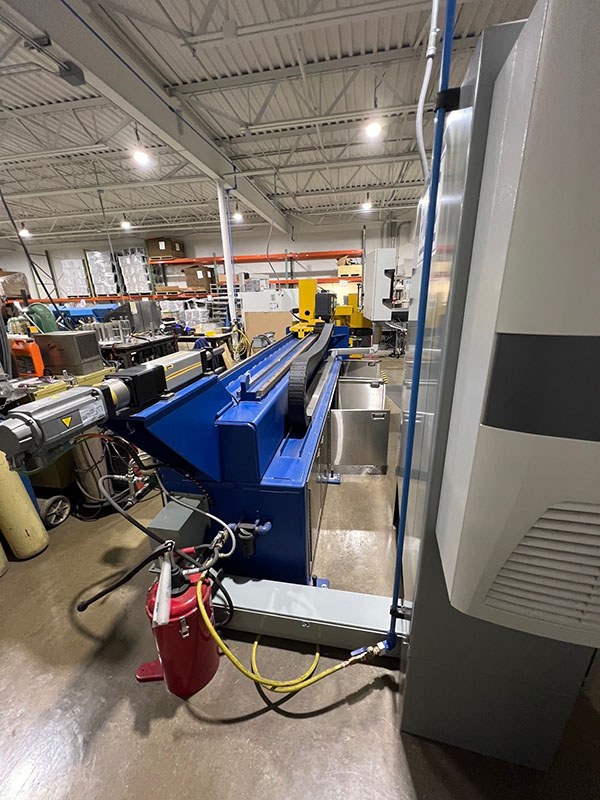

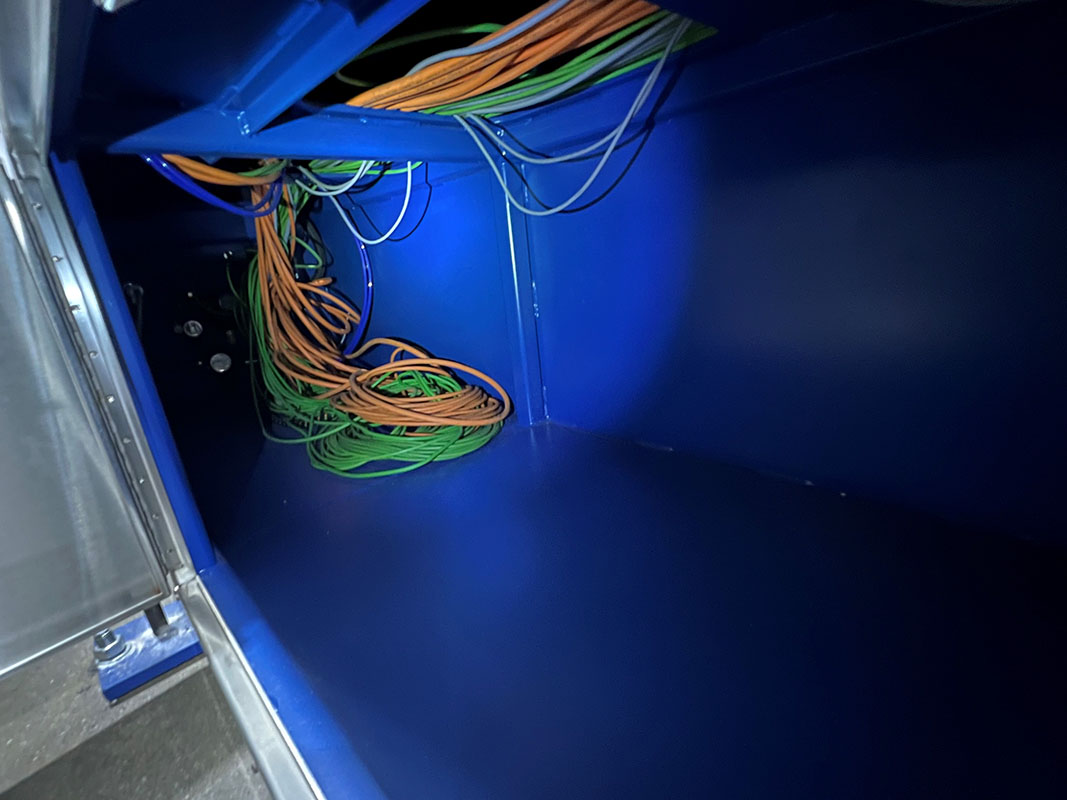

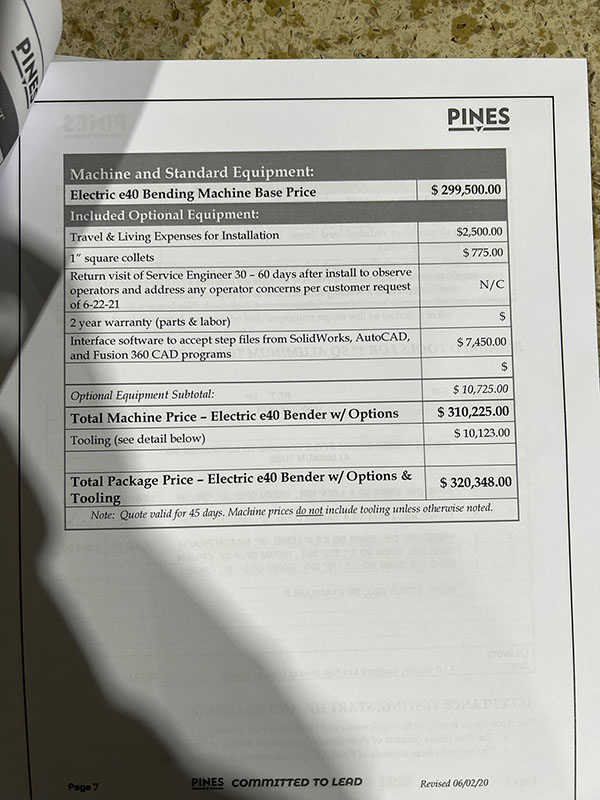

2021 Pines e40 Electric 10-Axis CNC Rotary Bender



SPECIFICATIONS:

Maximum radius – 6”

Minimum radius to diameter ratio – 1D

Programmable motion – 10-Axis

Maximum bend angle – 190º

Bend arm repeatability - +/- 0.05º

Carriage repeatability - +/- .005”

Bend arm forward speed – 25 RPM

Standard tube length over mandrel – 13’

B-Axis travel: 360º - Speed: 60 RPM

Y-Axis travel: 6’ - Speed: 2000 IPM

Working height ~ 48.5”

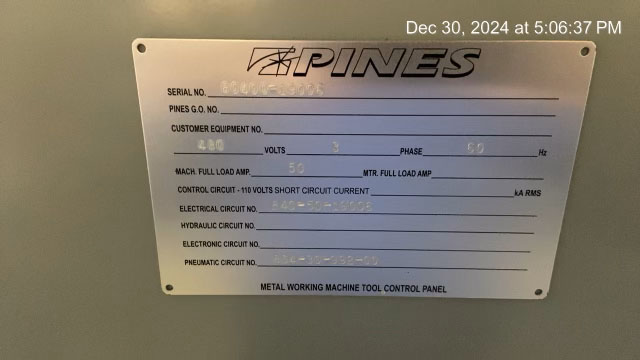

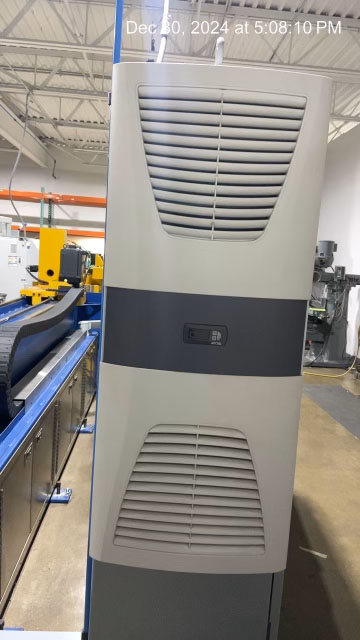

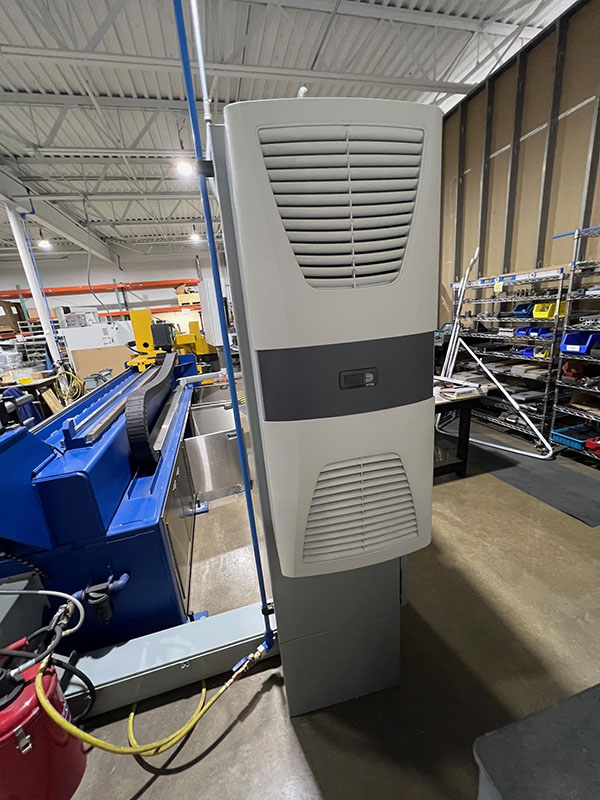

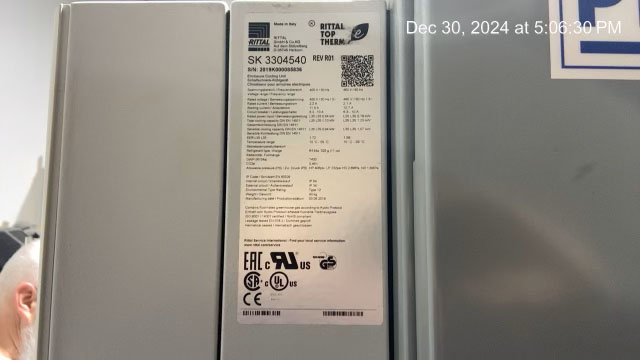

Voltage – 480 3 Phase 60 Hz. 50 amp circuit required (220/3/60 @ 80 amps also available)



CAPACITIES:

Round tubing, mild steel Y.P. to 40,000 psi – 1-1/2” x .109”

Round tubing, non-ferrous Y.P. to 25,000 psi – 1-5/8” x .187”

Round tubing, Stainless steel Y.P. to 60,000 psi – 1-3/8” x .065

Steel pipe, schedule 80 – 1

Square tubing, mild steel – 1-1/8“ x .125



MACHINE CONTROL:

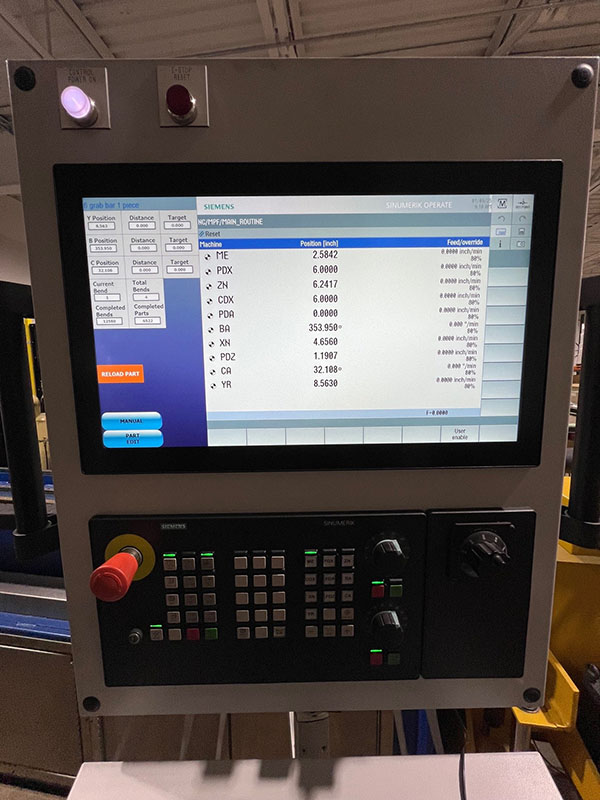

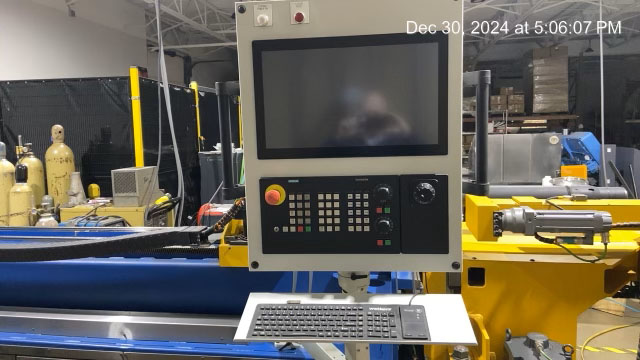

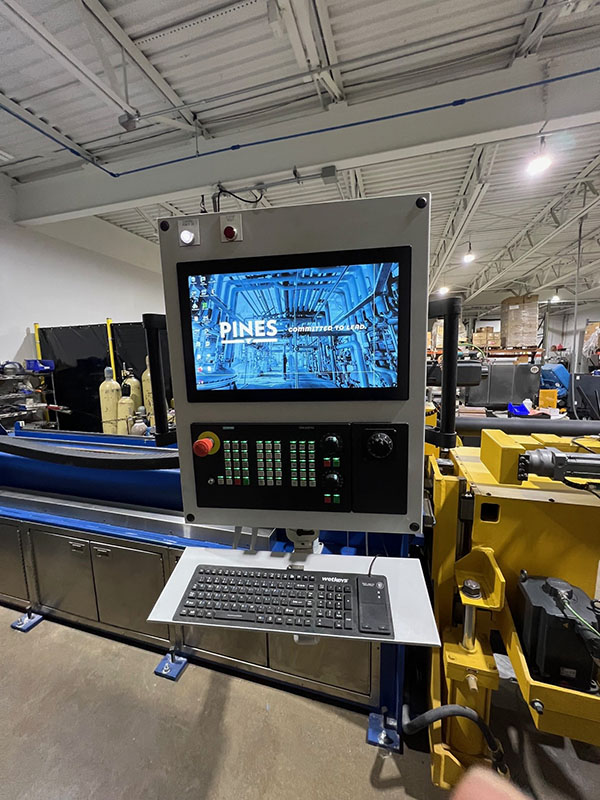

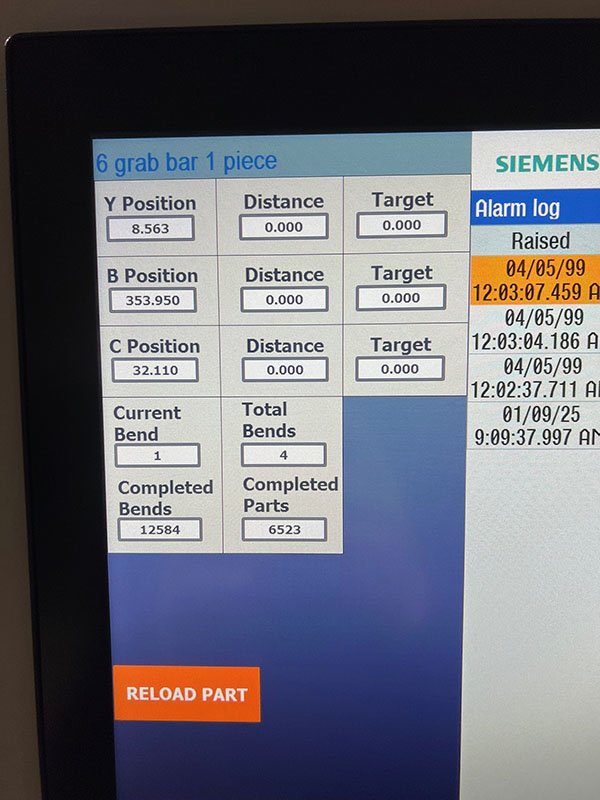

Siemens 840D 10-Axis CNC Control

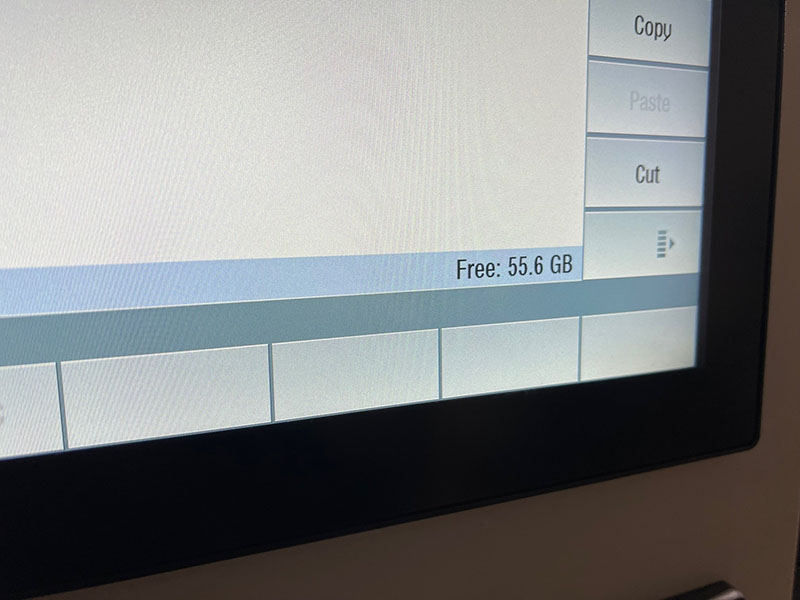

SIMATIC IPC 477E. 22" Multitouch neutral

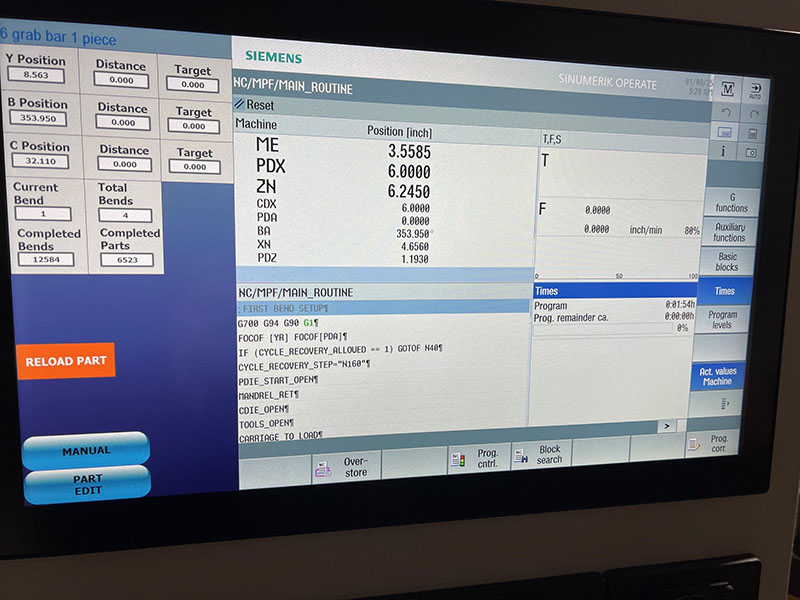

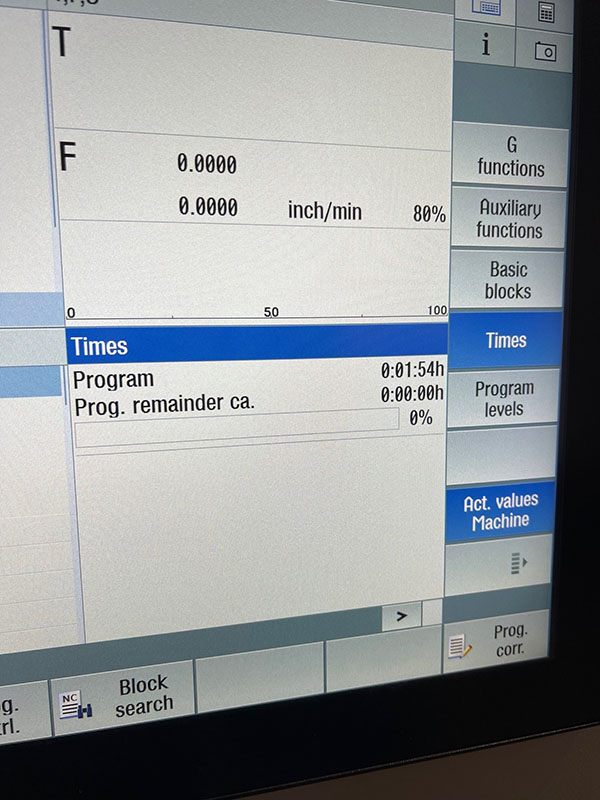

Windows 10 Emb loaded with Sinumerik Operate and WinCC RT software

Safety Integrated motion control system with reserve IO

Single Block operation for bend recipe troubleshooting

Machine operation animation

Keyboard with Touch Mouse

Advanced Self Diagnostics

Detailed Error Messages with Troubleshooting Procedures

Built in Siemens CNC Help manuals with descriptions

Enhanced Error Reporting and Logging

Configurable Levels of Operation

Displays and Rotates Parts In 3D

Edit/Display Part Programs in XYZ, YBC, Absolute modes

Edit/Display Parts Programs in Millimeter, Inches or Feet and Inches

Bend in Open Collet or Closed Collet Mode

Bend recipes can be stored Locally or in a Remote PC location through LAN

Automatic Part Program Backups

Programming from CAD source (Optional)

Production Monitoring



STANDARD EQUIPMENT:

Counterclockwise Rotation

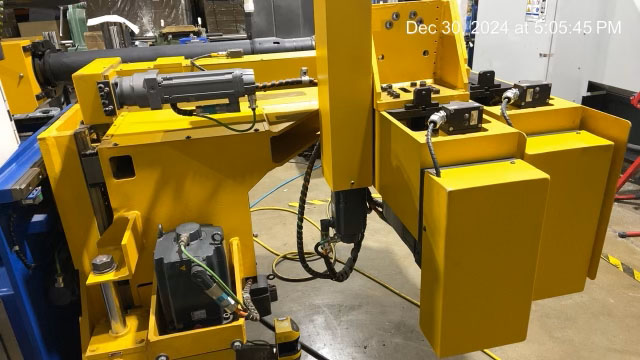

Servo Controlled Swing Arm

Hitch Feed Capable

PDI Zone Recapture

In-Line Programable Pressure Die Assist – With Z-Axis Shift

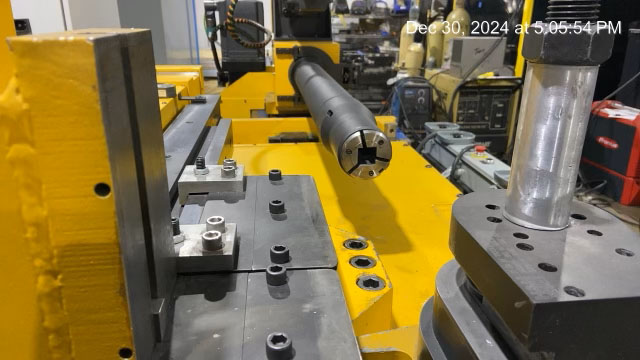

Clamp Die Holder

Electric Swing & Stationary Arms – Quick Change Programmable Pressure Tooling

Wiper Die Holder

Programable Mandrel Extractor – Tangent Position and Extract Length

Heavy Duty Automatic Mandrel Lubricator

Laser Safety Scanner

Dual Palm Remote Operator Control

Roll Forming (Calendaring) Capability on Top Stack (Additional tooling required)

Self-Diagnostic Program

Carriage Push for Shorter Grip Lengths

Spring Back Compensation

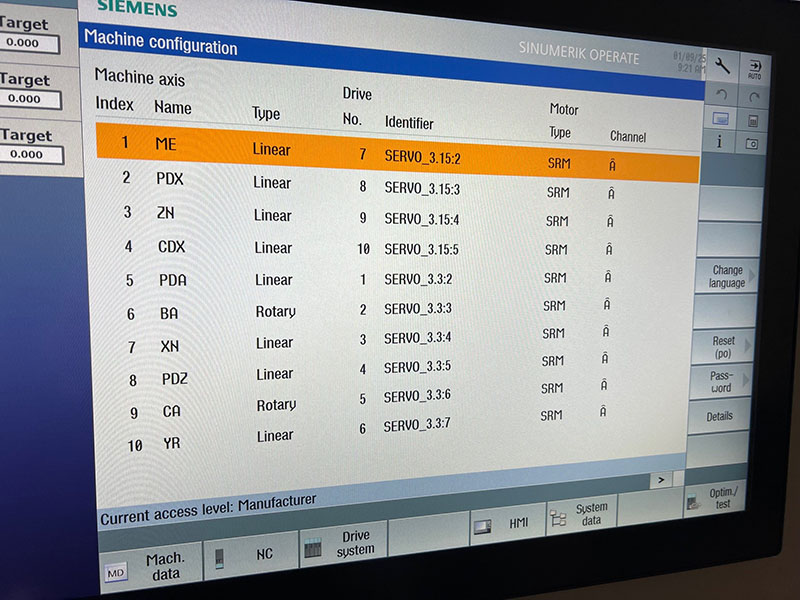

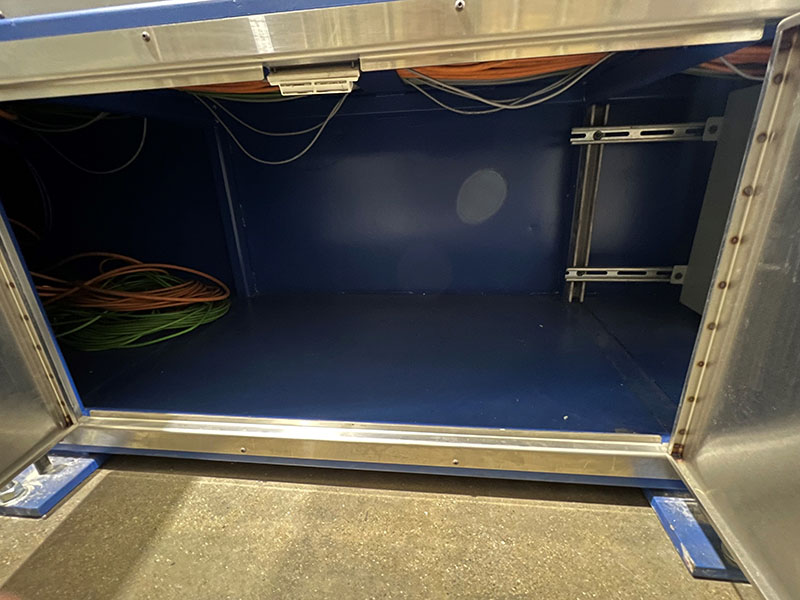

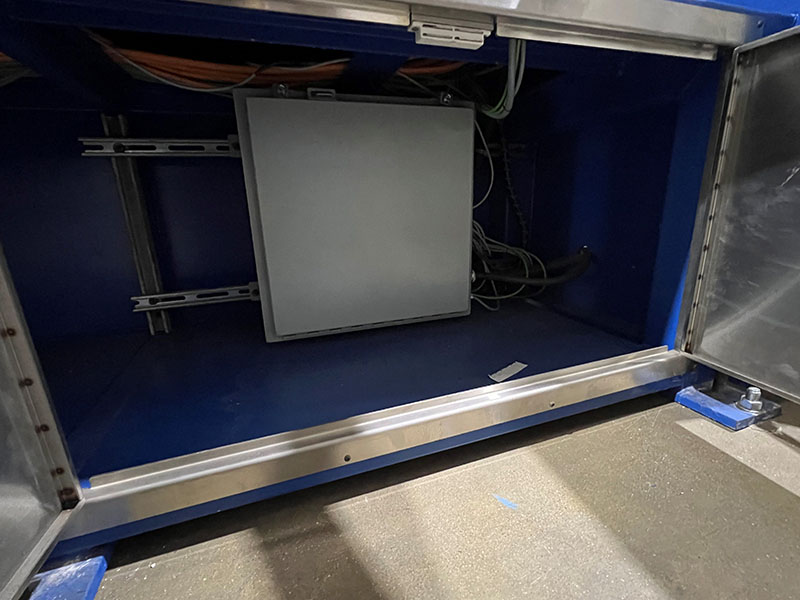

Servo Drives Power to 10 Axes. (Y, B, C, PDA, PDA Z, Mandrel, Nose X, Nose Z,

Clamp, and Pressure Die)



MACHINE HAS ALMOST NO USE
