Pressmaster FTP-200 RI TIRE PRESS

$65,950

Make:: Pressmaster

Model:: FTP-200 RI

Year:: NEW

Ref #:: 152076

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

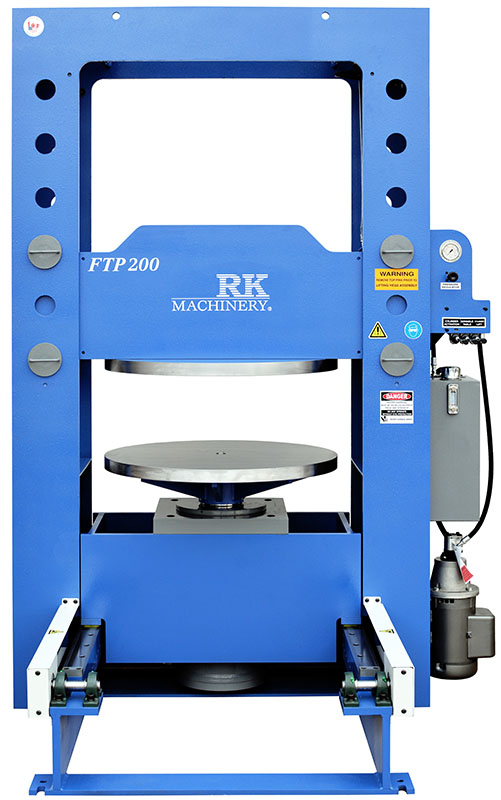

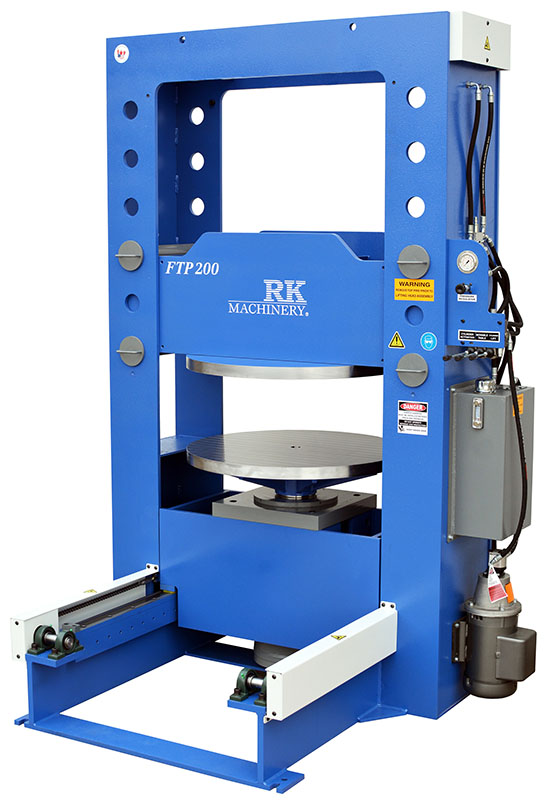

200 TON PRESSMASTER ROLL-IN FORKLIFT TIRE PRESS

SPECIFICATIONS
CAPACITY................................. 200 TONS
BORE..................................... 12"
STROKE................................... 16"
ROD...................................... 6"
PLATEN DIAMETER.......................... 36"
DISTANCE BETWEEN POSTS................... 42"
DAYLIGHT................................. 36.5"
RAM SPEED
 PRESS................................... 5 IPM
 RETURN.................................. 7 IPM
DIMENSIONS
 LENGTH.................................. 70"
 WIDTH................................... 77"
 HEIGHT.................................. 109"
WEIGHT................................... 7,000#

POWER................................. 5 HP / 3 PH
STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING

STANDARD FEATURES
- ROLL-IN TABLE FOR EASY LOADING AND UNLOADING OUTSIDE OF THE PRESSING AREA
- LARGE CYLINDER ROD PROVIDES PLATEN STABILITY AND LONGER SEAL LIFE
- LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
- DOUBLE-ACTING CYLINDER PERMITS PRESSING AS WELL AS RETURN
- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY, 30" TRAVEL

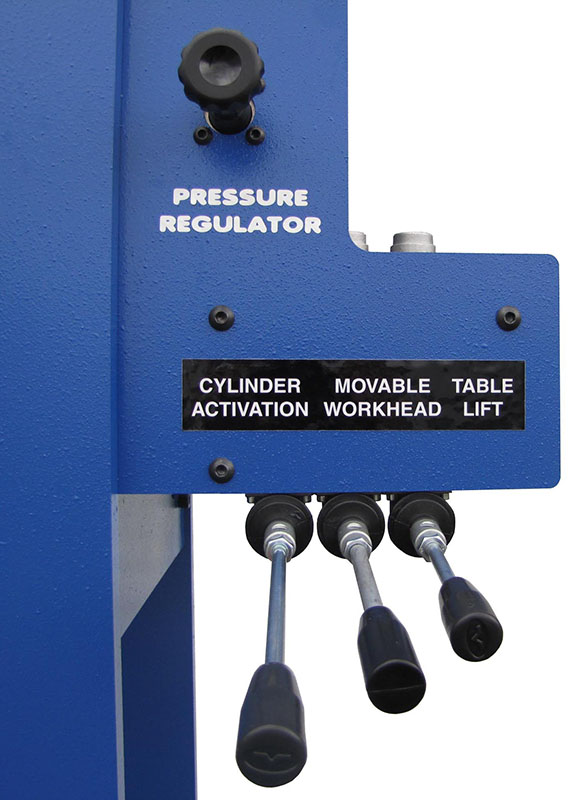

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK
- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
- HIGH CAPACITY 9 GAL. HYDRAULIC OIL RESERVOIR
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA

OPTIONAL:
- EXTENDED SAFETY CAGE WITH INTERLOCKING GUARDING ...... $9,000
- 10 HP MOTOR (DOUBLES CURRENT PRESS SPEEDS) ........... $2,400
- STOP / START & EMERGENCY STOP .......... $1,000
- FRONT OR BACK SAFETY GUARD .(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..........(PER SIDE).. $  750
- FOOT PEDAL ............................. $4,250
- HIGH ILLUMINATION LIGHTING KIT ......... $2,000
- HANDHELD REMOTE CONTROL ................ $7,500
