Pressmaster HFP 150 MWH HYDRAULIC H-FRAME PRESSES

$45,950

Make:: Pressmaster

Model:: HFP 150 MWH

Year:: NEW

Ref #:: 149945

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

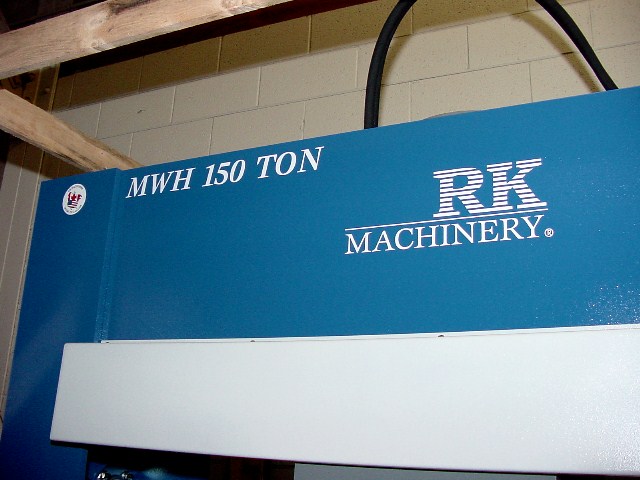

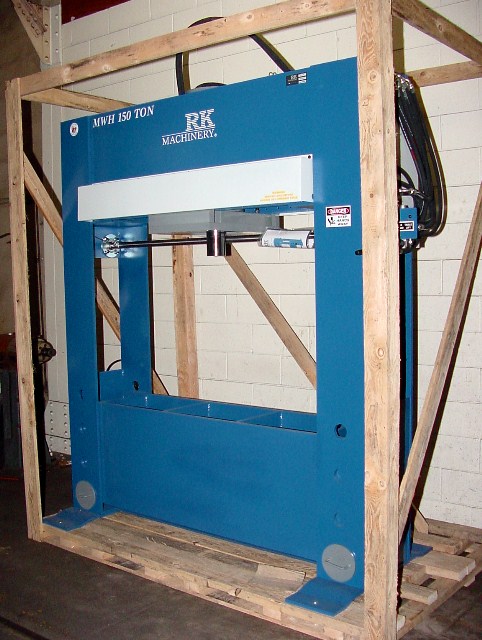

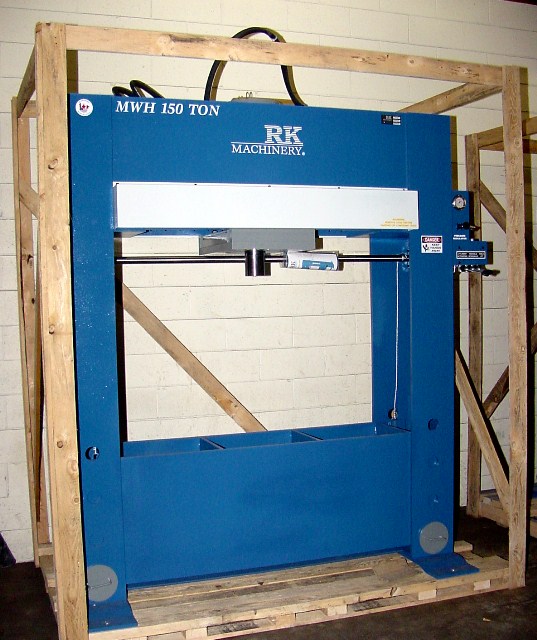

 150 TON PRESSMASTER H-FRAME HYD. PRESS
MODEL HFP-150 MWH
 EXTRA WIDE w/MOVABLE WORKHEAD

RATED CAPACITY, TONNAGE........................ 150
STROKE......................................... 16"
BORE........................................... 11"
RAM SPEED PRESS ........................IPM.... 6
          ADVANCE ......................IPM.... 29
          RETURN .......................IPM.... 33
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)......... 60"
DISTANCE BETWEEN POSTS (FRONT TO BACK)......... 15"
RAM TRAVEL LEFT TO RIGHT ...................... 31-1/4"
MAXIMUM DISTANCE FROM BED TO RAM .............. 34-1/2"

WEIGHT ....................... 6,200#
SHIPPING DIMENSIONS .......... 58"L X 96"W X 108"H

STANDARD FEATURES:
ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
OPEN SIDES TO FACILITATE WORK ON LONG PIECES
FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB
QUALITY BALDOR MOTOR, LOW SPEED
LOW SPEED PUMP-QUIET, DEPENDABLE OPERATION
SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT

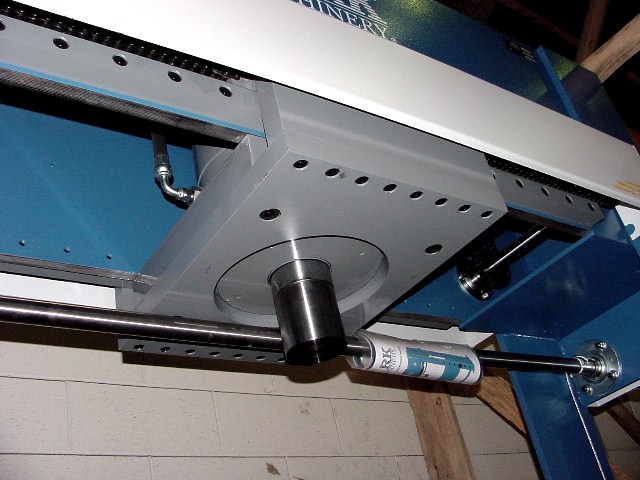

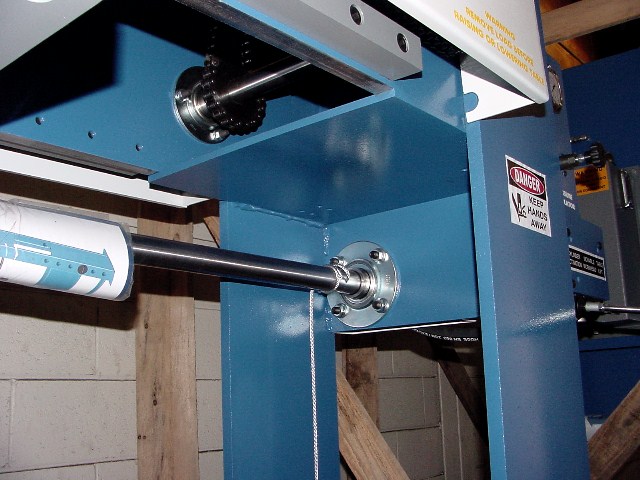

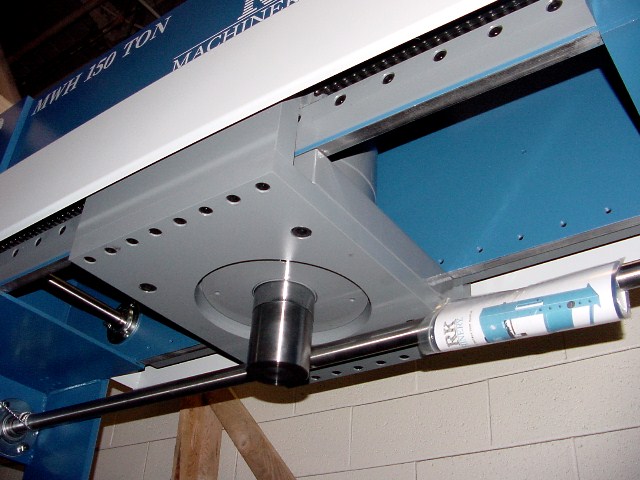

POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER
 FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE

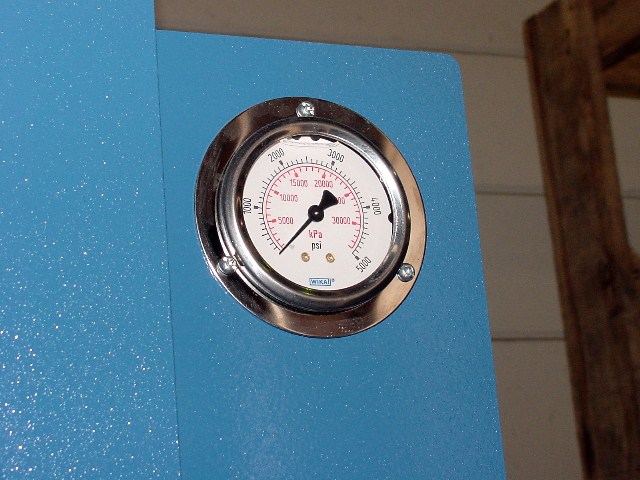

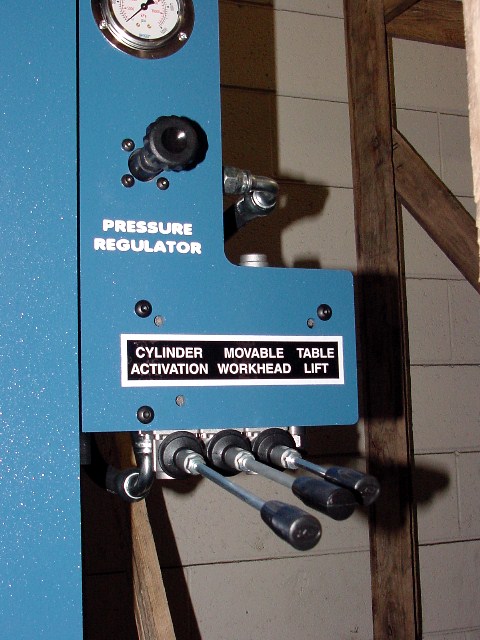

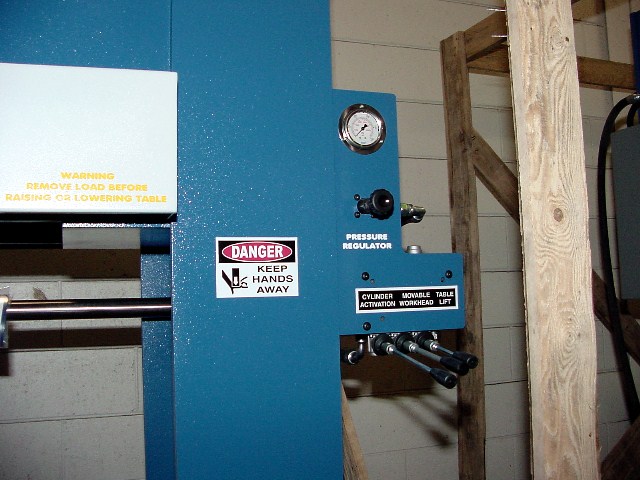

PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE
 MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER
 SPEED FOR THE TASK
HIGH CAPACITY 20 GAL. HYDRAULIC OIL RESERVOIR
LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER
 EFFICIENCY AND SAFER OPERATION

ALL PARTS ARE STANDARD AND READILY AVAILABLE THROUGHOUT NORTH AMERICA
FULL ONE YEAR WARRANTY.
NOT A CHEAP IMPORT.
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.

AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,200
- STOP / START & EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $  750
- FOOT PEDAL ................................. $4,250
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,250
- PRESS PLATE ................................ $2,850
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,000
- HANDHELD REMOTE CONTROL .................... $7,500

 SEE THE VIDEO ON THIS FANTASTIC NEW PRODUCT AT
 http://www.youtube.com/watch?v=nDh2giylCs8
