Pressmaster HFP-300/MWH HYDRAULIC H-FRAME PRESSES

$84,950

Make:: Pressmaster

Model:: HFP-300/MWH

Year:: New

Ref #:: 156912

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

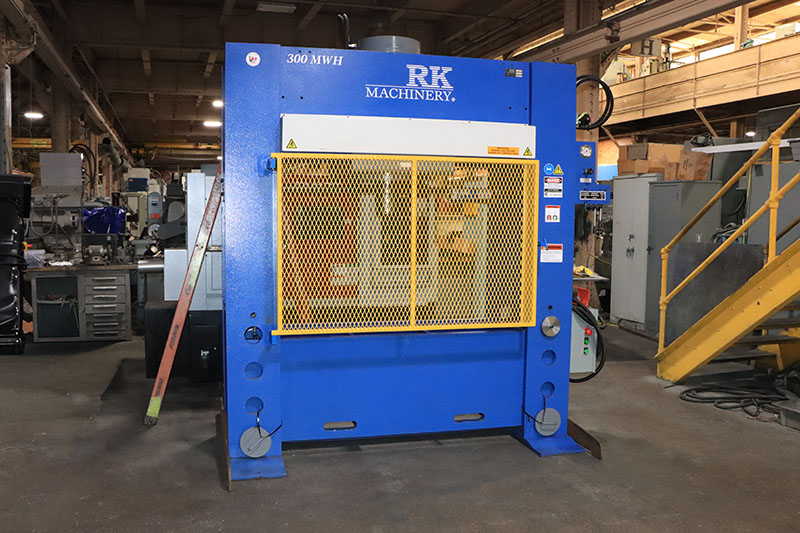

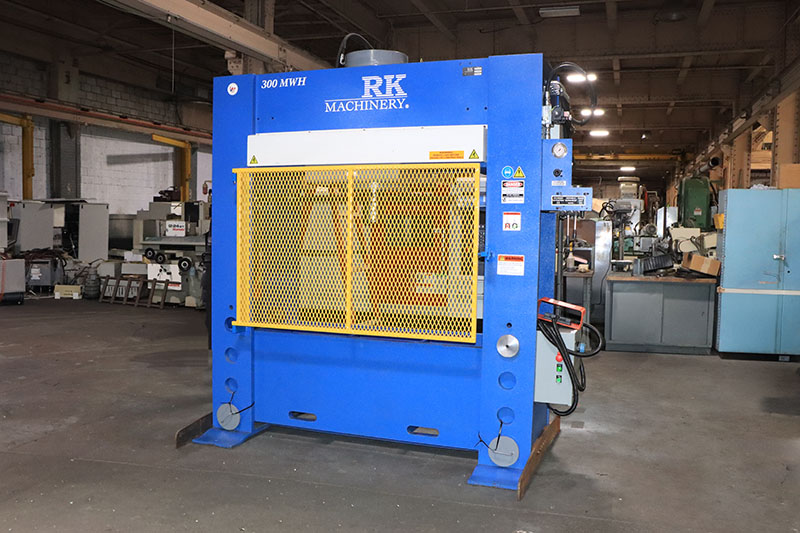

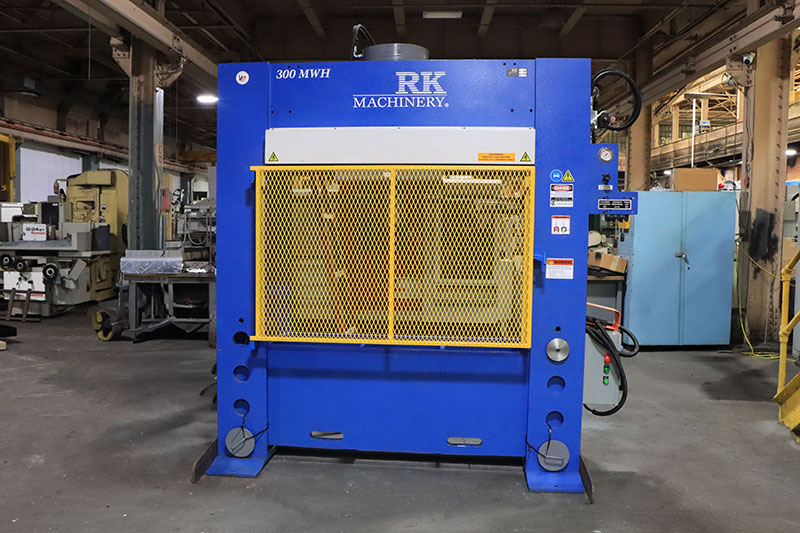

300 TON PRESSMASTER HYD. H-FRAME PRESS

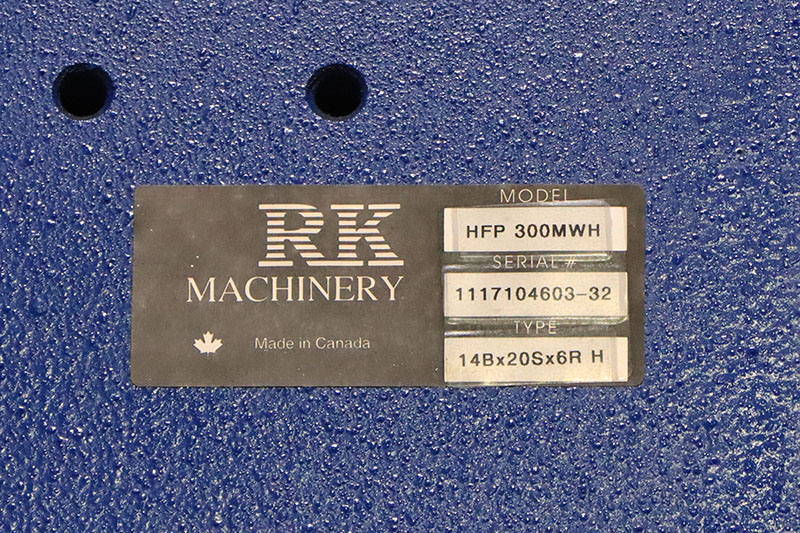

MODEL HFP-300 MWH          NEW AND IN STOCK

RATED CAPACITY, TONNAGE.......................... 300
STROKE........................................... 20"
BORE............................................. 14"
RAM SPEED (Inches/Minute) ADVANCE ............... 18
RAM SPEED (Inches/Minute) RETURN ................ 22
RAM SPEED (Inches/Minute) PRESSING .............. 4
DAYLIGHT ........................................ 29"
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........... 60"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........... 24"

OVERALL HEIGHT .................................. 103"
OVERALL WIDTH ................................... 96"
OVERALL DEPTH ................................... 60"
WEIGHT .......................................... 12,800

NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS

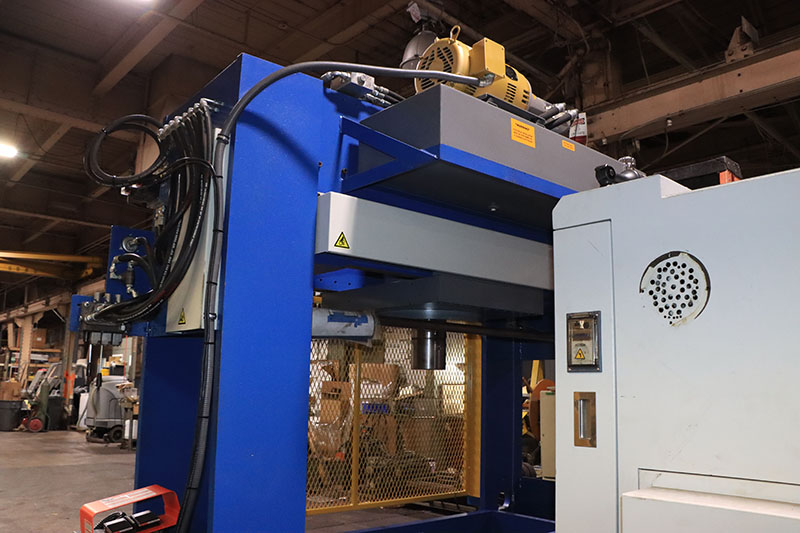

MOVEABLE WORKHEAD.

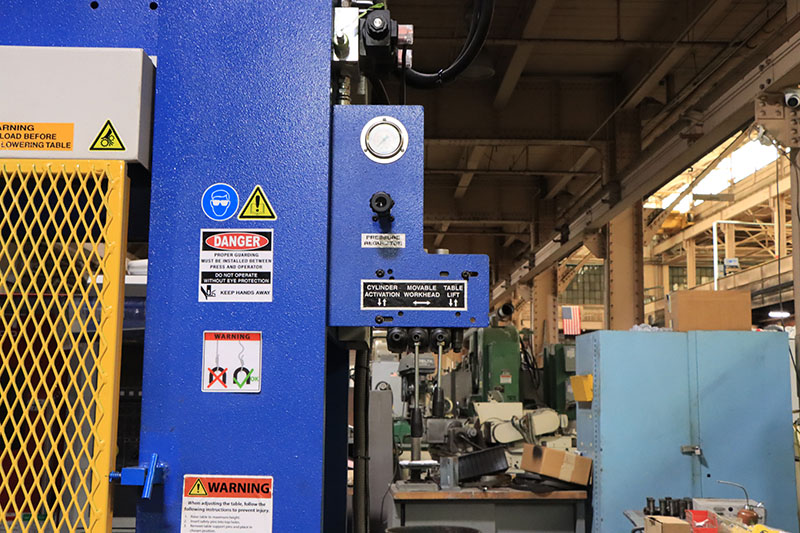

CYLINDER ACTIVATION - IS FINGER TIP CONTROLLED THE MORE THE HAND LEVER
IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED. THIS ALLOWS THE
 OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK.

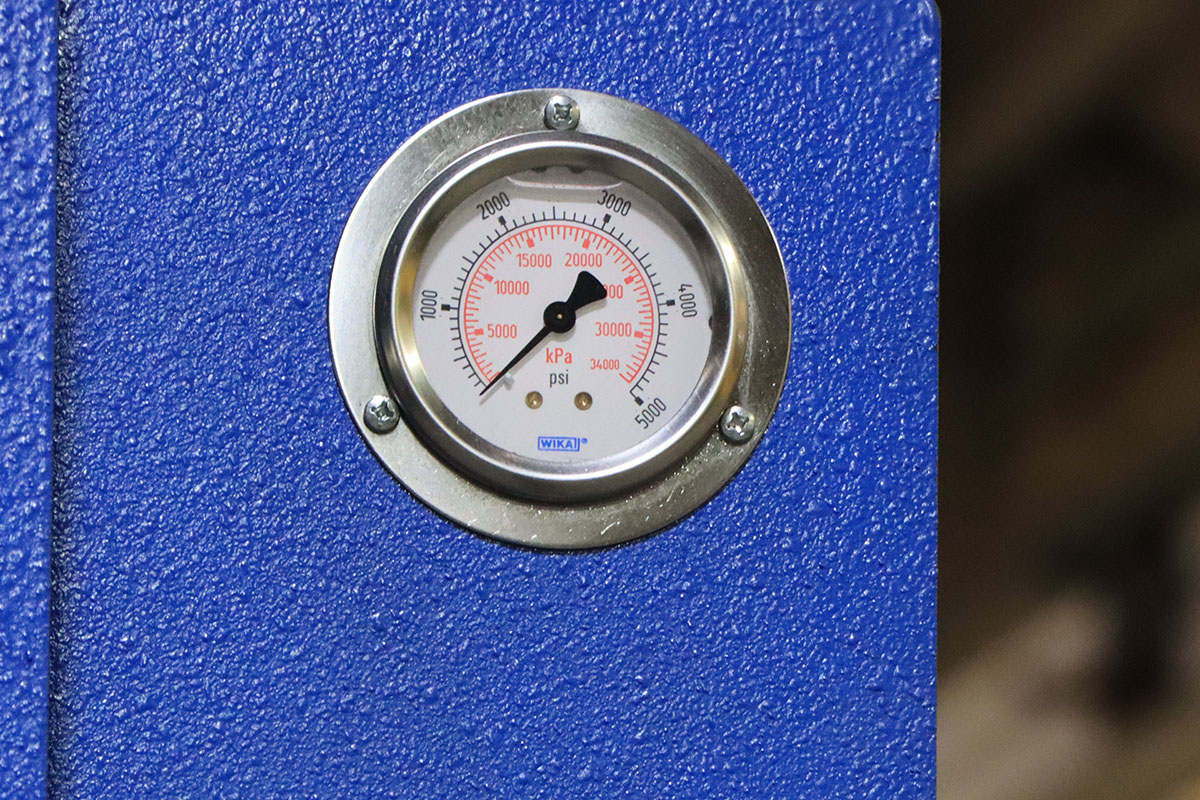

PRESSURE REGULATOR - TO LIMIT RAM PRESSURE
ELECTRIC/HYDRAULIC OPERATION FOR SMOOTH CONSISTENT PRESSING ACTION.
OPEN SIDES TO FACILITATE WORK ON LONG PIECES

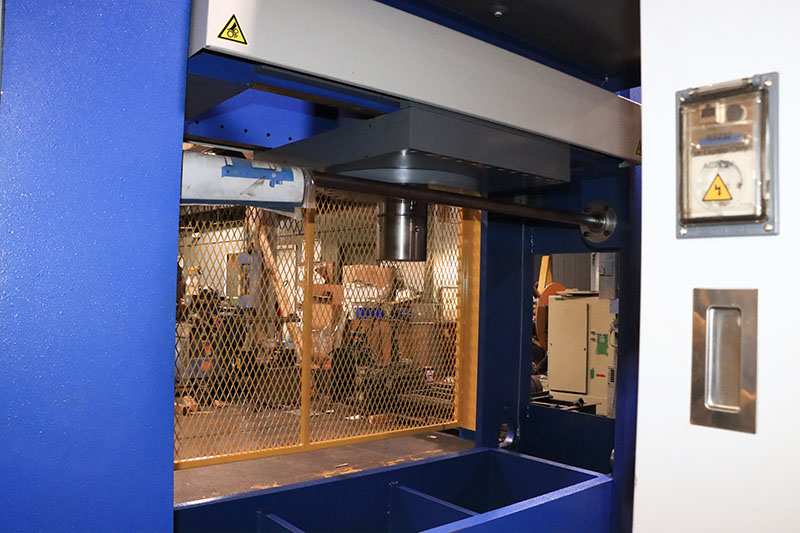

FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
QUALITY LOW SPEED BALDOR 10 HP - 3 PHASE MOTOR

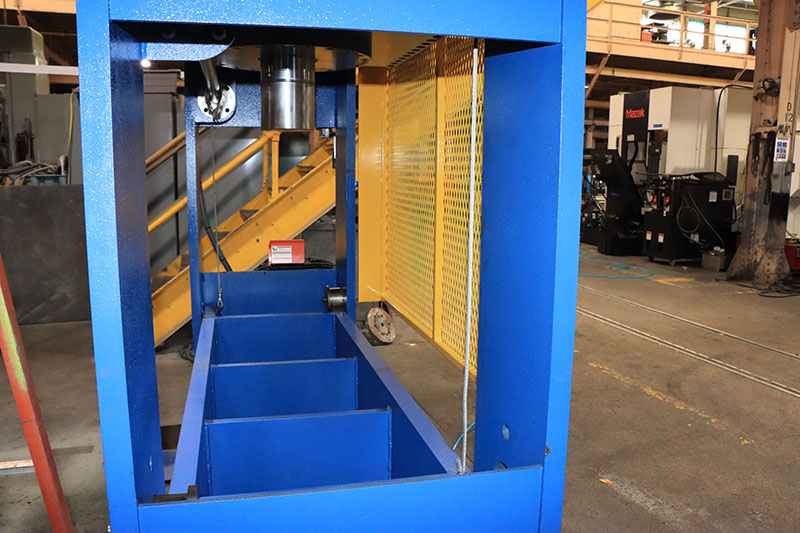

SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT.
HIGH CAPACITY 20 GALLON OIL RESERVOIR.
DOUBLE ACTING CYLINDER PERMITS PULLING AS WELL AS PRESSING RAM ACTION.

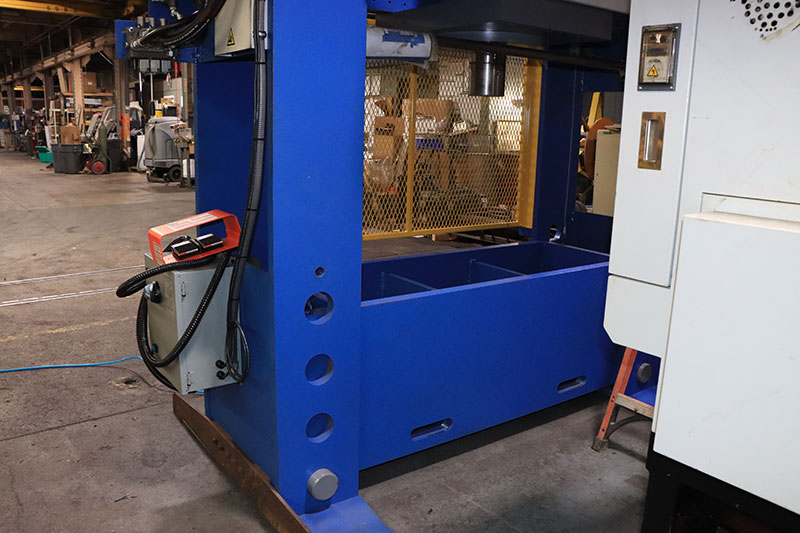

HYDRAULIC POWER LIFT FOR VERTICAL DISPLACEMENT OF TABLE.
LOW PRESSURE SYSTEM - MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN
 HIGHER EFFICIENCY AND SAFER OPERATION.
ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY AND
 AVAILABLE THROUGHOUT NORTH AMERICA.
FULL ONE YEAR WARRANTY.
STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING.

AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $2,000

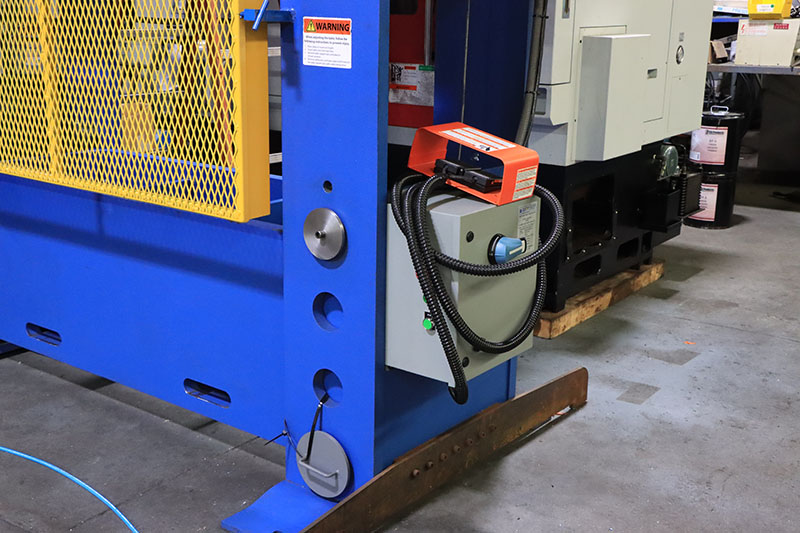

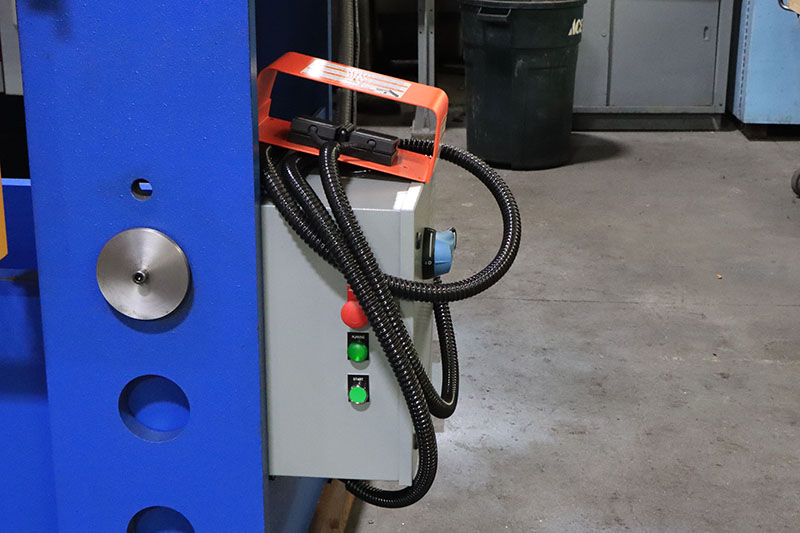

- STOP / START & EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $  750
- FOOT PEDAL ................................. $4,250
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,250
- PRESS PLATE ................................ $5,400
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,000
- HANDHELD REMOTE CONTROL .................... $7,500
