Pressmaster RTP-150 ROLL-IN BED HYDRAULIC H-FRAME PRESSES

$48,950

Make:

Pressmaster

Model:

RTP-150 ROLL-IN BED

Year:

Ref #:

160046

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

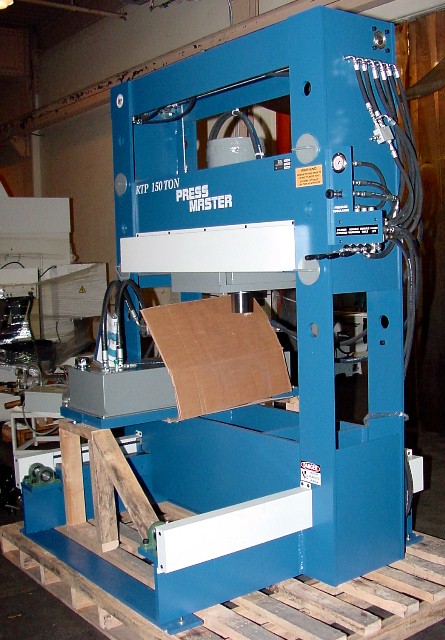

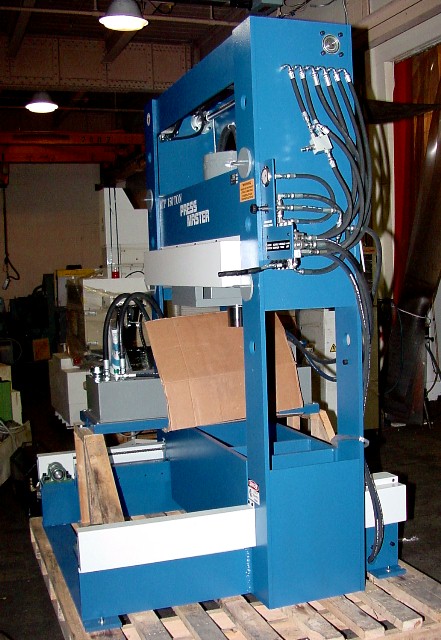

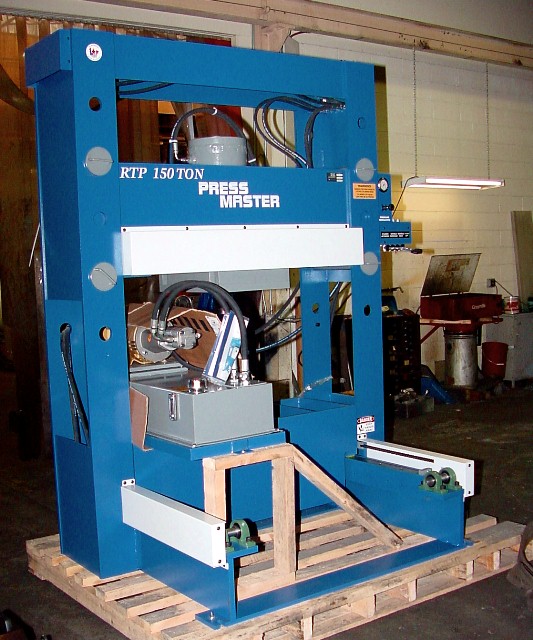

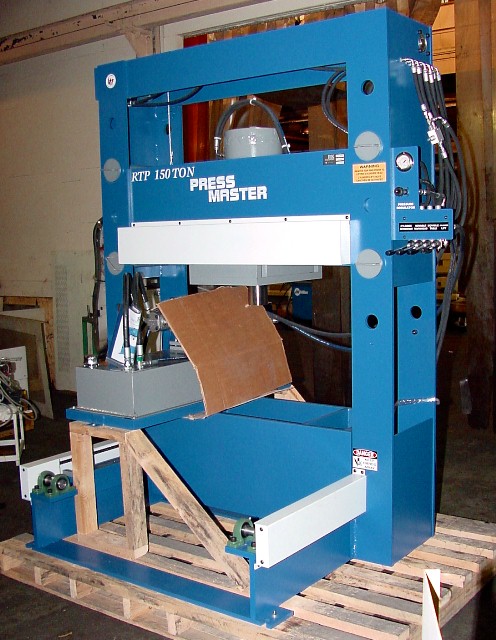

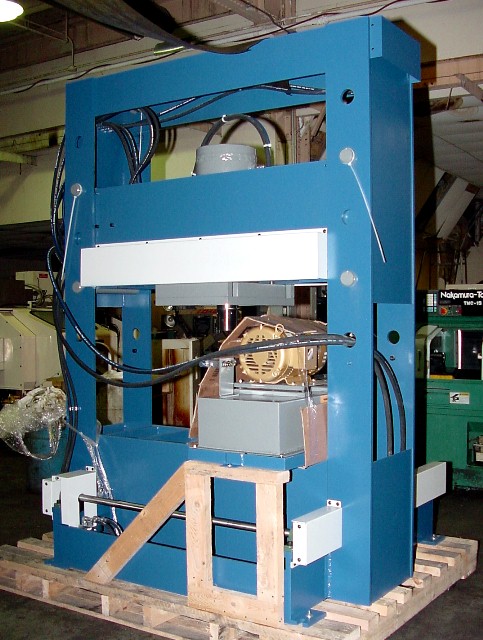

150 TON PRESSMASTER ROLL-IN TABLE

FULL 4 AXIS POWERED STRAIGHTENING PRESS



RATED CAPACITY .............................. 150 TONS

WIDTH BETWEEN UPRIGHTS ...................... 48"

DEPTH BETWEEN POSTS ........ ................ 16-3/4"

MAXIMUM RAM TO TABLE ........................ 26-3/4"

STROKE ...................................... 16"

TABLE TRAVEL ................................ 23.25"

FLOOR TO TABLE TOP .......................... 25-3/4"

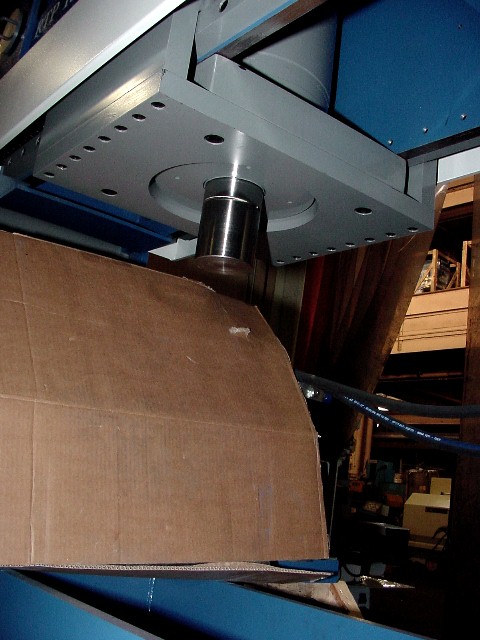

CYLINDER BORE SIZE .......................... 11"

PRESSING SPEED .............................. 6 INCH/MIN

ADVANCE SPEED ............................... 29 INCH/MIN

RETURN SPEED ................................ 33 INCH/MIN

WEIGHT ...................................... 6,500#



DIMENSIONS

 LENGTH ..................................... 71"

 WIDTH ...................................... 88"

 HEIGHT ..................................... 100"



MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE

             (OTHER VOLTAGES AVAILABLE)



STANDARD FEATURES:

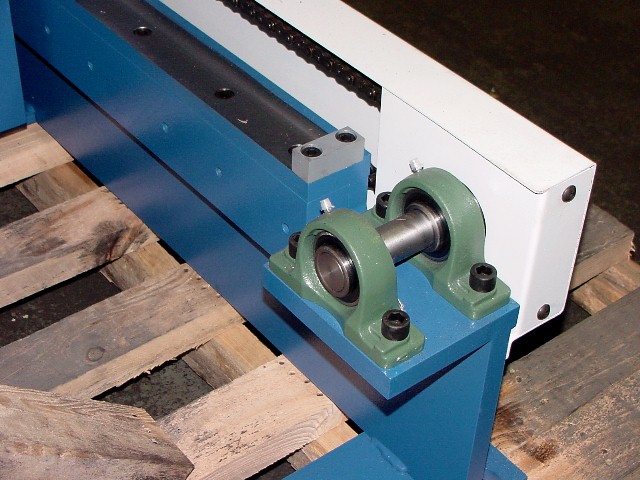

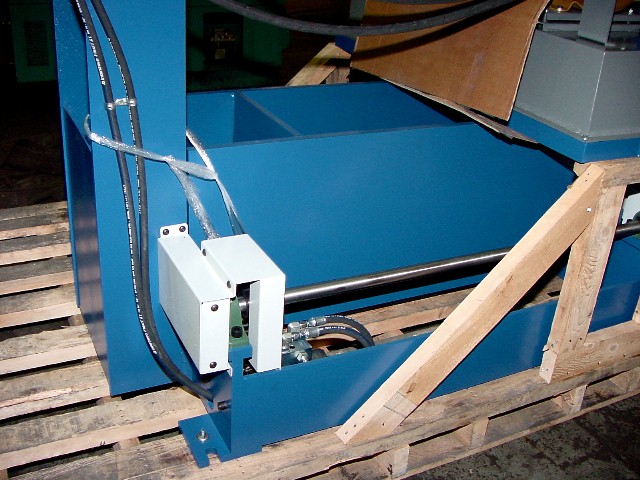

- POWERED MOVABLE TABLE FOR EASE OF LOADING & POSITIONING WORKPIECE UNDER CYLINDER

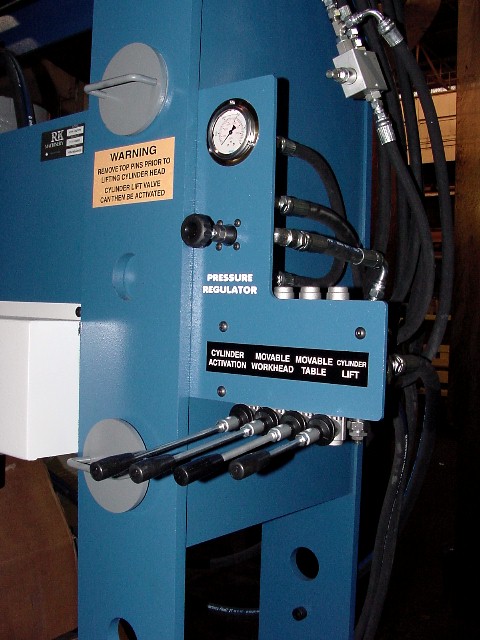

- POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER

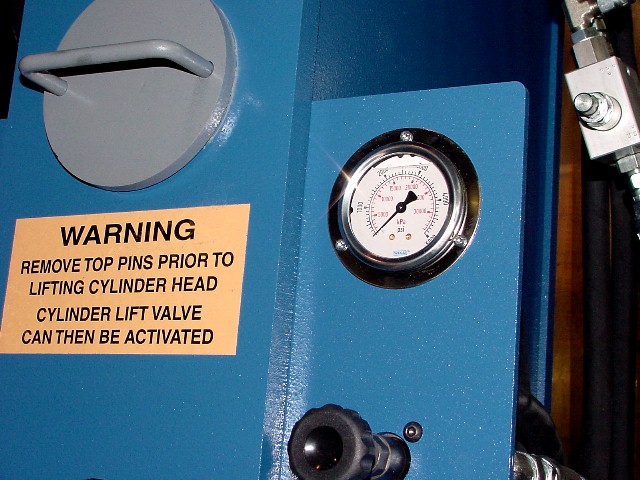

- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY

CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE

- RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

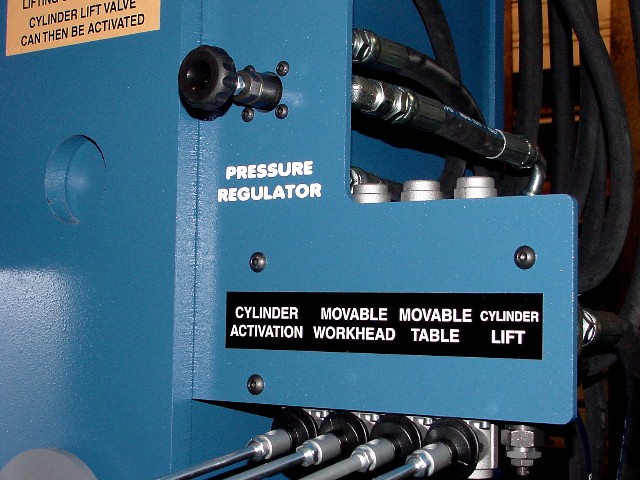

- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE



AVAILABLE OPTIONS:

- V-BLOCKS ................................... $950 SET

- STOP / START & EMERGENCY STOP .............. $900

- FRONT OR BACK SAFETY GUARD ................. $900 EA

- SIDE SAFETY GUARD ..............(PER SIDE).. $600

- FOOT PEDAL ................................. $3,400

- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000

- 24” STROKE CYLINDER ........................ $1,400

- PRESS PLATE ................................ $2,400

- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND

LEXAN GUARDING ............................... $7,600
