Pressmaster RTPBP-100/20-MWH HYDRAULIC H-FRAME PRESSES

$42,950

Make:: Pressmaster

Model:: RTPBP-100/20-MWH

Year:

Ref #:: 177998

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

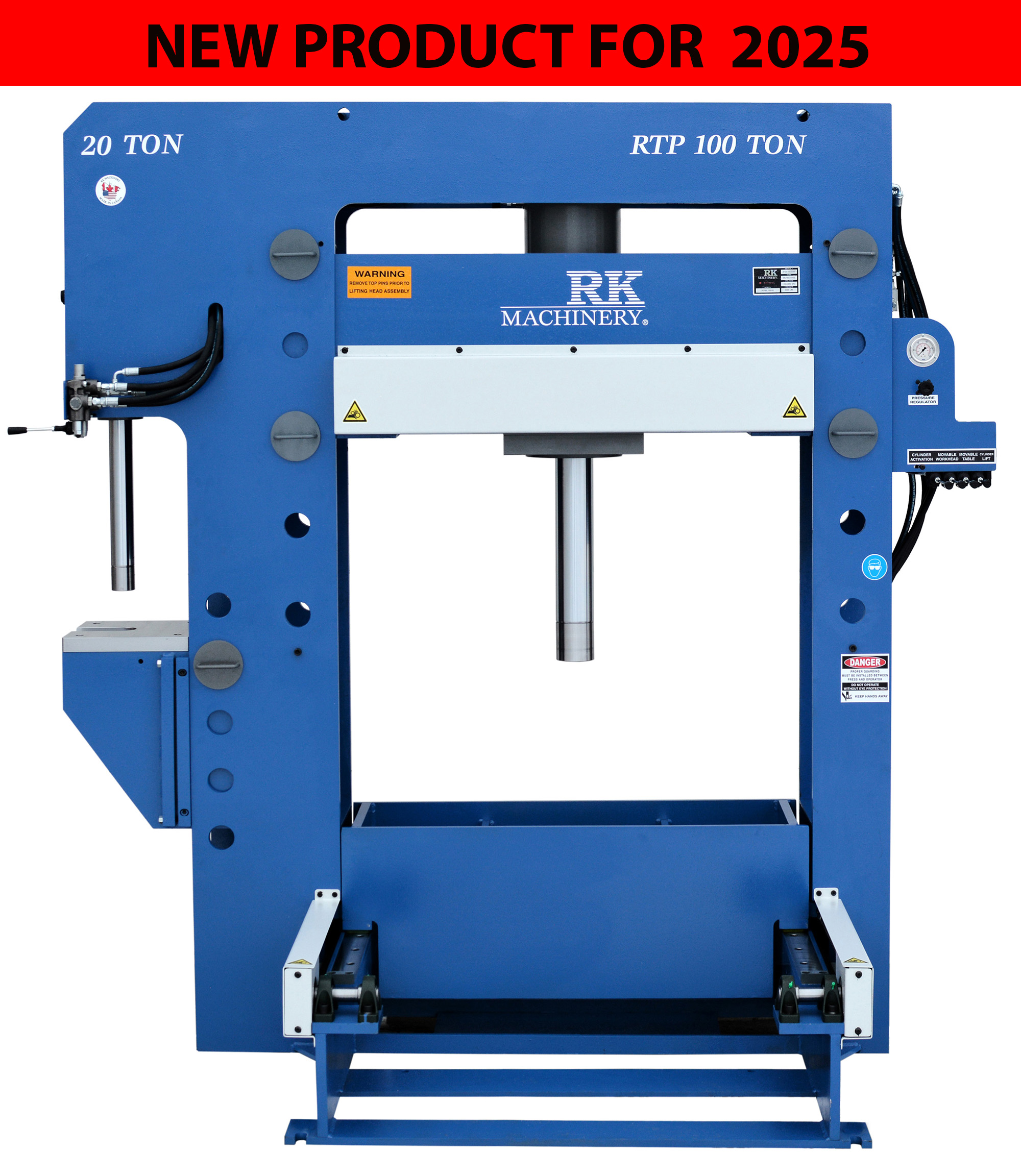

100 TON PRESSMASTER ROLL-IN TABLE
FULL 4 AXIS POWERED
STRAIGHTENING PRESS WITH SIDE MOUNTED 20 TON BROACHING PRESS

H-FRAME:
RATED CAPACITY .............................. 100 TONS
WIDTH BETWEEN UPRIGHTS ...................... 48"
DEPTH BETWEEN POSTS ........ ................ 13-1/4"
MAXIMUM RAM TO TABLE ........................ 32"
STROKE ... .................................. 16"
TABLE TRAVEL ................................ 23-1/4"
FLOOR TO TABLE TOP .......................... 24-3/4"
CYLINDER BORE SIZE .......................... 9"
PRESSING SPEED .............................. 19 INCH/MIN
RETURN SPEED ................................ 24 INCH/MIN

BROACH:
RATED CAPACITY .............................. 20 TONS
BORE ........................................ 4"
STROKE ...................................... 20"
PRESSING SPEED .............................. 22.5 INCH/MIN
RETURN SPEED ................................ 159 INCH/MIN

MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
             (OTHER VOLTAGES AVAILABLE)

DIMENSIONS: 68" X 102" X 100" H
WEIGHT: 6,000 LBS.

STANDARD FEATURES:
- VARIABLE RAM SPEED IS FINGER TIP CONTROLLED THE MORE
THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS
ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL
THE PROPER SPEED FOR THE TASK. (H-FRAME AND BROACH)
- PRESSURE REGULATOR TO CONTROL THE AMOUNT OF PRESSURE
REQUIRED. (H-FRAME AND BROACH)
- ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION.
- HYDRAULIC POWERED MOVABLE TABLE ALLOWS FOR EASY LOADING AND UNLOADING OF HEAVY WORKPIECES.
- HYDRAULIC POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK.
- HYDRUALIC POWERED LIFT FOR VERTICAL DISPLACEMENT OF HEAD AND CYLINDER.
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES.
- PANEL MOUNTED GLYCERINE FILLED GAUGE. (H-FRAME AND BROACH)
- SAFETY VALVE PROTECTS AGAINST OVERLOADS.
- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
- LOW SPEED. QUIET OPERATION.
- HIGH-QUALITY LOW-SPEED BALDOR MOTOR.
- 15 GALLON OIL RESERVOIR.

AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,000
- STOP / START & EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $  750
- FOOT PEDAL ................................. $4,250
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,250
- PRESS PLATE ................................ $2,000
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,000
- HANDHELD REMOTE CONTROL .................... $7,500

AVAILABLE IN MANY TONNAGES AND CONFIGURATIONS
