Quasar MK 603 VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Quasar

Model:: MK 603

Year:: 2012

Ref #:: 169180

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

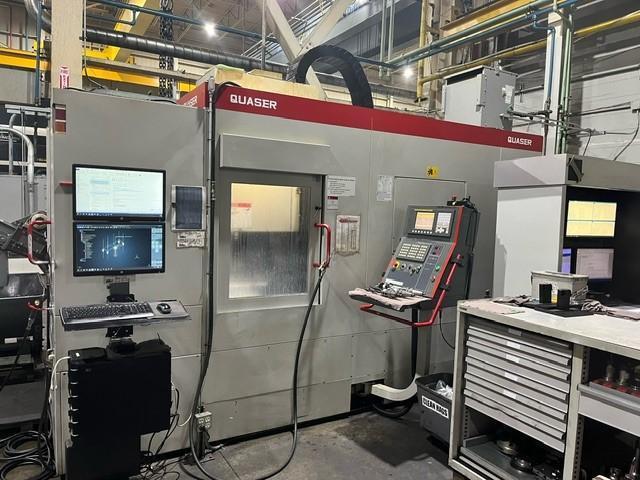

QUASAR VERTICAL MACHINING CENTER

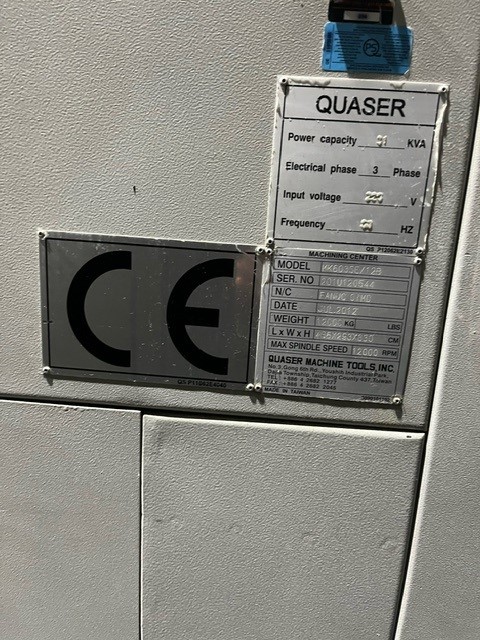

MODEL: MK 603, S/N: 201U120544, NEW: 2012

SPECIFICATIONS

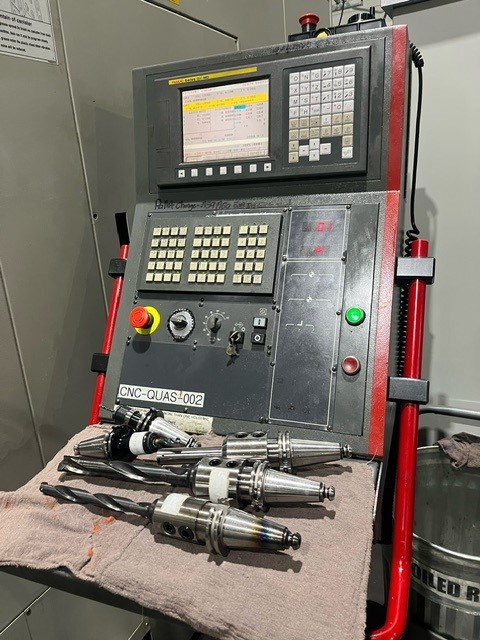

TYPE OF CNC CONTROL FANUC 0I-MD
# AXIS 3
TABLE SIZE ................. 41.3" X 21.6" (2 PALLETS)
TABLE CAPACITY ............. 660 POUNDS
X-AXIS TRAVEL .............. 40.1 INCHES
Y-AXIS TRAVEL .............. 24 INCHES
Z-AXIS TRAVEL .............. 23.6 INCHES
SPINDLE SPEED .............. 12,000
SPINDLE TAPER .............. CAT 40 BIG PLUS
MAIN MOTOR ................. 30 HP
TOOL CHANGER CAPACITY ...... 48
X-AXIS FEEDRATE ............ 787 IPM
Y-AXIS FEEDRATE ............ 787 IPM
Z-AXIS FEEDRATE ............ 787 IPM
X-AXIS RAPID TRAVERSE RATE . 1,260 IPM
Y-AXIS RAPID TRAVERSE RATE . 1,260 IPM
Z-AXIS RAPID TRAVERSE RATE . 1,260 IPM
COOLANT THRU SPINDLE ....... YES
DIMENSIONS ................. 113" X 191" X 130"
MAX DISTANCE SPINDLE
-TO TABLE TOP .............. 28.7 INCHES
TOOL CHANGE TIME ........... 2.5" TOOL TO TOOL, 6" CHIP TO CHIP
