ROLLOMATIC 6000XL, 2006, Robot, CNC TOOL & CUTTER GRINDERS

Price on Request

Make:: ROLLOMATIC

Model:: 6000XL, 2006, Robot,

Year:

Ref #:: 177891

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

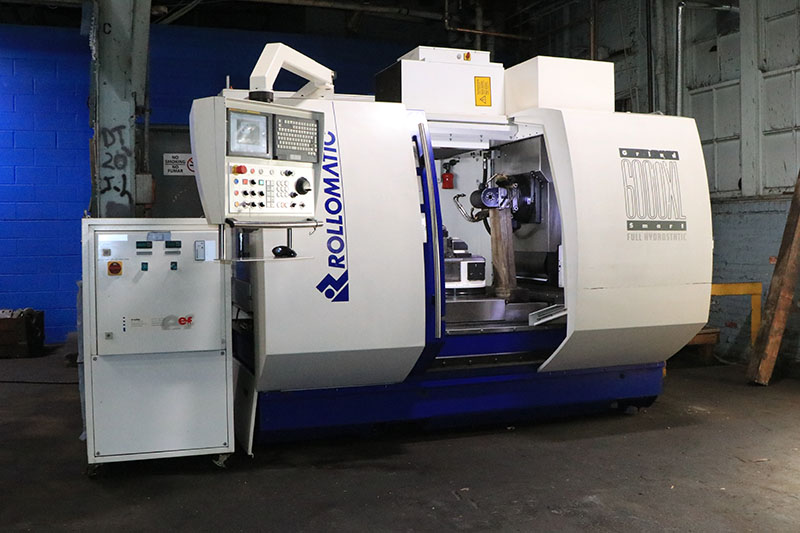

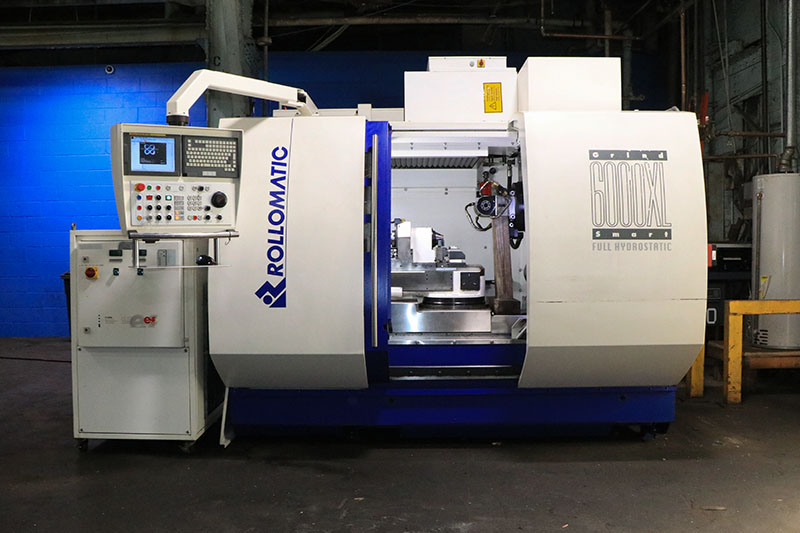

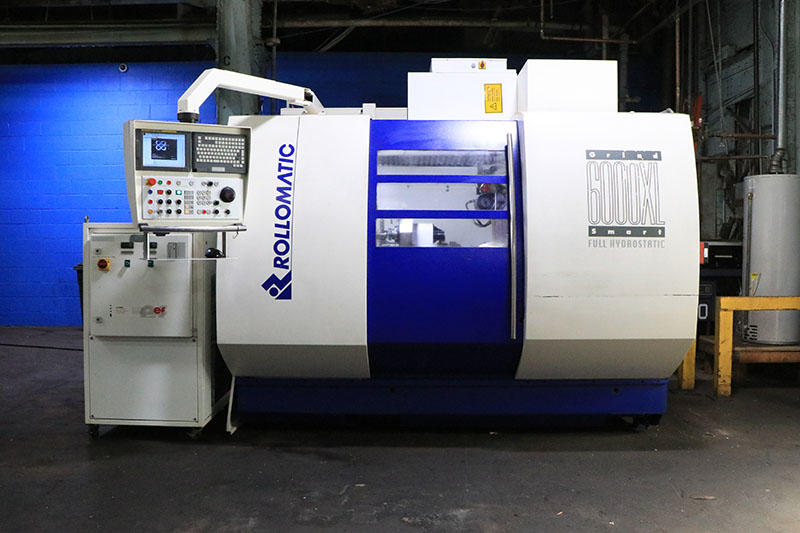

ROLLOMATIC "MADE IN SWITZERLAND"
 CNC TOOL & CUTTER GRINDER

** FANUC 160iMB CNC CONTROL **

** LOADER **

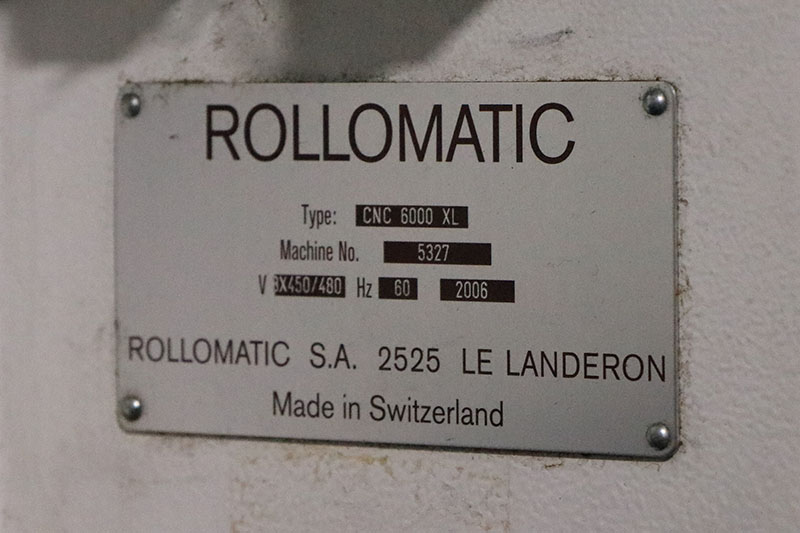

MODEL: 6000XL    S/N: 5327     NEW: 2006


X TRAVEL:....................... 11"
Y TRAVEL:....................... 9.5"
Z TRAVEL:....................... 14"
A AXIS (GRINDING HEAD ROTATION): 0.240"
B AXIS (WORKHEAD ROTATION:...... 180"
C AXIS (TOOL ROTATION):......... 0.0001" 550 RPM

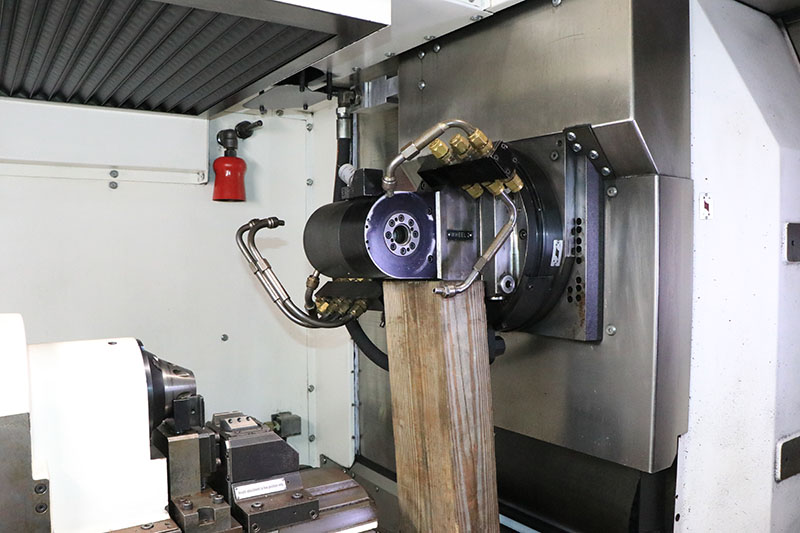

GRINDING HEAD:.................. 28 HP, 6000 RPM
SPINDLE:........................ DOUBLE ENDED
MAX. WHEEL DIAMETER:............ 8"
MAX NUMBER OF WHEELS:........... 8
AUTOMATIC LOADER:............... SHANK DIAMETERS .04" - .750"
POWER REQUIREMENTS:............. 480 VOLTS, 3 PHASE

ADDITIONAL INFO:

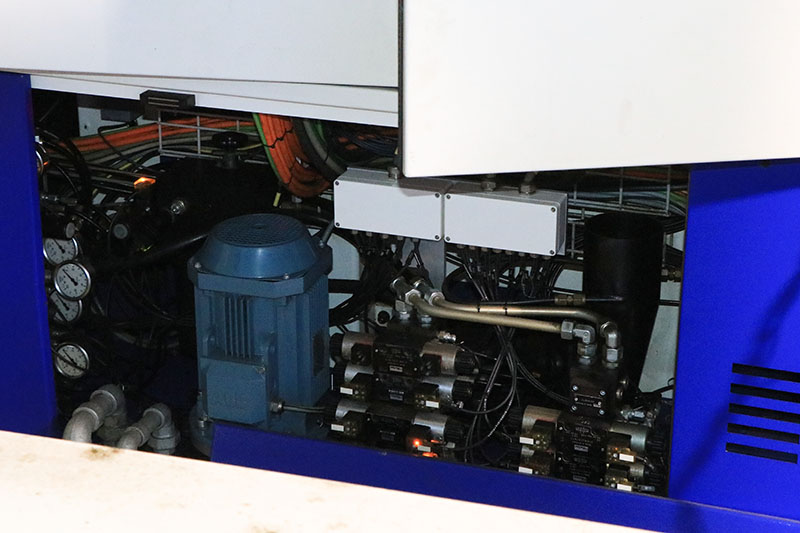

This machine has six axis with hydrostatic ways on all
 axis both linear and rotary.   Resolution on linear
 axis are at .000004 and on rotary 0.0001°.  Machine

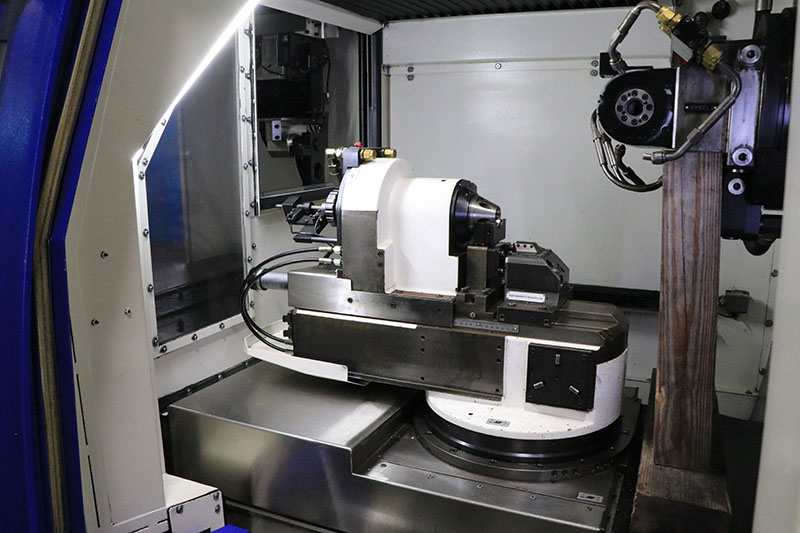

 also features a Collet System, for work holding.
 Collets are with the machine, they are "Schaublin W31.75
 Type", in various assorted sizes.

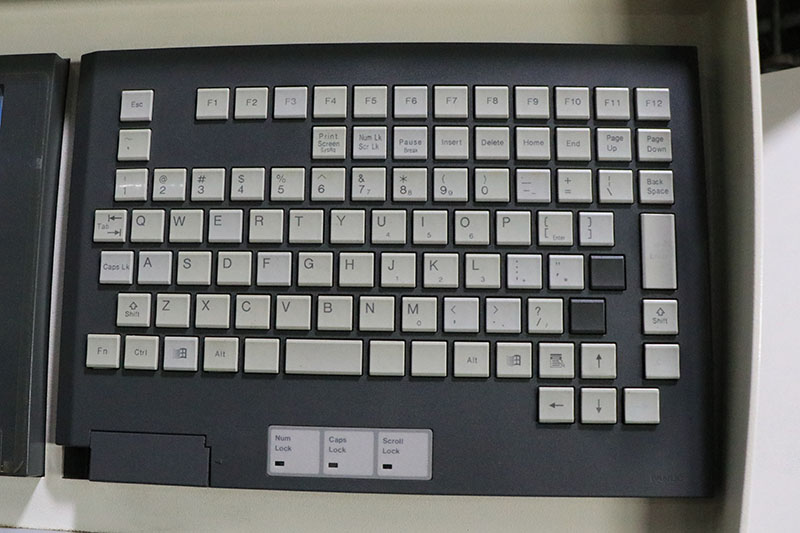

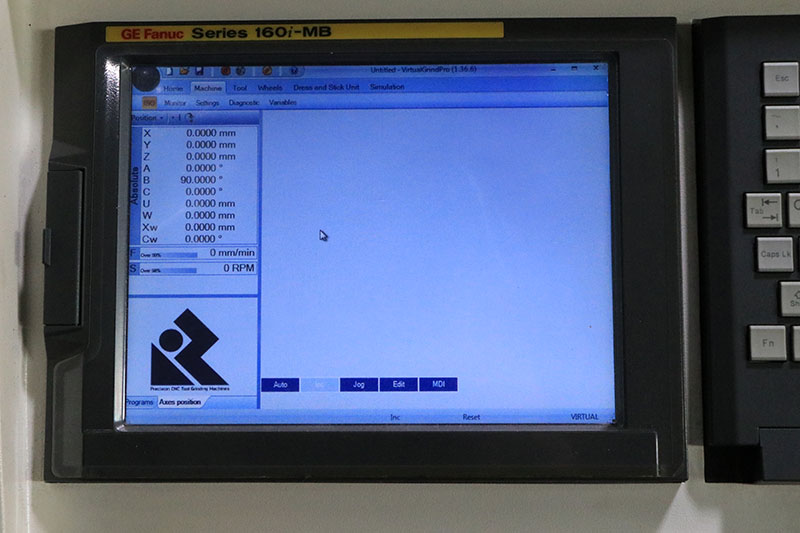

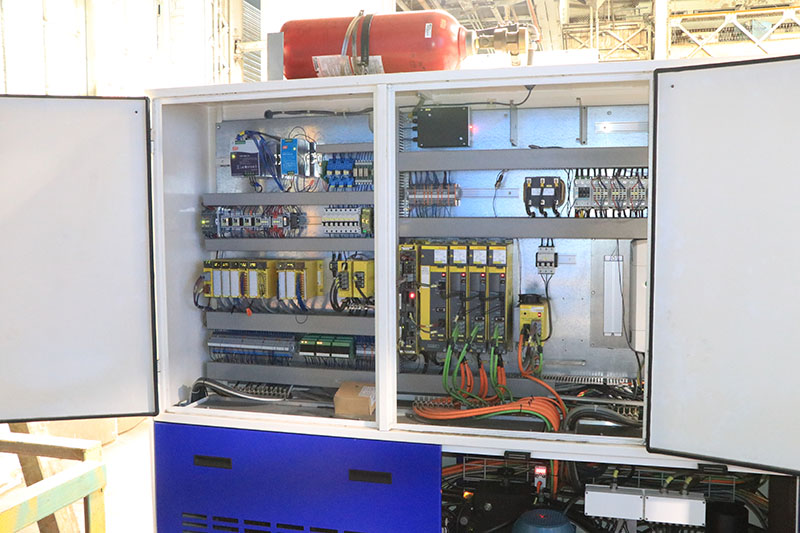

The CNC Control is a FANUC 160iMB 9-axis interface.
 Rollomatic software software packages are inbedded in
 the machine, TBD. Software Packages to be determined
 are End mills, Ball nose, Radius end mills, Drill/step drills,
 Step tools, Burrs, and other possibilities.

EQUIPPED WITH:

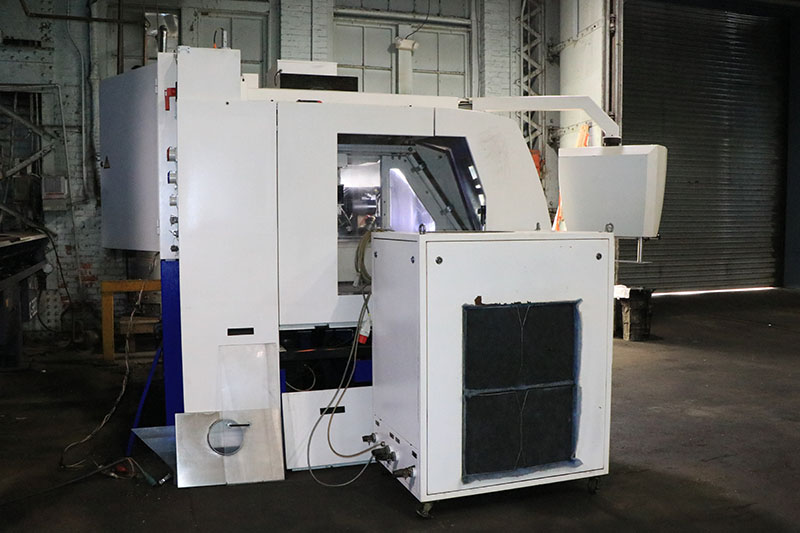

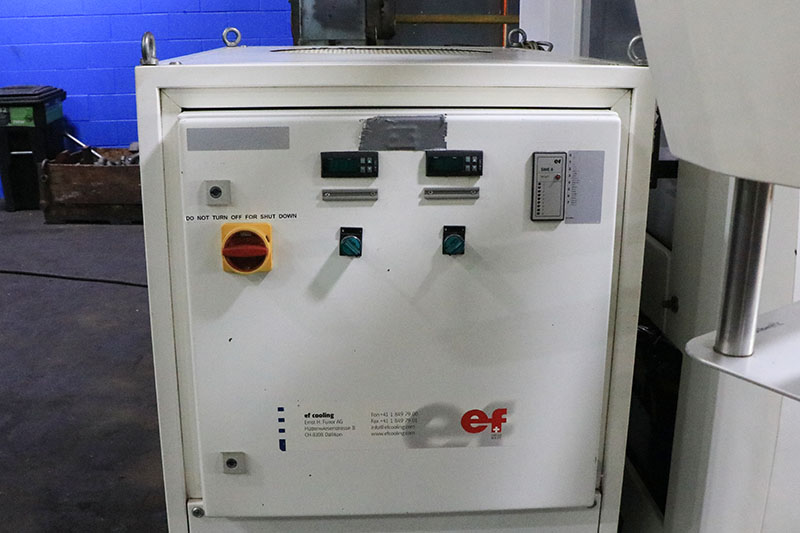

CHILLER, MADE BY "EF COOLING".
  MACH No. 14570
  TYPE OK 70-2
  S/N: 0070.029/14570

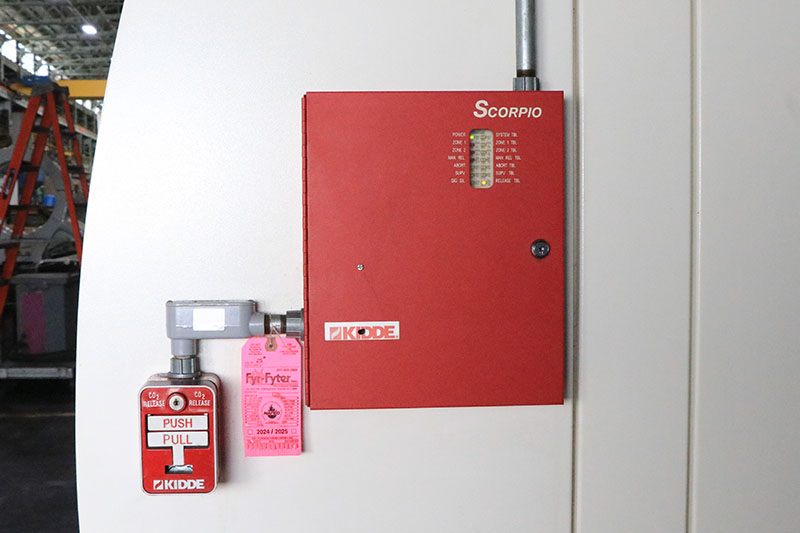

"SCORPIO" FIRE SUPPRESSANT SYSTEM

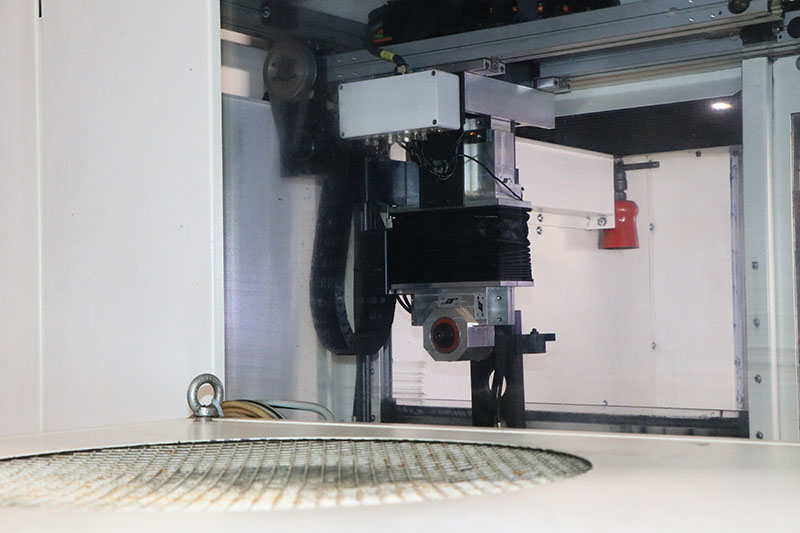

AUTO LOADER
PALLETS/HOLDERS
STEADY RESTS
GRIPPERS
COLLETS
ASSORTED OTHER ITEMS
WIRED FOR 3/60/460-480 VOLTS

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION - ORIGINAL & VERY CLEAN **
