Scherr-Tumico 20-3650, 1998, ERECT IMAGE, QC 2000 DRO, EDGE DET COMPARATORS

Price on Request

Make:: Scherr-Tumico

Model:: 20-3650, 1998, ERECT IMAGE, QC 2000 DRO, EDGE DET

Year:: 1998

Ref #:: 175659

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

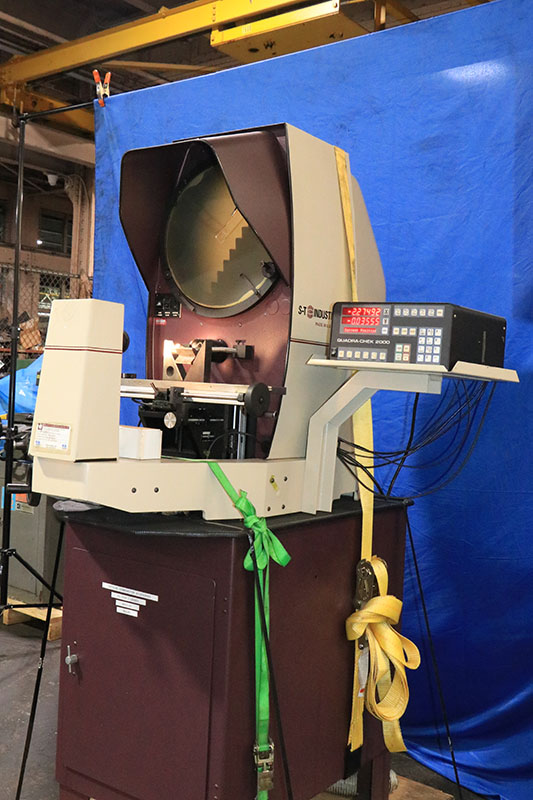

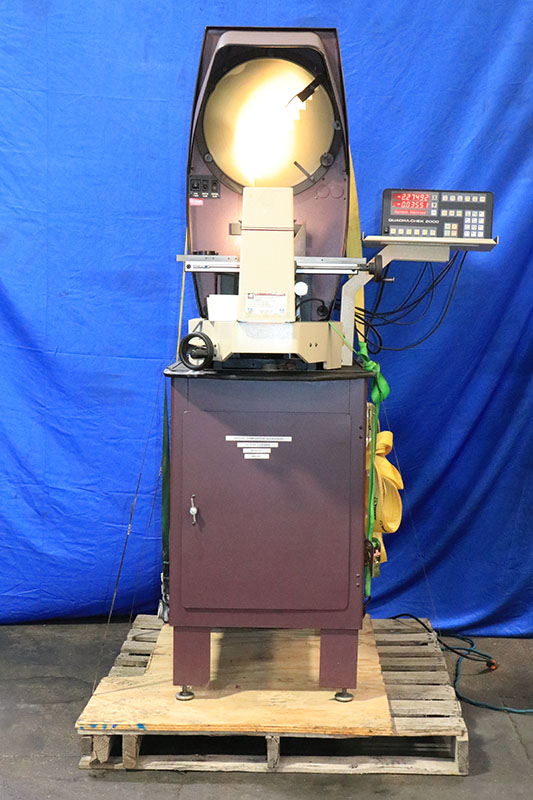

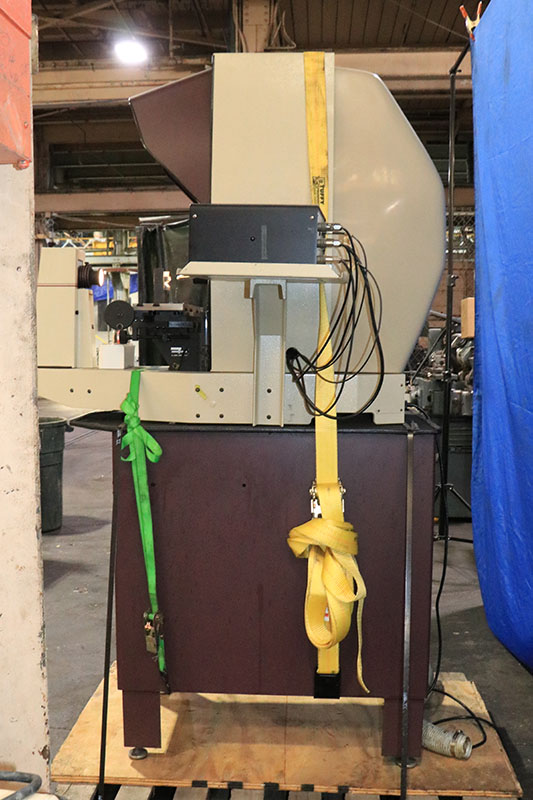

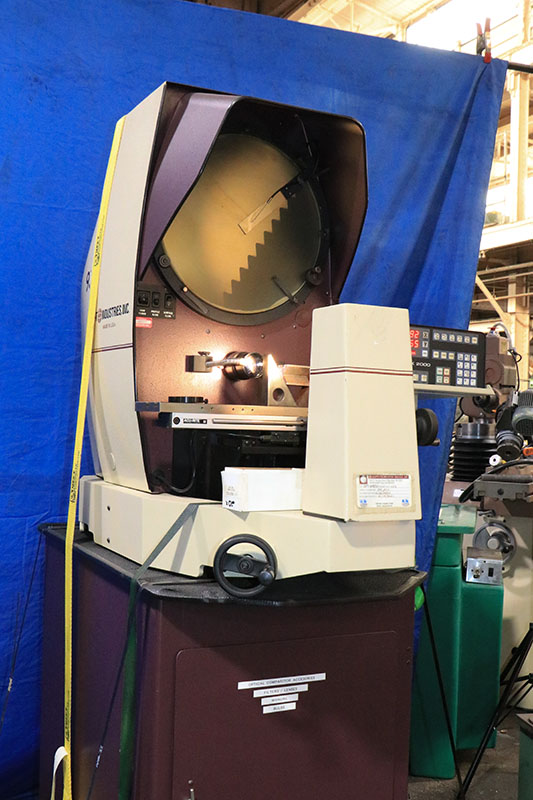

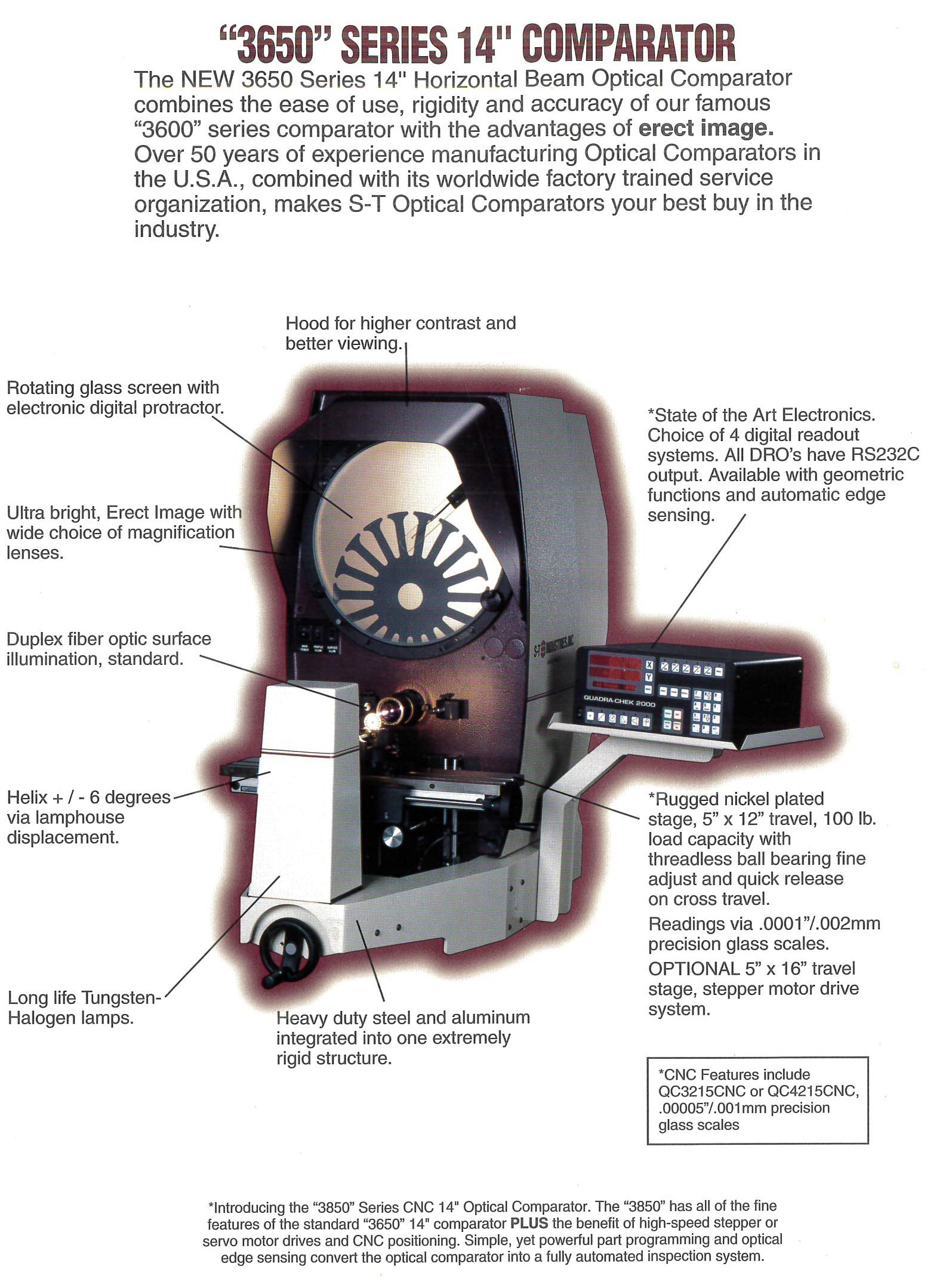

  14" S-T INDUSTRIES (SCHERR TUMICO)
  "MADE IN USA" OPTICAL COMPARATOR
     WITH FACTORY FLOOR CABINET

QUADRA-CHEK 2000 DIGITAL READOUT WITH
 PROGRAMMABLE GEOMETRIC FUNCTIONS

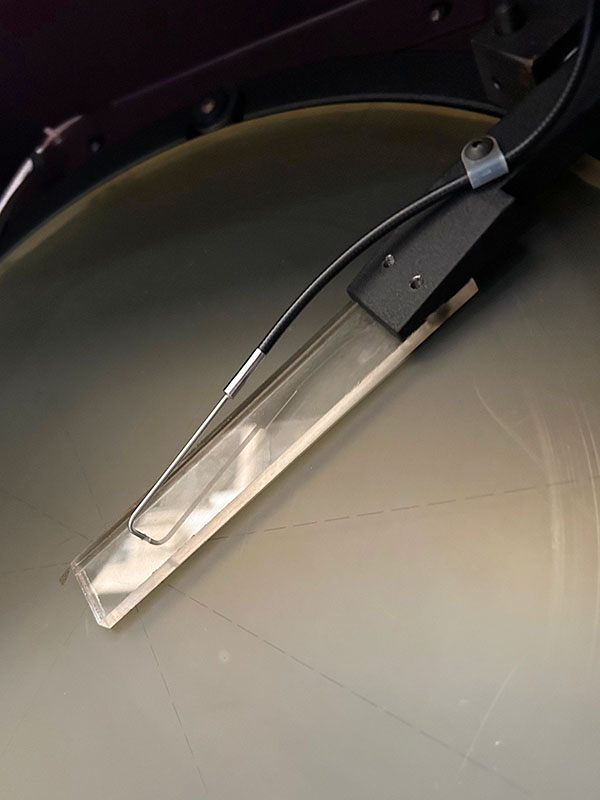

     & EDGE DETECTION

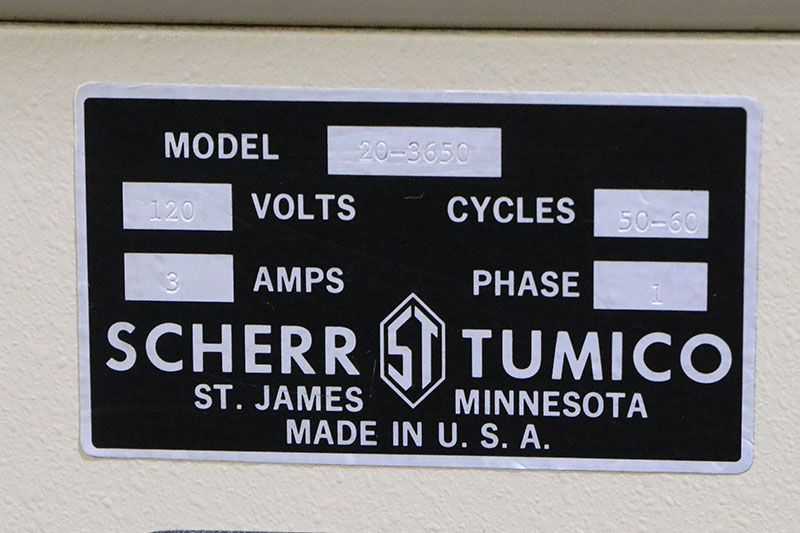

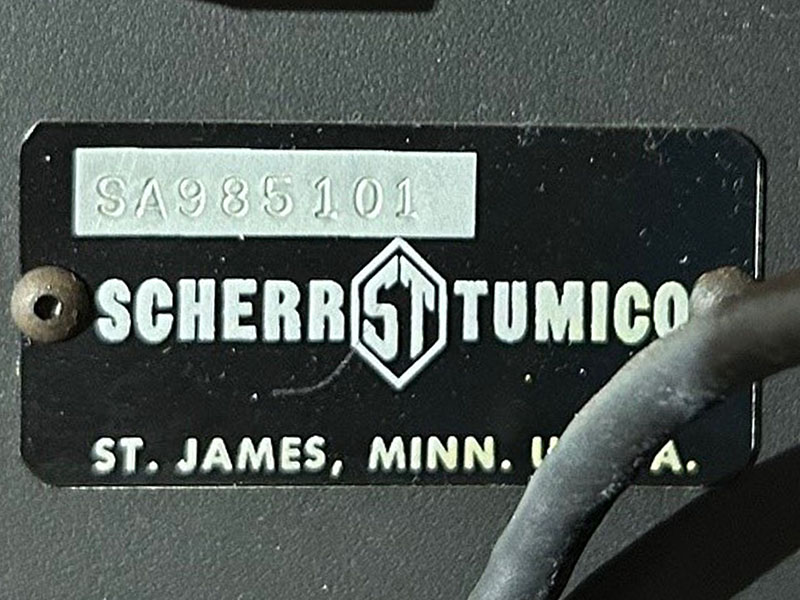

MODEL: 20-3650    S/N: SA985101     NEW: 1998

EQUIPPED WITH:
THIS MODEL HAS "ERECT IMAGE"
14" SCREEN
BENCH MODEL
HORIZONTAL PROJECTION
TUNGSTEN/HALOGEN ILLUMINATION
 24 VOLT, 150 WATT LAMP PROFILE
 12 VOLT, 100 WATT SURFACE

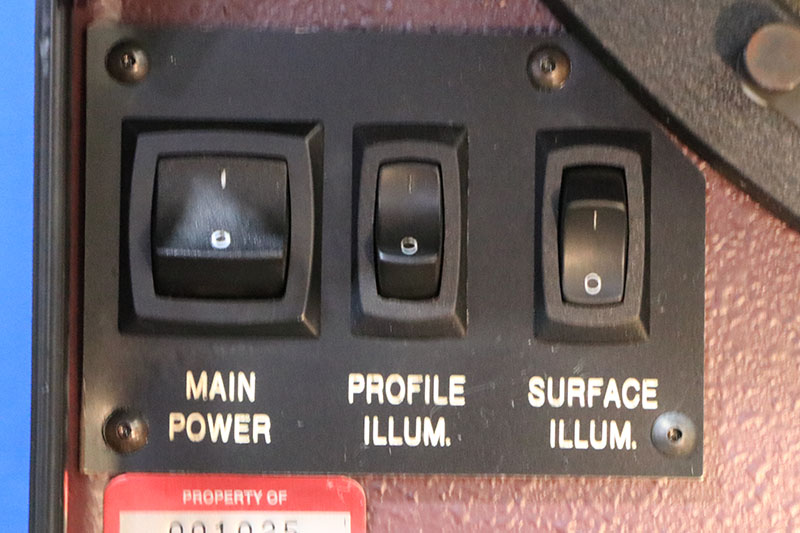

VARIABLE SWITCH FOR LAMP BRIGHTNESS

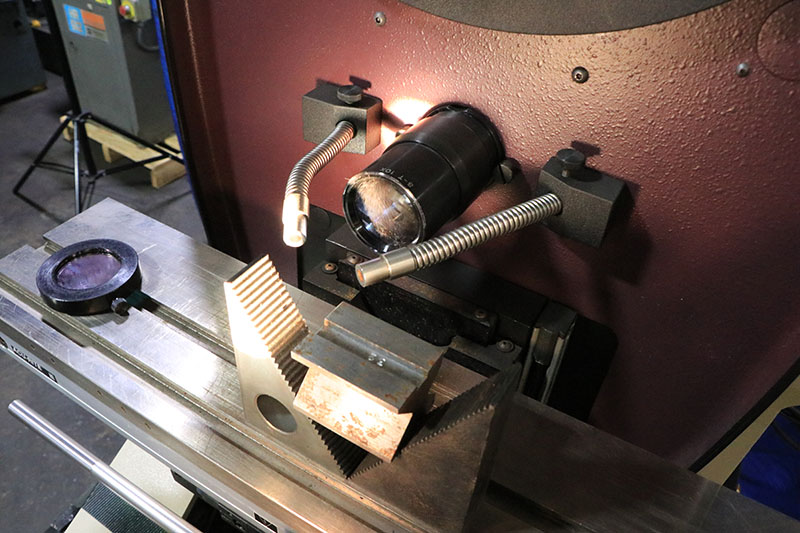

DUPLEX FIBER OPTIC SURFACE ILLUMINATION

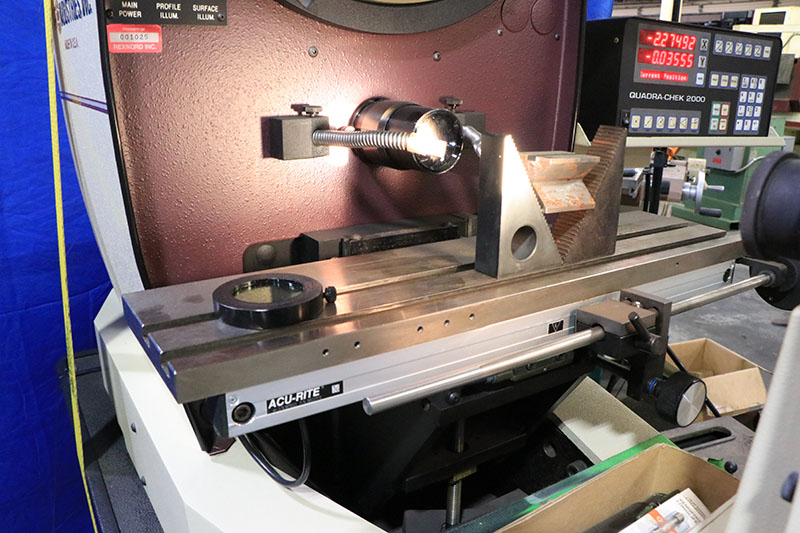

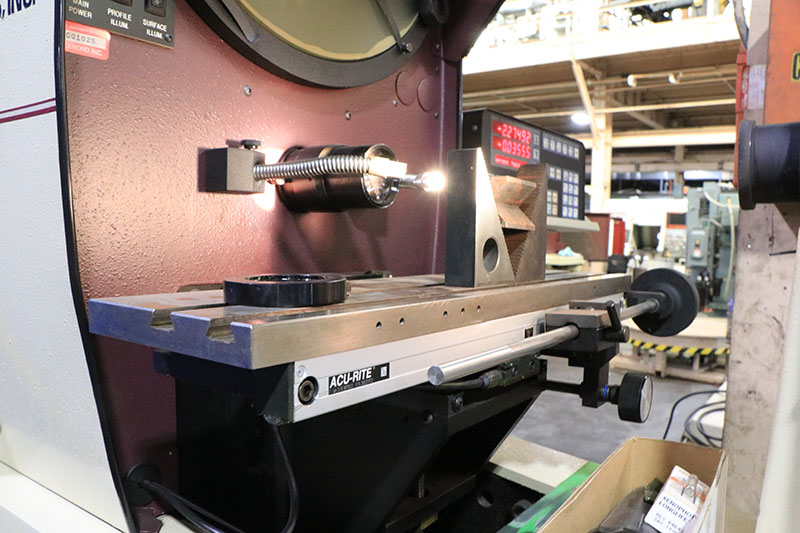

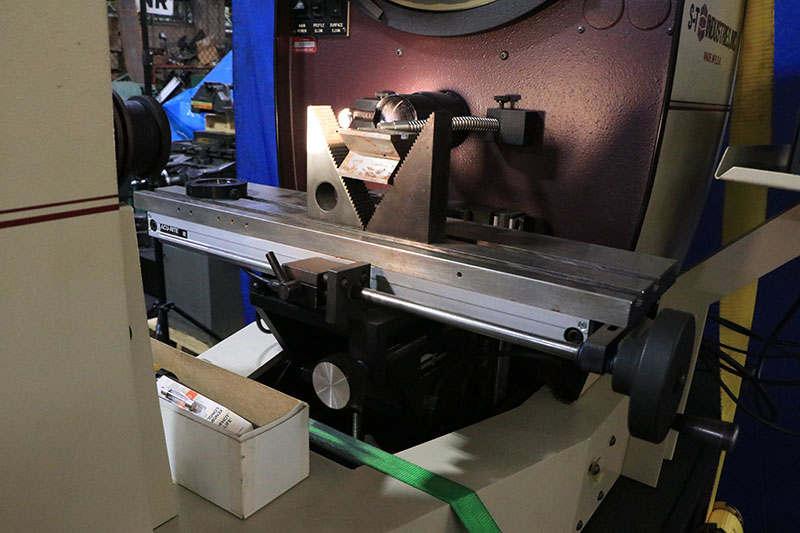

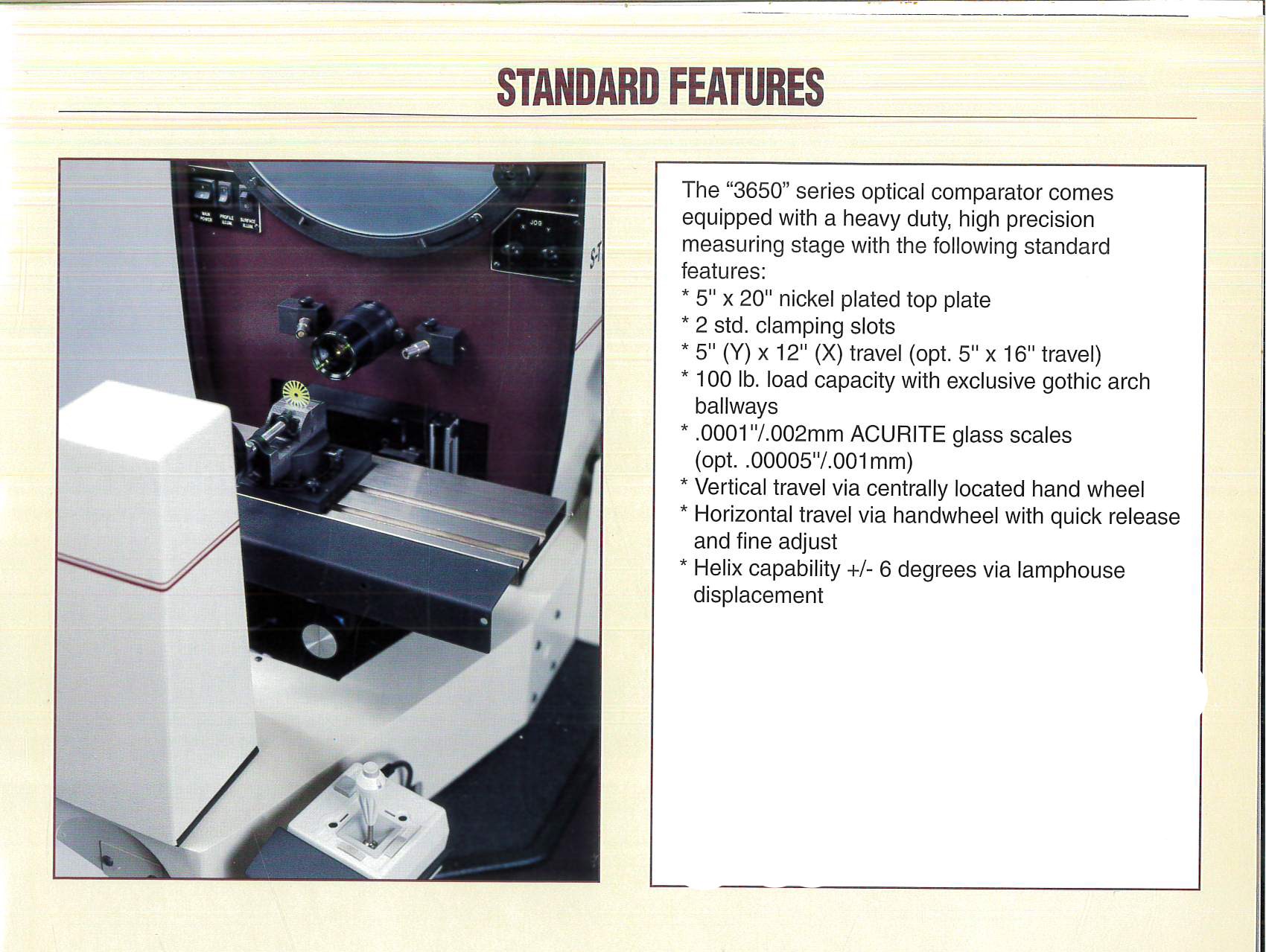

5" x 20" WORK TABLE, HEAVY DUTY
100 LBS. MAX. WORKLOAD ON TABLE
QUICK RELEASE FOR RAPID MOVEMENT OF TABLE,
 WITH MANUAL FINE ADJUSTMENT
12" LONGITUDINAL TRAVEL
6" VERTICAL TRAVEL
2.5" FOCUS TRAVEL
+/- 6° HELIX ADJ. THRU LAMPHOUSE DISPLACEMENT

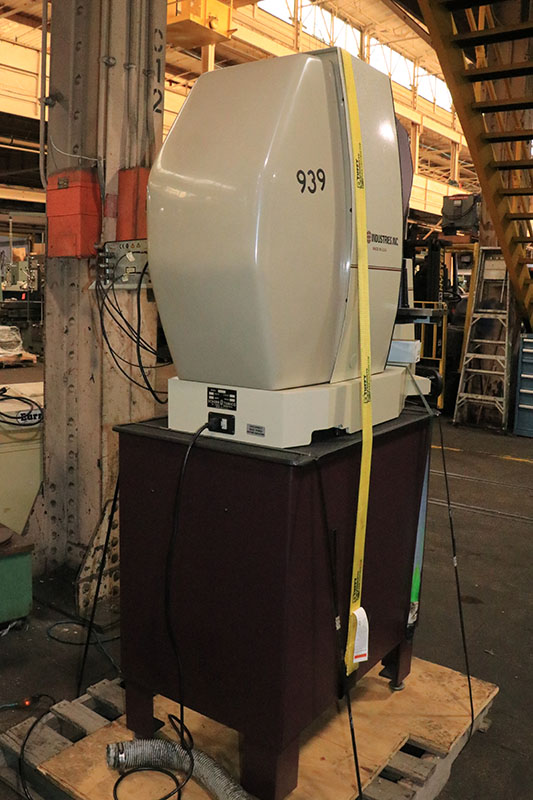

SWING AWAY LAMPHOUSE
10X AND 20X  LENSES

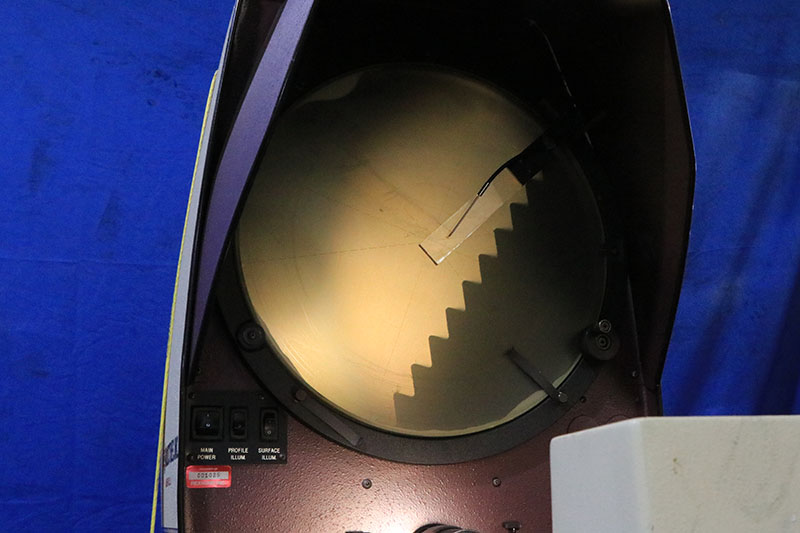

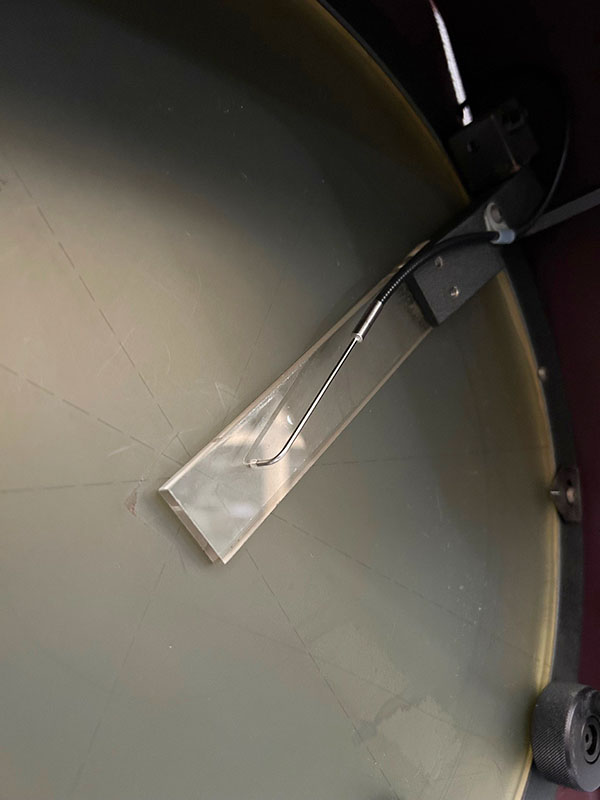

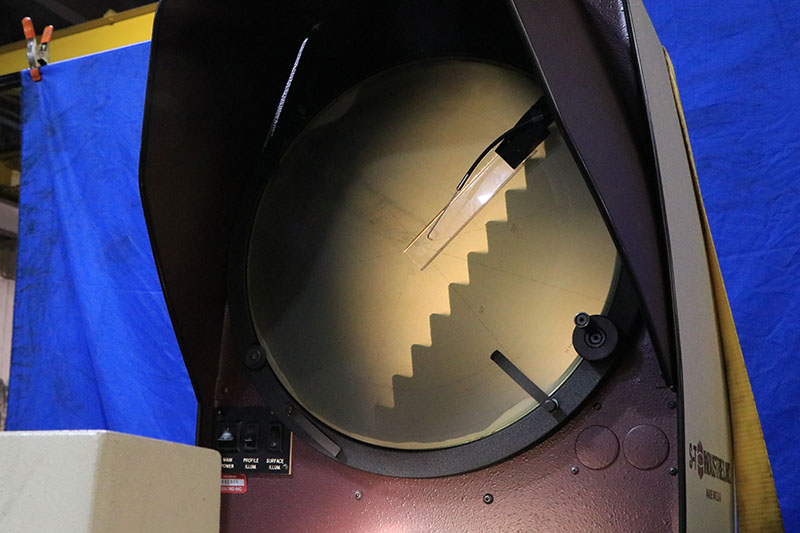

FROSTED GLASS SCREEN, 30°-60°-90° CROSSLINES

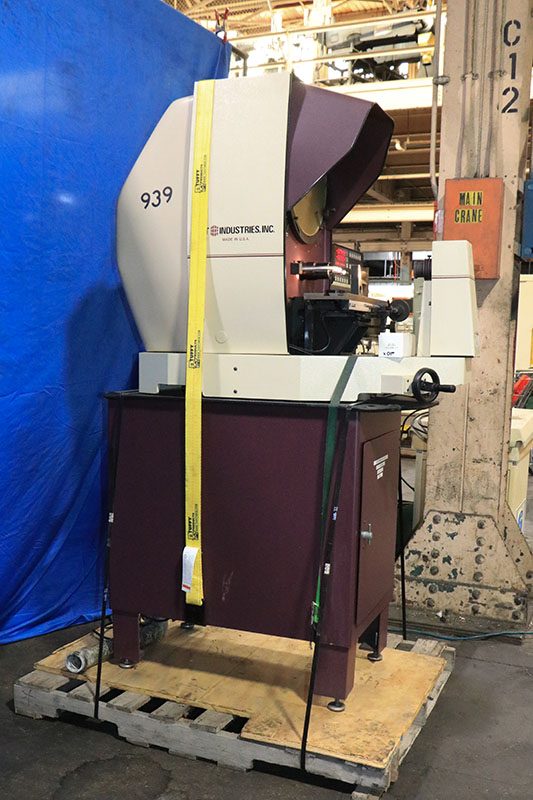

FACTORY FLOOR CABINET

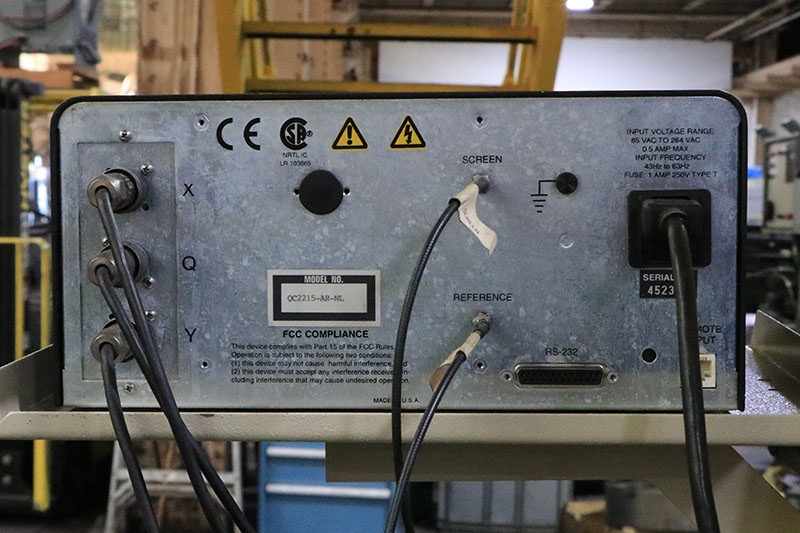

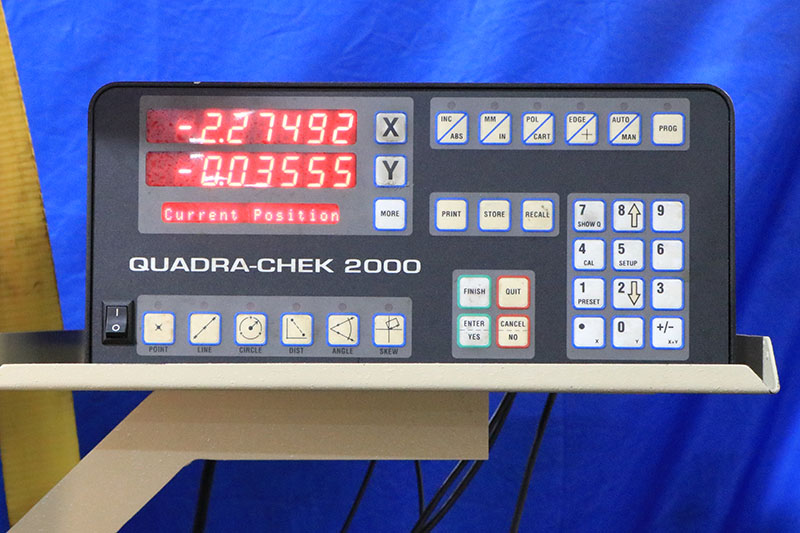

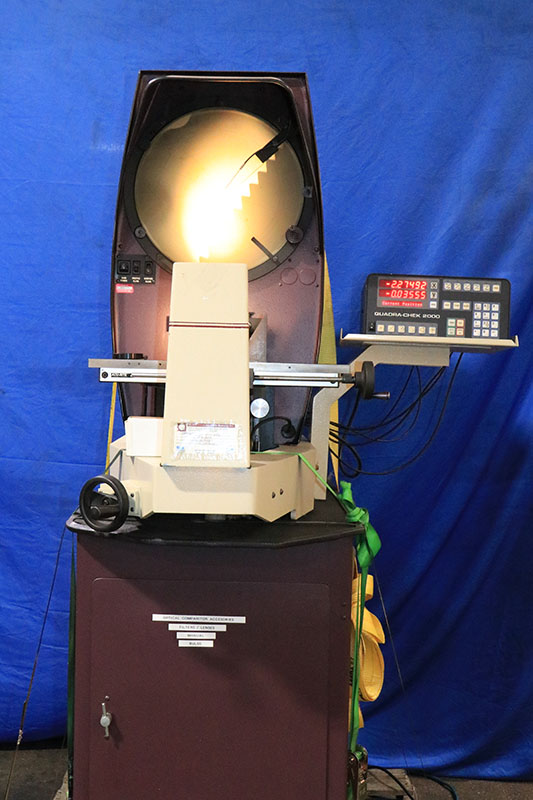

QUADRA-CHEK 2000 DIGITAL READOUT WITH PROGRAMMABLE
 GEOMETRIC FUNCTIONS & EDGE DETECTION
DRO FOR PROTRACTOR SCREEN, ON THE QC 2000
1/60/115 VOLTS ELECTRICS

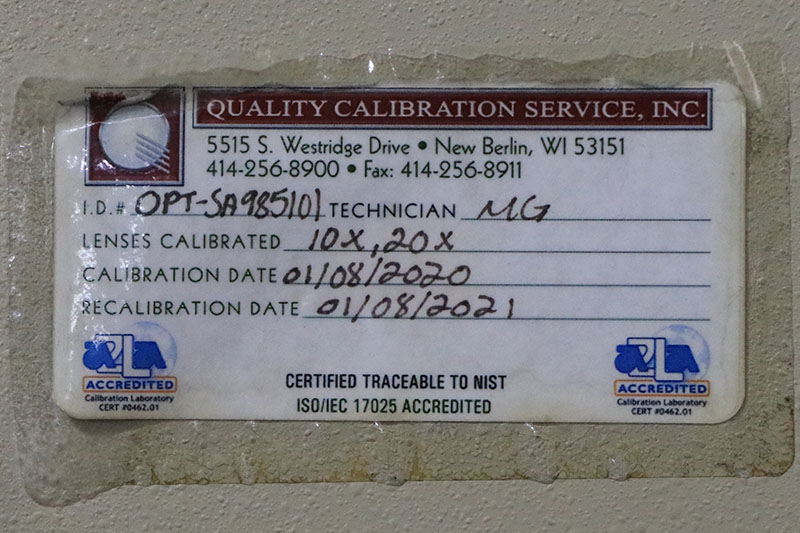

CALIBRATED LAST ON 01/08/2020 BY:
QUALITY CALIBRATION SERVICE, INC.
5515 S. WESTRIDGE DR.
NEW BERLIN, WI 53151
(414) 256-8900

I.D. No. OPT-SA985101
TECHNICIAN:  MG

** EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
