Star SR-32J CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:: Star

Model:: SR-32J

Year:: 2008

Ref #:: 171432

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

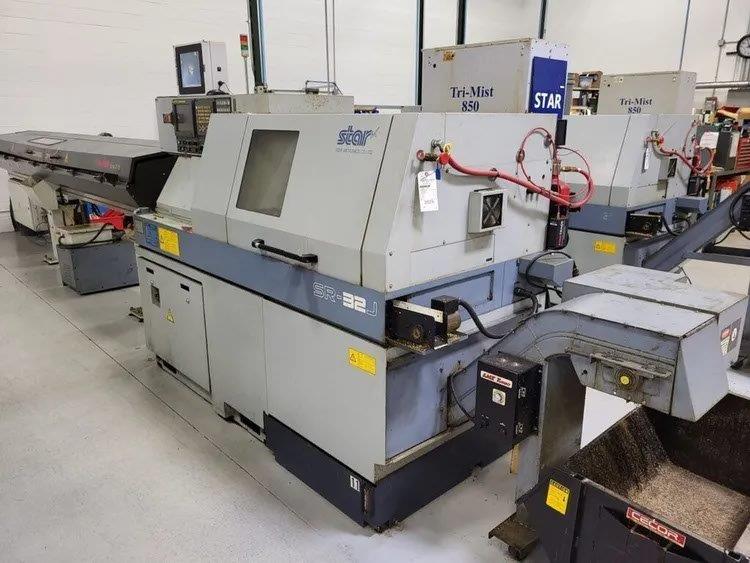

Star SR-32J CNC Swiss Lathe, New in 2008

VIDEO LINK: https://youtu.be/ZeD26jRBkhg?si=1kjCHqLJ1LlaHiXx

General Specifications:
Control: Fanuc 18iTB
Machining Diameter: 32mm (1-1/4")

Headstock stroke
Standard: 310mm (12-13/64")
 - with RMGB Unit: 280mm (11-1/32")

Tool Shank: 16mm x 95-155mm

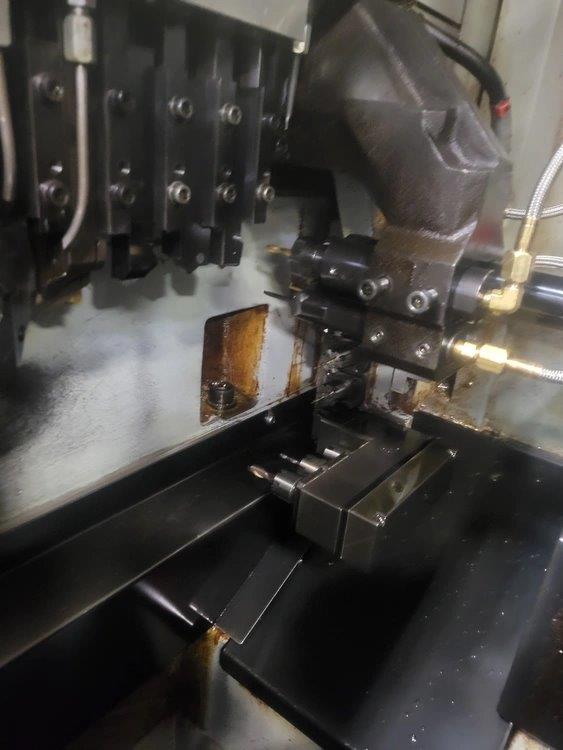

4-Spindle Sleeve Holder
Drilling Capability: 13mm (1/2")
Tapping Capability: M12xP1.75
Die Cutting Capability: M10xP1.5

Power Driven Attachment
Drilling Capability: 8mm (5/16")
Tapping Capability: M6xP1.0
Milling Capability: 10mm (25/64")
Main Spindle Speed: 7,000 RPM
Main Spindle Motor (continuous/30min): 5.5kw/7.5kw
Power-Driven Att. Spindle Speed: 5,000 RPM
Power-Driven Att. Drive Motor: 1.0kw

Backworking Attachment
Chucking Diameter: 32mm (1-1/41")
Length for Front Ejection: 125mm (4-59/64")
Parts Projection Length: 45mm (1-49/64")

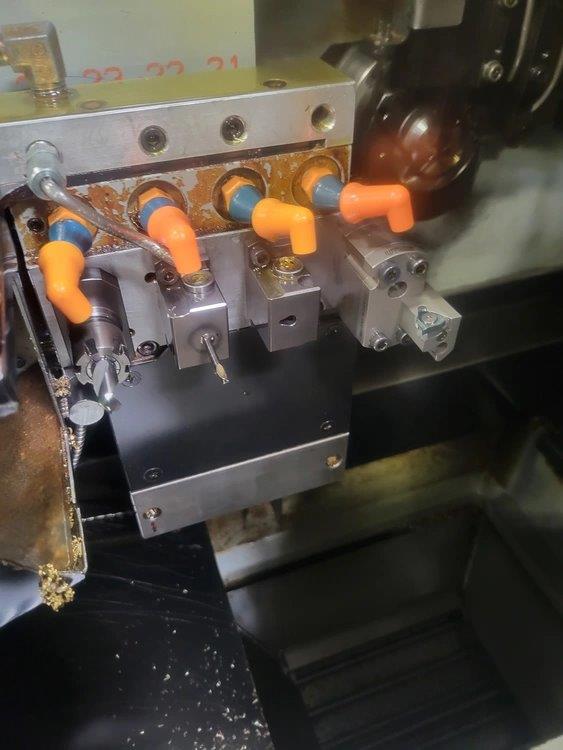

4-Spindle Backworking Unit
Drilling Capability Stationary Tool: 13mm (1/2")
Tapping Capability Stationary Tool: M10xP1.5
Sub Spindle Speed: 7,000 RPM
Sub Spindle Motor (continuous/15min): 2.2kw/3.7kw

Electrics: 200/3/60

Machine:  106" x 51" x 69" 8,300 lbs
Coolant Pan:  51" x 32" x 21" 155 lbs

EQUIPPED WITH:

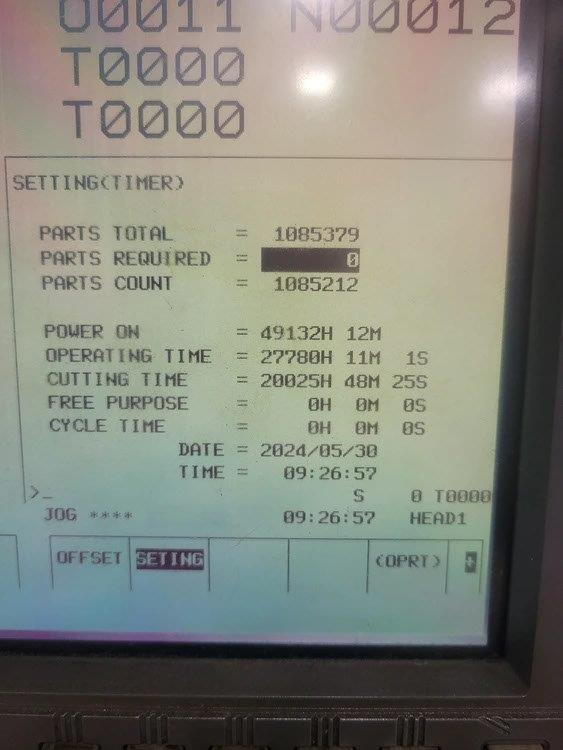

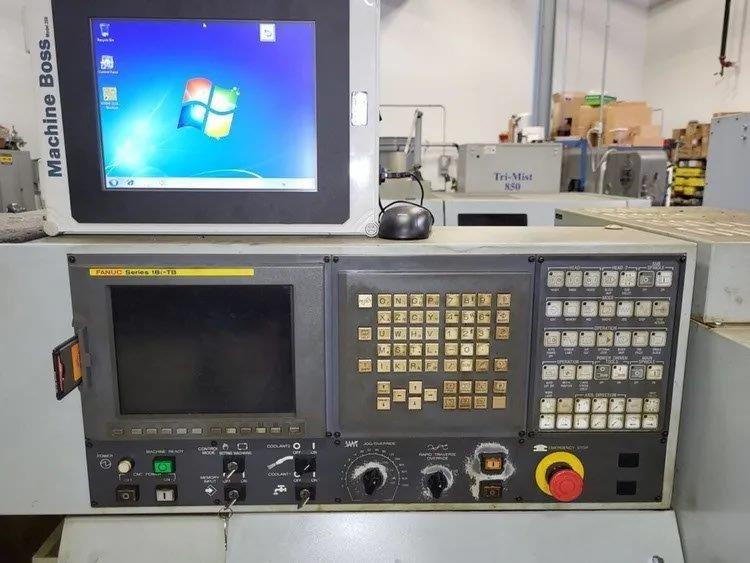

Fanuc 18i-TB CNC Control
Machine Boss Program

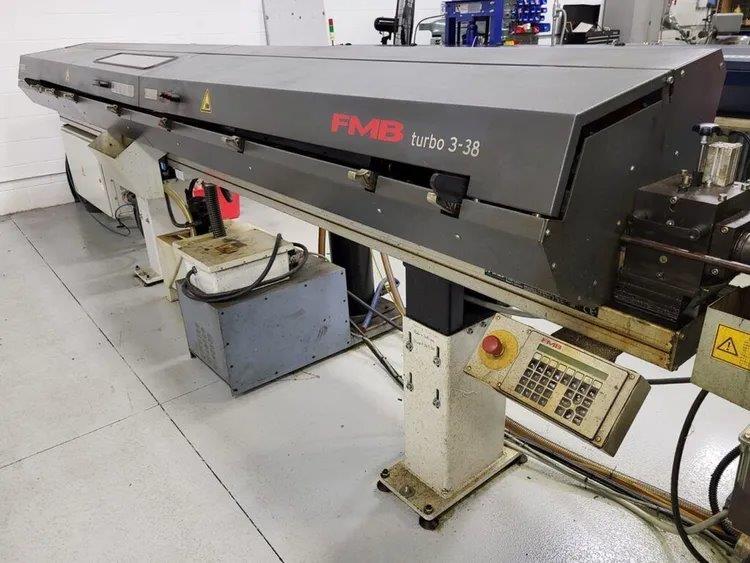

2008 FMB Turbo 3-38 Magazine Barfeed (S/N: 48-261076 R738756)
High Pressure Coolant System

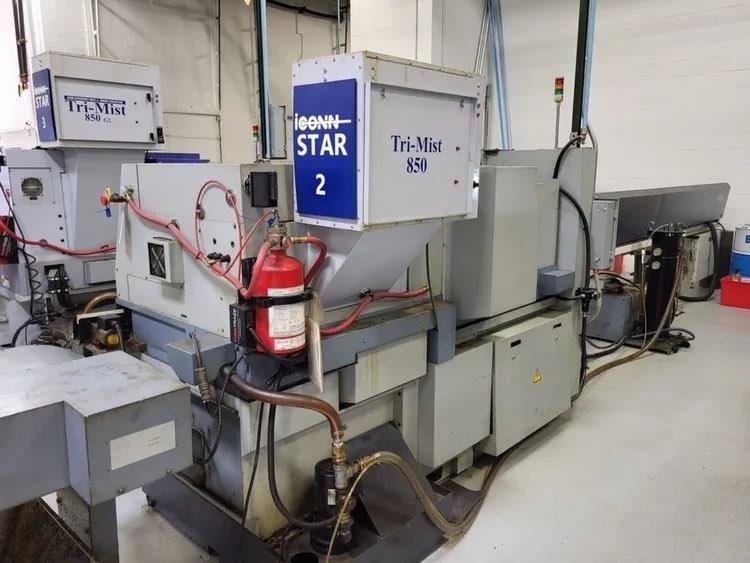

Tri-Mist 850 Mist Collector
LNS Chip Conveyor
Firetrace Fire Suppression System
Parts Catcher
Parts Conveyor


SPECIFICATIONS:

CAPACITY 1.25"
POWER 5.5 kW
RPM 7,000 RPM
# AXIS 7
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING Full C
SUB SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS? Yes
B-AXIS? No
CONTROL CNC (FANUC 18I TB)
DIMENSIONS 106" x 51" x 69"
WEIGHT 8,300 lbs
