Strippit SONIC 18/30 SINGLE STATION PUNCHES, FABRICATORS

$4,950

Make:: Strippit

Model:: SONIC 18/30

Year:: 1968

Ref #:: 178270

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

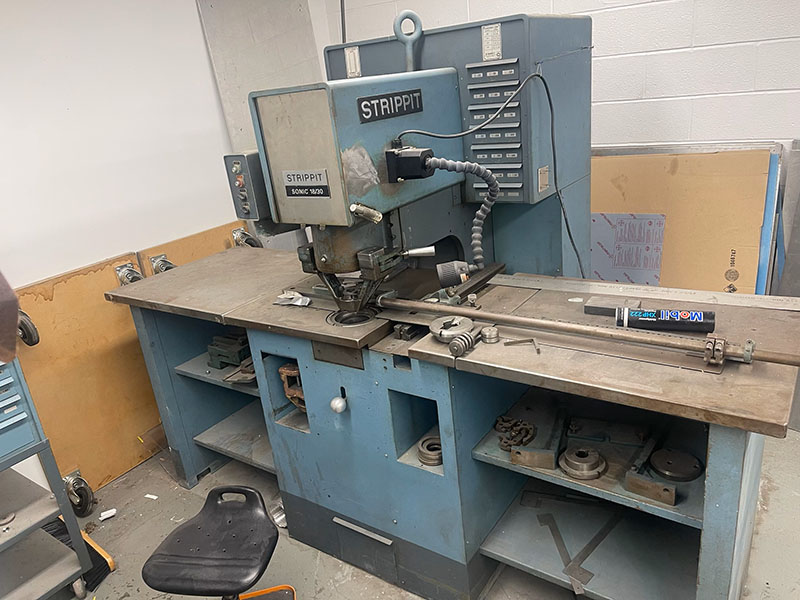

30 TON STRIPPIT SONIC 18/30 FABRICATOR

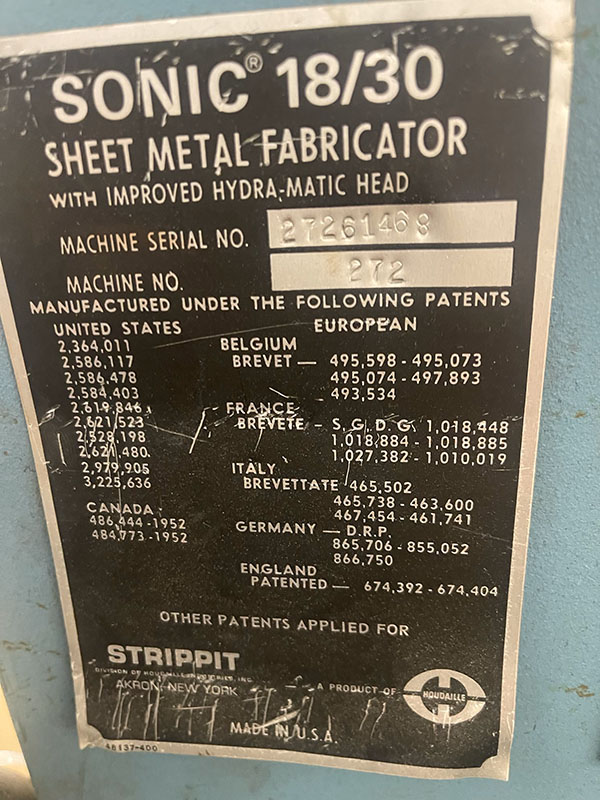

MODEL SONIC 18/30     S/N 27261468     NEW 1968

Capacity ....................... 30 Ton
Stock Size ..................... 18” x 30”
Material Thickness ............. 1/4” max
Max. Hole size ................. 3/4" in 1/4" m.s.
Throat depth ................... 18”
Shut Height .................... 5-13/32"
Stroke ......................... 5/8”
Strokes per min. ............... 165
Motor .......... 1 HP / 1,200 RPM, 230/460 v , 3 ph.

Overall Dim.: 67” x 88” x 67”
Weight: 3,800 lbs.

EQUIPPED WITH:
- ELECTRIC FOOT PEDAL

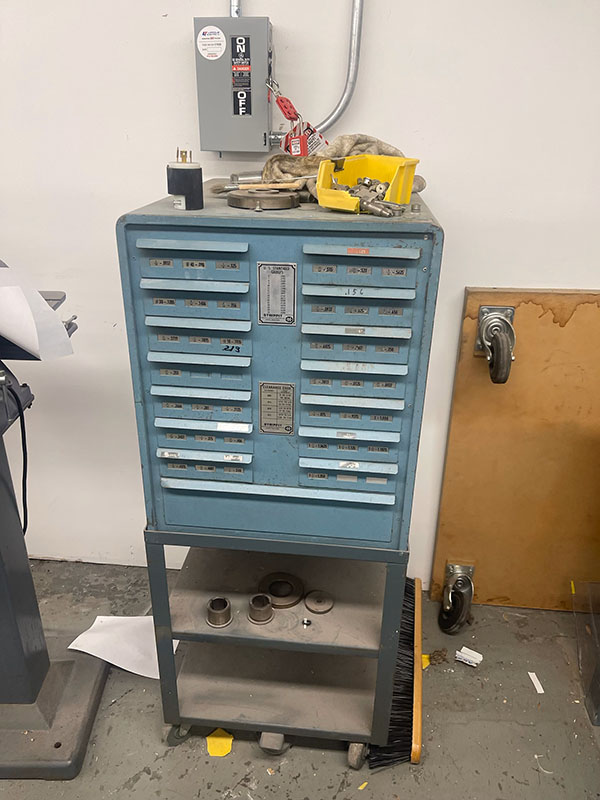

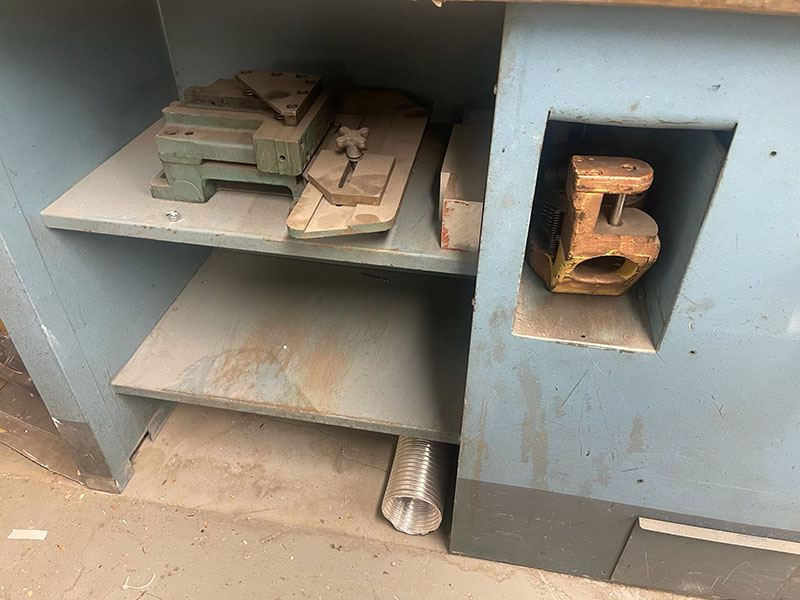

- MISCELLANEOUS TOOLING & CABINETS
- 1-1/4" & 3-1/2" TOOL HOLDERS
- CORNER NOTCHING DIE
- LAMP
- BACKGAUGE WITH FINGER STOPS
