Studer S30 FAVORIT, NEW 1991 PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:: Studer

Model:: S30 FAVORIT, NEW 1991

Year:: 1991

Ref #:: 157605

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

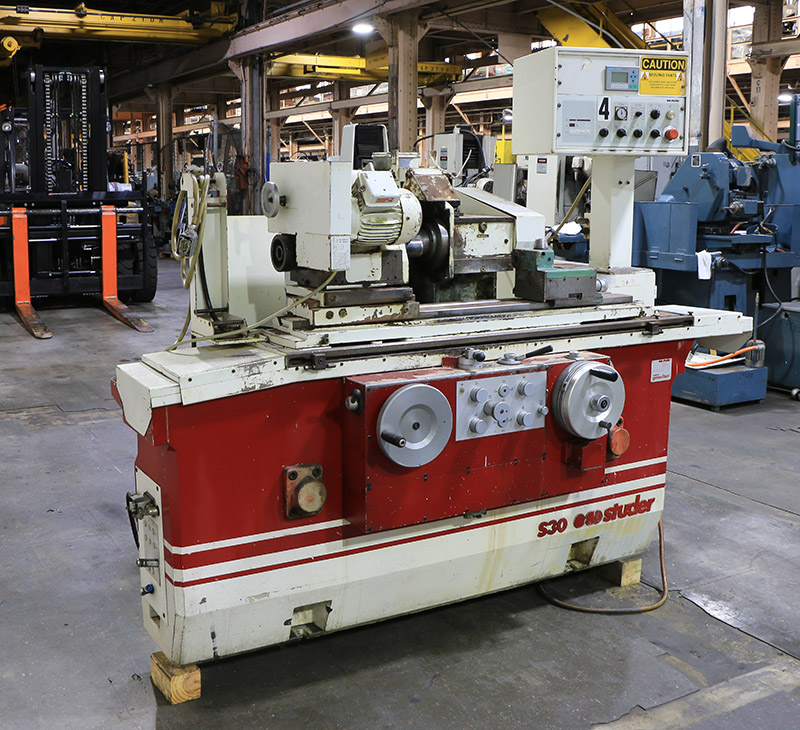

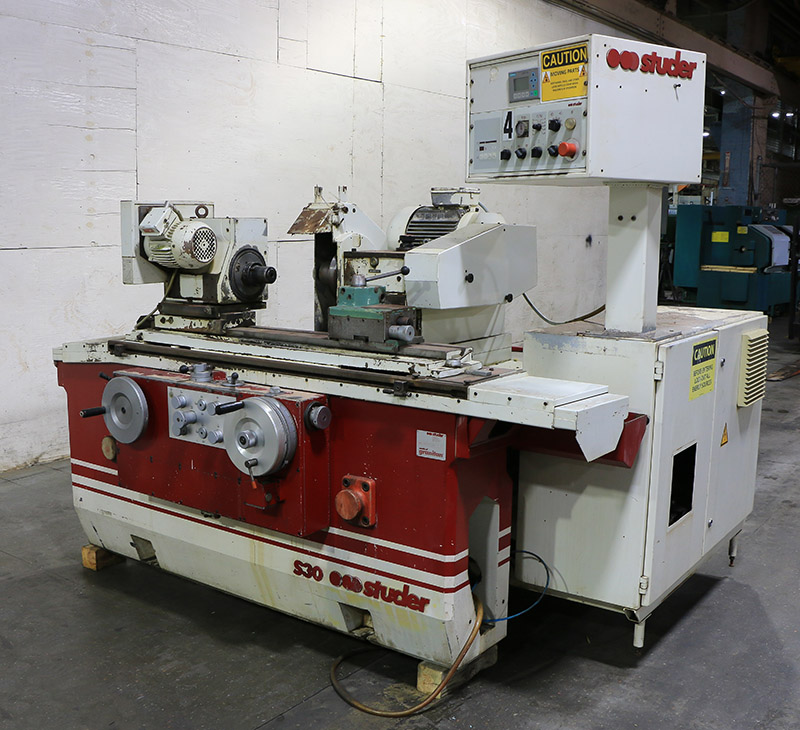

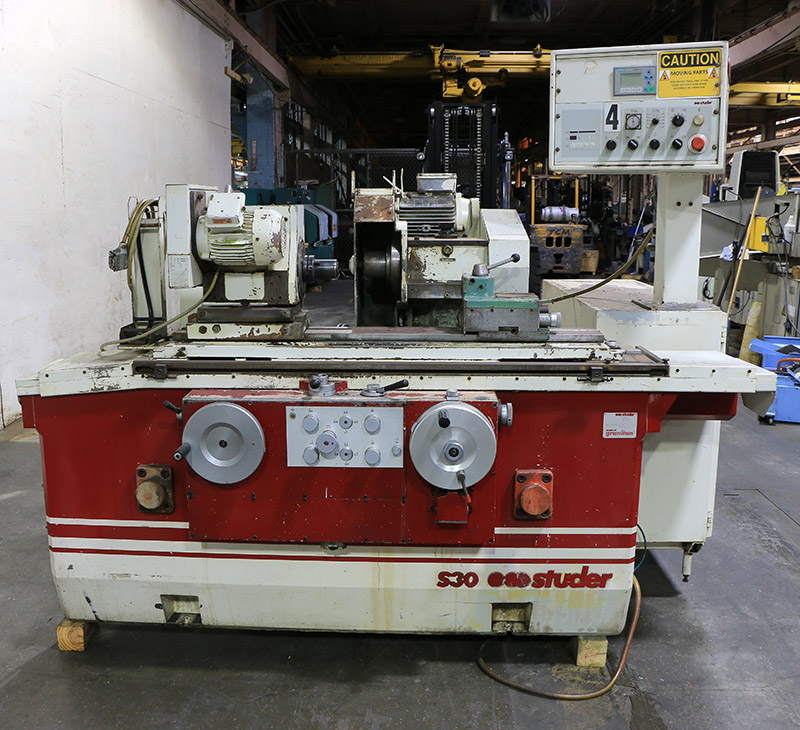

  STUDER "SWISS" CYLINDRICAL GRINDER

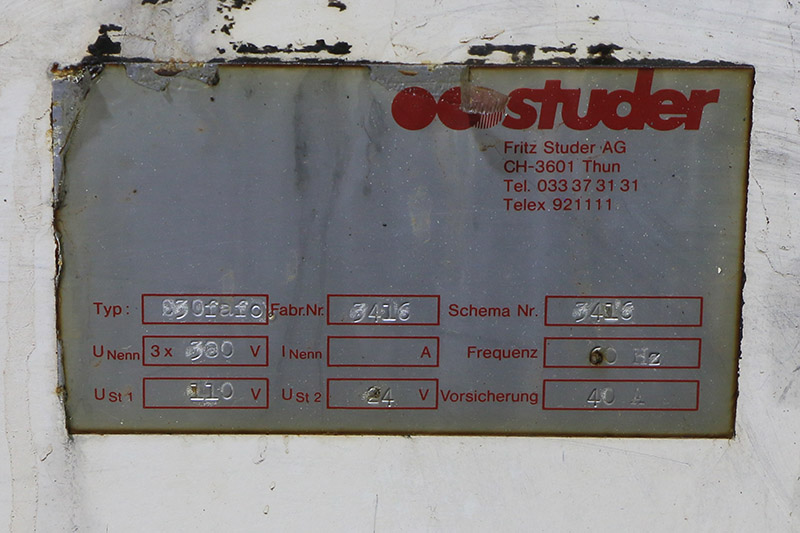

MODEL: S30-FAVORIT      S/N: 3416.37    NEW: 1991

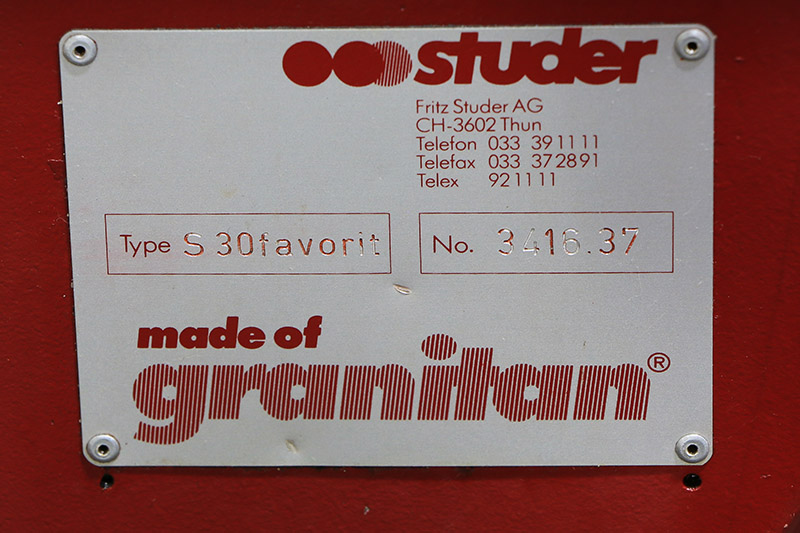

"GRANITRAN" BASE


Height of centres 125 mm (4.9" )
Max. workpiece weight between centres 130 kg (286 lbs)
Cross slide: X axis
Rapid infeed 60 mm (2.36")
Max. travel 255 mm (10.2")
[plunge depth 3,4 mm (0.134")]
Speed 0,012 - 6 mm / min (0.000,5 - 0.24 ipm)
Incremental feed 0,001 - 0,05 mm (0.000,04 - 0.002")
Spark-out time 0 - 6 s

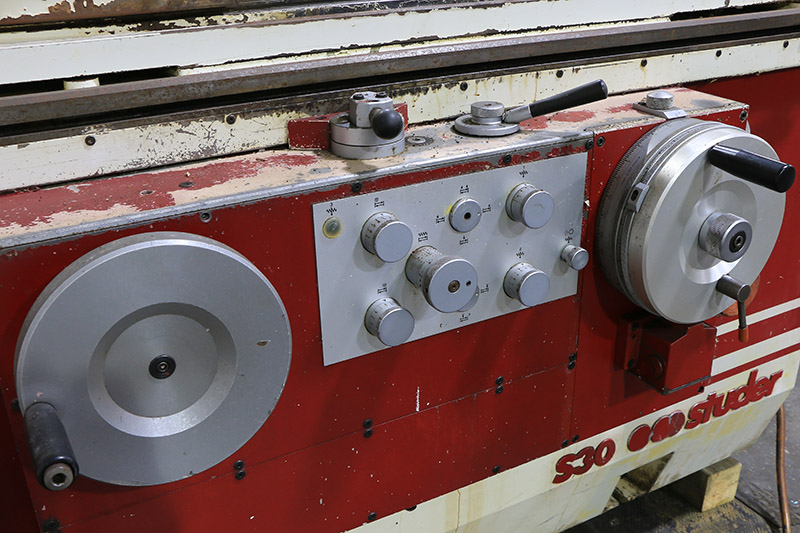

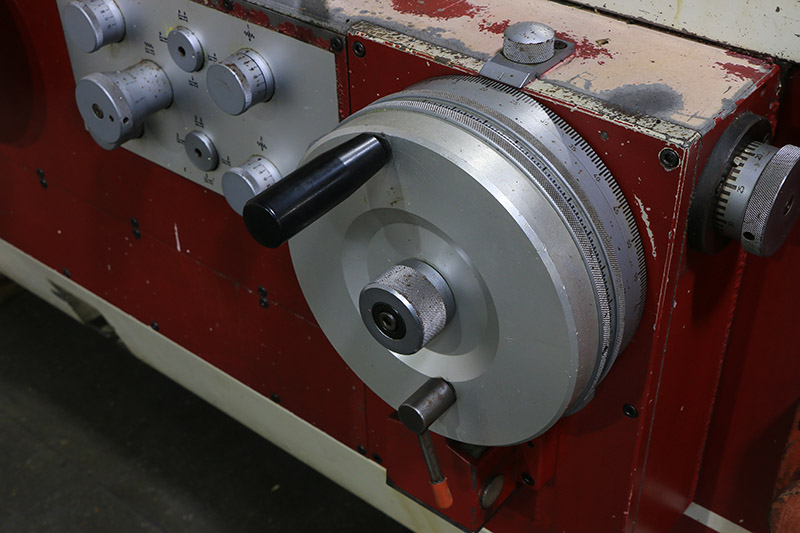

Handwheel rotation 4 mm (0.16") / dia.
Longitudinal slide: Z axis
Max. travel 700 mm (27.5" )
Speed 50 - 5 000 mm / min (1.97 - 197 ipm)
Reverse delay 0 - 6 s
Minimum automatic table travel 1,5 mm (0.06")
Reverse precision at constant speed 0,02 mm (0.000,8")
Machine table swivel range 10 deg / 8,5 deg

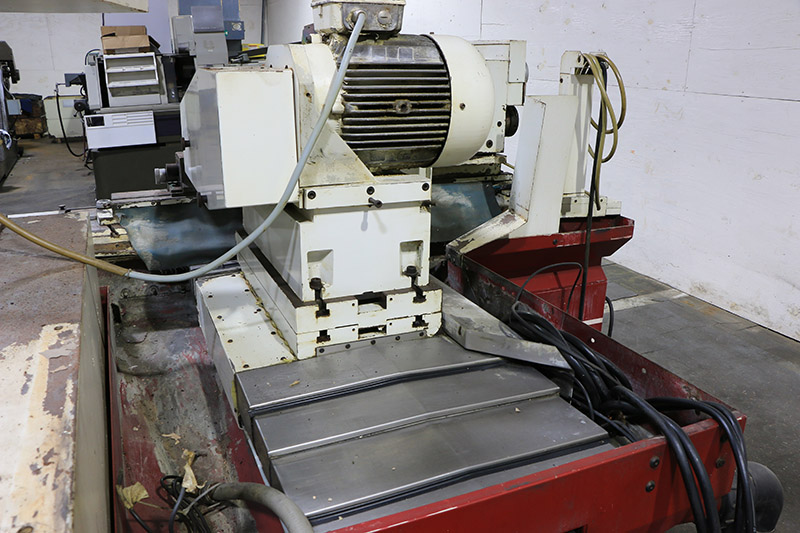

Wheelhead
Fitting taper dia. 63 mm (2.5")
Driving power 5,5 kW (7.5 hp)
Speeds 1 670 / 2 110 rpm
Grinding wheel left, dia. x width x bore
 400 x 63 (80F5) x 127 mm
(dia. 500 mm Option)
[16" x 2.5" (80F5) x 5"]
Grinding wheel right, dia. x width x bore
400 x 40 x 127 mm
[16" x 1.6" x 5")


** LOCATION:  HARRISON, NJ 07029 **
