Summit 3XHD SINGLE SPINDLE DRILL PRESSES

$6,500

Make:: Summit

Model:: 3XHD

Year:: 1975

Ref #:: 173492

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

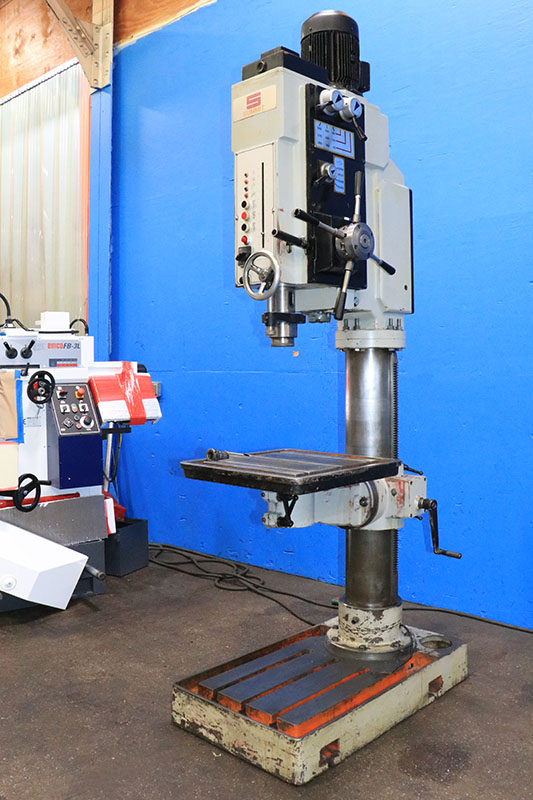

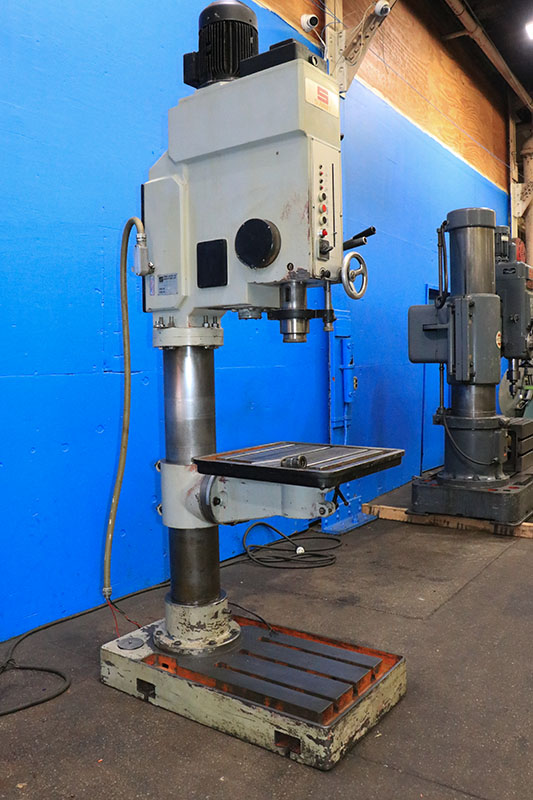

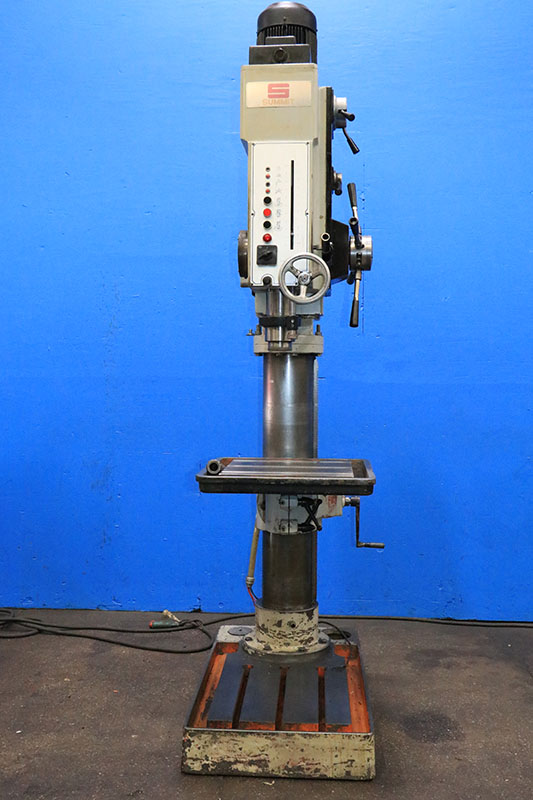

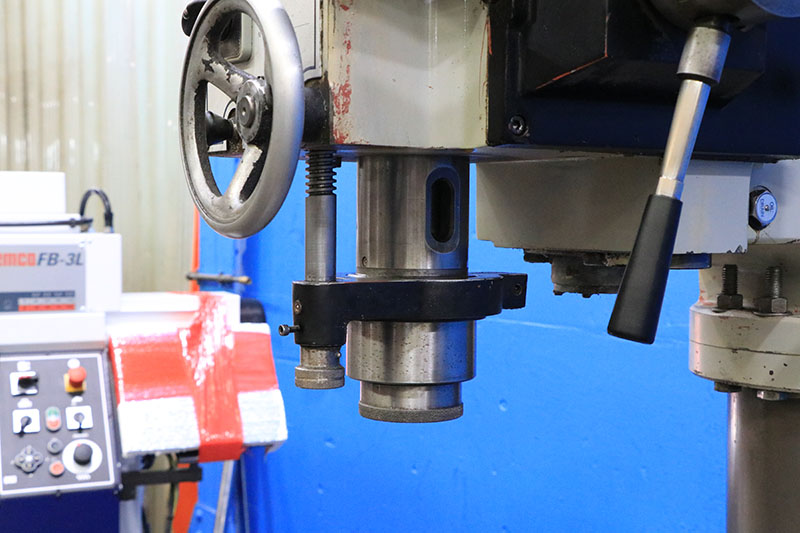

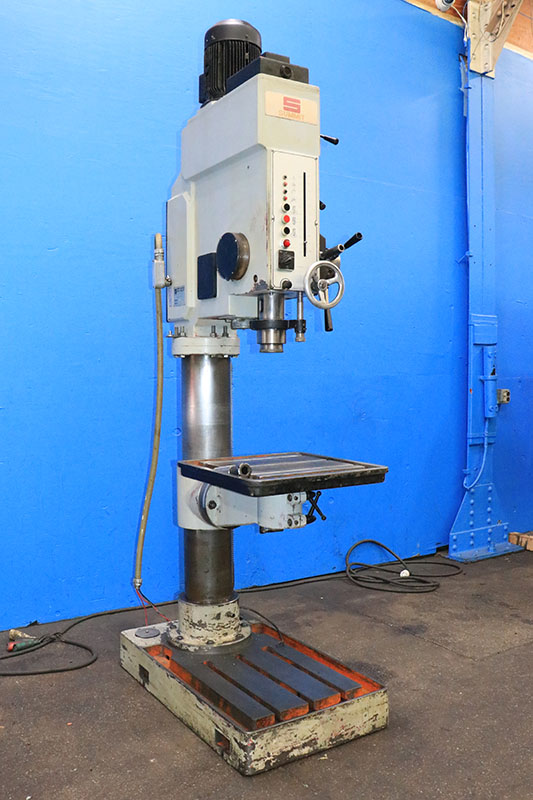

SUMMIT GEARED HEAD DRILL PRESS
MODEL: 3XHD, S/N: 453, NEW: 1975

SPECIFICATIONS:
DRILLING CAPACITY - MILD STEEL ........... 2-3/8"
DRILL SWING .............................. 32"
CENTER OF SPINDLE TO COLUMN .............. 16"
SPINDLE TAPER ............................ #5MT
SPINDLE DIAMETER ......................... 3.228"
SPINDLE TRAVEL ........................... 10"
COLUMN DIAMETER .......................... 8"

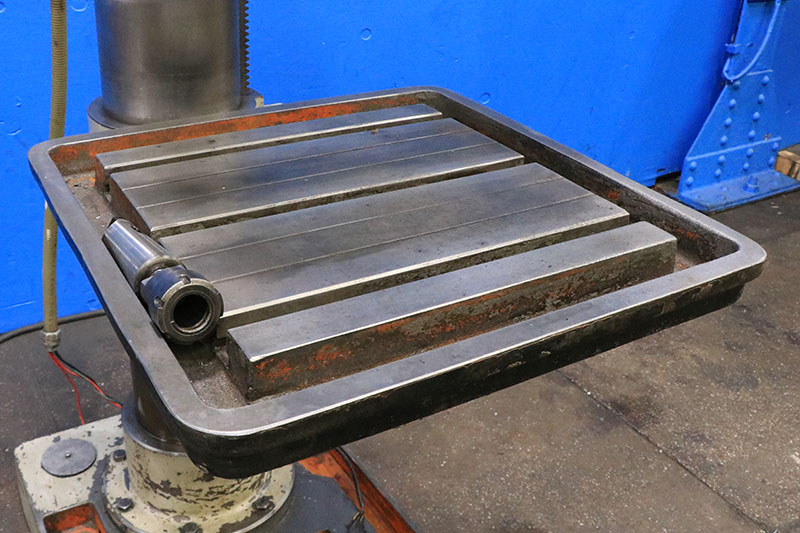

TABLE SIZE (T-SLOTTED) ................... 22" X 22"

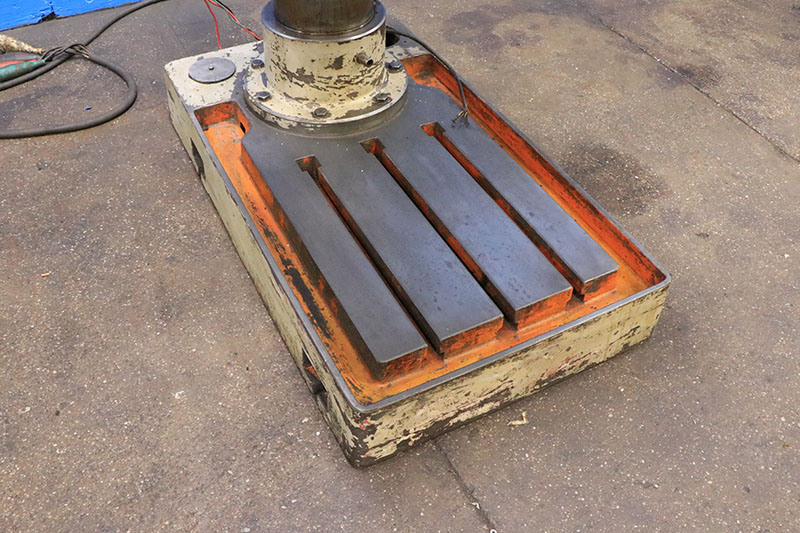

WORKING SURFACE OF BASE (T-SLOTTED) ...... 26" X 25"
SPINDLE TO TABLE ......................... 30" MAX
SPINDLE TO BASE .......................... 50-3/4" MAX
SPEEDS (9) ............................... 45 - 1,115 RPM
SPINDLE FEEDS (4) ............ 0.003, .006, .009 & .013 IPR
MOTOR .................................... 5.5 HP
APPROXIMATE OVERALL DIMENSIONS ........... 50" X 27" X 97" H
APPROXIMATE WEIGHT ....................... 2,450 LBS.

EQUIPPED WITH:

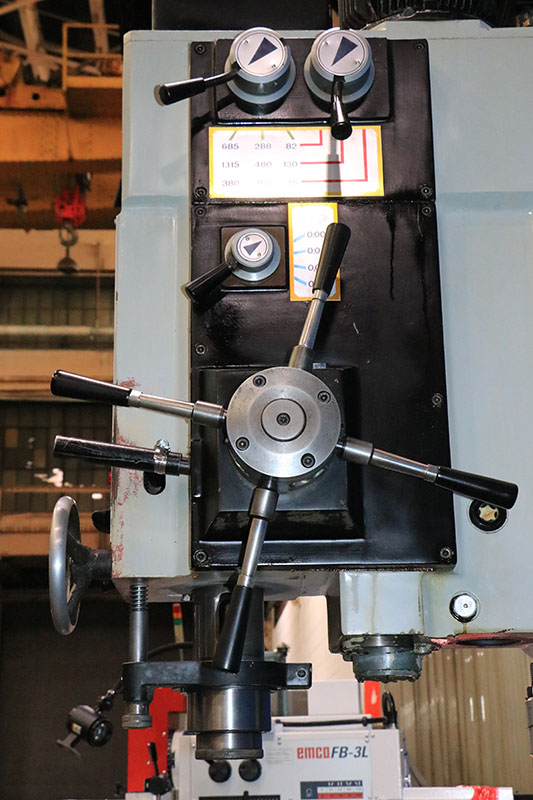

GEARED HEAD
POWER DOWN FEED
T-SLOTTED TABLE & BASE
COOLANT
5.5 HORSE POWER DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
