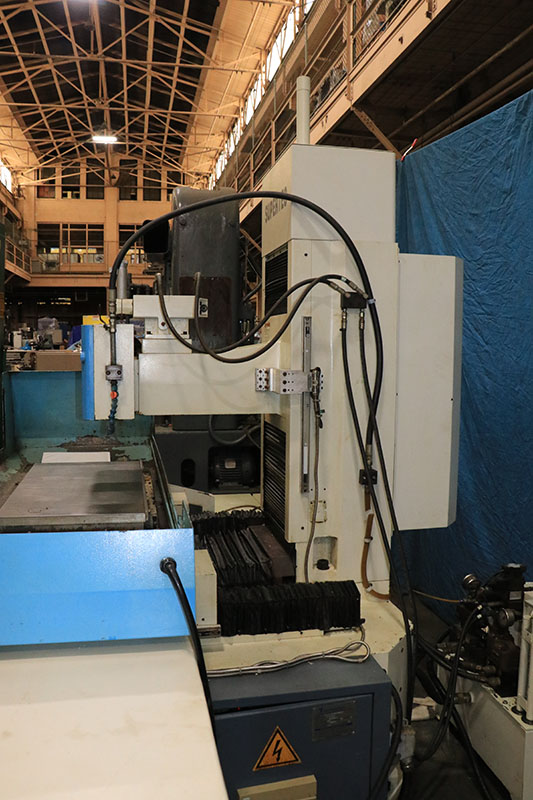

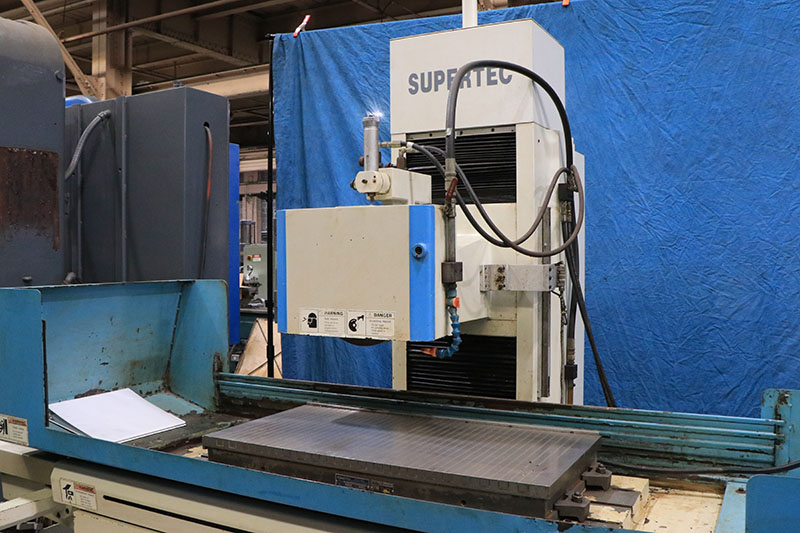

Supertec PLANOTEC 1632CII, 2006, PROG. AUTO IDF, 3X AUTO SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Supertec

Model:: PLANOTEC 1632CII, 2006, PROG. AUTO IDF, 3X AUTO

Year:: 2006

Ref #:: 162151

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

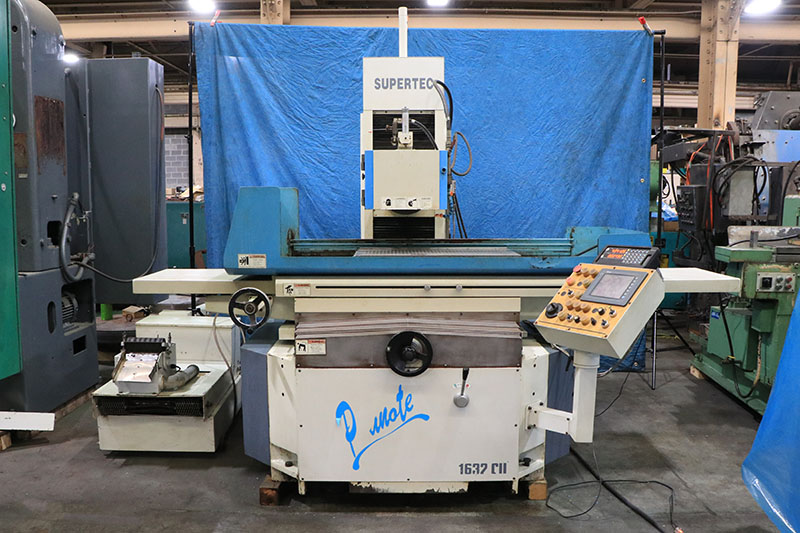

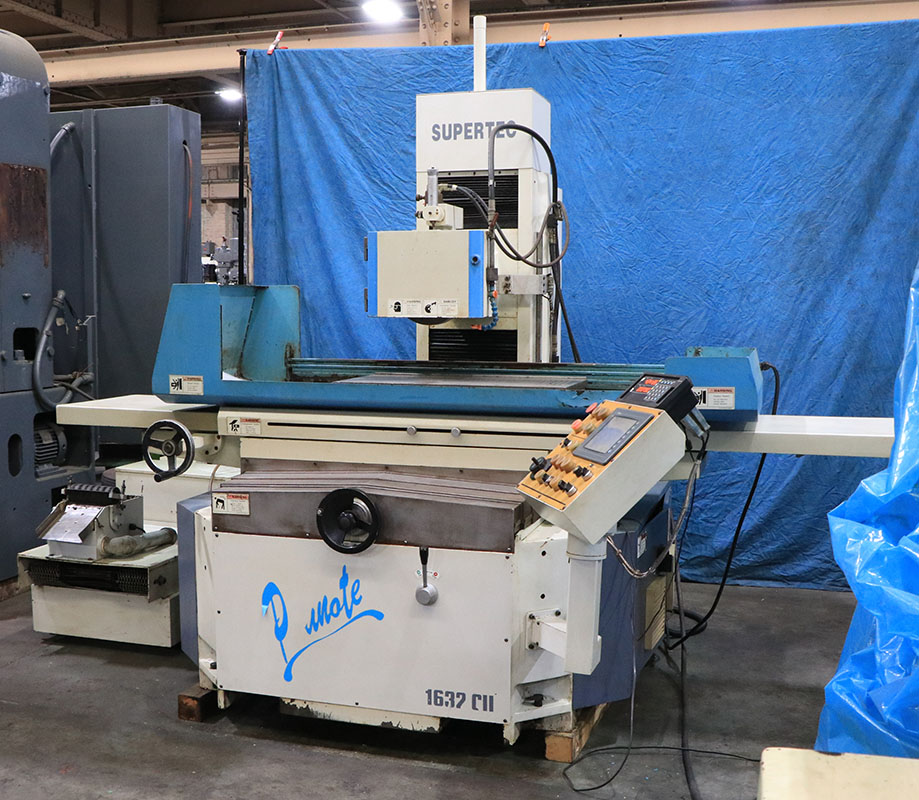

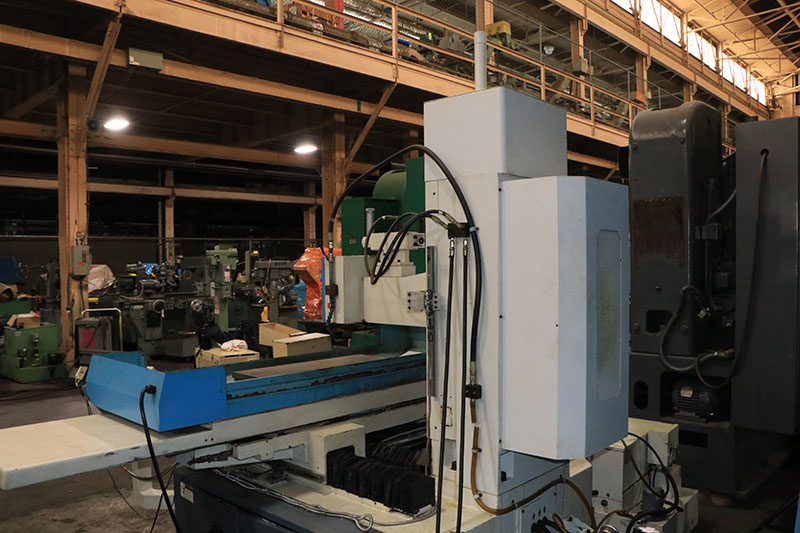

      16" X 32" SUPERTEC "PLANOTEC" SERIES
 "HIGH-PRECISION" "MADE IN TAIWAN" SURFACE GRINDER
WITH MITSUBISHI PLC WITH TOUCH SCREEN AUTO IDF CONTROL

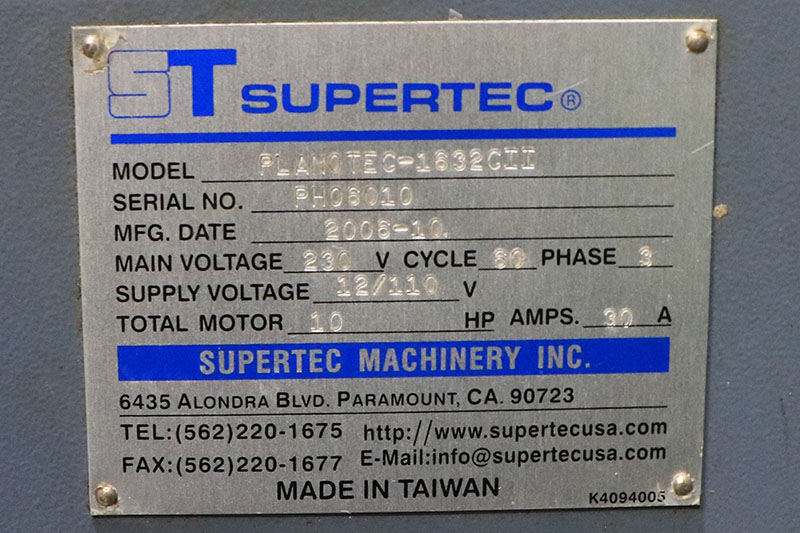

MODEL: PLANOTEC-1632CII     S/N: PH06010       NEW: 2006-11

NOMINAL GRINDING CAPACITY .................. 16" x 32"
MAX. DISTANCE TABLE TO SPINDLE CENTER ...... 24"

TABLE SPEED, INFINITELY VARIABLE ........... 10' TO 82' FPM
MAX. LONGITUDINAL TABLE MOVEMENT, HYD. ..... 34"
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 36"

MAX. CROSSFEED, MANUAL ..................... 18.5"
MAX. CROSSFEED, AUTOMATIC .................. 18"
AUTO CROSS FEED INCREMENT .................. 0.02" TO .32"
AUTO CONINOUS CROSSFEED .................... 40" IPM
HANDWHEEL PER GRADUATION ........ .......... 0.001"
HANDWHEEL PER REV. ......................... 0.02"

AUTO INCREMENTAL DOWNFEED (10) ............. 0.000010" TO .01"
SPARKOUT PASSES ............................ 0 TO 5
POWER RAPID WHEEL POSITIONING RATE ......... 40" IPM
HANDWHEEL PER REV. (MPG) ................... 0.0001"/ 0.001"/0.1"
HANDWHEEL PER GRAD.. (MPG) ................. 0.00001"/ 0.001"/00.1"
SPINDLE MOTOR .............................. 7.5 H.P.
WHEEL SIZE ................................. 14" x 2" x 5"

APPROX. DIMS. FOR OPERATION ................ 108" x 82"D x 95"H
APPROX. MACHINE WEIGHT ..................... 9,100 LBS.

MACHINE FEATURES:

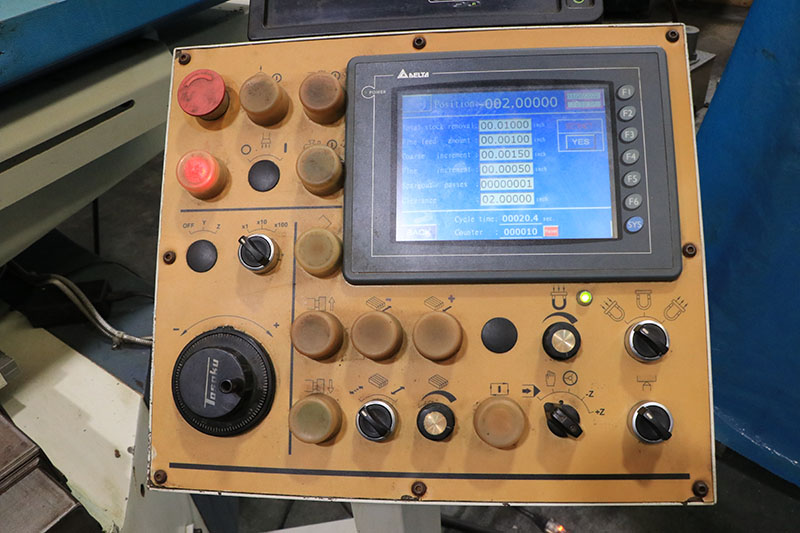

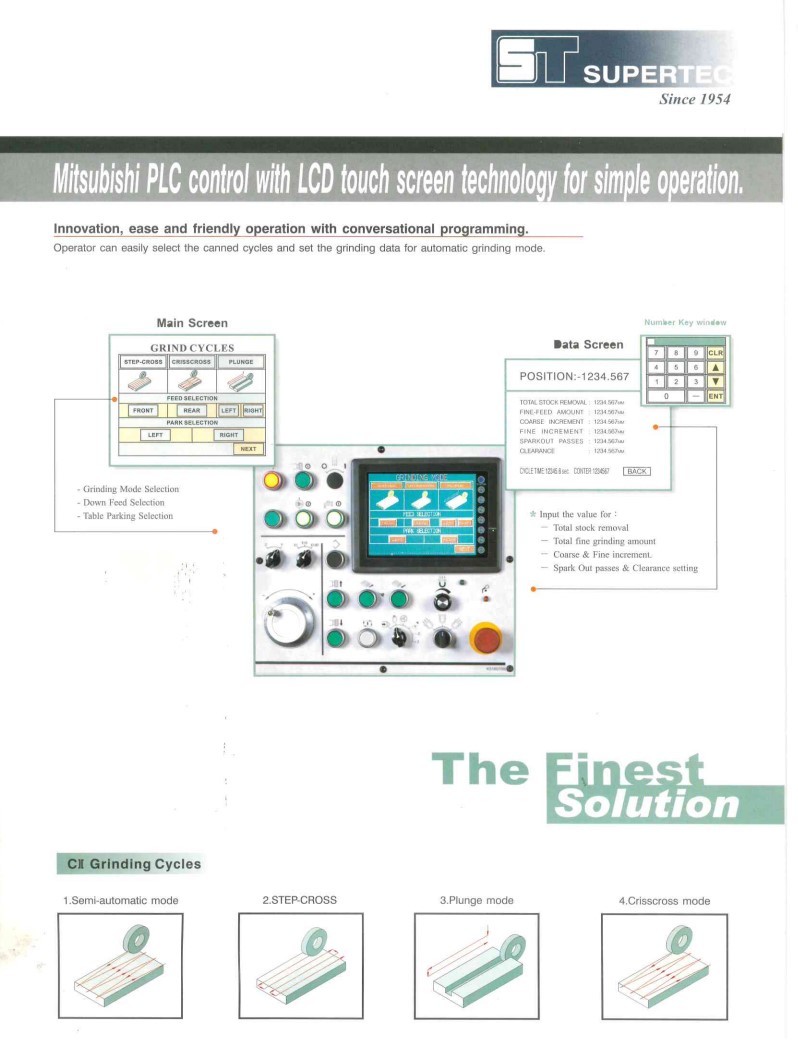

MITSUBISHI PLC WITH TOUCH SCREEN CONTROL
 WITH LCD DISPLAY:

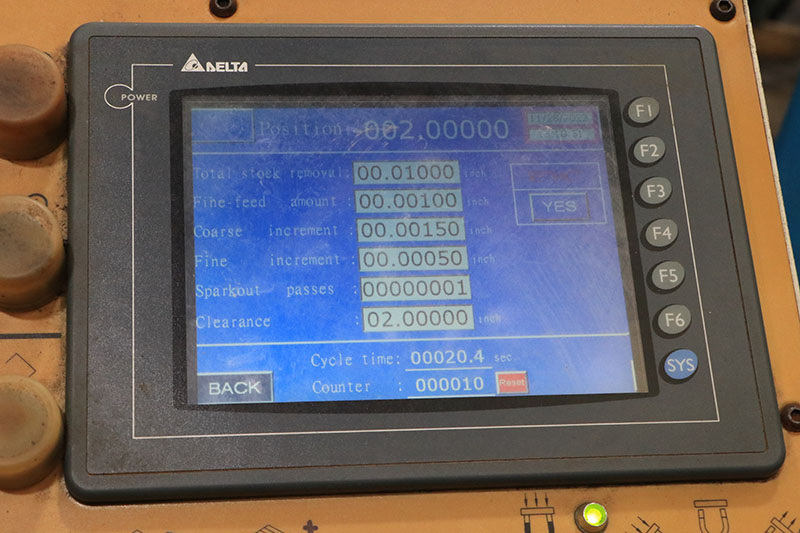

SIMPLIFIED CONVERSATIONAL PROGRAMMING.
-SIMPLY FILL IN THE BLANKS TO SET TOTAL GRINDING AMOUNT,
 ROUGH INCREMENT, FINE INCREMENT, SPARKOUT PASSES,
 FEEDING DIRECTION, PARKING POSITION, WHEELHEAD
 RETRACT DISTANCE, AND PRESS CYCLE START TO COMPLETE
 AUTOMATIC GRINDING CYCLE.

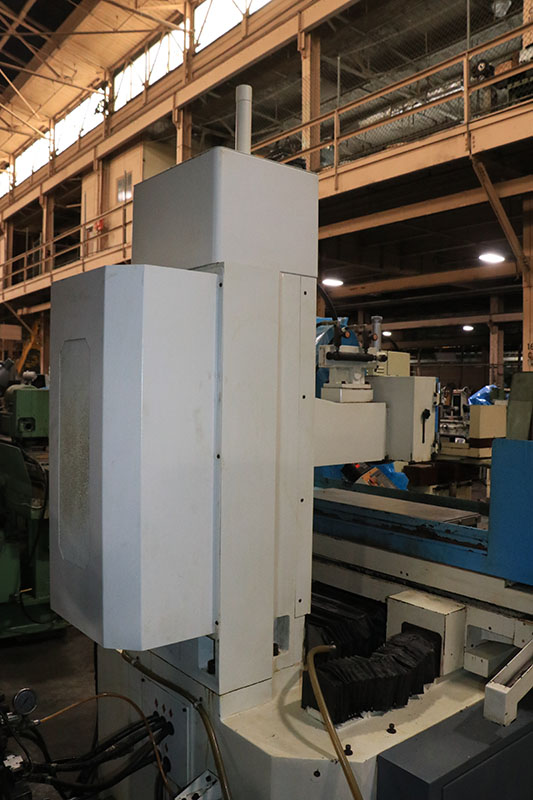

WHEELHEAD DOWNFEED TRAVELS ON HIGH-PRECISION LINEAR SIDEWAYS BY
 PRECISION BALLSCREW AND AC SERVO MOTOR.
MANUAL CONTROL OF DOWNFEED, BY MANUAL PULSE GENERATOR.

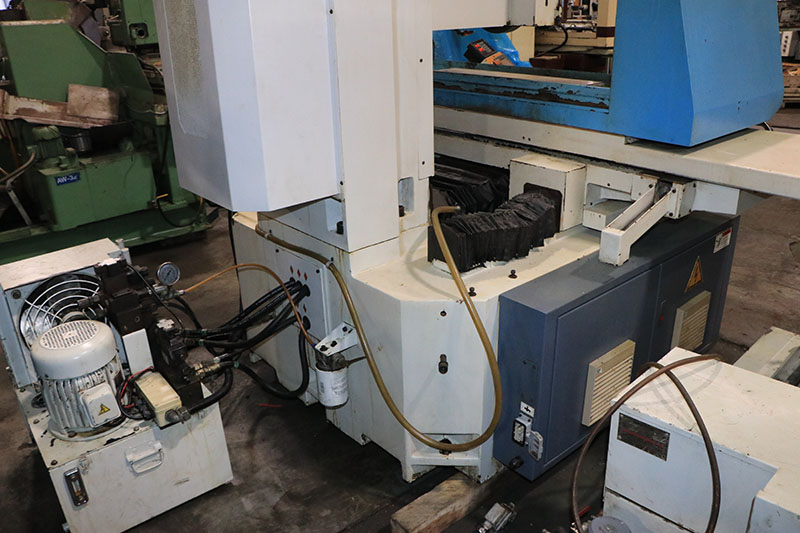

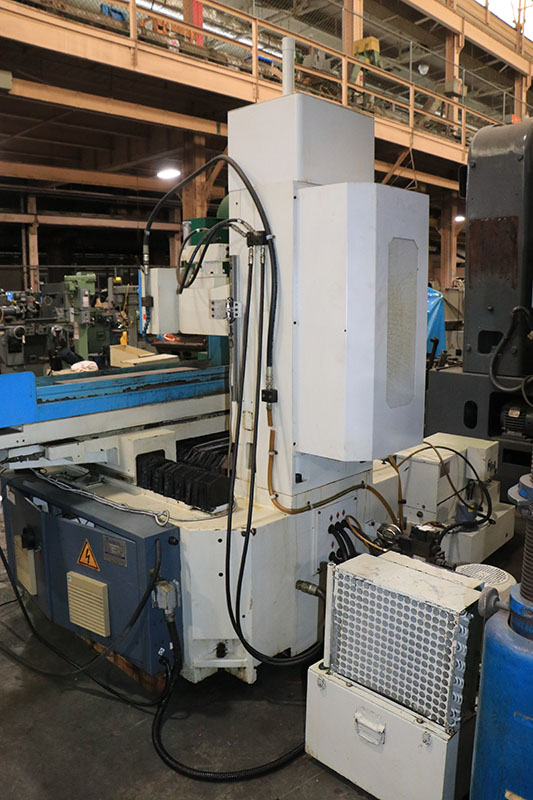

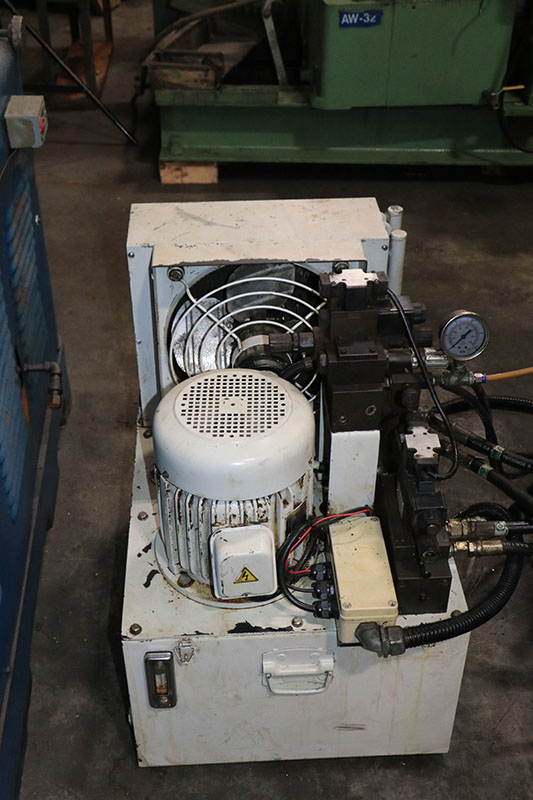

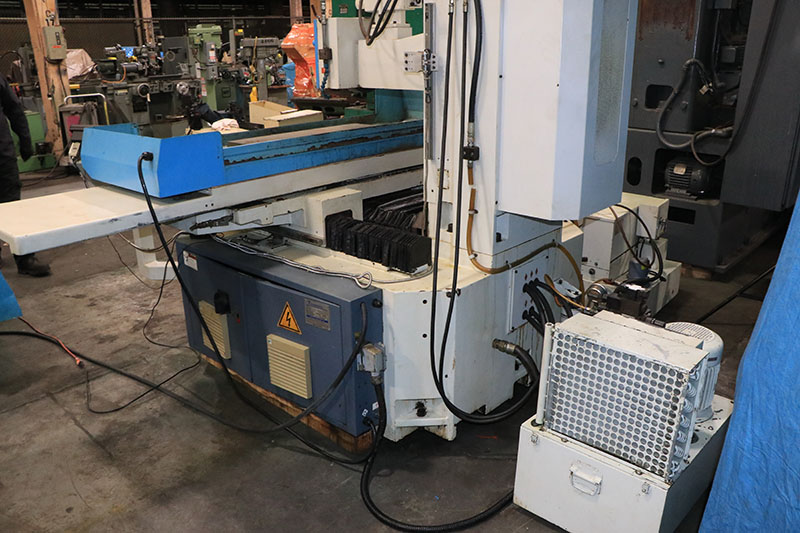

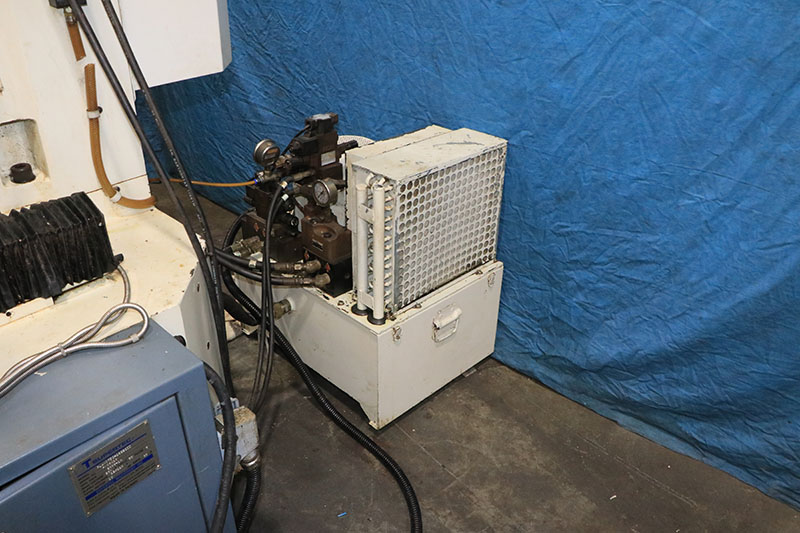

SEPARATE FROM MACHINE, HYDRAULIC POWER PACK WITH COOLING FAN.
HYDRAULICALLY POWERED TABLE TRAVERSE OPERATING ON HYDROSTATIC,
 HAND SCRAPED AND TURCIT COATED DOUBLE VEE SLIDEWAYS.
AUTOMATIC LUBRICATION SYSTEM
SADDLE OPERATES ON HYDROSTATIC, HAND SCRAPED AND TURCITE
 COATED DOUBLE VEE SLIDEWAYS BY A PRECISION BALLSCREW AND
 AC INVERTER, AND ALLOWS CRISS-CROSS GRINDING FOR BETTER
 SURFACE FINISH.


EQUIPPED WITH:

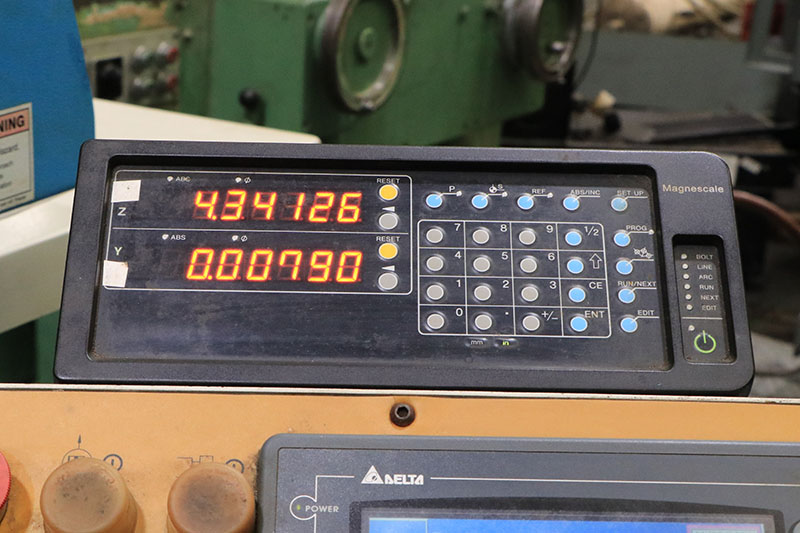

"MAGNESCALE" TWO-AXIS DIGITAL READOUT DISPLAY

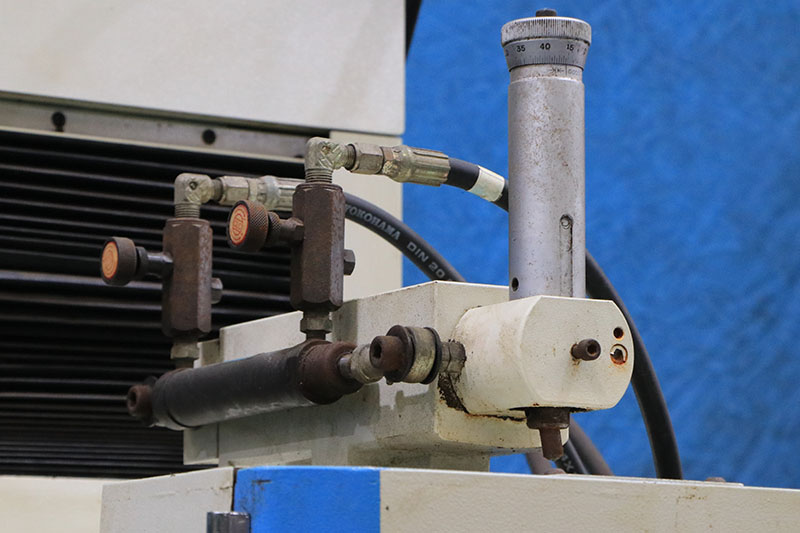

POWER OVER-THE-WHEEL DRESSER

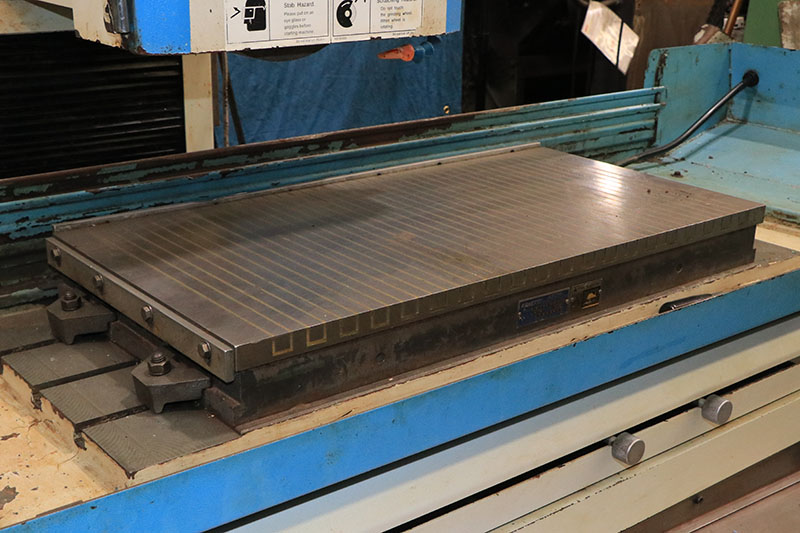

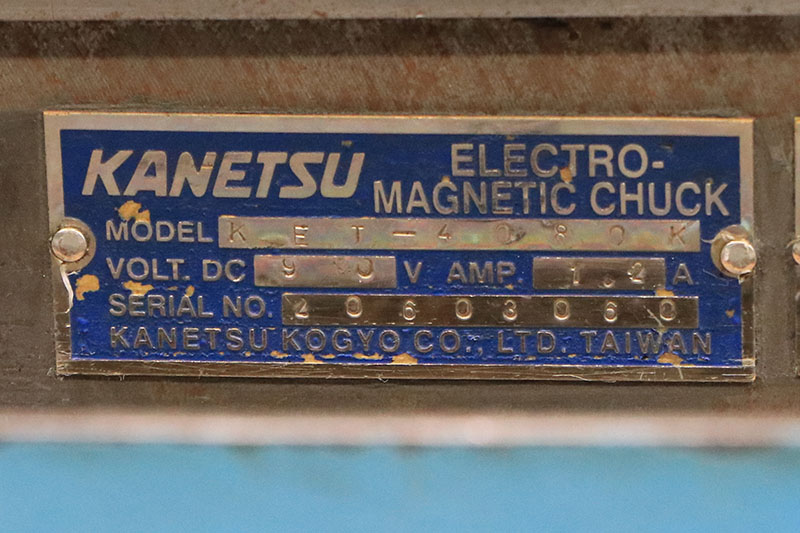

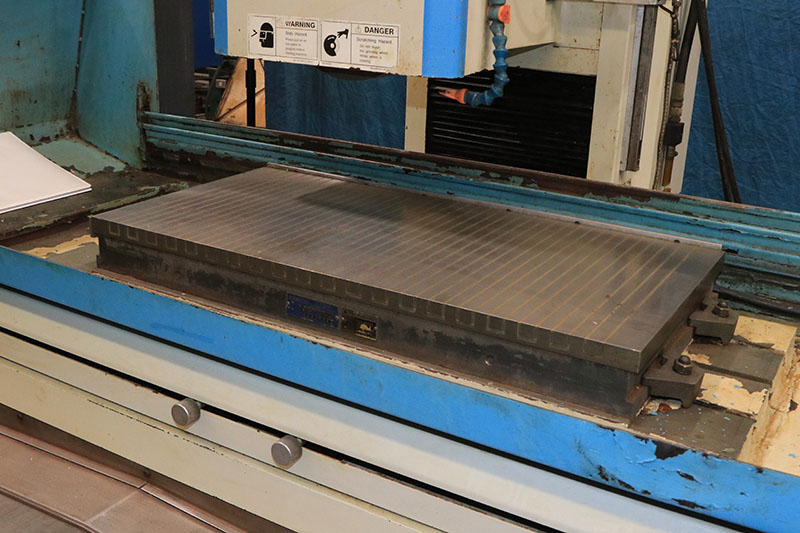

16" X 32" "KANETEC" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL & DEMAGNETIZER

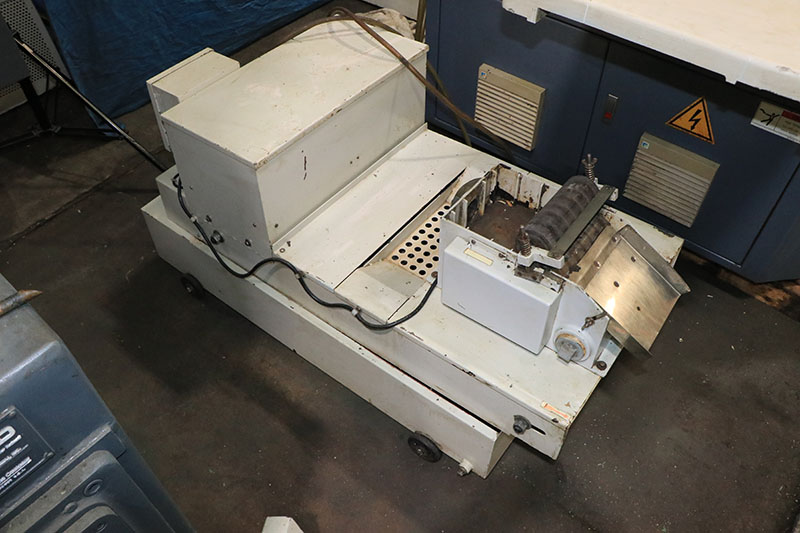

COOLANT SYSTEM W/PAPER FILTRATION & MAGNETIC SEPARATOR
7.5 H.P. /3/60/230-460 VOLTS SPINDLE MOTOR
PRESENTLY WIRED FOR 3/60/230 VOLTS/30 AMPS TOTAL

LINK TO VIDEO: https://youtu.be/FIdpYNo0iuA

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** LATER MODEL MACHINE, ORIGINAL PAINT, FAR CLEANER THAN AVG.,
   THIS MACHINE IS IN SUPERIOR CONDITION **
