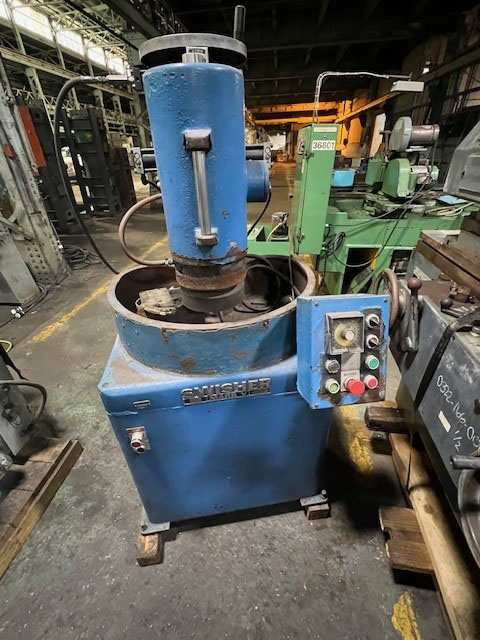

Swisher MARK V, 1984, AUTO, STATIONARY TABLE SWEEPING SPDL VERTICAL SPINDLE SURFACE GRINDERS

Price on Request

Make:: Swisher

Model:: MARK V, 1984, AUTO, STATIONARY TABLE SWEEPING SPDL

Year:: 1984

Ref #:: 159437

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

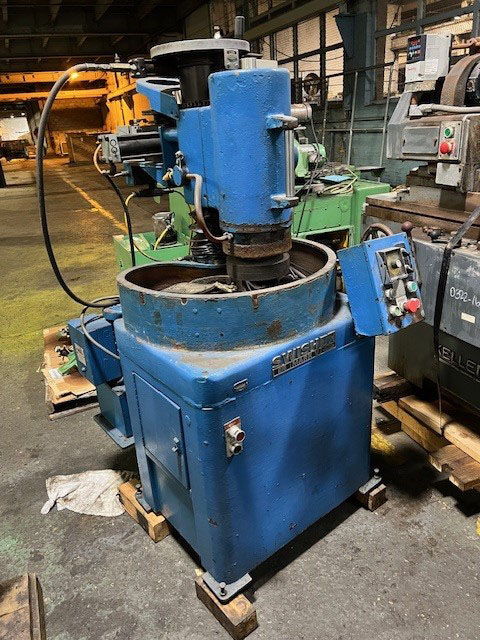

       SWISHER VERTICAL SPINDLE STATIONARY TABLE
         SWEEPING VERTICAL SPINDLE GRINDER
       WITH AUTOMATIC SPINDLE SWEEP & DOWNFEED

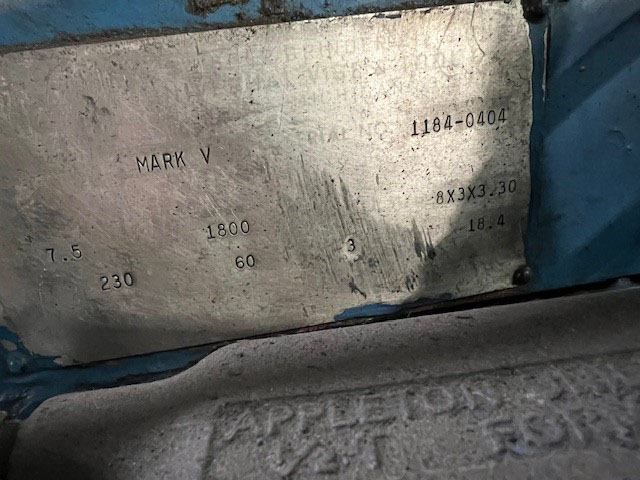

 MODEL: MARK V     S/N: 1184-0404      NEW: 1984

WORKHOLDING CAPACITY .............. 6" x 12" OR 7.5" x 100°
WHEEL SIZE DIAMETER ....................... 8"
MAX. DISTANCE GRINDER BASE TO NEW WHEEL ... 10"
MAX. DIST. MAGNETIC CHUCK TO NEW WHEEL .... 7- 1/2"
MAX. SWEEP INSIDE SPLASH GUARD ............ 180
MAX. SPINDLE TILT ......................... 3.5°
HANDWHEEL DIAMETER ........................ 12"
HANDWHEEL GRADUATIONS ..................... 0.187" APART
ONE GRAD. INDICATES ....................... 0.0005" FEED
ONE COMPLETE REVOLUTION ................... 0.100" FEED
AUTOMATIC SPINDLE SWEEP RATE .............. 0 TO 250" IPM
AUTOMATIC SPINDLE DOWNFEED ................ 0.0005" TO .005"
AUTO SPINDLE SWEEP FEED RATE .............. 0 - 250" IPM

APPROX. MACHINE WEIGHT .................... 1,800 LBS.
APPROX. MACHINE DIMENSIONS ................ 53" x 31" x 74"H

EQUIPPED WITH:

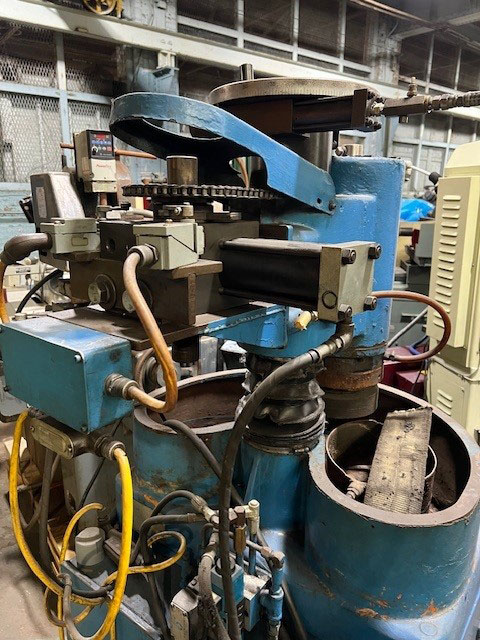

AUTOMATIC POWER SPINDLE SWEEP.
ADJUSTABLE SWEEP DISTANCE & SPEED IN EACH DIRECTION,
  INDEPENDENT OF EACH OTHER.
AUTOMATIC POWER SPINDLE DOWNFEED
POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)
CYCLE COUNTER SETS # OF DOWNFEED PASSES REQUIRED
SPARKOUT COUNTER SETS THE # OF PASSES TO ACHIEVE THE
  DESIRED MICRO-FINISH.

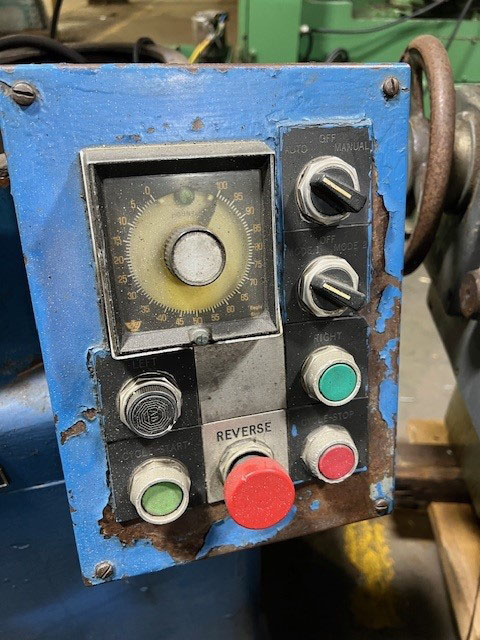

OPERATOR CONTROL CONSOLE
6" X 12" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTOFIER CONTROL
EXTERNAL COOLANT TANK WITH PUMP

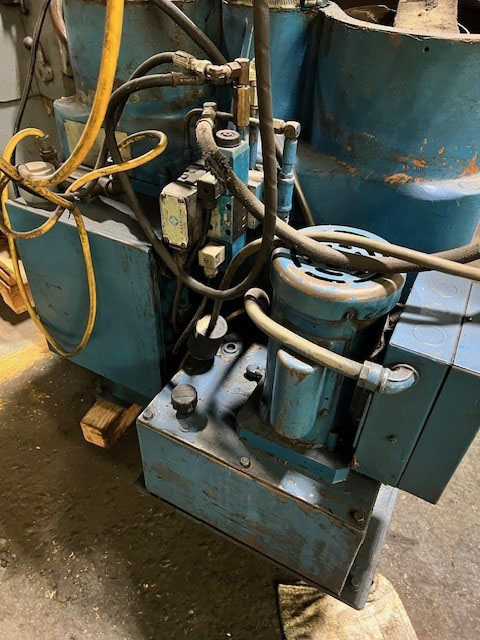

1/2 H.P./3/60/23-460 VOLT HYDRAULIC MOTOR
7.5 H.P./3/60/230-460 VOLT MAIN MOTOR
MACHINE IS PRESENTLY WIRED 3/60/230 VOLTS

** JUST ARRIVED TO OUR HARRISON, NJ WAREHOUSE **
** INSPECT UNDER POWER **
** OFFERED SERVICED AND READY FOR DELIVERY, 3 WEEKS **
** DETAILED PAINTING CAN BE PROVIDED, FOR AN ADDITIONAL $800 **
