Taft Peirce 6" ROTARY, TILT SPINDLE, TILT CHUCK, ROTARY SURFACE GRINDERS, HZ SPDL (ARTER TYPE)

Price on Request

Make:: Taft Peirce

Model:: 6" ROTARY, TILT SPINDLE, TILT CHUCK,

Year:

Ref #:: 162406

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

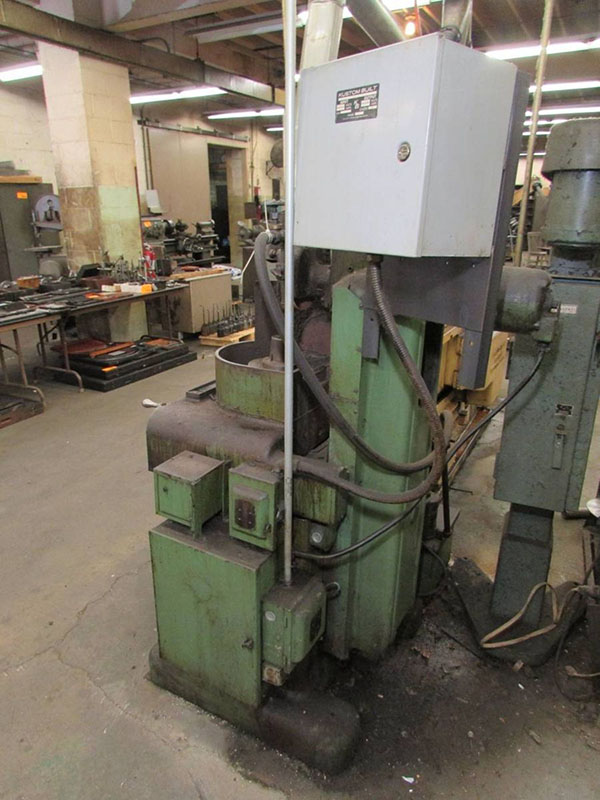

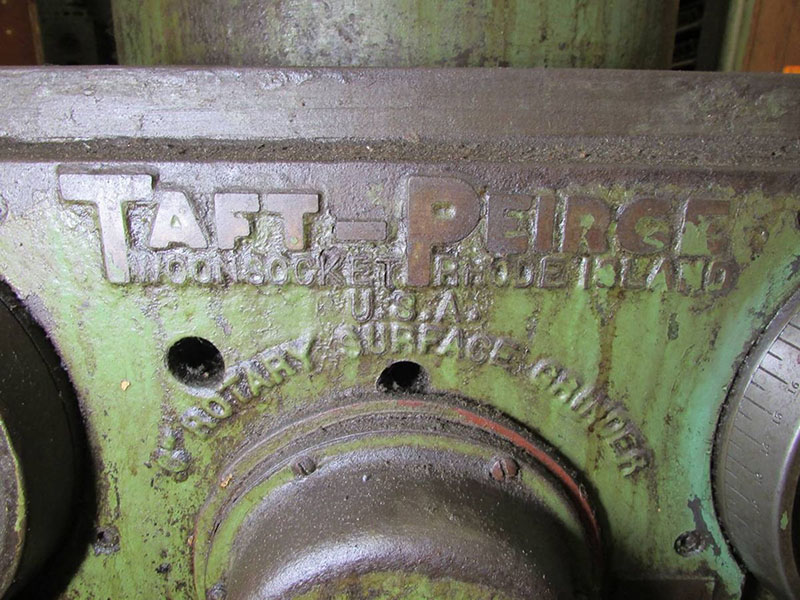

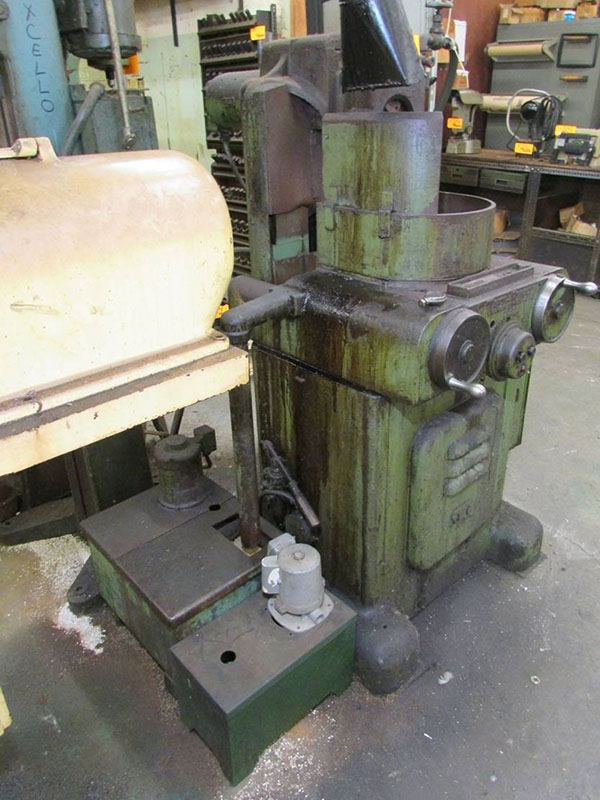

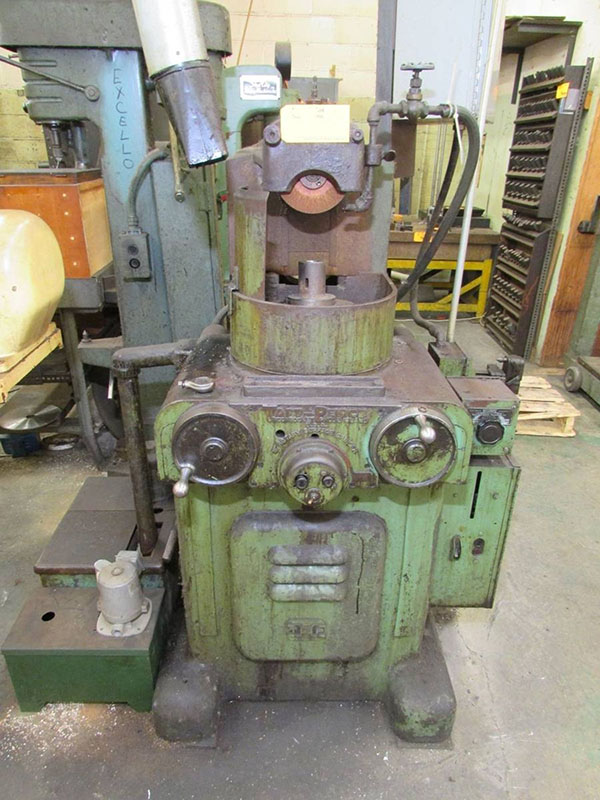

  6" TAFT PEIRCE ROTARY SURFACE GRINDER

TILTING CHUCK & GRINDING WHEEL SPINDLE FEATURES **


SERIAL NUMBER:  160


CHUCK ..................... 6- 1/4" O.D.
MAGNETIC AREA ............. 4- 5/8"
GRINDING WHEEL ............ 7" x 1/2" x 1- 1/4"
CROSSFEED TRAVEL .......... 4"
VERTICAL TRAVEL ........... 12"
WHEEL SPINDLE TILTS ....... 30 DEGREES
CHUCK SWIVEL .............. 15 DEGREES
GRINDING SPINDLE MOTOR .... 1 H.P.

OVERALL DIMS. ............. 36"W x 36"D x 60"H

EQUIPPED WITH:

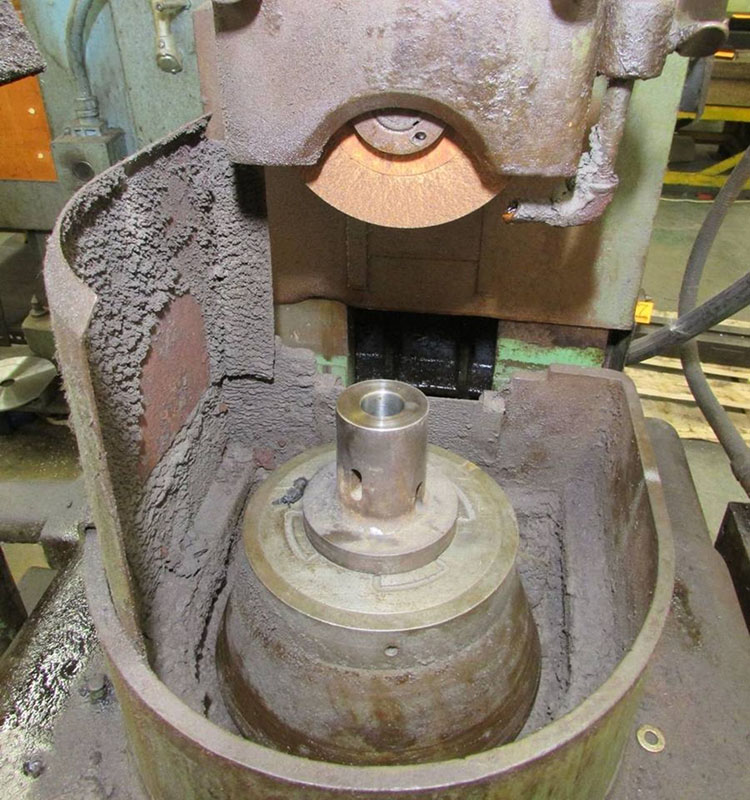

6" POWER DRIVEN ROTARY MAGNETIC CHUCK,
 SWIVELS FORWARD OR TO THE REAR
 THROUGH A 15° ANGLE, 7.5° FRONT, 7.5° REAR.
TILTING GRINDING SPINDLE
SADDLE MOVES ON BALL BEARINGS/HARDENED WAYS

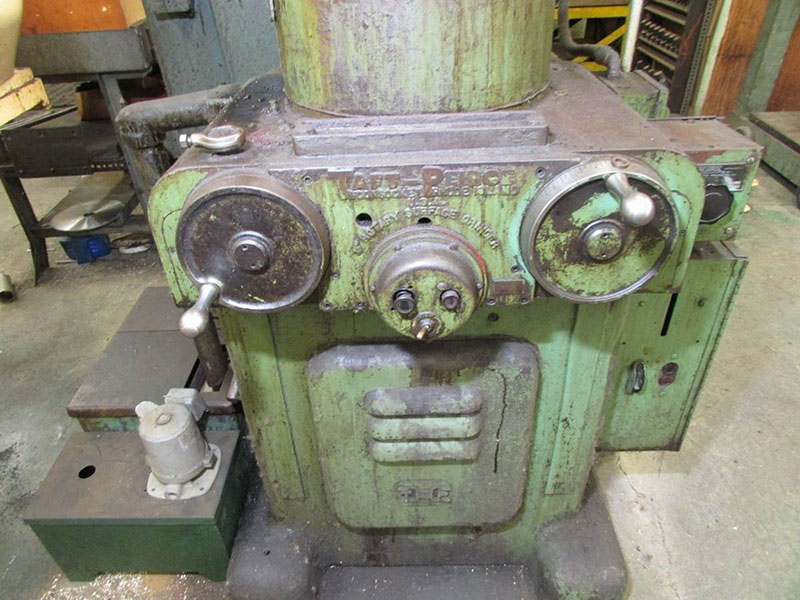

  (LEFT HANDWHEEL)
CROSSFEED LOCK
VERTICAL HANDWHEEL (RIGHT HANDWHEEL)
 WITH BALL BEARINGS FOR EASY MOVEMENT

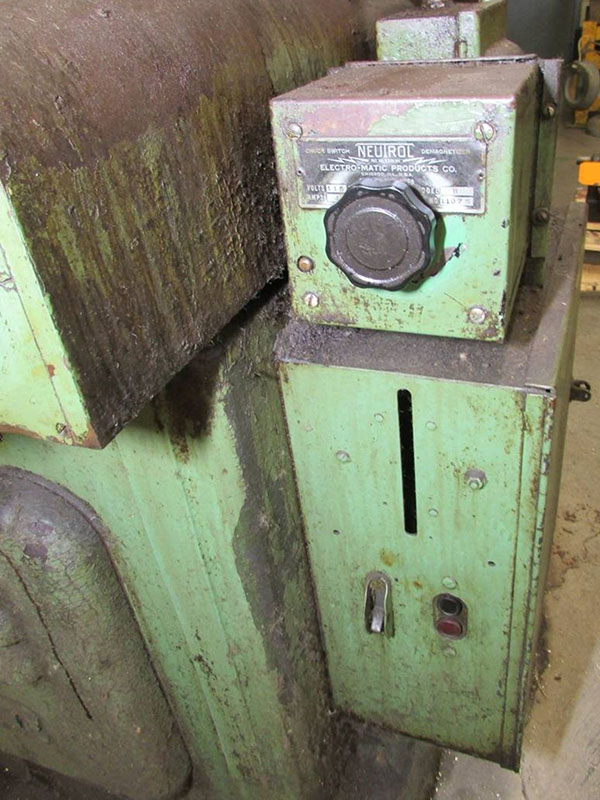

UPDATED WITH "ELECTRO-MATIC"
  ELECTRO-MAGNETIC CHUCK CONTROL

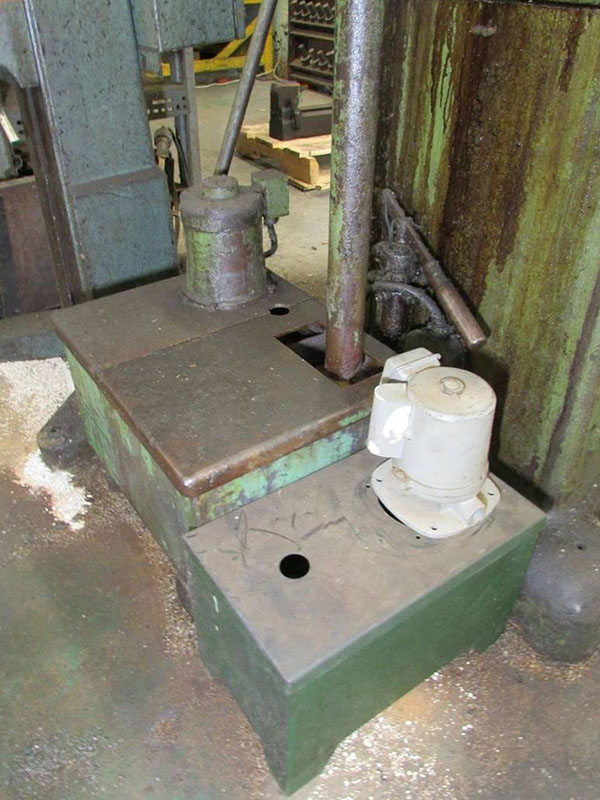

COOLANT SYSTEM
3/60/220-440 VOLTS ELECTRICS

** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
