Thompson 2F, HYD. TABLE & CROSSFEED, POWER ELEV. SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Thompson

Model:: 2F, HYD. TABLE & CROSSFEED, POWER ELEV.

Year:: 1980

Ref #:: 161142

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

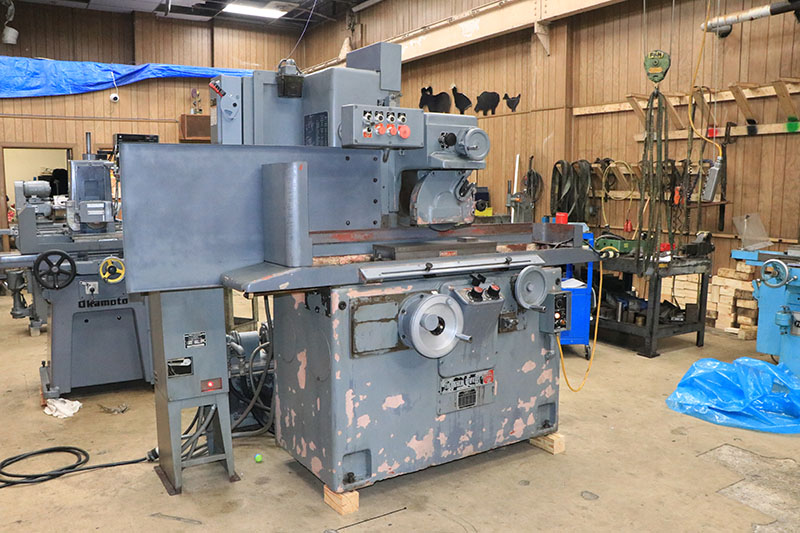

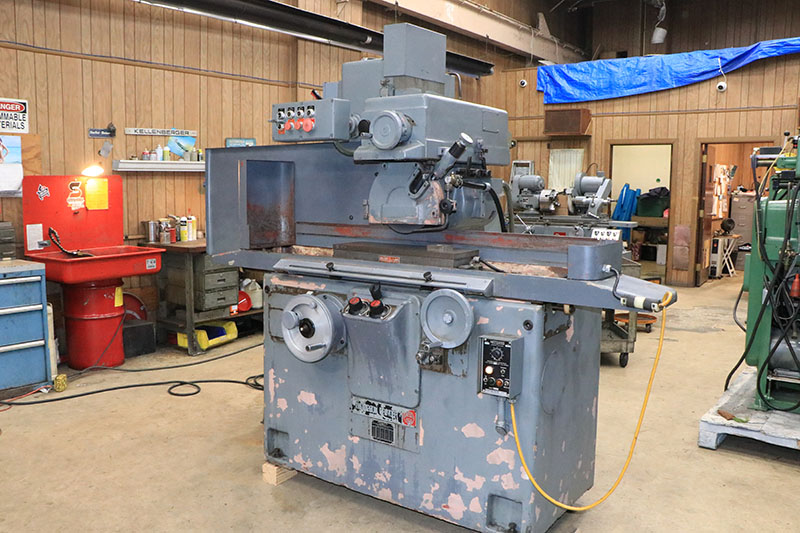

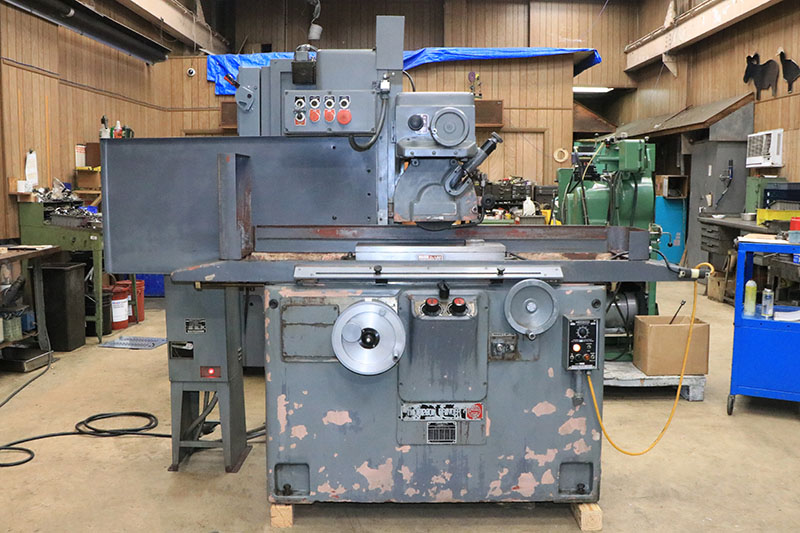

  8" X 24" THOMPSON "TOP NOTCH" "HEAVY DUTY" PRECISION HYDRAULIC SURFACE GRINDER,
   2-AXIS AUTOMATIC FEEDS WITH POWER RAPID WHEELHEAD POSITIONING

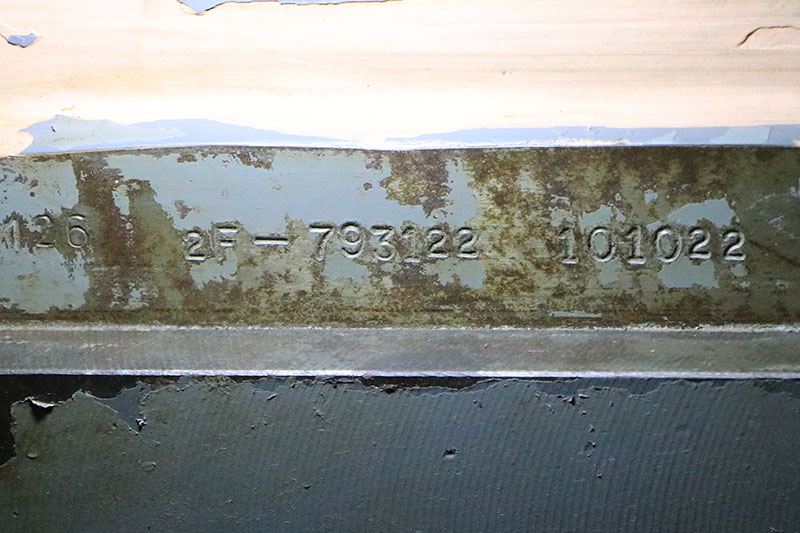

MODEL: #2F      S/N:     NEW: 1980

WIDTH & LENGTH GROUND ................ 8" X 24"
VERTICAL CAPACITY W/NEW WHEEL ........ 12"
GRINDING WHEEL SIZE .................. 12" x 1"W x 3”B
GRINDING WHEEL SPINLDE SPEED ......... 1,800 RPM
LONGITUDINAL TABLE TRAVEL ............ 29"
HYDRAULIC TABLE SPEED ................ 5' TO 75' FPM
CROSS FEED TRAVEL .................... 9"
AUTO CROSS FEED INCREMENT ............ 0.10" TO 3/8"
WHEELHEAD CROSSFEED RAPID TRAVERSE ... 20' FPM
WHEELHEAD CROSS TRUING RATE .......... 6” IPM

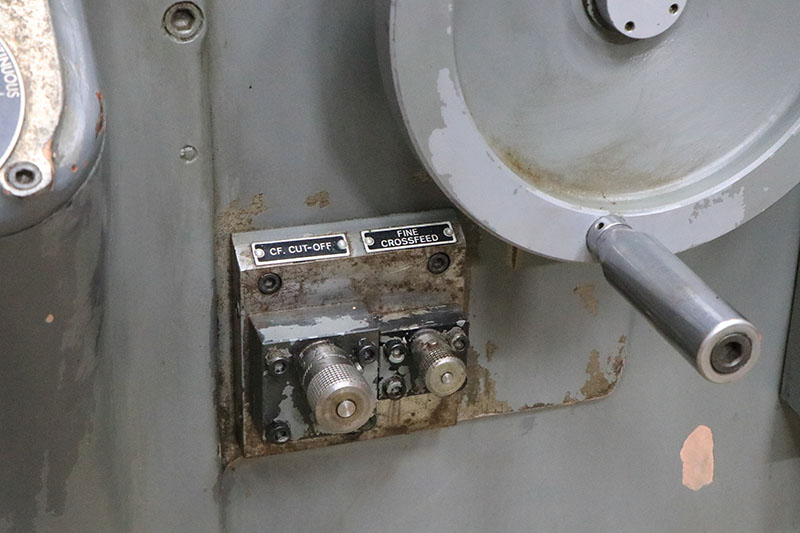

CROSS FEED HAND WHEEL GRAD. .......... 0.001"
VERTICAL HANDWHEEL GRAD. ............. 0.0005"
POWER ELEVATION RATE ................. 15" IPM

APPROX. MACHINE WEIGHT ................. 4,800 LBS.
FLOOR SPACE REQUIRMENT FOR OPERATION ... 113"L x 41"W
                                         x 85"H

  EQUIPPED WITH:

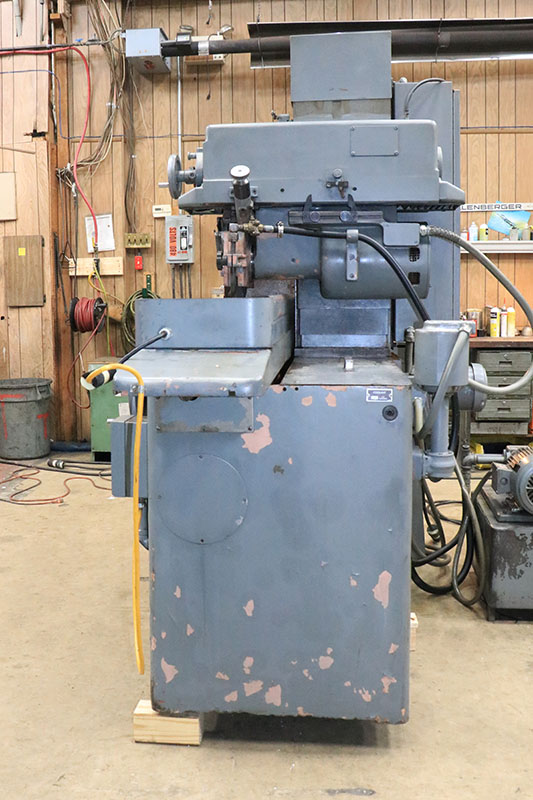

LATER MODEL THOMPSON, SQUARE FRAME, HEAVY CAST IRON MACHINE

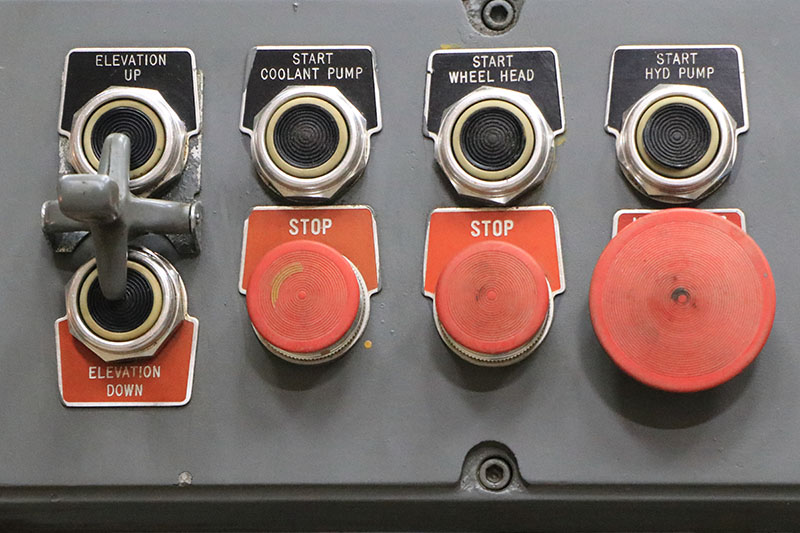

POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
AUTOMATIC POWER CROSSFEED
12"D x 1"W WHEEL

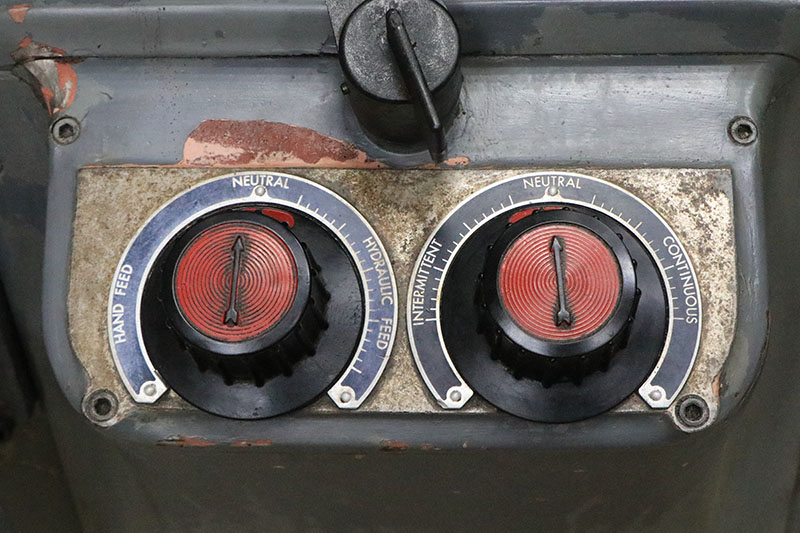

HYDRAULIC LONGITUDINAL & CROSS FEEDS

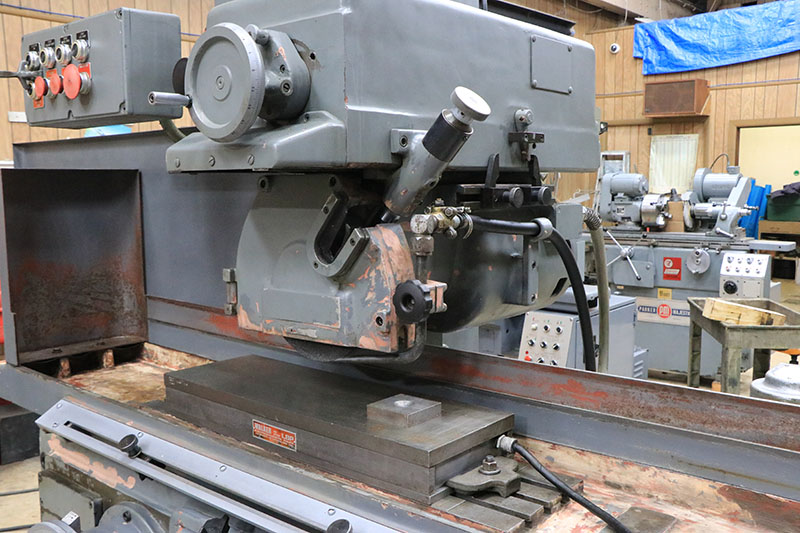

DRESSER MOUNTED ON THE SIDE OF THE WHEEL

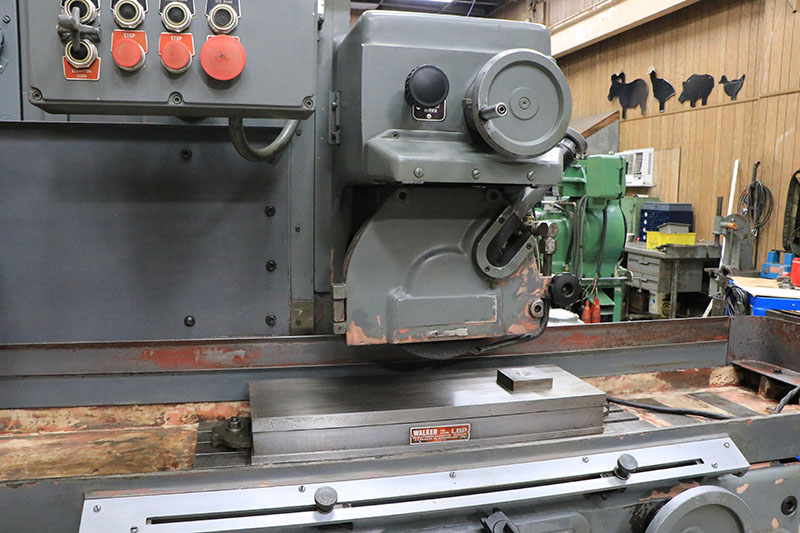

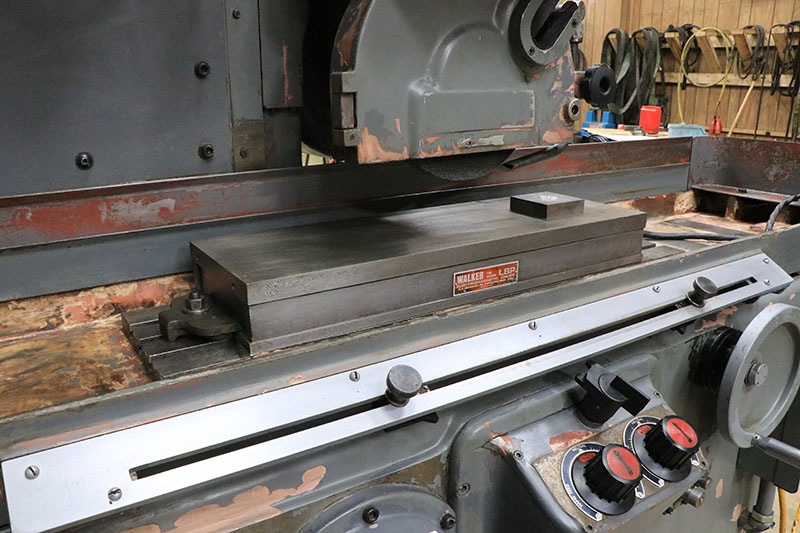

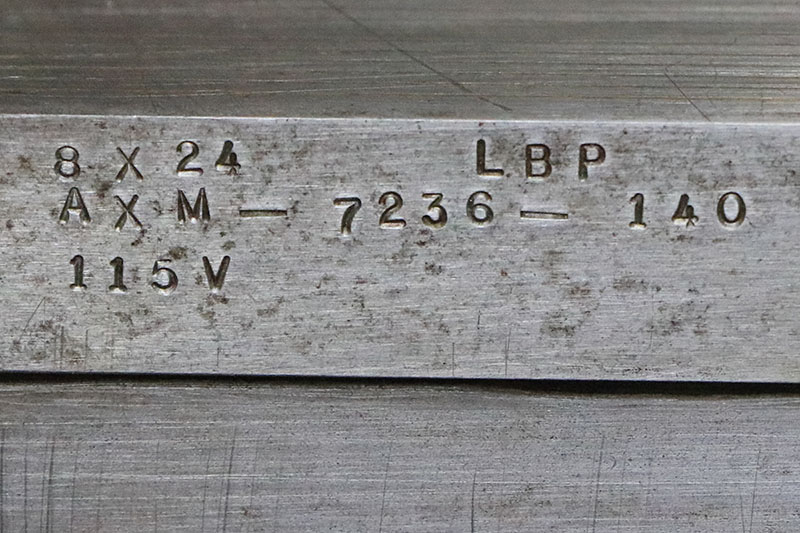

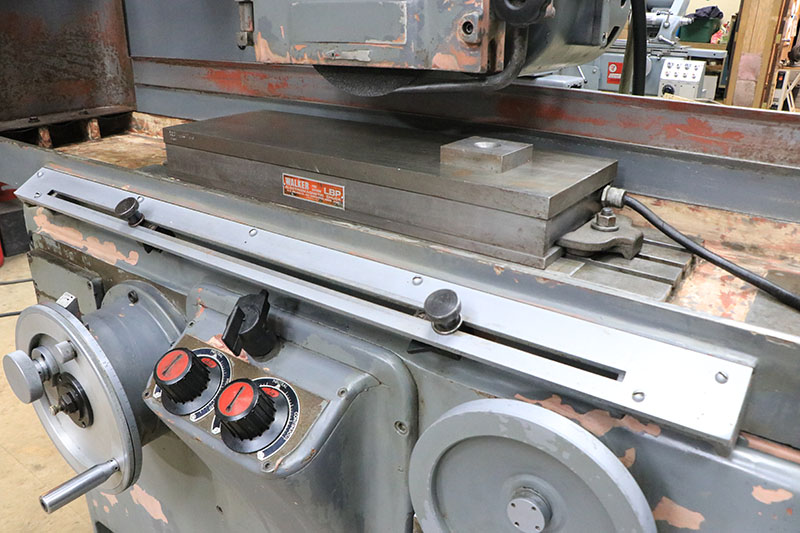

8" X 24" O.S. WALKER "LBP" FINE-DIVISION MAGNETIC CHUCK

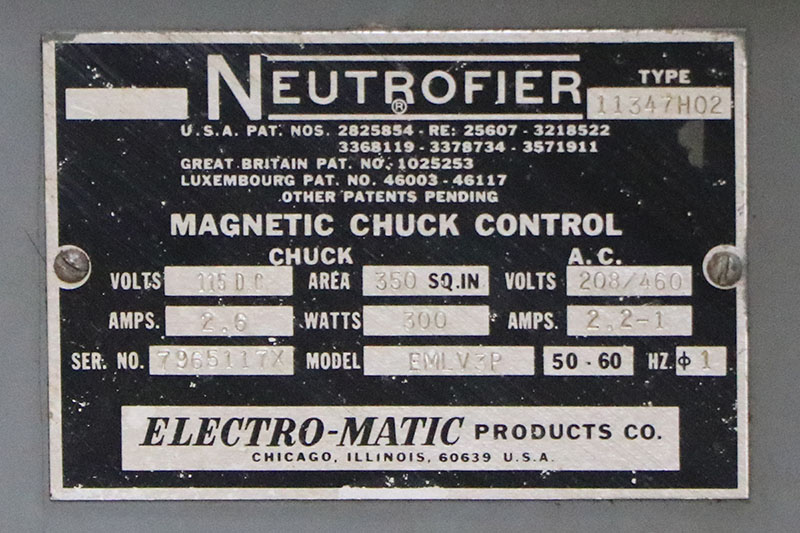

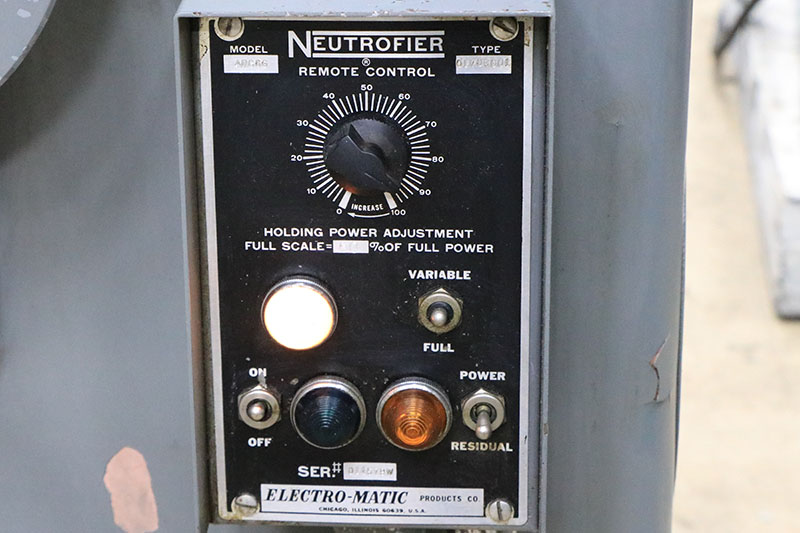

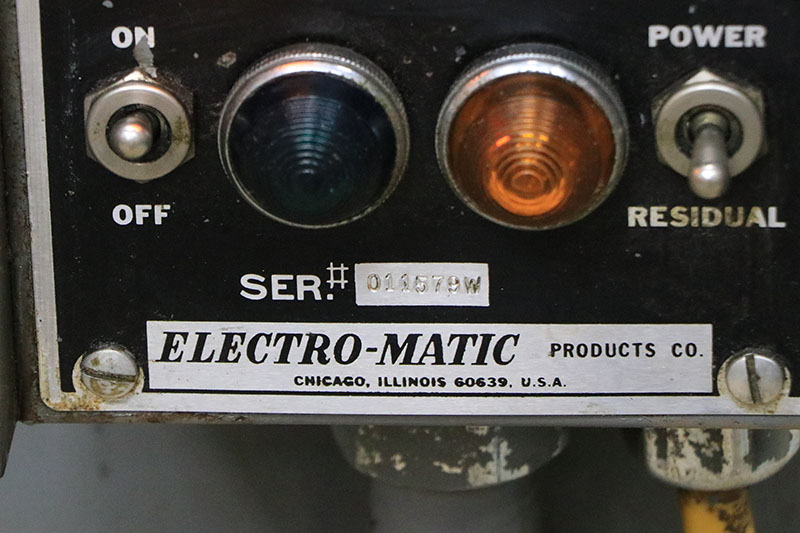

ELECTRO-MATIC VARIABLE HOLD NEUTROFIER CHUCK CONTROL

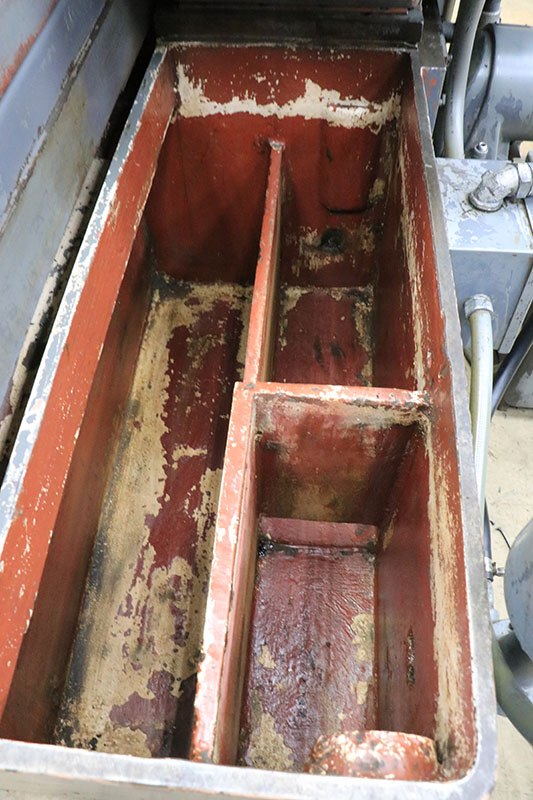

COOLANT SYSTEM

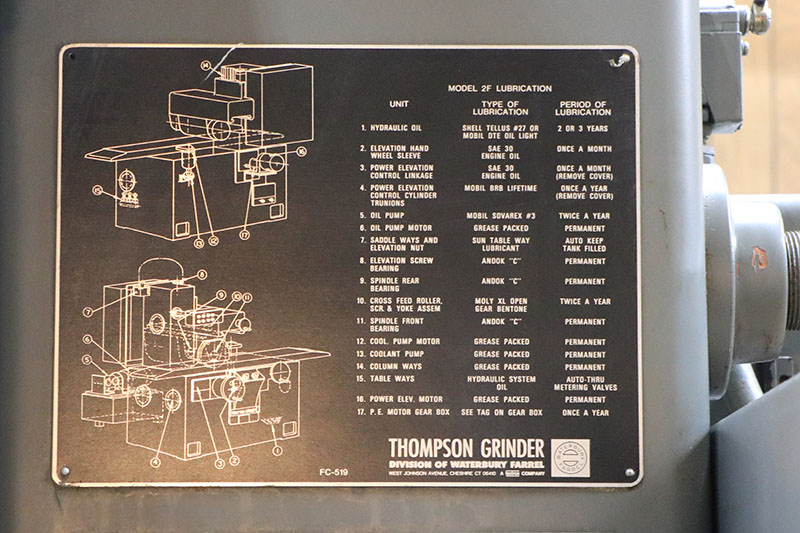

AUTO LUBRICATION

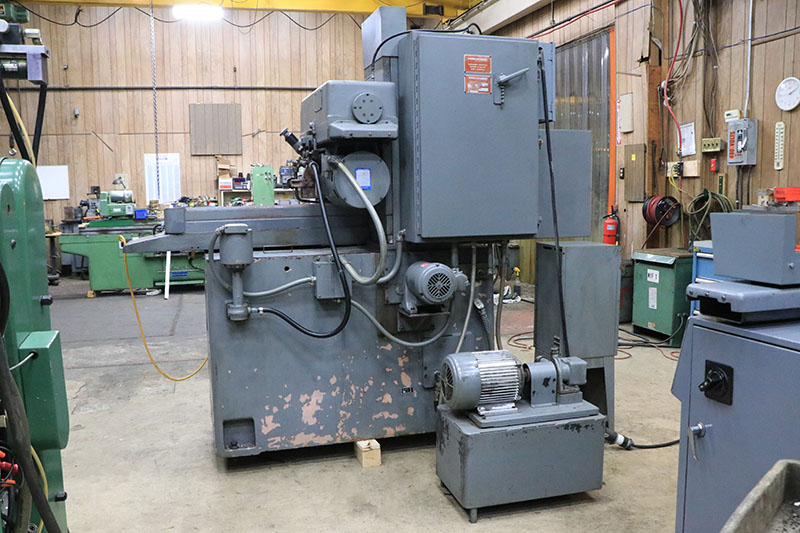

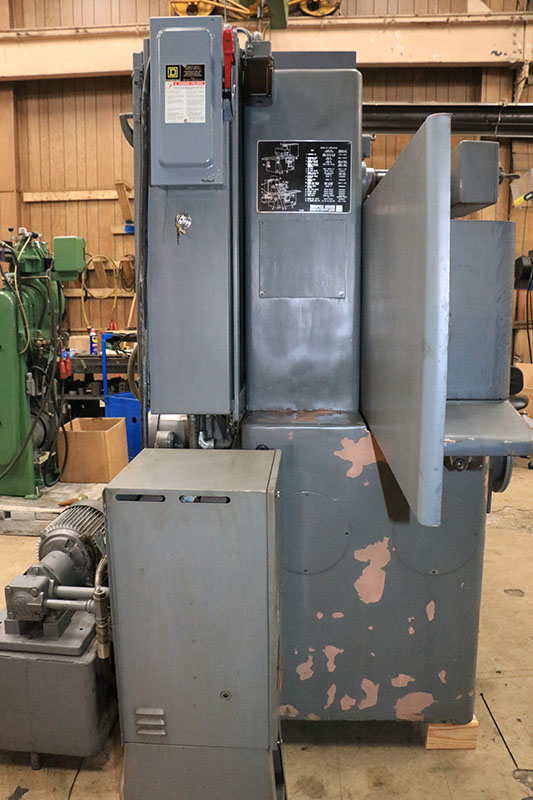

EXTERNAL HYDRAULIC TANK & PUMP

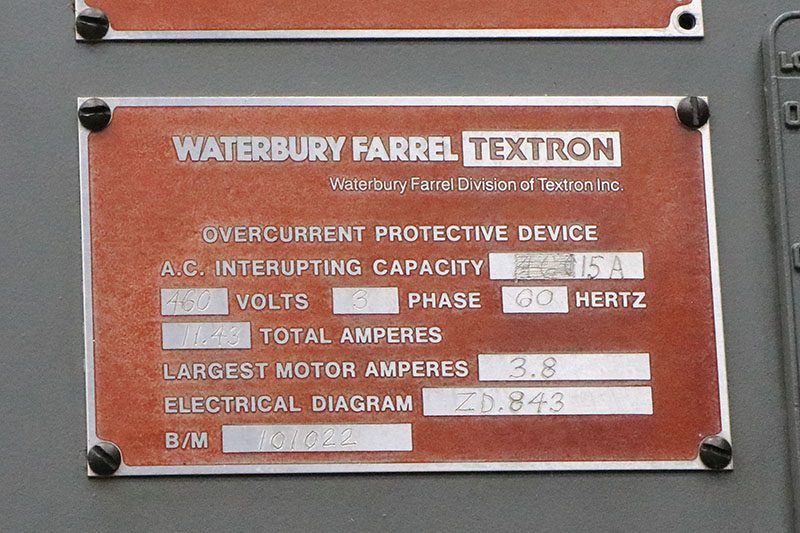

5 H.P./3/60/220-440 VOLT SPINDLE MOTOR

Link to video: https://youtu.be/AHs4DauHWWU?si=yJ3eEMjqVU1rFDYV

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERB CONDITION & EXCELLENT APPEARANCE **
