Tos W100 TABLE TYPE HORIZONTAL BORING MILLS

$89,500

Make:: Tos

Model:: W100

Year:: 2005

Ref #:: 167522

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

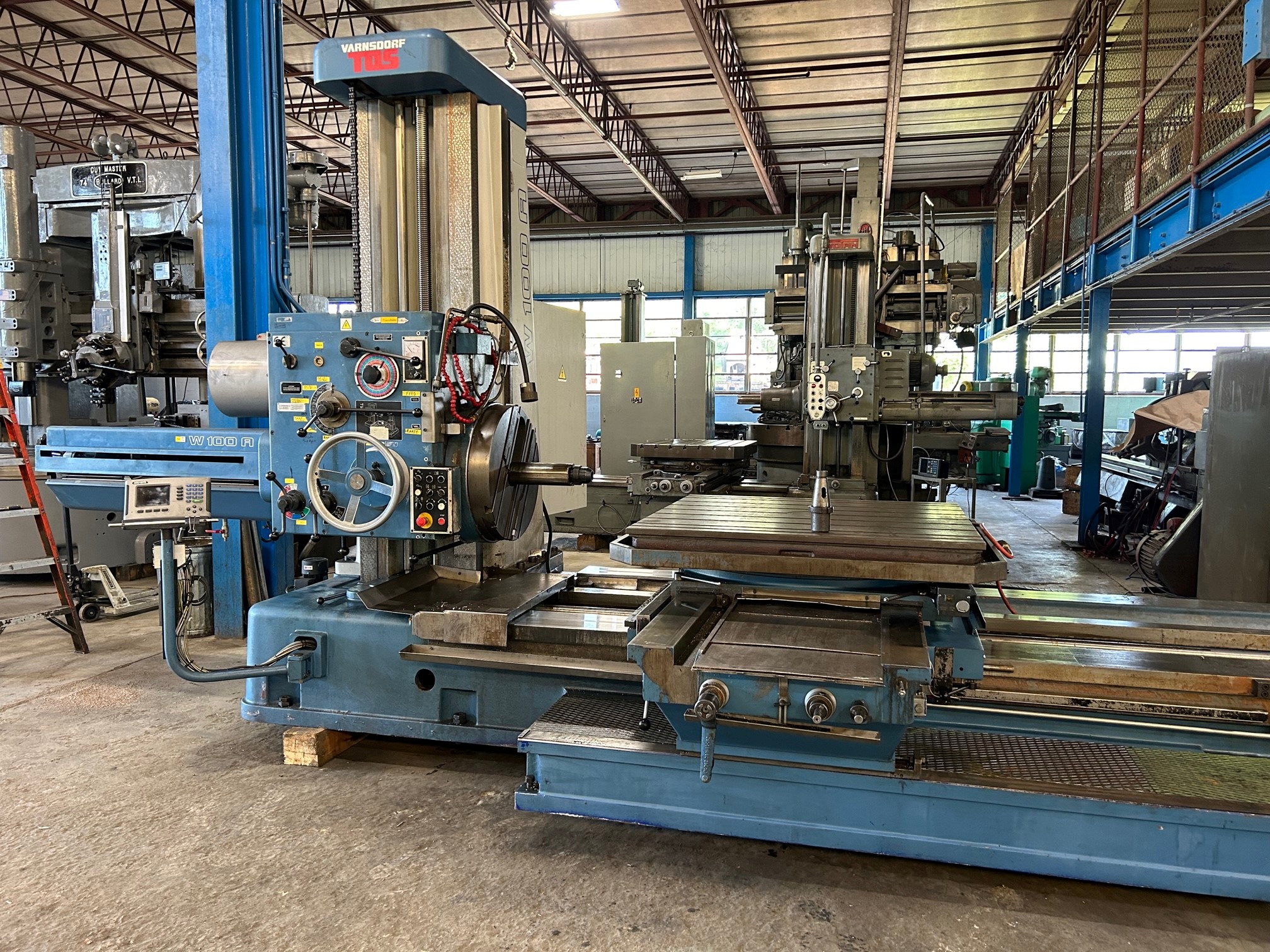

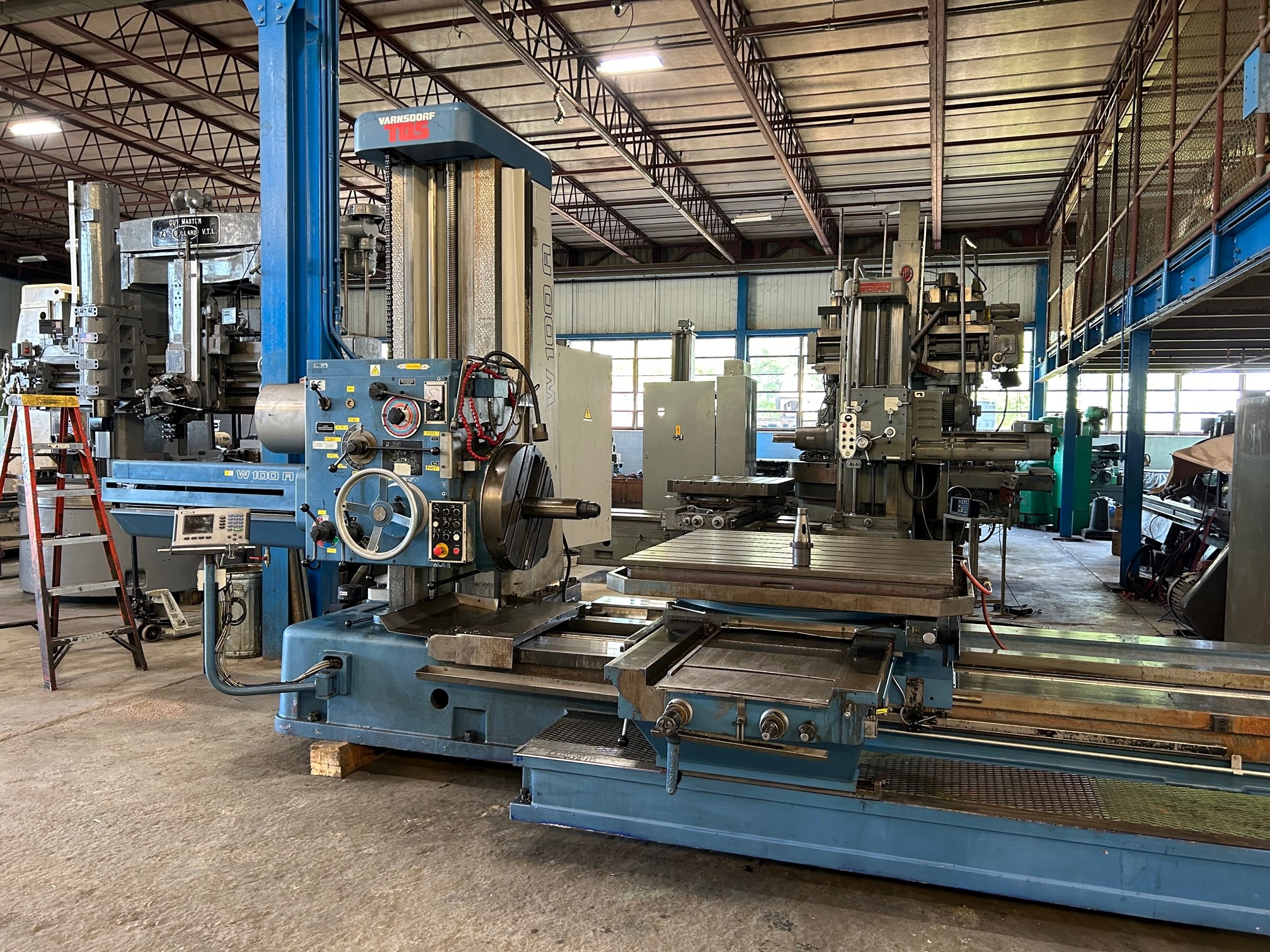

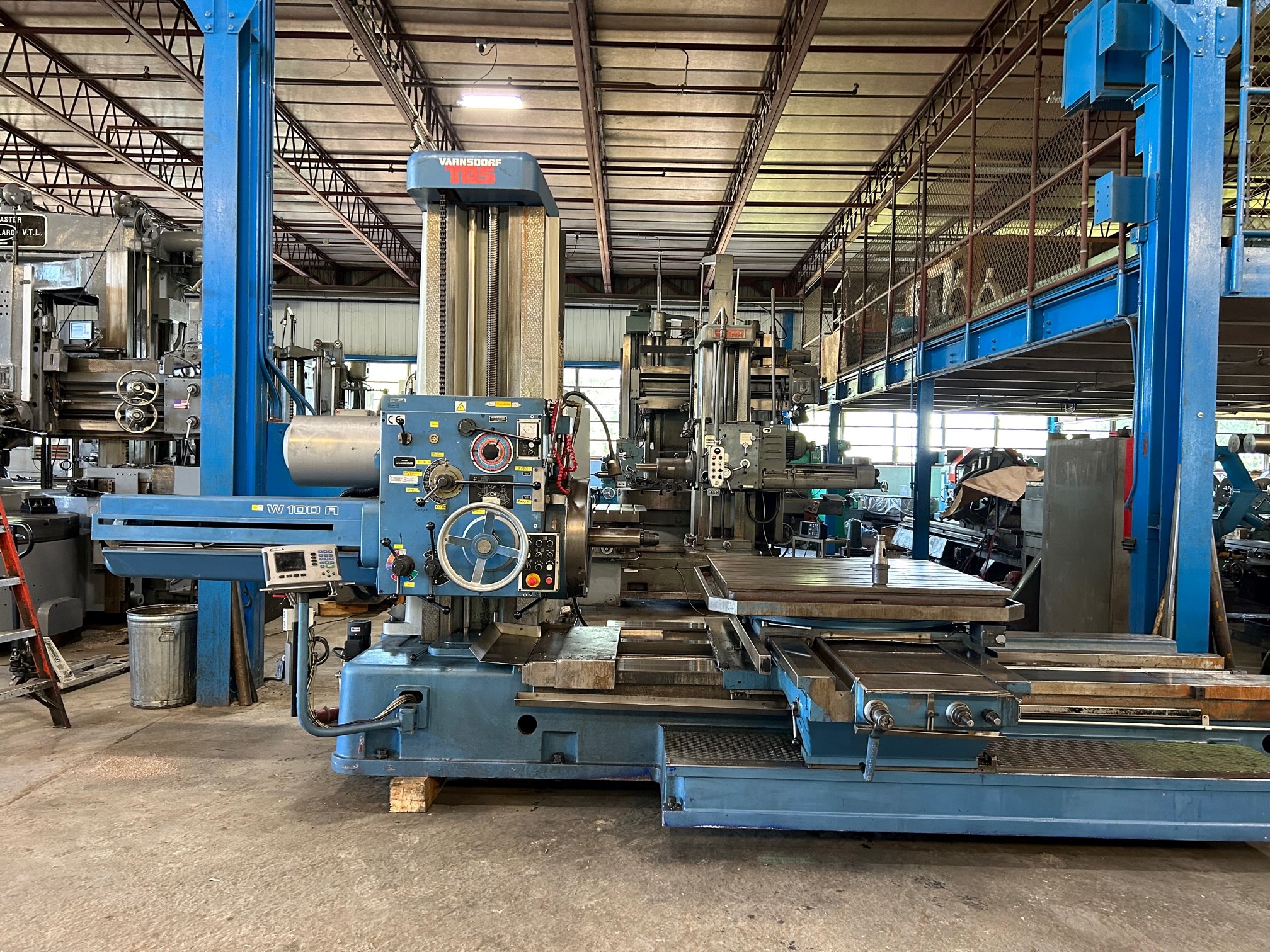

4" TOS TABLE TYPE HORIZONTAL BORING MILL

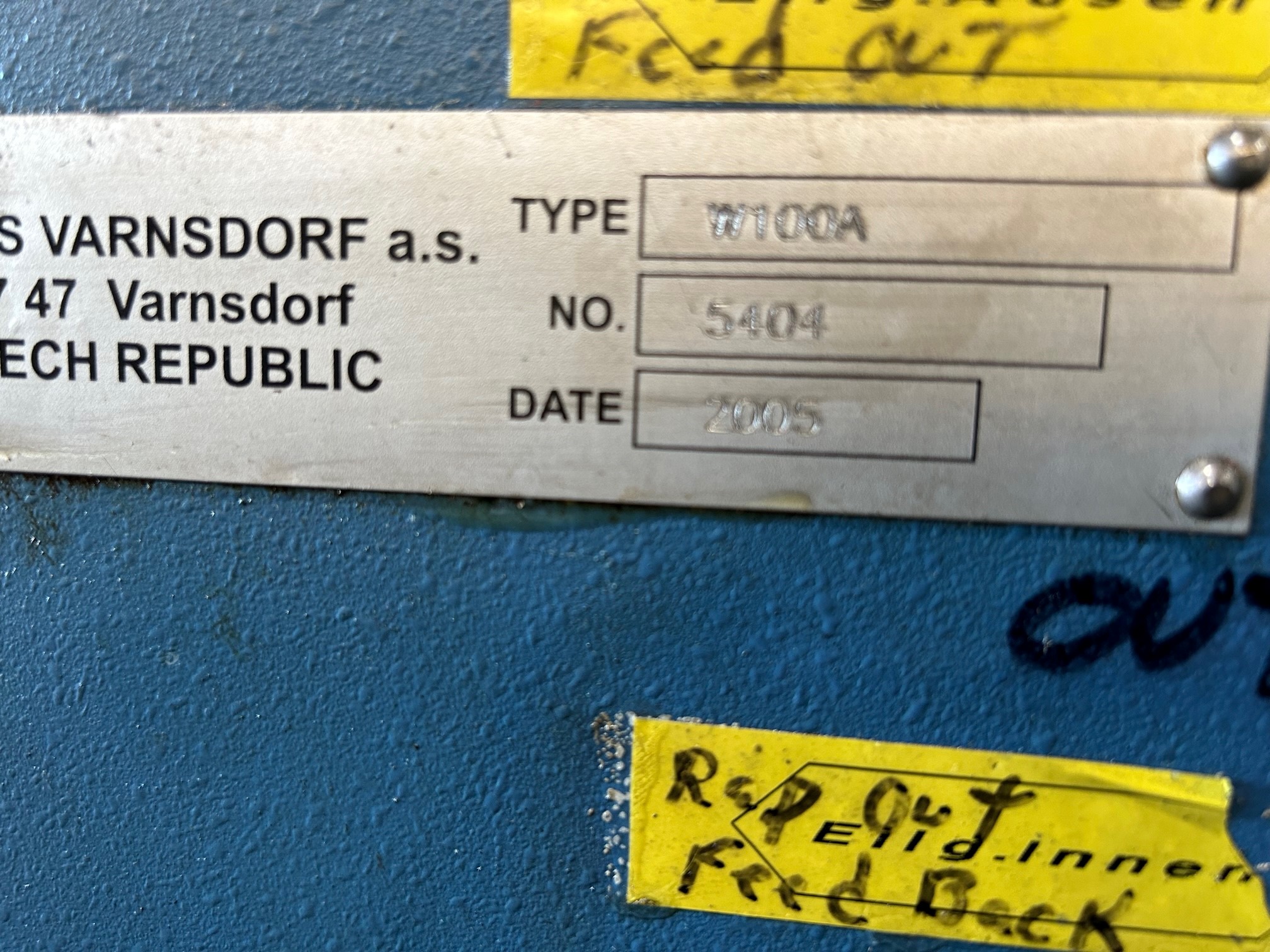

MODEL: MODEL W100A, S/N: 5404, NEW: 2005

SPECIFICATIONS:
DIAMETER OF SPINDLE ............... 4"
TAPER OF SPINDLE .................. #50 STD.
SPINDLE TRAVEL .................... 35-1/2"
WORKING SURFACE TABLE ............. 49" X 49"
CROSS TABLE TRAVEL ................ 63"
MAX DISTANCE SPINDLE TO TABLE ..... 44"
SADDLE TRAVEL ..................... 49"
SPINDLE SPEEDS (23) ............... 7.1 TO 1120 RPM
FACEPLATE SPEEDS (16) ............. 7.1 TO 224 RPM
BORING FEED RANGES (32) ........... .0008 TO .47 IPR
MILLING FEEDS (18) ................ .7 TO 35.4 IPM
ROTARY TABLE FEEDS (18) ........... .98 TO 55 IPM
RAPID TRAVERSE RATE ............... 110 IPM
MAXIMUM WEIGHT OF WORK PIECE ...... 6,600 LBS.
WEIGHT APPROXIMATELY .............. 34,000 LBS.

EQUIPPED WITH:
- POWER DRAW BAR

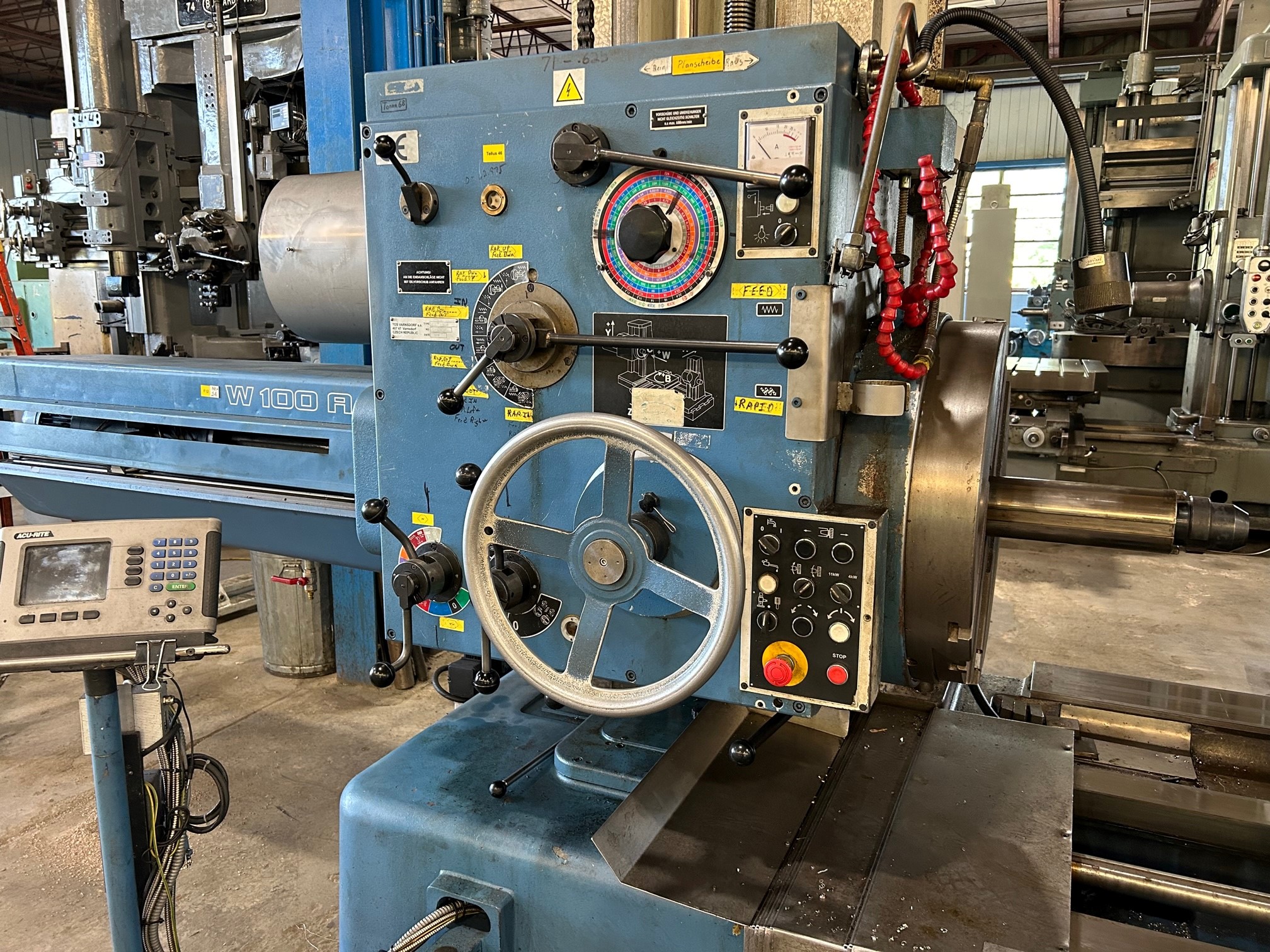

- ACU-RITE FOUR AXIS DIGITAL READOUT

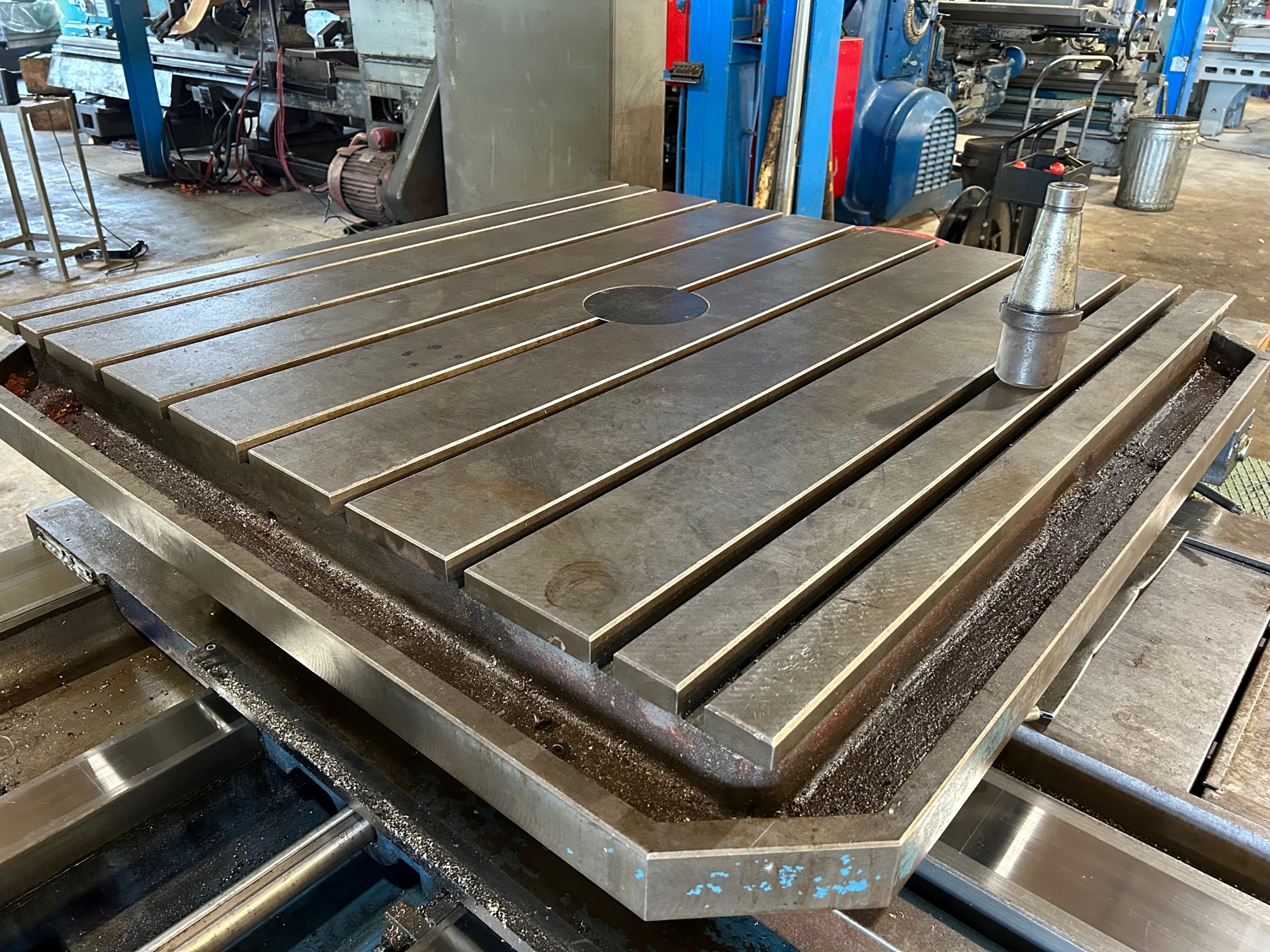

- ROTARY TABLE
- 23-1/2" BUILT-IN CONTINOUS FEED FACING HEAD
- INCH/METRIC THREADING CAPABILITY

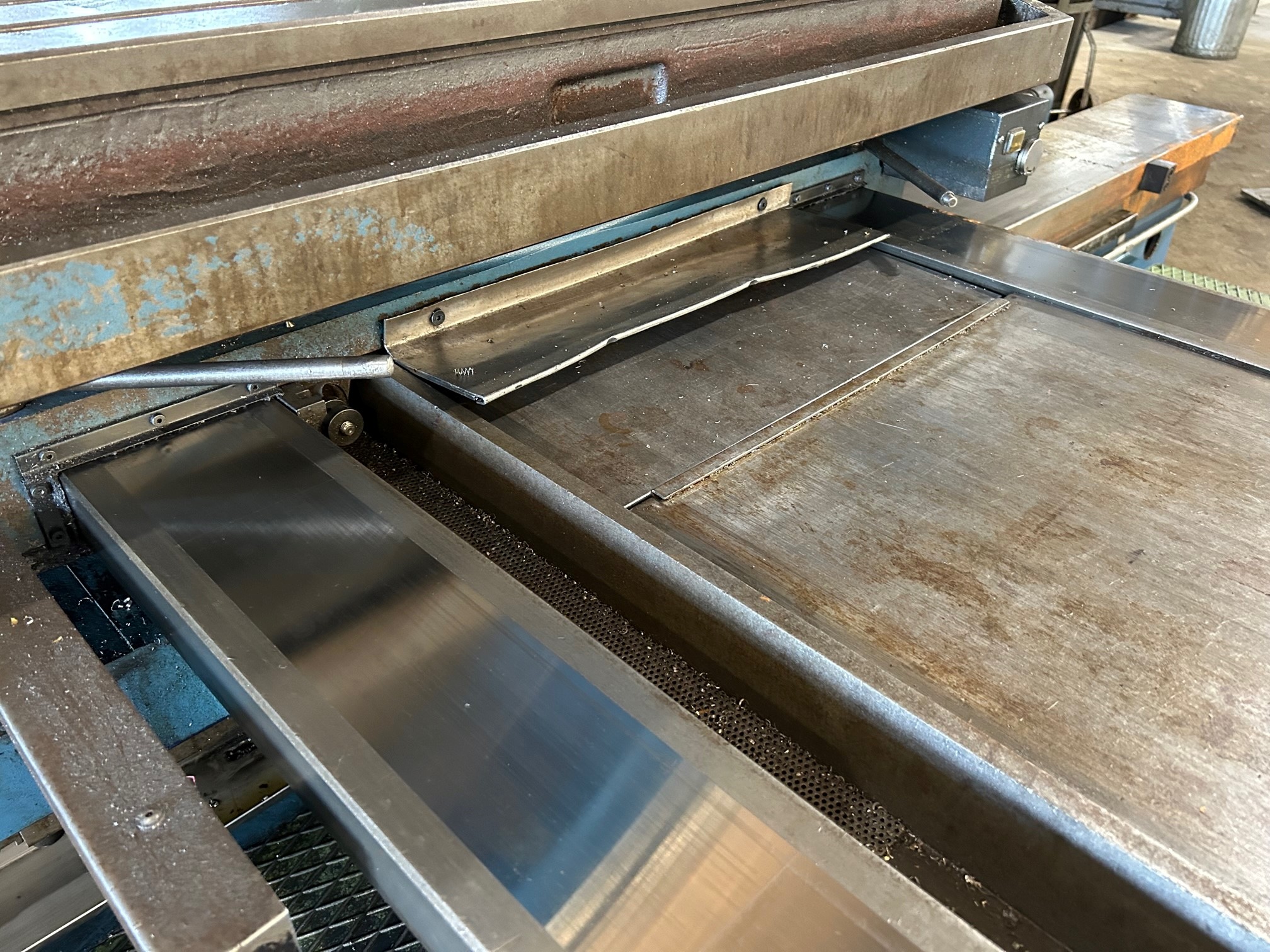

- HARDENED AND GROUND BED AND TABLE WAYS
- 15 HORSE POWER MAIN MOTOR
