Unison-Dedtru 288-0000, "AUTOMATIC LONGITUDINAL FEED CYCLE" CENTERLESS GRINDERS

Price on Request

Make:: Unison-Dedtru

Model:: 288-0000, "AUTOMATIC LONGITUDINAL FEED CYCLE"

Year:: 1992

Ref #:: 160420

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

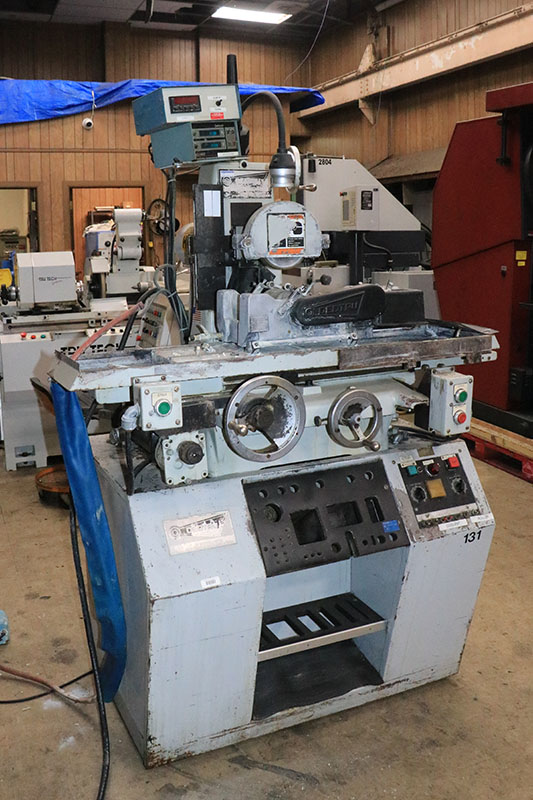

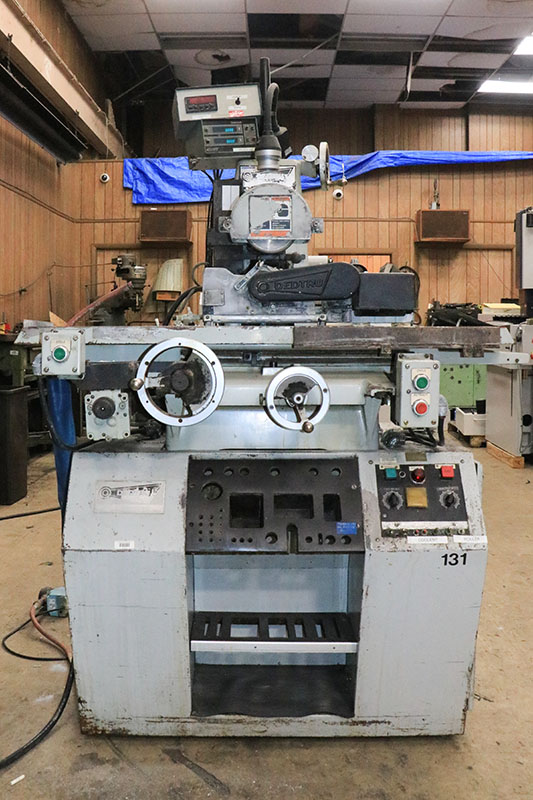

  UNISON "DEDTRU" CENTERLESS GRINDING MACHINE

MODEL: 288-0000    S/N: 7461 C-3714      NEW: 1992



VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)
  REGULATING ROLL ................................. 10"
CROSS FEED TRAVEL .............................. 6-3/4"
LONGITUDINAL TRAVEL ............................... 18"
TABLE SIZE ................................... 6" X 18"
WORKPIECE SIZE:
  O.D. WORK WITH BASIC EQUIPMENT ....... 1/4" TO 1-1/4"
  O.D. WORK W/STD. OPTIONAL ACCESSORIES .. 0.031" TO 5"
  I.D. WORK - MAXIMUM O.D. ......................... 5"
MAXIMUM WHEEL DIAMETER ............................. 8"
MAXIMUM WHEEL LENGTH ............................... 3"
APPROXIMATE MACHINE WEIGHT .................. 1,500 LBS

EQUIPPED WITH:

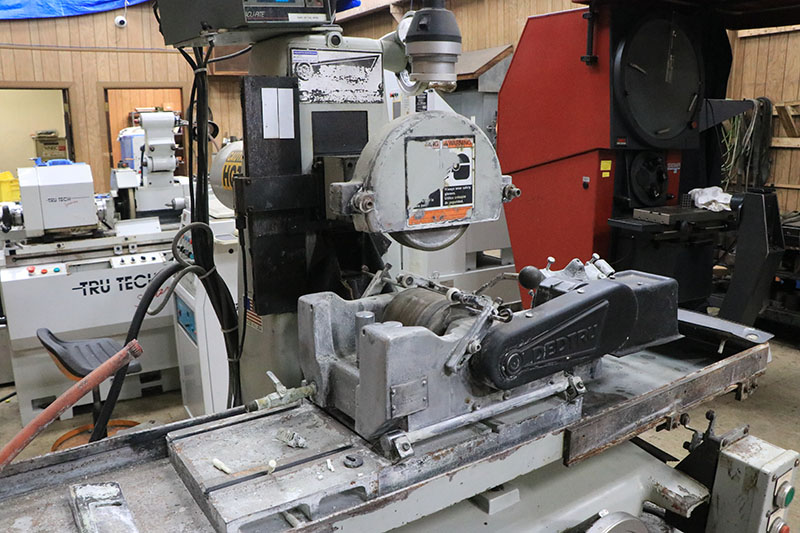

     UNISON MODEL "C" DED-TRU CENTERLESS GRINDING UNIT,
     S/N: C-3714
       -DESIGNED TO DO THROUGH FEED, O.D., I.D. AND
       SECOND OPERATIONS.
     REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC
       DRIVE CONTROLLER. REGULATING ROLL SIZE 4" X 4"
     HARIG #618W SURFACE GRINDER BASE
     OPTIONAL FINE DOWNFEED KNOB (.0001" GRAD.)
     "AUTOMATIC LONGITUDINAL FEED CYCLE" OPTION - PROVIDES
       RAPID APPROACH TO WORK, SLOW DOWN TO FEED RATE,
       FEED TO POSITIVE STOP, DWELL FOR PRESET TIME,&
       AUTOMATIC RAPID CARRIAGE RETURN.  SLOW DOWN
       POSITION, FEED RATE, POSITIVE STOP,& DWELL TIME
       ARE ADJUSTABLE.  INCLUDES LIMIT SWITCH START& STOP
       CONTROL OF REGULATING ROLL.
     "POPE" 3 H.P. SPINDLE, 3,600 RPM, 3/60/230-460 VOLTS

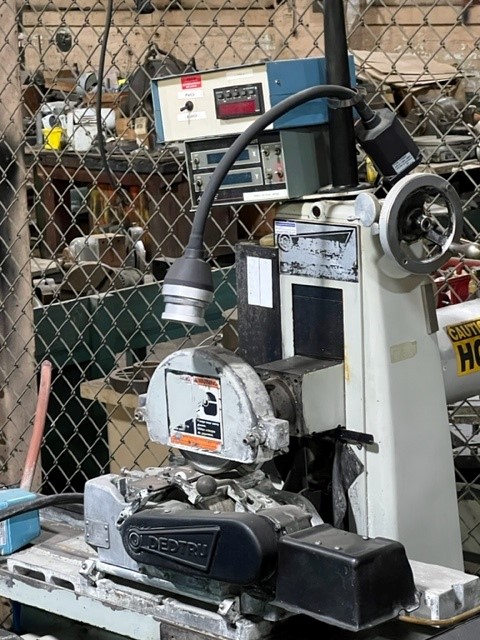

     "ACU-RITE" "QWIKCOUNT" 2-AXIS DIGITAL READOUT DISPLAY
     MACHINE IS PRESENTLY WIRED FOR 460 VOLTS


** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
