Wysong 150-6 PRESS BRAKES, MECHANICAL

$22,500

Make:: Wysong

Model:: 150-6

Year:: 1980

Ref #:: 164148

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

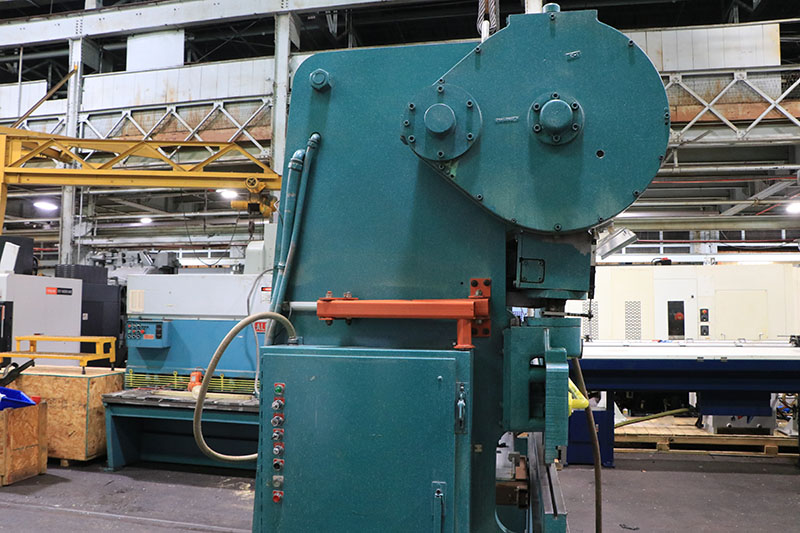

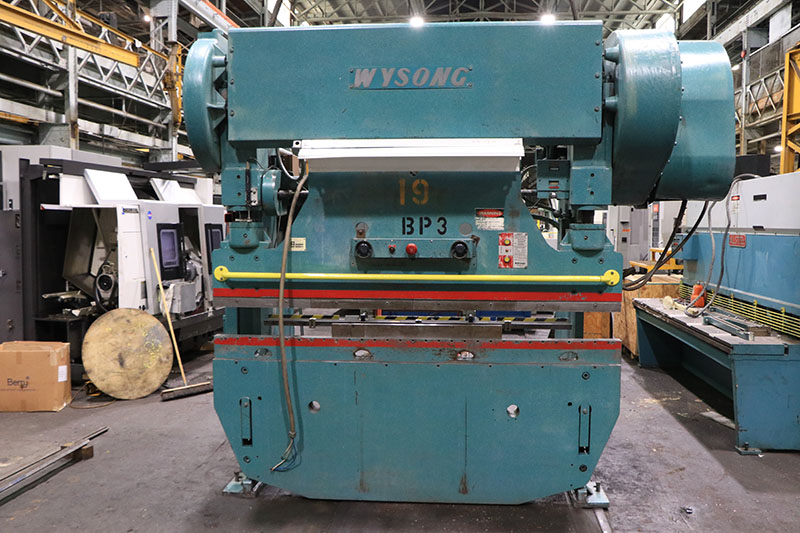

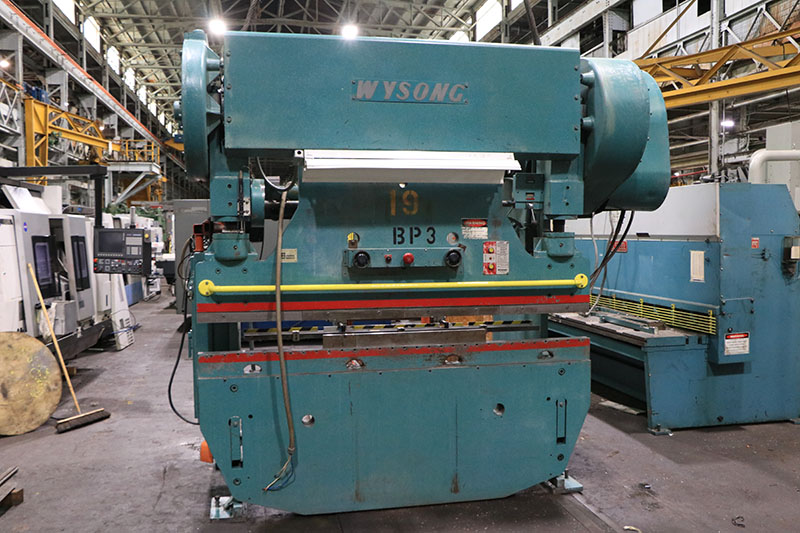

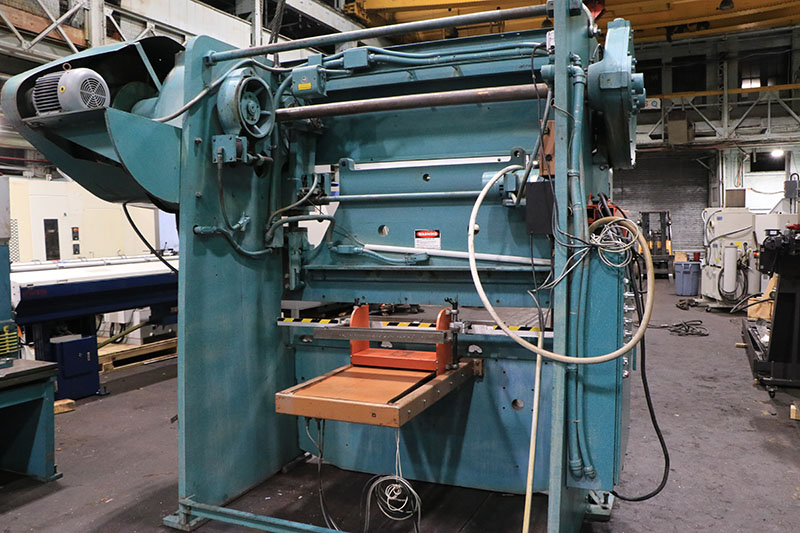

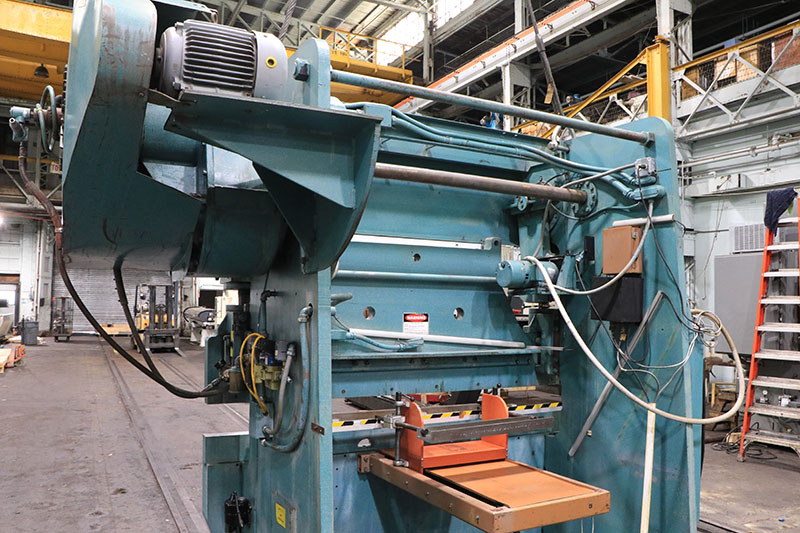

8' x 150 Ton WYSONG Mechanical Press Brake

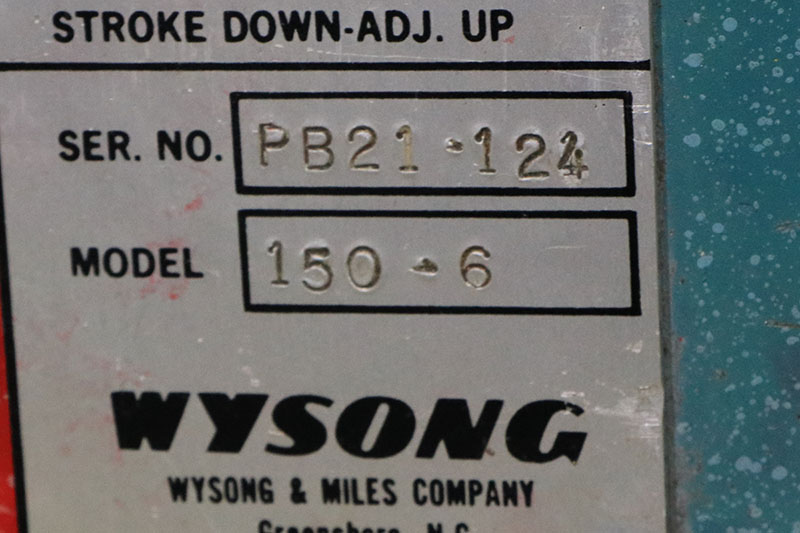

MODEL 150-6        S/N PB21-124         NEW 1980

Overall length of bed and ram ........ 8'
Clear distance between housings ...... 6'6"
Bending capacity ..................... 8' x 1/4"
Tonnage at mid stroke ................ 100 ton
Tonnage near bottom of stroke ........ 150 ton
Stroke of ram ........................ 3"

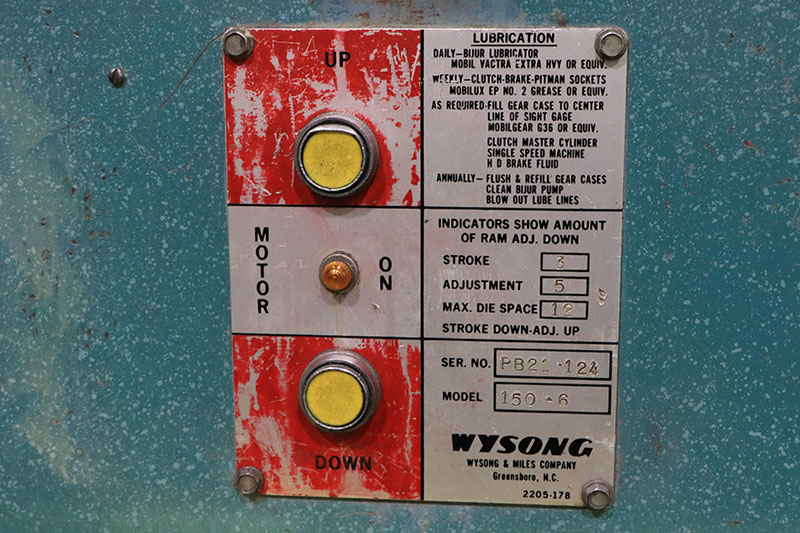

Motorized ram adjustment ............. 5"
Speed ................................ 30 S.P.M.
Die space ............................ 12"
Throat depth ......................... 8-1/2"
Motor ................................ 10 HP

Equipped with:

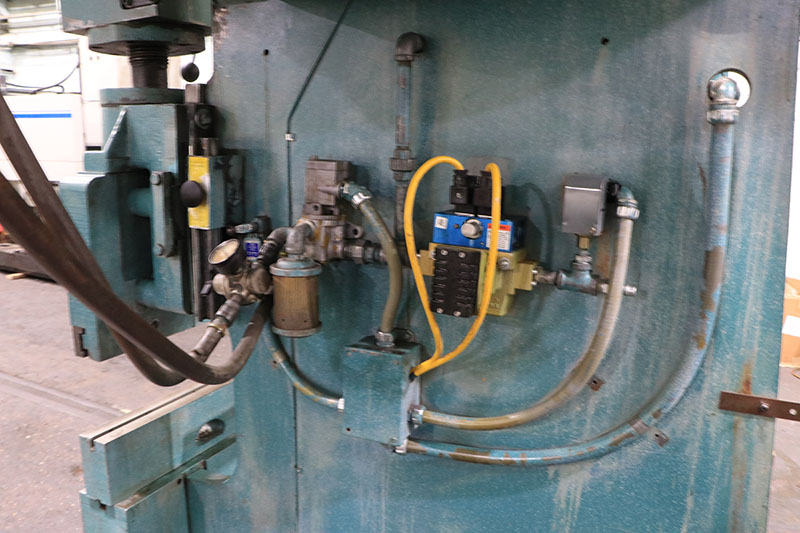

- Air Clutch
- Automatic speed selector with Hi-Lo speed cycle
control
- Motorized ram adjustment w/1-1/2 HP Motor

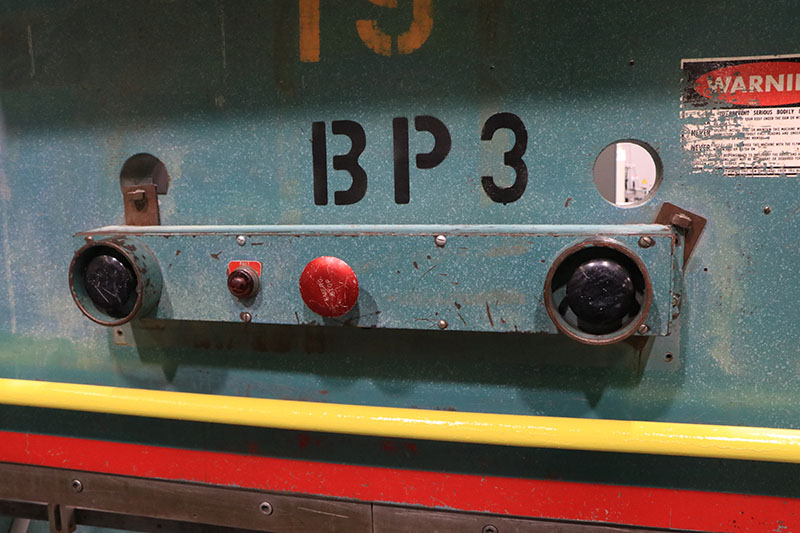

- Ram mounted dual electric palm buttons

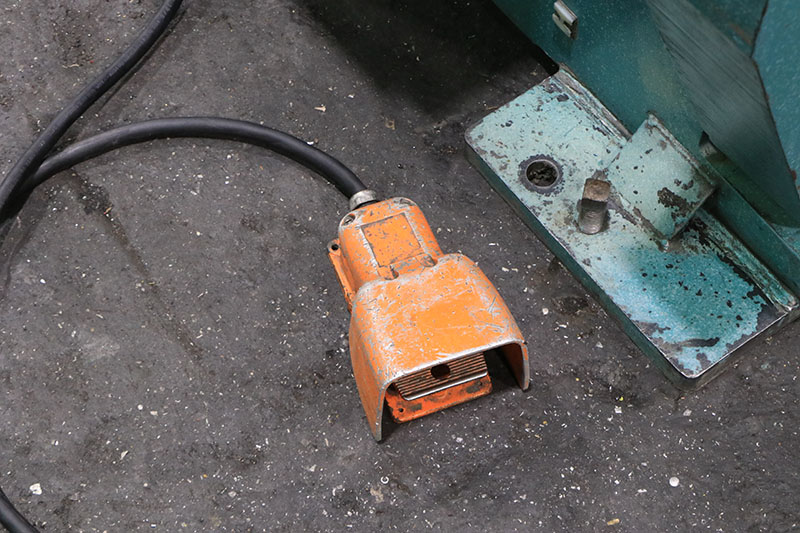

- Electric foot pedal
- Totally enclosed twin gear drive
- Manual lubrication system w/grease fittings

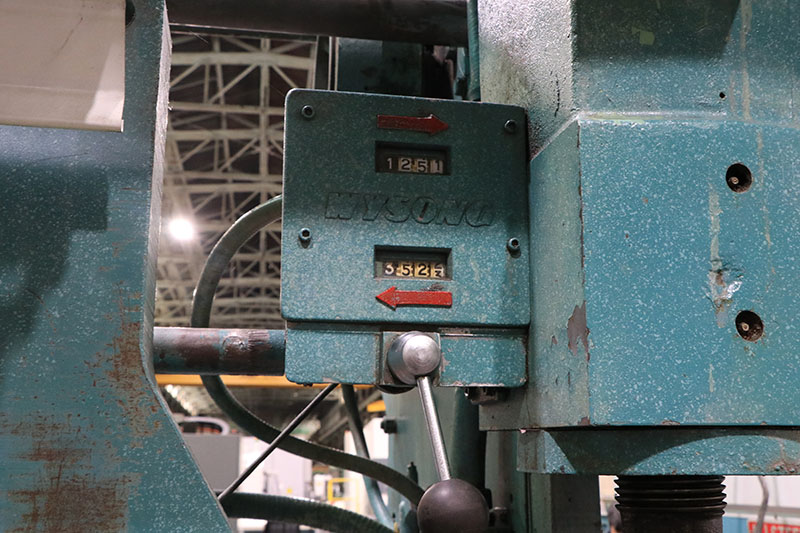

- Individual ram depth readouts for each side
- Lower die rail
- Sectional ram clamping bar with all clamps

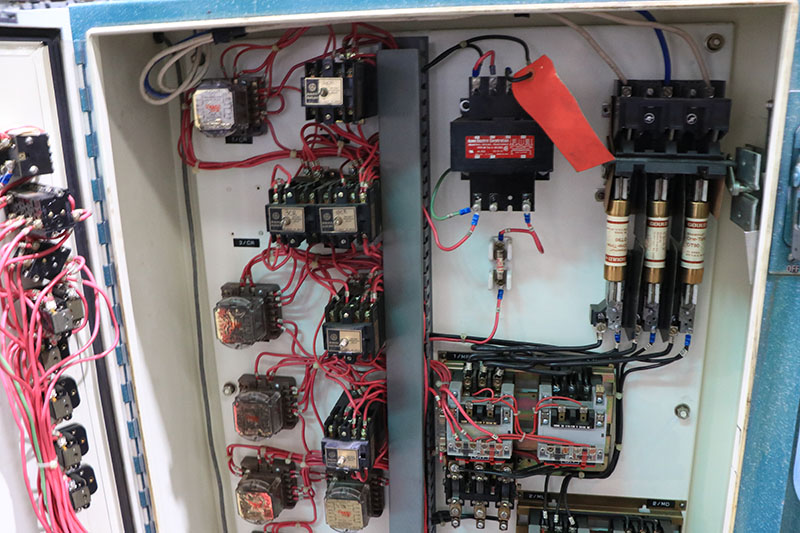

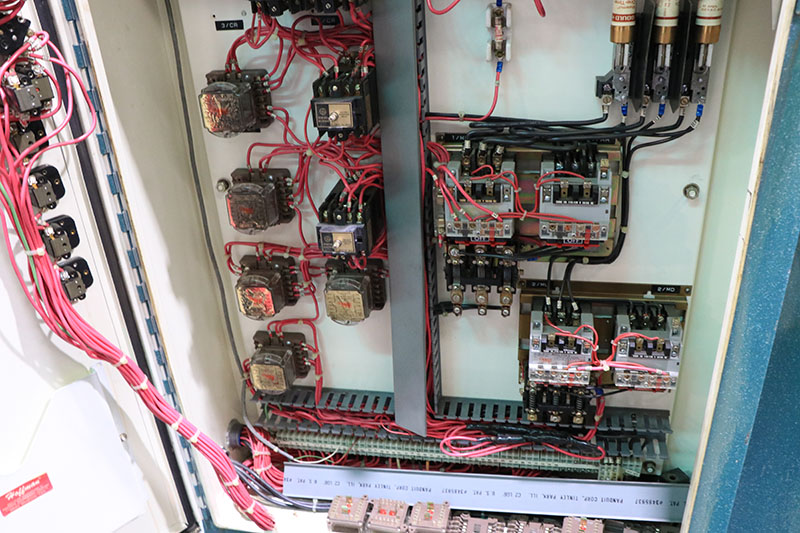

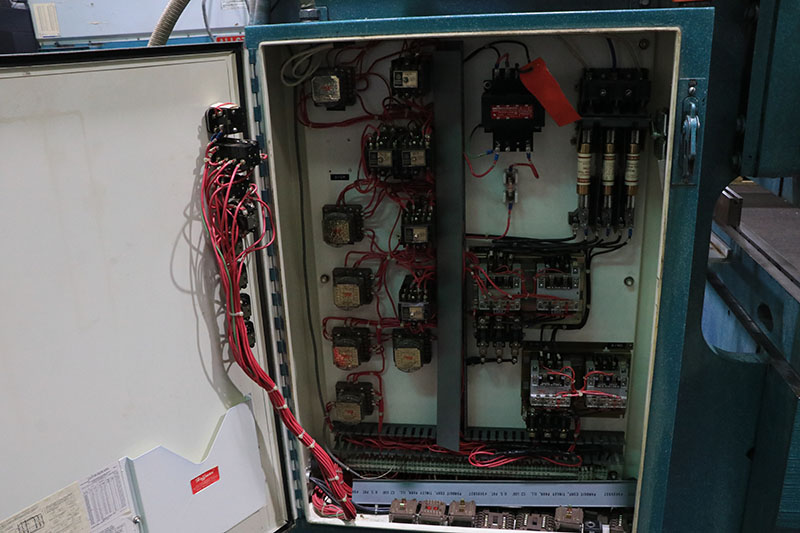

10 H.P. 3/60/220-440 volt main drive motor and
electrical controls
Machine is wired for 220 volt operation.

Approximate Weight: 21,000 Lbs
Approximate Dimensions: 141" L x 80" W x 114" H
