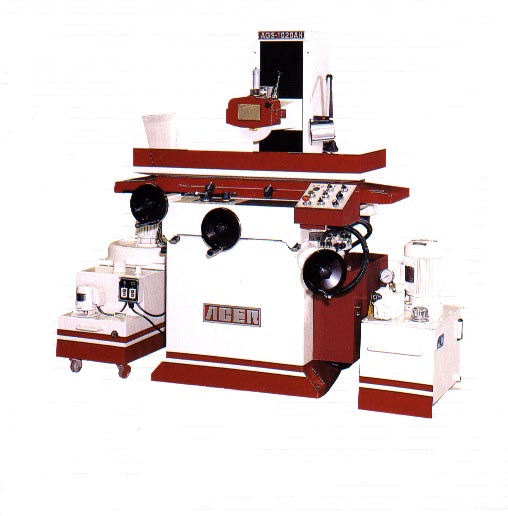

Acer AGS-1020AH NEW SURFACE GRINDERS

Price on Request

Make:: Acer

Model:: AGS-1020AH

Year:: NEW

Ref #:: 122988

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

"NEW" ACER HIGH PRECISION SURFACE GRINDER
MODEL: AGS-1020AH - 2 Axis Automatic

FEATURES:
  - 2 HP V-3 graded spindle motor.
  - 10" x 20" grinding capacity.
  - Double nut design on crossfeed leadscrew for continuous
  backlash adjustment.
  - 2 Axis automatic movement.
  - Safety 24 volt circuit control.
  - Auto lube system.
  - 22" wide double V crossfeed ways.
  - 2,970 lbs of full Meehanite casting.
  - 19 3/4" from table top to the center of spindle

SPECIFICATIONS:
Working Surface of Table (W x L): 9" x 20"
Max. Grinding (W x L): 10" x 20"
Max Table Travel: 20-1/2"
Max. Crossfeed Travel: 11"
Distance Between Table Surface & Spindle Center: 19-3/4"
Variable Speed by Hydraulic Cylinder: 16 - 80 FPM
Automatic Crossfeed Carriage Movement: 0 - 1"
Downfeed Handwheel Dial: Per Graduation 0.0005" - Per
   Revolution 0.1"
Crossfeed Handwheel Dial: Per Graduation 0.001" - Per
   Revolution 0.2"
Auto Downfeed Micro Adjustment Dial: Per Graduation 0.0001"
   - Per Revolution 0.01"
Longitudinal Travel (from - to): 6 - 20"
Crossfeed Travel (from - to): 0 - 10"
Spindle Motor: 2 hp x 2 p
Hydraulic Pump Motor: 2 hp x 4 p
Auto Crossfeed Motor: 1/5 hp x 6 p
Grinding Wheel (O.D. x T x I.D.): 8" x 1-1/4" x 1/2" (3/4)
Rotation Speed of Spindle (Horizontal): 3500 RPM / 60 HZ
Flow Rate of Coolant Pump: 40 L/Min
Max Load Capacity in Addition to Magnetic Chuck: 700 lbs.

STANDARD ACCESSORIES:
1 pc. Wheel Balancing Base     1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel           1 pc. Wheel Flange
1 pc. Diamond Dresser          1 pc. Halogen Light
1 set tool Box w/Tools         1 set Splash Guard

OPTIONAL ACCESSORIES: (CALL FOR PRICES)
Acer 8" x 18" Permanent Magnetic Chuck
Walker 8" x 18" Permanent Magnetic Chuck (Fine Pole)
Walker 8" x 18" Electro Fine Pole chuck w/ Chuck Control
Parallel Dresser (overhead)
Coolant System
Dust Suction & Coolant System
Coolant System w/Paper Filter
Coolant System Magnetic Separator & Paper Filter
Extra Wheel Flange
"Newall" 2-Axis D.R.O. (12"x20" Travel, 0.0001" Resolution)
"Sony" 2-Axis D.R.O. (12" x 20" Travel, 0.00002" Resolution)

SPECIAL OPTIONS PACKAGE
Pkg with parallel dresser, dust suction & coolant system
halogen light, and permanent magnetic chuck
CALL FOR PRICING
