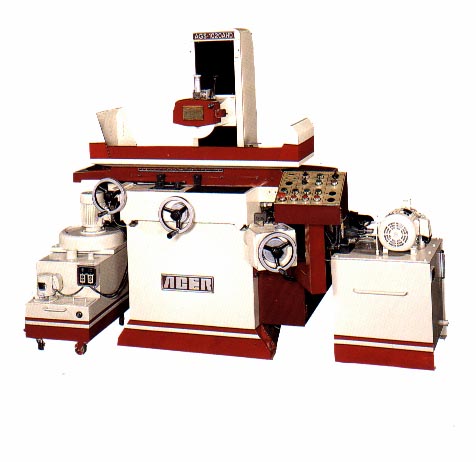

Acer AGS-1020AHD NEW SURFACE GRINDERS

Price on Request

Make:: Acer

Model:: AGS-1020AHD

Year:: NEW

Ref #:: 169135

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


NEW ACER HIGH PRECISION SURFACE GRINDER
MODEL: AGS-1020AHD - 3 AXIS AUTOMATIC

SPECIFICATIONS:
LONGITUDINAL TRAVEL: .................. 20-1/2"
CROSS FEED TRAVEL: .................... 11"
SPINDLE CNETER TO TABLE: .............. 19-3/4"
TABLE SIZE: ........................... 9" X 20"
WHEEL SPEED: .......................... 3,500 RPM
TABLE SPEED: HYDRAULIC ................ 16 ~ 80 FPM
GRINDING WHEEL: ....................... 8"(OD) X 1/2"(W) X 1-1/4"(ID)
VERTICAL GRADUATION: .................. 0.0005"
VERTICAL REVOLUTION: .................. 0.1"
SPINDLE MOTOR: ........................ 2 HP (V3)
T-SLOT: ............................... 1" X 9/16"
NET WEIGHT: ........................... 2,970 LBS.

STANDARD ACCESSORIES:
WHEEL BALANCING BASE
WHEEL BALANCING ARBOR
GRINDING WHEEL
WHEEL FLANGE
TABLE WHEEL DRESSER
HALOGEN WORK LIGHT
TOOLBOX WITH TOOLS
SPLASH GUARD

FEATURES: (3-AXIS AUTO MOVEMENT)
PRECISON "TURCITE-B" WAYS
HYDRAULIC TABLE & ELECTRONIC CROSS FEED
AUTO INCREMENTAL DOWNFEED: AUTO LUBRICATION
ENHANCED FEATURE: RAPID ELEVATION
WORKING CAPACITY: 8" X18"

OPTIONAL ACCESSORIES:
ACER 8"X18" PERMANNT MAGNETIC CHUCK (REGULAR POLE)
ACER 8"X18" ELECTRO CHUCK WITH CONTROL (REGULAR POLE)
WALKER 8"X18" PERMANENT MAGNETIC CHUCK (FINE POLE)
WALKER 8"X18" ELECTRO CHUCK W/CHUCK CONTROL (FINE POLE)
MANUAL PARALLEL DRESSER (OVERHEAD)
COOLANT SYSTEM
DUST SUCTION & COOLANT SYSTEM (1010)
COOLANT SYSTEM (1010) WITH PAPER FILTER
COOLANT SYSTEM (1010) WITH MAGNETIC SEPARATOR & PAPER FILTER
EXTRA WHEEL FLANGE
NEWALL 2-AXIS D.R.O. (12"X20" TRAVEL, 0.0001" RESOLUTION)
MAGNESCALE 2-AXIS D.R.O. (12"X20" TRAVEL, 0.00002" RESOLUTION)
