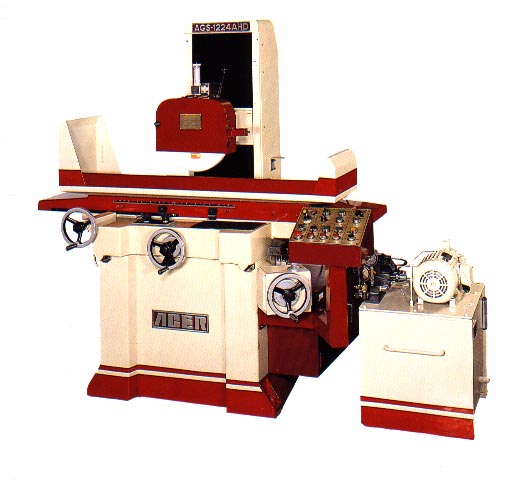

NEW ACER HIGH PRECISION SURFACE GRINDER
MODEL: AGS-1224AHD - 3 AXIS AUTOMATIC
SPECIFICATIONS:
WORKING SURFACE OF TABLE (W X L): ............ 11" X 23"
MAX GRINDING (W X L): ........................ 12" X 24"
MAX TABLE TRAVEL: ............................ 24-1/2"
MAX CROSSFEED TRAVEL: ........................ 14"
DIST BTW TABLE SURFACE & SPINDLE CENTER: ..... 23-1/2"
VARIABLE TABLE SPEED BY OIL CYLINDER: ........ 16 ~ 80 FPM
AUTOMATIC CROSSFEED CARRIAGE MOVEMENT: ....... 0 ~ 1"
DOWNFEED HANDWHEEL DIAL:PER GRADUATION: ...... 0.0005", PER REVOLUTION: 0.1"
CROSSFEED HANDWHEEL DIAL: PER GRADUATION: .... 0.001", PER REVOLUTION: 0.2"
AUTO DOWNFEED MICRO ADJUSTMENT DIAL:
-PER GRADUATION: ............................. 0.0001"
-PER REVOLUTION: ............................. 0.01"
LONGITUDINAL TRAVEL FROM - TO: ............... 6 ~ 24
CROSSFEED TRAVEL FROM-TO: .................... 0 ~ 13"
SPINDLE MOTOR: ............................... 5 HP 2 4 P
HYDRAULIC PUMP MOTOR: ........................ 2 HP X 4 P
AUTO CROSSFEED MOTOR: ........................ 1/5 HP X 6 P
AUTO DOWNFEED MOTOR: ----
GRINDING WHEEL (O.D. X T X I.D.): ............ 14" X 5" X 1-1/4" (1/2)
ROTATION SPEED OF SPINDLE (HORIZONTAL): ...... 1,750 RPM/ 60 HZ
FLOW RATE OF COOLANT PUMP: ................... 40 L/MIN
MAX. LOAD CAPACITY IN ADDITION TO MAG. CHUCK:. 1,000 LBS.
MACHINE WEIGHT: .............................. 4,840 LBS.
PACKING DIMENSIONS (L X W X H): .............. 67" X 84" X 89"
STANDARD ACCESSORIES:
1 PC. WHEEL BALANCING BASE 1 PC. WHEEL BALANCING ARBOR
1 PC. GRINDING WHEEL 1 PC. WHEEL FLANGE
1 PC. DIAMOND DRESSER 1 PC. HALOGEN LIGHT
1 SET TOOL BOX W/TOOLS 1 SET SPLASH GUARD
FEATURES:
NOTE: DOWNFEED IS NOW COUNTER-CLOCKWISE.
• REINFORCED HIGH COLUMN & HEAVYWEIGHT MEEHANITE CASTING.
• DIRECT DRIVE SPINDLE EQUIPPED WITH 4 ABEC-7 ANGULAR CONTACT BALL BEARING.
• SPINDLE MOTOR: 5 HP
• GRINDING CAPACITY: 1224AHD WITH 12" X 24" GRINDING CAPACITY.
• 3 AXES AUTO MOVEMENT, EASY TO OPERATE & MAINTAIN.
• AUTO SURFACE & PLUNGE DOWNFEED
• BUILT-IN CHUCK CONTROL FOR ELECTROMAGNETIC CHUCK (1224AHD ONLY).
• 24 VOLT CIRCUIT CONTROL.
• DOUBLE-V CROSSFEED WAYS; ONE V, ONE FLAT TABLE WAYS.
• AUTO-LUBE SYSTEM.
• DUAL HYDRAULIC PUMP SYSTEM: ONE EACH FOR AUTO INCREMENTAL DOWNFEED
AND TABLE LONGITUDINAL TRAVEL.
• LARGE VOLUME HYDRAULIC TANK.
• RAPID POWER ELEVATION FOR 1224AHD.
• DOUBLE NUT DESIGN FOR CROSSFEED LEADSCREW.
• 19 3/4" \ 23 1/2" FROM TABLE TOP TO THE CENTER OF SPINDLE.
• 4,180 LBS OF FULL MEEHANITE CASTING (1224AHD ONLY)
• EXTRA WIDE SADDLE AT 24 1/2" AND 30 1/2" EACH
OPTIONAL ACCESSORIES:
* "WALKER" 12" X 24" ELECTRO FINE POLE CHUCK W/ CONTROL
* COOLANT SYSTEM W/MAGNETIC SEPARATOR & PAPER FILTER
* EXTRA SHEEL FLANGE
* "NEWALL" 2-AXIS D.R.O.(16"X24" TRAVEL, 0.0001" RESOLUTION)
* "SONY" 2-AXIS D.R.O. (16"X24" TRAVEL, 0.00002" RESOLUTION)
(SPECIAL PACKAGE):
PARRALLEL DRESSER, DUST SUCTION & COOLANT SYSTEM,
HALOGEN LIGHT AND MAGNETIC CHUCK
