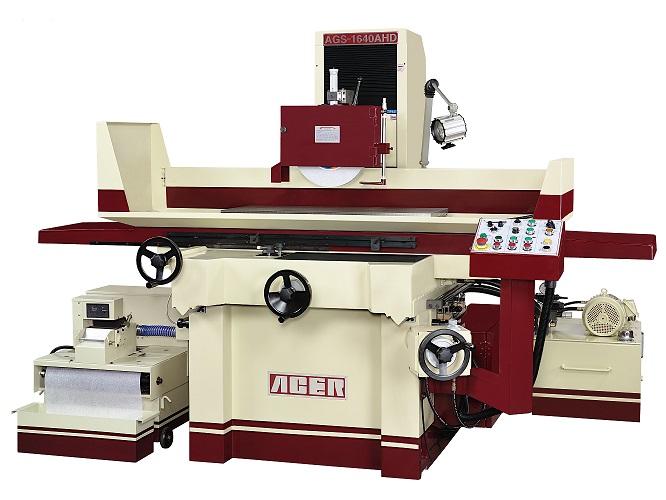

Acer AGS-1640AHD NEW SURFACE GRINDERS

Price on Request

Make:: Acer

Model:: AGS-1640AHD

Year:

Ref #:: 157861

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

NEW ACER AGS SERIES SURFACE GRINDER
MODEL: AGS-1640AHD

SPECIFICATIONS:
TABLE WORKING SURFACE: .............. 15.7" X 39.4"
MAX. GRINDING SURFACE: .............. 16" X 40"
MAX. TABLE TRAVEL: .................. 45.7"
MAX. CROSS TRAVEL: .................. 17.7"
DIST. BETW TABLE SURFACE
-& SPINDLE CENTER: .................. 24.4"
VARIABLE TABLE SPEED
-(CONTROLLED BY HYD. CYLINDER): ..... 19 ~ 82 FPM
AUTOMATIC CROSSFEED CARRIAGE MOVEMENT 0" ~ 0.47"
DOWNFEED HANDWHEEL DIAL:
   PER GRADUATION: .................. 0.00025"
   PER REVOLUTION: .................. 0.05"
CROSSFEED HANDWHEEL DIAL:
   PER GRADUATION: .................. 0.005"
   PER REVOLUTION: .................. 0.2"
AUTO DOWNFEED MICRO ADJUSTMENT DIAL:
   PER GRADUATION: .................. 0.0001"
   PER REVOLUTION: .................. 0.01"
LONGITUDINAL TRAVEL FROM-TO: ........ 2" ~ 40"
CROSSFEED TRAVEL FROM-TO: ........... 0" ~ 20"
SPINDLE MOTOR: ...................... 7.5 HP X 4P
HYDRAULIC PUMP MOTOR: ............... 2 HP X 6P
AUTO CROSSFEED MOTOR: ............... 40W X 6P
AUTO DOWNFEED MOTOR: ................ 1/4 HP X 6P
GRINDING WHEEL (O.D. X T X I.D.): ... 14" X 2" X 5"
SPINDLE R.P.M (HORIZONTAL): ......... 1,750 RPM
COOLANT PUMP MOTOR: ................. 1/8 HP
MAX. LOAD CAPACITY
-IN ADDITION TO MAGNETIC CHUCK: ..... 1,430 LBS.
MACHINE WEIGHT (NET): ............... 6,600 LBS.
MACHINE WEIGHT (GROSS): ............. 7,480 LBS.
PACKING DIMENSIONS (L X W X H): ..... 124" X 87" X 88.5"

INCLUDES
COOLANT SYSTEM WITH PAPER FILTER
MANUAL OVERHEAD PARALLEL DRESSER
16" X 40" ACER ELECTRO-MAGNETIC CHUCK
VARIABLE CHUCK CONTROL MASTER

STANDARD ACCESSORIES:
1 PC. WHEEL BALANCING BASE
1 PC. GRINDING WHEEL
1 PC. MANUAL DIAMOND DRESSER
1 SET TOOLBOX W/TOOLS
1 PC. WHEEL BALANCING ARBOR
1 PC. WHEEL FLANGE
1 PC. HALOGEN WORK LIGHT
1 SET SPLASH GUARD

OPTIONAL ACCESSORIES:
WALKER 16" X 40" ELECTRO FINE POLE CHUCK W/CONTROL
COOLANT SYSTEM W/MAGNETIC SEPARATOR * PAPER FILTER
EXTRA WHEEL FLANGE
NEWALL 2-AXIS D.R.O (16" X 24" TRAVEL, 0.0001" RESOLUTION)
MAGNESCALE 2-AXIS D.R.O.(16" X 24" TRAVEL, 0.00002" RESOLUTION)
