Acer AGS-2040AHD 3 Axis NEW SURFACE GRINDERS

Price on Request

Make:: Acer

Model:: AGS-2040AHD 3 Axis

Year:: NEW

Ref #:: 137651

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

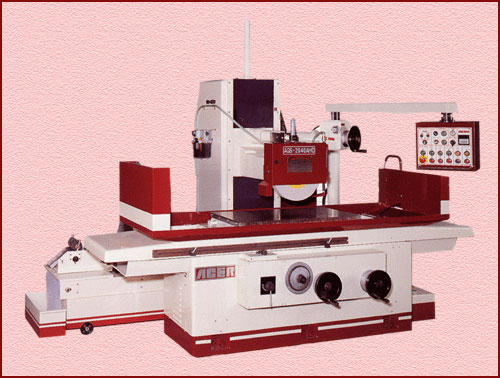

"NEW" ACER High Precision Surface Grinder
MODEL: AGS-2040AHD w/Auto. Incremental Downfeed

SPECIFICATIONS:
Working Surface of Table (W x L): 20" x 40"
Max. Grinding (W x L): 20" x 40"
Max Table Travel: 44"
Max. Crossfeed Travel: 22"
Distance Between Table Surface & Spindle Center: 23-5/8"
Variable Speed by Oil Cylinder: 16 - 80 FPM
Automatic Crossfeed Carriage Movement: 0 - 1"
Downfeed Handwheel Dial: Per Graduation 0.0001" - Per
Revolution 0.02"
Crossfeed Handwheel Dial: Per Graduation 0.001" - Per Revolution 0.2"
Auto Downfeed Micro Adjustment Dial: Per Graduation 0.0002" -
Per Revolution 0.02"
Longitudinal Travel (from - to): 6 - 40"
Crossfeed Travel (from - to): 0 - 21"
Spindle Motor: 10 hp x 4 p
Hydraulic Pump Motor: 5 hp x 6 p
Auto Crossfeed Motor: 1/4 hp x 6 p
Grinding Wheel (O.D. x T x I.D.): 16" x 5" x 2"
Rotation Speed of Spindle (Horizontal): 1750 RPM / 60 HZ
Flow Rate of Coolant Pump: 40 L/Min
Max Load Capacity in Addition to Magnetic Chuck: 2,200 lbs.

Features:
Column type movement machine.
One V and one flat table slideways are coated with Turcite-B.
Reinforced column with Meehanite cast iron allows for heavy duty
grinding.
Double-V crossfeed ways are laminated with Turcite-B.
Recirculating auto lubrication system ensures all moving parts are
properly lubricated.
Spindle uses four Class 7 high precision angular contact ball
bearings. They are sealed and greased for life.
Enlarged hydraulic tank with dual pump design allows for accurate
downfeed and smooth table movement.
Hydraulic temperature is kept constant by a separated cooling
system. This is to make sure oil temperature will not rise more
than 20° over room temperature.
Mechanical downfeed designed for easy maintenance.
V 3 graded 10 HP spindle motor.
Maximum grinding capacity is 20" x 40"
Front setting crossfeed dials allow users to set work piece distance
without moving away from control panel.

Standard Accessories:
Coolant System w/Magnetic Separator & Paper Filter
20" x 40" Electro-Magnetic Chuck
Variable Chuck Control Master
Parallel Dresser
1 pc. Wheel Balancing Base
1 pc. Grinding Wheel
1 set Toolbox w/ Tools
1 pc. Wheel Balancing Arbor
1 pc. Wheel Flange
1 pc. Halogen Work Light
1 set Splash Guard

Optional Accessories (call for pricing):
Extra Wheel Flanges
Walker or other brands of Electro-Magnetic chucks
Newall 2 Axis DRO with .0001" Resolution
Sony 2 Axis DRO with .00002" Resolution
