Baileigh BP-11210CNC NEW PRESS BRAKES

Price on Request

Make:

Baileigh

Model:

BP-11210CNC

Year:

NEW

Ref #:

150532

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

---

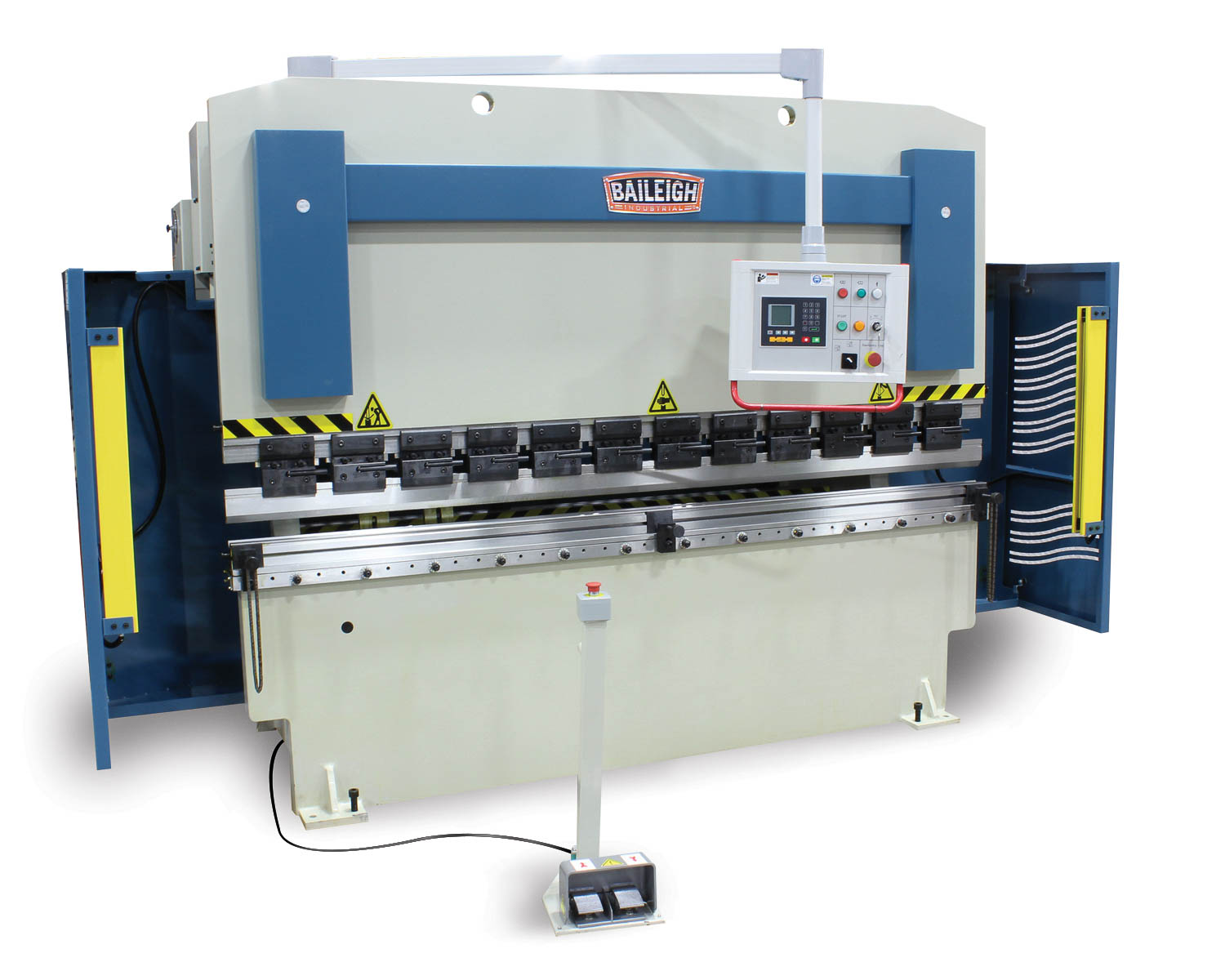

NEW BAILEIGH HYDRAULIC 112 TON X 10' CNC VERTICAL PRESS BRAKE

MODEL: BP-11210CNC





FEATURES:

With 102"between all-steel uprights, this hydraulic press brake can bend 8-foot sheets of metal. The control system on this Baileigh press brake offers the latest technology for a fraction of the cost of other brands.



• Delivers 120 tons of pressure.
• Distance between the housings lets you slide in 8-foot pieces of mild steel.
• Runs on 220-volt 3-phase power.
• Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity.
• NOK® hydraulic seals from Japan are some of the best in the industry. They will keep the hydraulics running smoothly.
• Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times.
• Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer.
• Hydraulic cylinders are near the back of the machine for convenient fluid changes.

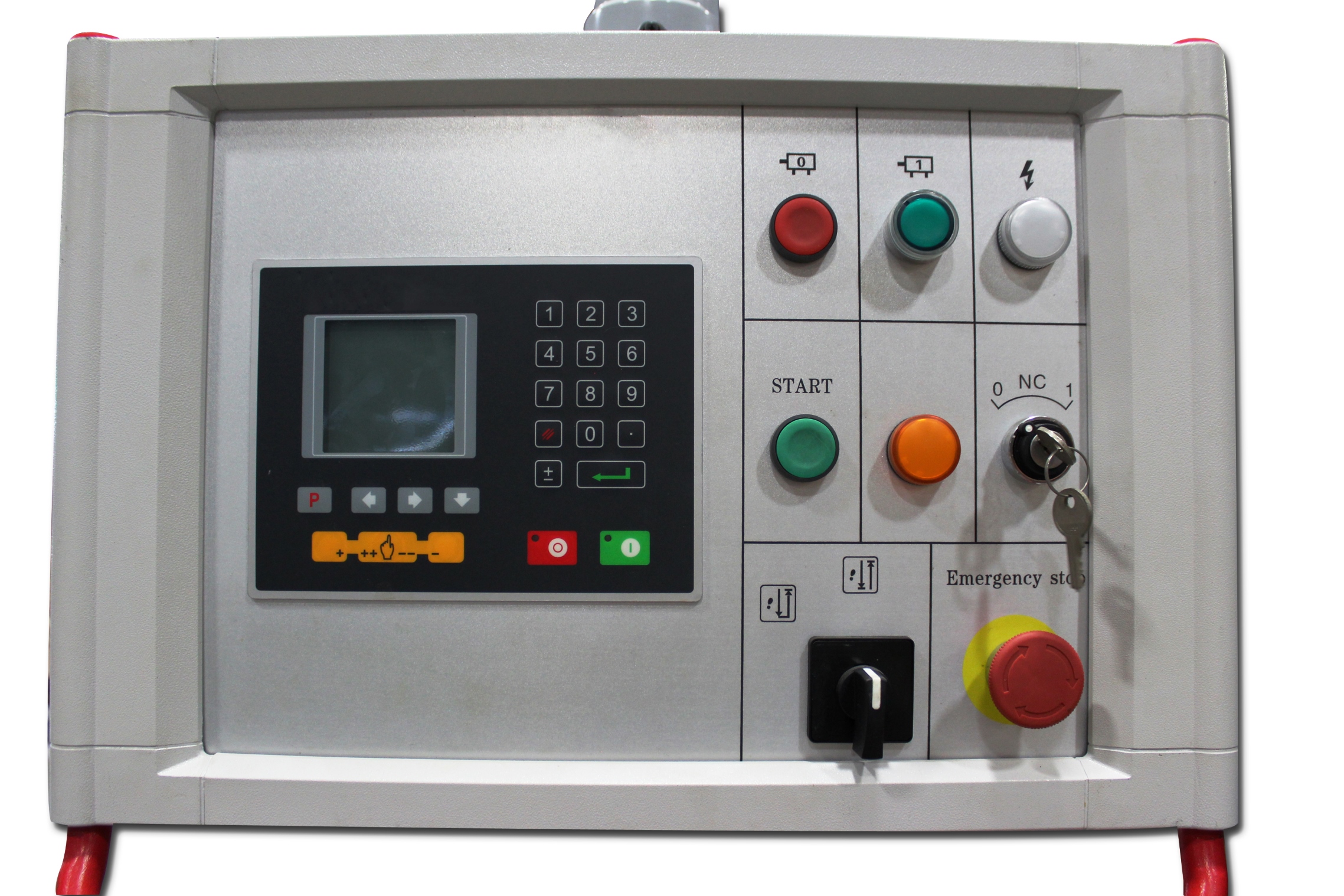

ACCURATE, USER-FRIENDLY CONTROL SYSTEM

• Runs in single-bend mode or programmable mode.
• Comes standard with 2 axes of control: stroke and back gauge distance.
• Simple controller is so intuitive that you could train someone to use it in 5 minutes.
• Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production.
• Bending is accurate to +/- .01mm, ensuring that parts come out right the first time.

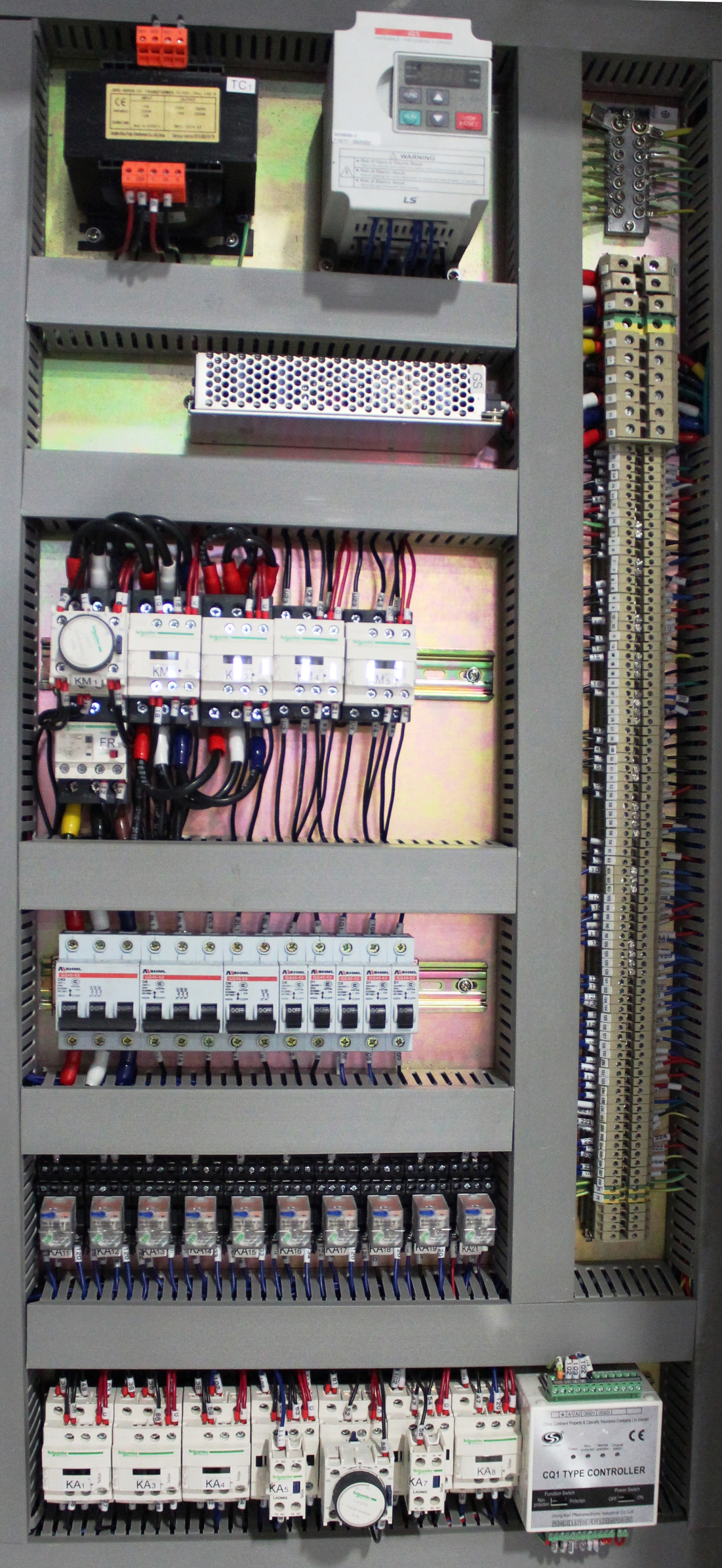

• Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity.
• Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend.
• You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal.
• Choose between 2 speeds: a rapid approach and retract and a slow bending speed.
• Speed option lets you reduce cycle time and make your shop more efficient.
• Chain drive back gauge system uses tried-and-true technology that you can maintain easily.
• The 23.62" back gauge can advance or retract according to programmed instructions.



STEEL PLATE CONSTRUCTION AND INCLUDED TOOLING

• Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process.
• Weighs a whopping 14,403 lbs. for massive structural strength that ensures accurate results.
• Includes support arms around 2 feet in length.

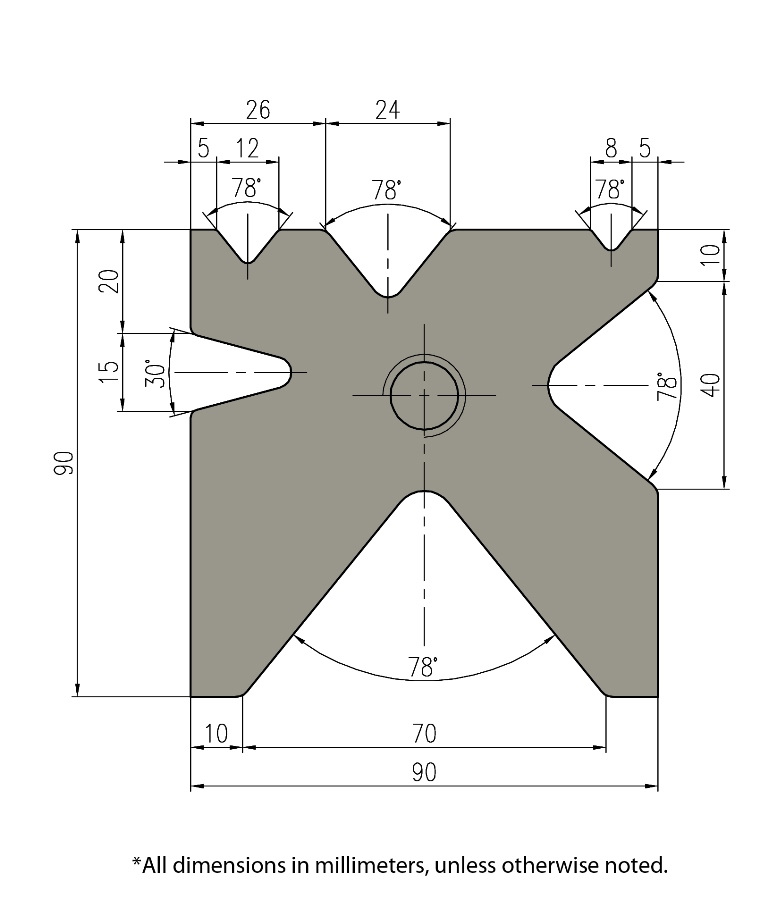

• Comes standard with tooling: a multi-vee bottom die and gooseneck punches (European Style).
• Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws!
• Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across.
• Safety light curtains prevent the machine from bending when someone is too close.
• Light curtains will swing open and get out of the way when you're doing a tool change.



FAST SHIPPING AND LIFETIME AFTER-SALE CARE

• This hydraulic press brake ships fully assembled. Just uncrate it, plug it in, and get started.
• We keep machine handling to a minimum to reduce the risk of damage. The flatbed truck that leaves our facilities is the one that shows up at your door.
• Replacement parts are in stock at Baileigh's Wisconsin headquarters, so we can get them to you quickly.
• Baileigh offer a 1-year parts warranty.
• With lifetime technical support by phone, you can contact Baileigh any time and talk with service reps who have years of experience with industrial machinery.







SPECIFICATIONS:



Table Length: 125/157"

Back Gauge Length: 17144

Return Speed: 2.36" / sec.

Maximum Pressure: 112 tons

Throat Depth: 12.5"

Stroke Distance: 4.7"

Approach Speed: 2.0" / sec.

Back Gauge Motor: 1/2 hp

Bending Speed: 6" / sec.

Main Motor: 10 hp

Distance Between Housings: 102/124"

Distance From Table To Ram: 15.3"

Power: 220V / 3-phase

Shipping Weigh: 14500lbs

Shipping Dimensions (Inches):168x67x96

* specifications subject to change without notice.
