Baileigh BP-9078CNC NEW PRESS BRAKES

Price on Request

Make:: Baileigh

Model:: BP-9078CNC

Year:: NEW

Ref #:: 150531

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

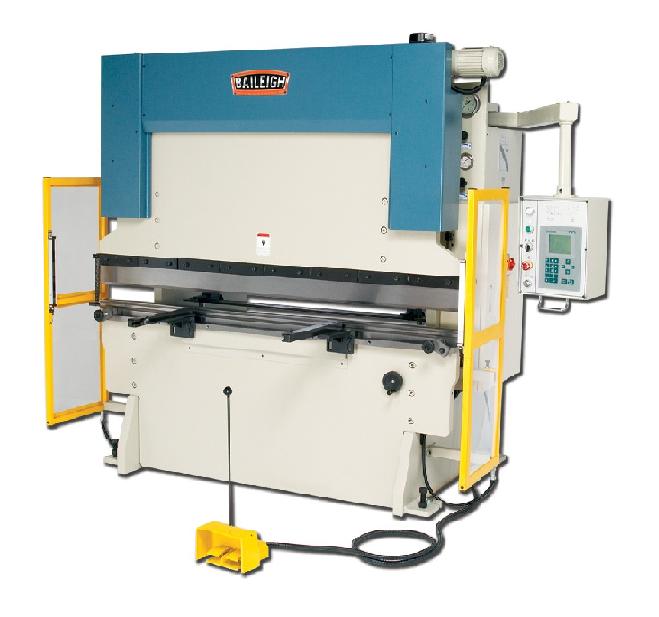

										NEW BAILEIGH HYDRAULIC 90 TON X 78" CNC VERTICAL PRESS BRAKE
 MODEL: BP-9078CNC


 FEATURES:

 -Baileigh's BP-9078 CNC hydraulic sheet metal press brake is a very rigid 2 axis machine with a heavy frame that is made up of electro welded plate steel.
 -The top beam travels up and down using several 3 axis bearings coupled to a hardened rail system.
 -Hydraulic cylinders are controlled by mechanical stops inside the cylinders assuring accurate angle of bend at all times.
 -An encoder system indicates the exact position of the top beam and adjustments are made on the Delem controller to a servo motor.
 -The back gauge on this hydraulic press brake is controlled by the Delem controller to a servo motor with an encoder for accurate positioning.
 -The Delem controller can be programmed with up to 100 programs, with up to 25 commands per program.
 -The BP-9078 CNC hydraulic sheet metal press brake is fully decked out making all options standard.
 -This quality sheet metal bender comes standard with inside lighting, a set of multi-vee tooling, Delem controls, auto crowning compensation, a six sensor safety curtain and front material rests.
 -This item is typically in stock for quick shipments.


 SPECIFICATIONS:

 -Maximum pressure:  90 tons
 -Table length:  78"
 -Distance between housings:  61"
 -Distance from table to ram:  11.81"
 -Throat depth (to housing):  7.87"
 -Stroke distance:  5.9"
 -Approach speed:  3.14"/sec.
 -Bending speed:  .236"/sec.
 -Return speed:  2.36"/sec.
 -Power back gauge length:  23.62"
 -Main motor:  10 hp
 -Back gauge motor:  1/2 hp
 -Voltage:  220V/ 3-phase
 -Shipping dimensions (LxWxH):  94.50" x 63" x 94.50"
 -Shipping weight:  8,800 lbs.
