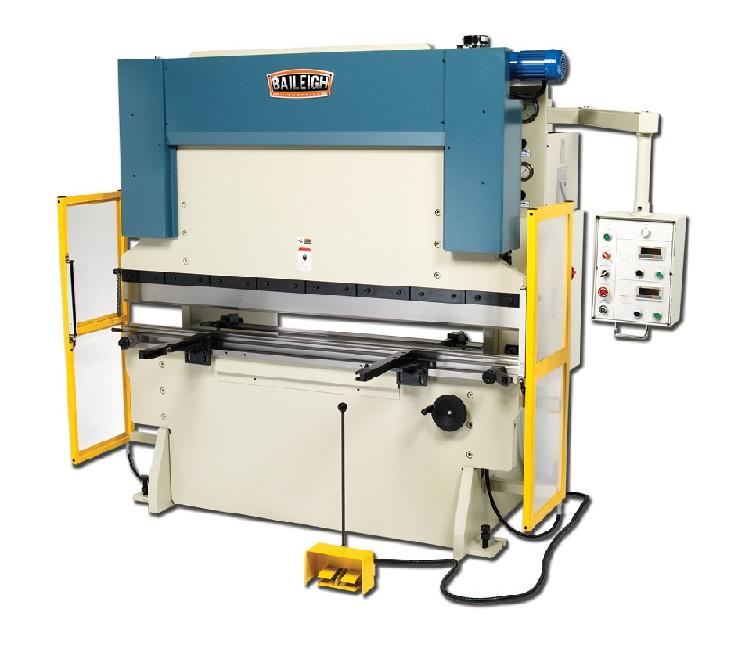

										NEW BAILEIGH HYDRAULIC 90 TON X 78" VERTICAL PRESS BRAKE
 MODEL: BP-9078NC


 FEATURES:

 -The BP-9078 brake press is a two axis NC machine with encoder positioning controls of the beam depth and back gauge positions,
 both displayed through separate DRO (digital read outs).
 -Finite tuning of each axis is done by hand wheel adjustments.
 -The motorized back gauge axis uses a ball screw transmission for flawless travel movements.
 -The back gauge also has a scaled adjustment for back gauge height.
 -The beam is hydraulically driven down and raised up.

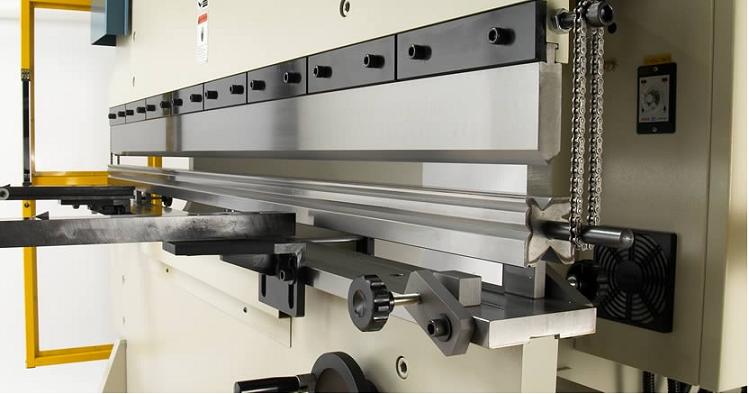

 -The beam has a 3 axis bearing set up at each point that travels on a heavy duty hardened track on each side of the press brake.

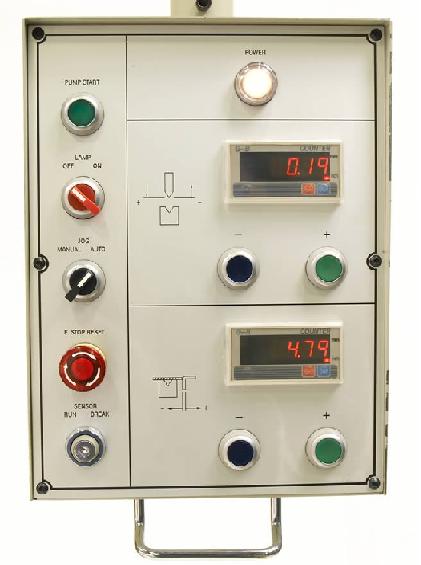

 -This hydraulic brake press has a movable operator pendant that houses the main controls.
 -The DRO's show the positions of the beam and back gauge that are illuminated in the operator pendant.
 -There is a switch that allows for three types of functions:
                    The first function is the jog mode that is used by the operator during change over and set up.
                    Then there is a manual mode that allows the operator to control the functions of the machine in a production mode.
                    Finally there is the automatic mode where all the operator has to do is start this process with one press of the foot pedal and
 the machine does the rest.
 -There are scaled pressure regulators for both the beam and the auto crowning compensation feature.

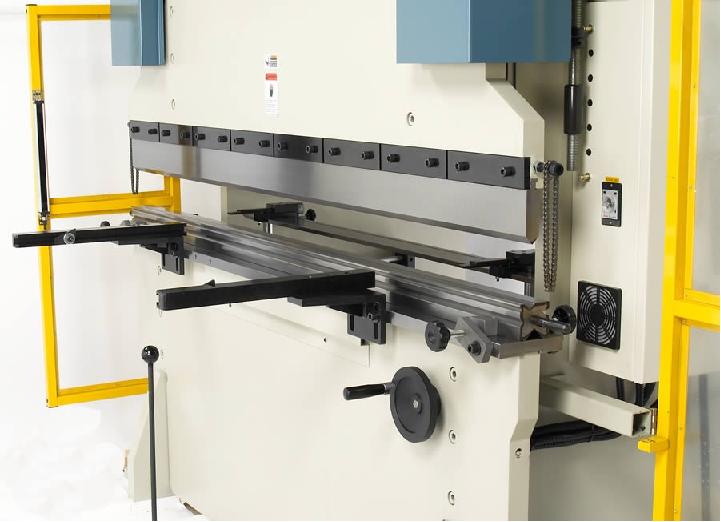

 -Standard on all Baileigh brake presses is a six sensor safety curtain, one set of multi-vee tooling, and front material rests.
 -These machines come fully loaded with no other option to include.


 SPECIFICATIONS:

 -Maximum pressure:  90 tons
 -Table length:  78"
 -Distance between housings:  61"
 -Distance from table to ram:  11.81"
 -Throat depth (to housing):  7.87"
 -Stroke distance:  5.9"
 -Approach speed:  3.14"/sec.
 -Bending speed:  .236"/sec.
 -Return speed:  2.36"/sec.
 -Power back gauge length:  23.62"
 -Main motor:  10 hp
 -Back gauge motor:  1/2 hp
 -Voltage:  220V/ 3-phase
 -Shipping dimensions (LxWxH):  94.50" x 63" x 94.50"
 -Shipping weight:  8,800 lbs.
