Baileigh HPB-45NC NEW PRESS BRAKES

Price on Request

Make:: Baileigh

Model:: HPB-45NC

Year:: NEW

Ref #:: 150545

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

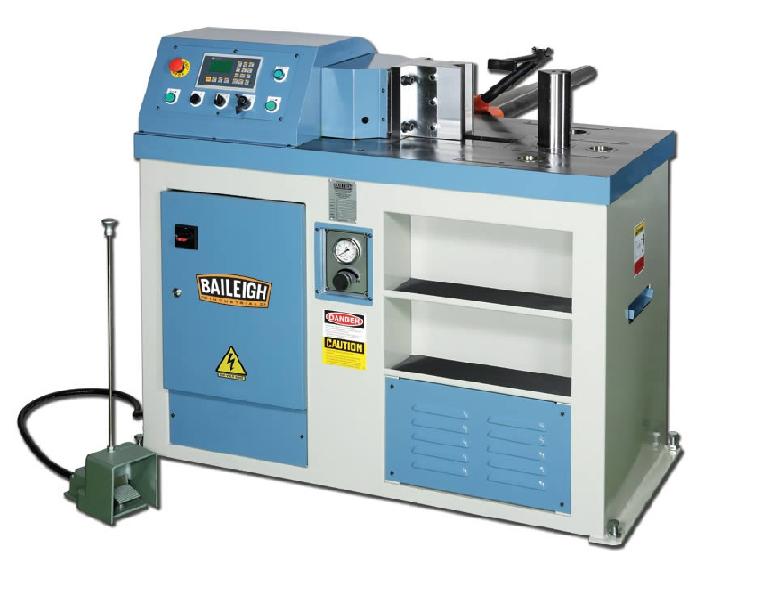

										NEW BAILEIGH HYDRAULIC 45 TON HORIZONTAL PRESS BRAKE
 MODEL: HPB-45NC


 FEATURES:

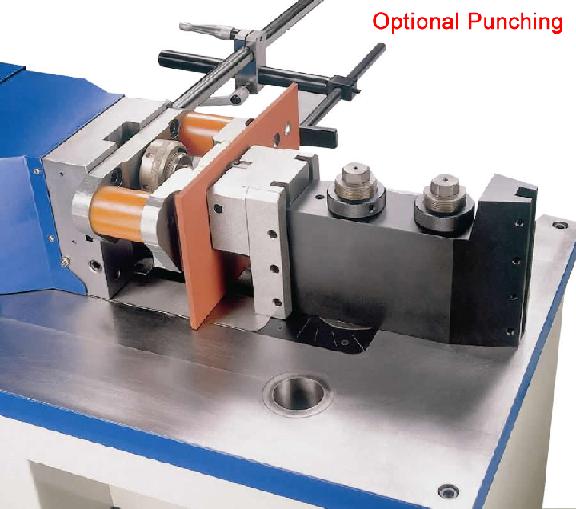

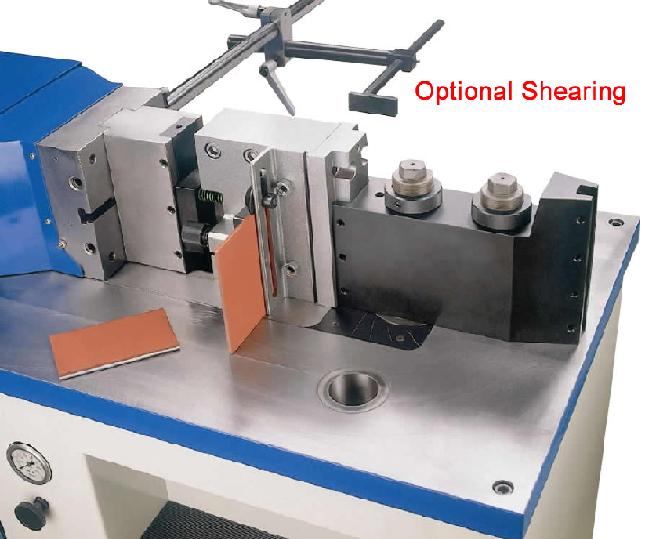

 -Perfect for production bending, punching, and shearing of small parts (with optional tooling-call for pricing)
 -Cylinder stroke accuracy to +/- .002"
 -Easy to use programmable NC controller
 -Manual back gauge standard
 -Vertical positioning via electronic encoder and mechanical stops


 SPECIFICATIONS:

 -Pressure:  45 tons
 -Stroke length:  9.84"
 -Stroke accuracy:  +/- .002
 -Approach speed:  1.5"/sec.
 -Working speed:  .51"/sec.
 -Return speed:  .78"/sec.
 -Fixture holes:  (1) @ 3.268" dia.
                            (3) @ 2.283" dia.
 -Punch height:  7.875"
 -Table height:  36.61"
 -Motor:  5 hp
 -Power requirement:  220V/ 3-phase
 -Shipping dimensions (LxWxH):  64" x 26" x 47"
 -Shipping weight:  2,266 lbs.
