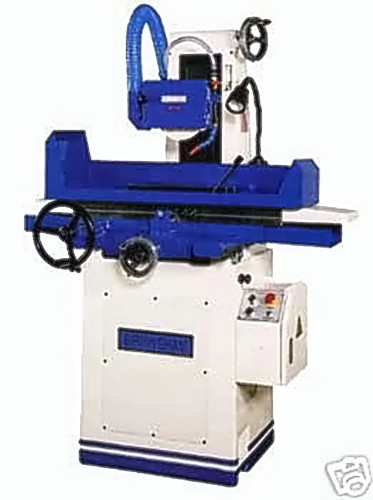

Birmingham WSG-818 Hand Feed NEW SURFACE GRINDERS
Price on Request
- Make:
- Birmingham
- Model:
- WSG-818 Hand Feed
- Year:
- NEW
- Ref #:
- 139439
Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com
MODEL: WSG-818
FEATURES:
- 2 hp wheel spindle motor
- Fine graduation on travels
- High precision cartridge wheel spindle
- High precision and smooth roller way table
- Auto lubrication on leadscrews and ways
- Fine grain high tensile casting construction
SPECIFICATIONS:
Table size: 8" x 18"
Max. grinding length: 19-3/4"
Max. grinding width: 8-1/4"
Max. distance from spindle center to table: 19-3/4"
Max. longitudinal travel: 21-5/8"
Max. cross travel: 9"
Longitudinal travel per revolution: 3-15/16"
Cross travel per revolution: 0.2"
Cross travel per graduation: 0.0008"
Vertical travel per revolution: 0.05"
Vertical travel per graduation: 0.00025"
Peripheral speed of wheel: 110 FT/S
Spindle speed: 3,600 RPM
Grinding wheel size: 8" x 1/2" x 1-1/4"
Spindle motor: 2 hp
Dust collector motor: 1/2 hp
Coolant pump: 0.05 hp
Lubricating pump: 0.02 hp
Overall dimension (L x W x H): 59" x 47" x 72"
Weight: 2,350 lbs.
STANDARD EQUIPMENT:
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Toolbox
- Hoisting set
- Leveling pads
- Coolant/dust system
- Standard permanent magnetic chuck
OPTIONAL EQUIPMENT: (call for pricing)
- Fineline Permanent magnetic chuck
- Electro-magnetic chuck with demagnetizing system
DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
