Bridgeport-Hardinge GX480 VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Bridgeport-Hardinge

Model:: GX480

Year:: 2010

Ref #:: 178181

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

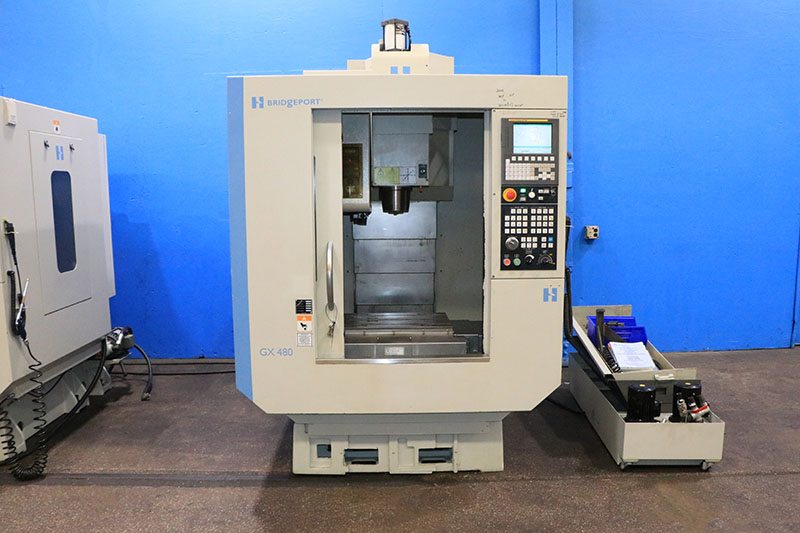

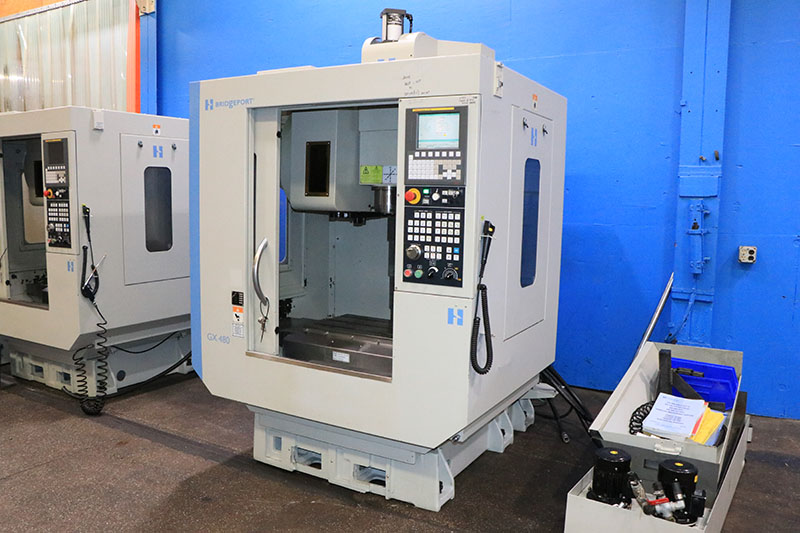

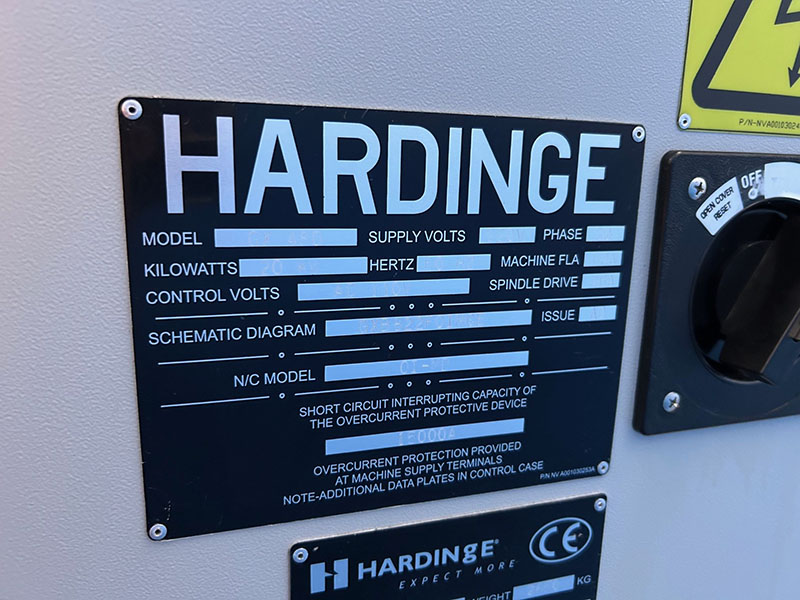

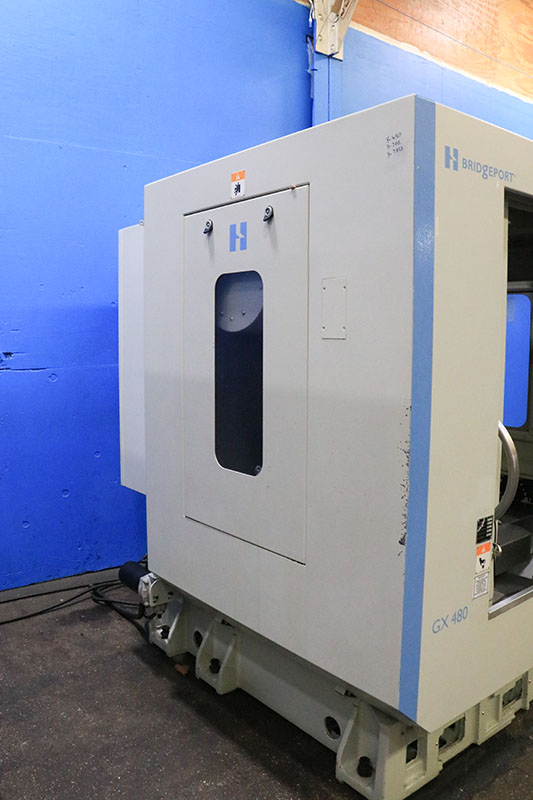

BRIDGEPORT-HARDINGE VERTICAL MACHINING CENTER

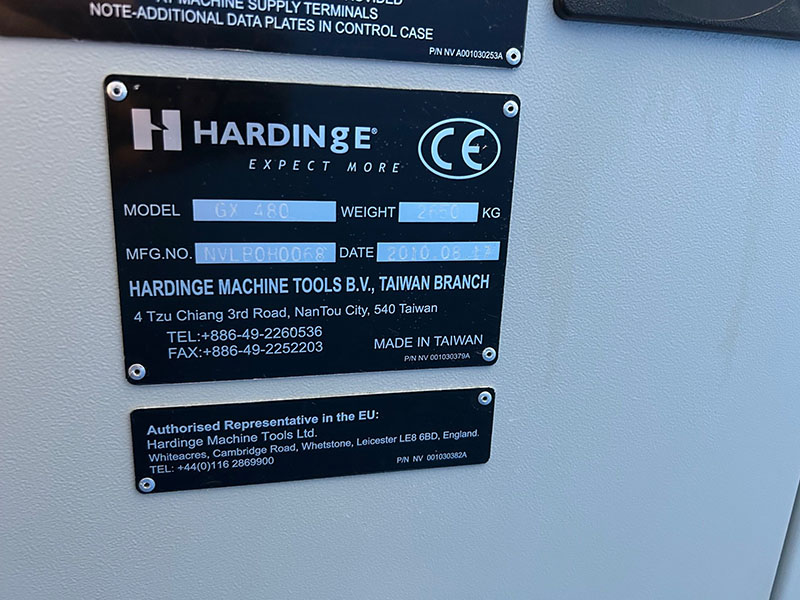

MODEL: GX480, S/N: NVLB0H0068. NEW: 2010

SPECIFICATIONS:
X AXIS: ................................... 18.90"
Y AXIS: ................................... 15.75"
Z AXIS: ................................... 16.93"
TABLE SURFACE TO SPINDLE .................. 5.9" - 22.8"

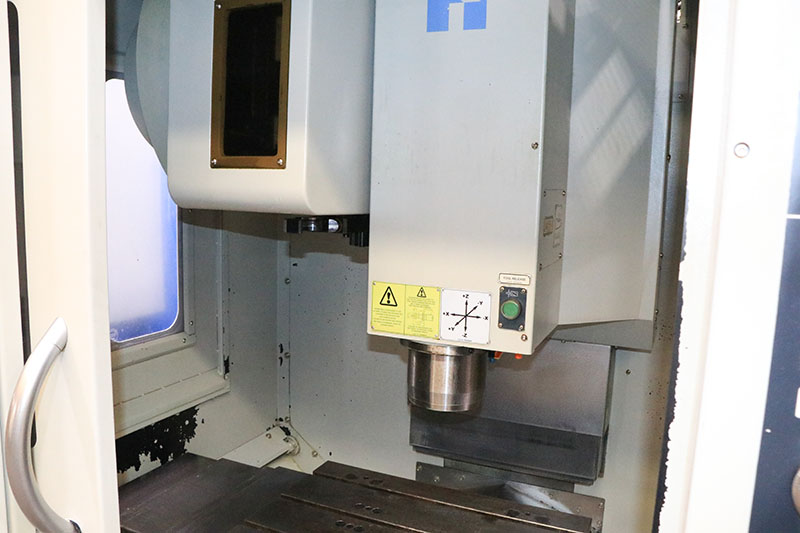

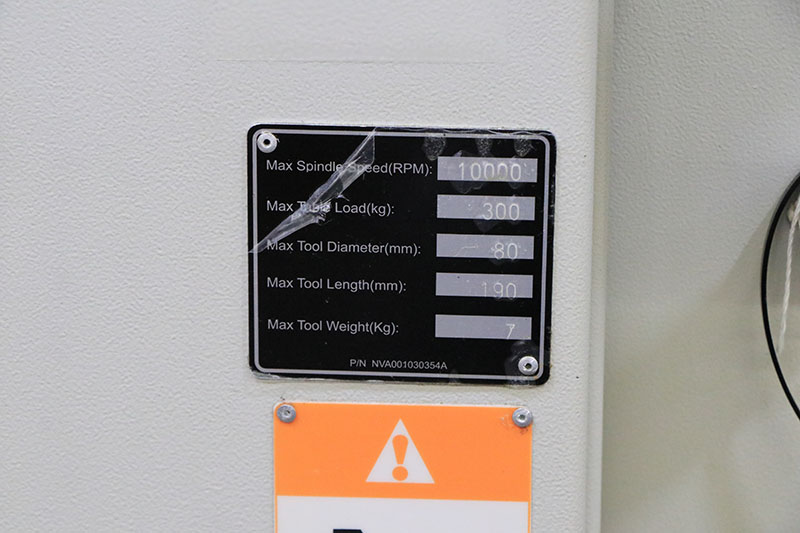

MAXIMUM SPINDLE SPEED ..................... 10,000 RPM
SPINDLE TAPER ............................. #40 BT
RAPID RATE (X, Y, Z AXES) ................. 1,417 IPM
FEEDRATE RANGE (X, Y, Z AXES) ............. .1 - 590 IPM

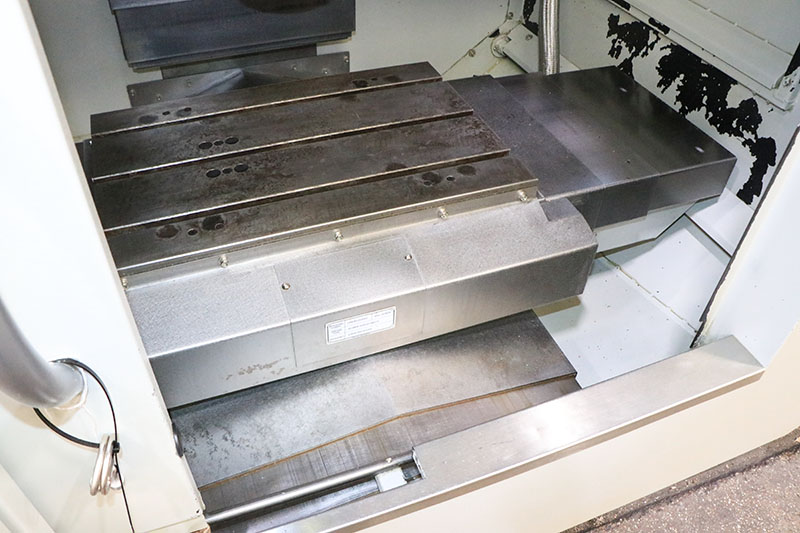

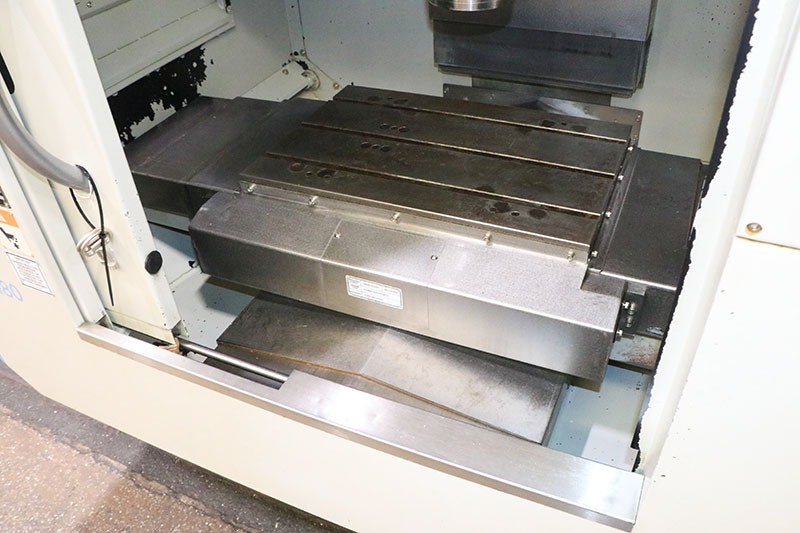

TABLE WORKING SURFACE ..................... 23.6" X 15.8"
TABLE LOAD: ............................... 661 LBS
TOOL CAPACITY ............................. 20 TOOLS
MAX TOOL DIA (FULL DRUM) .................. 3.15"
MAX TOOL DIA (ADJACENT POCKETS EMPTY) ..... 5.9"
MAX TOOL LENGTH ........................... 7.48"
MAX TOOL WEIGHT ........................... 15.7 LBS
APPROXIMATE MACHINE DIMENSIONS ............ 62.01" x 83.35"
                                               82.2"H
APPROX MACHINE WEIGHT ..................... 6204 LBS

EQUIPPED WITH:

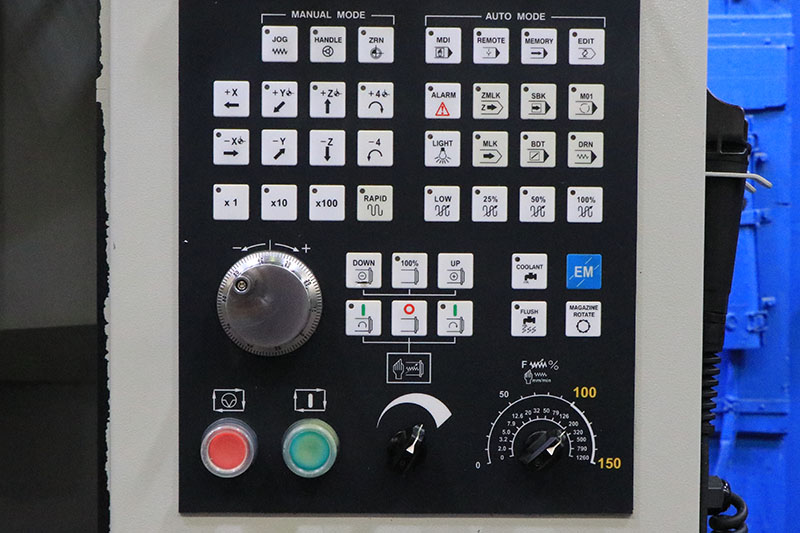

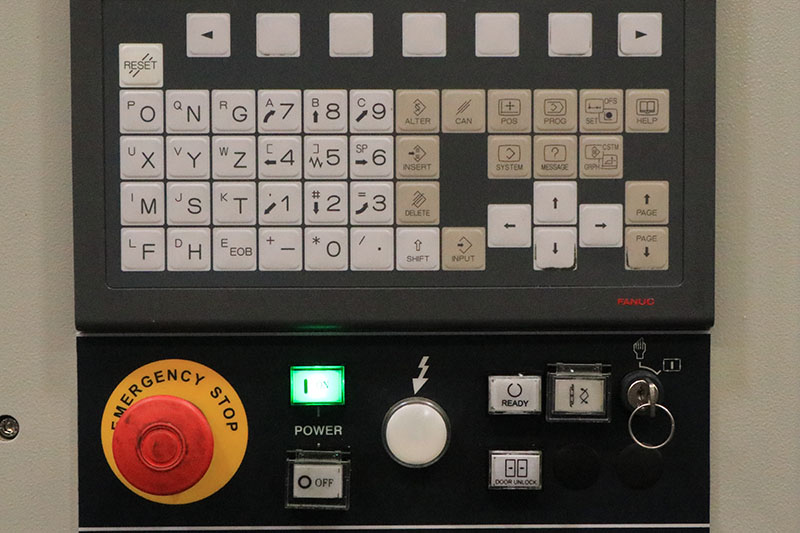

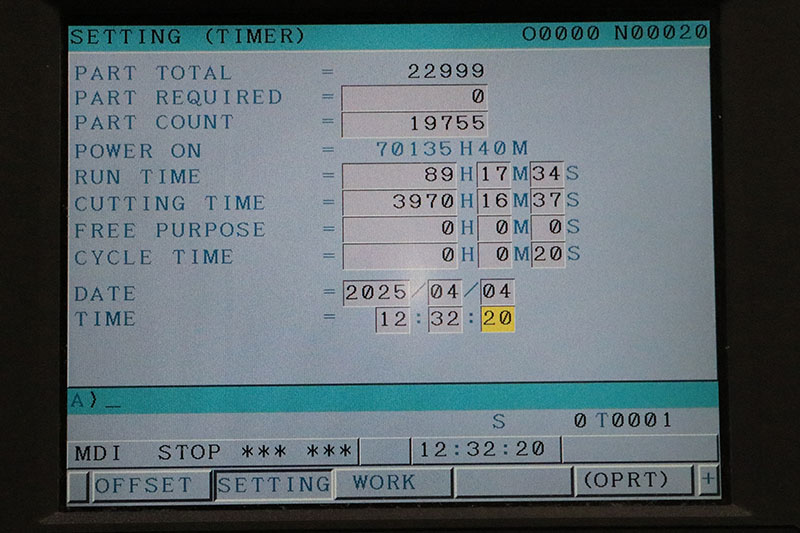

- FANUC MODEL: OiMD CNC CONTROL
- 20 POSITION SIDE MOUNTED SWING ARM TOOL CHANGER

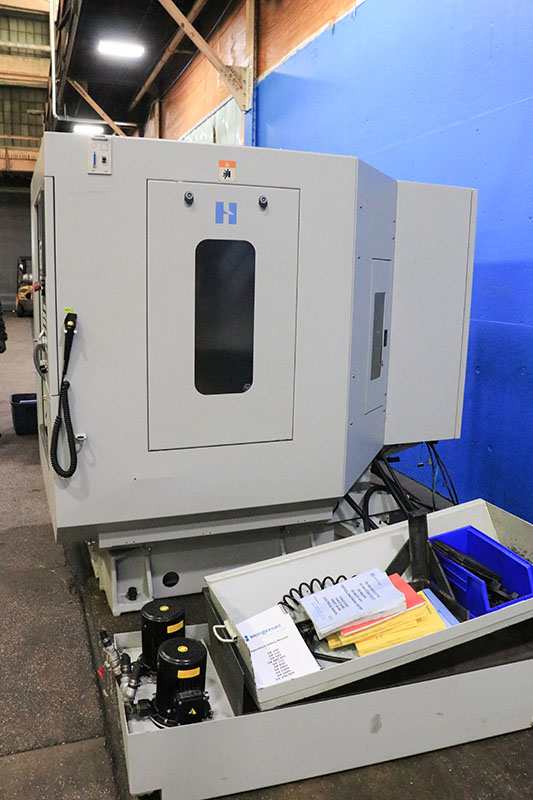

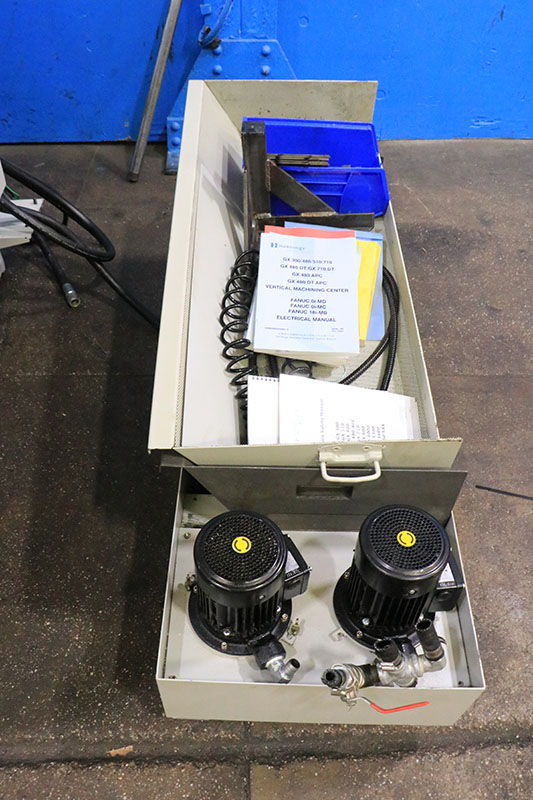

- COOLANT SYSTEM
- 10 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
