Fryer MC-5 VERTICAL MACHINING CENTERS. VMC's

$19,950

Make:
Fryer
Model:
MC-5
Year:
2010
Ref #:
177787

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

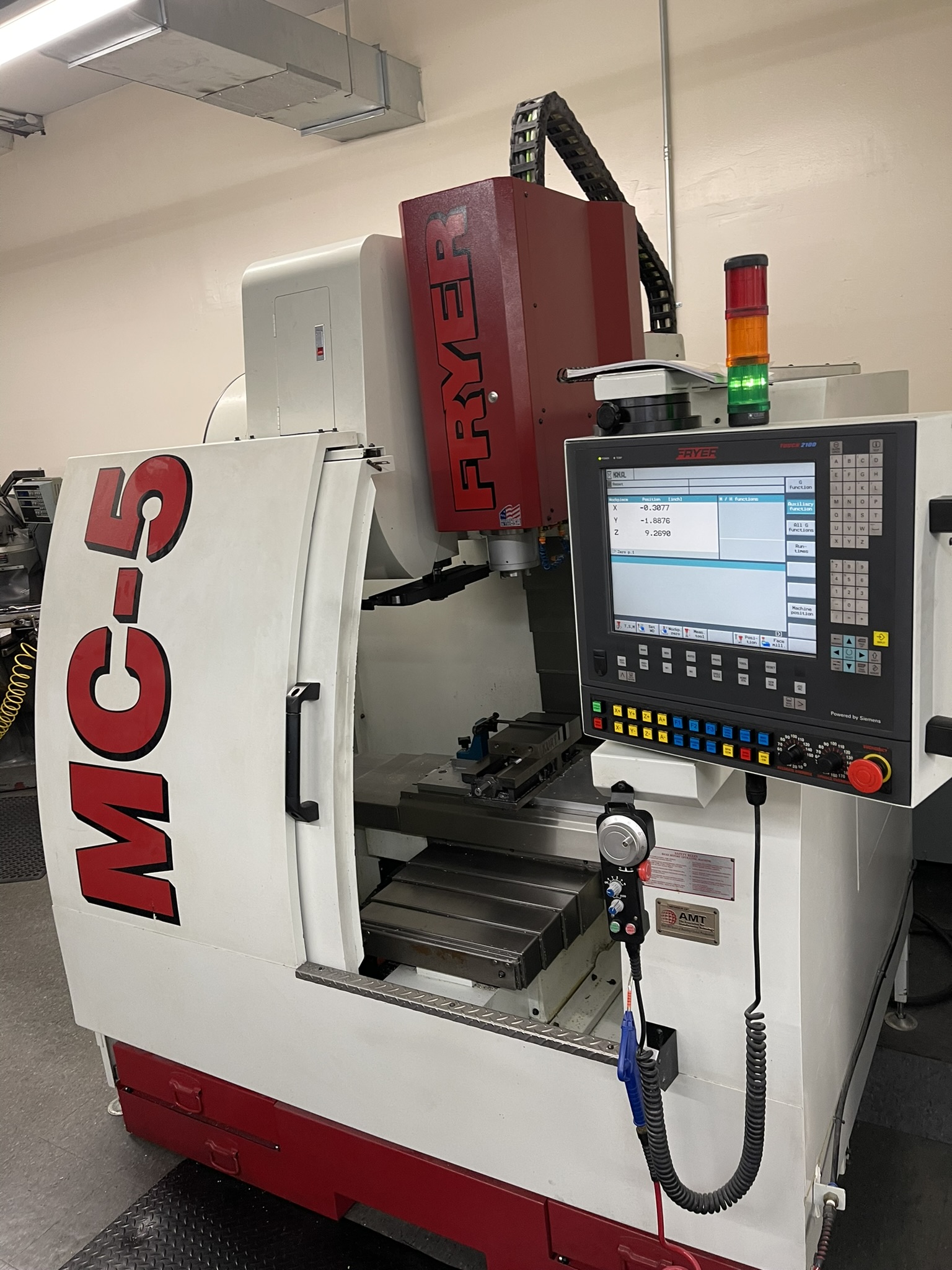

FRYER CNC VERTICAL MACHINING CENTER

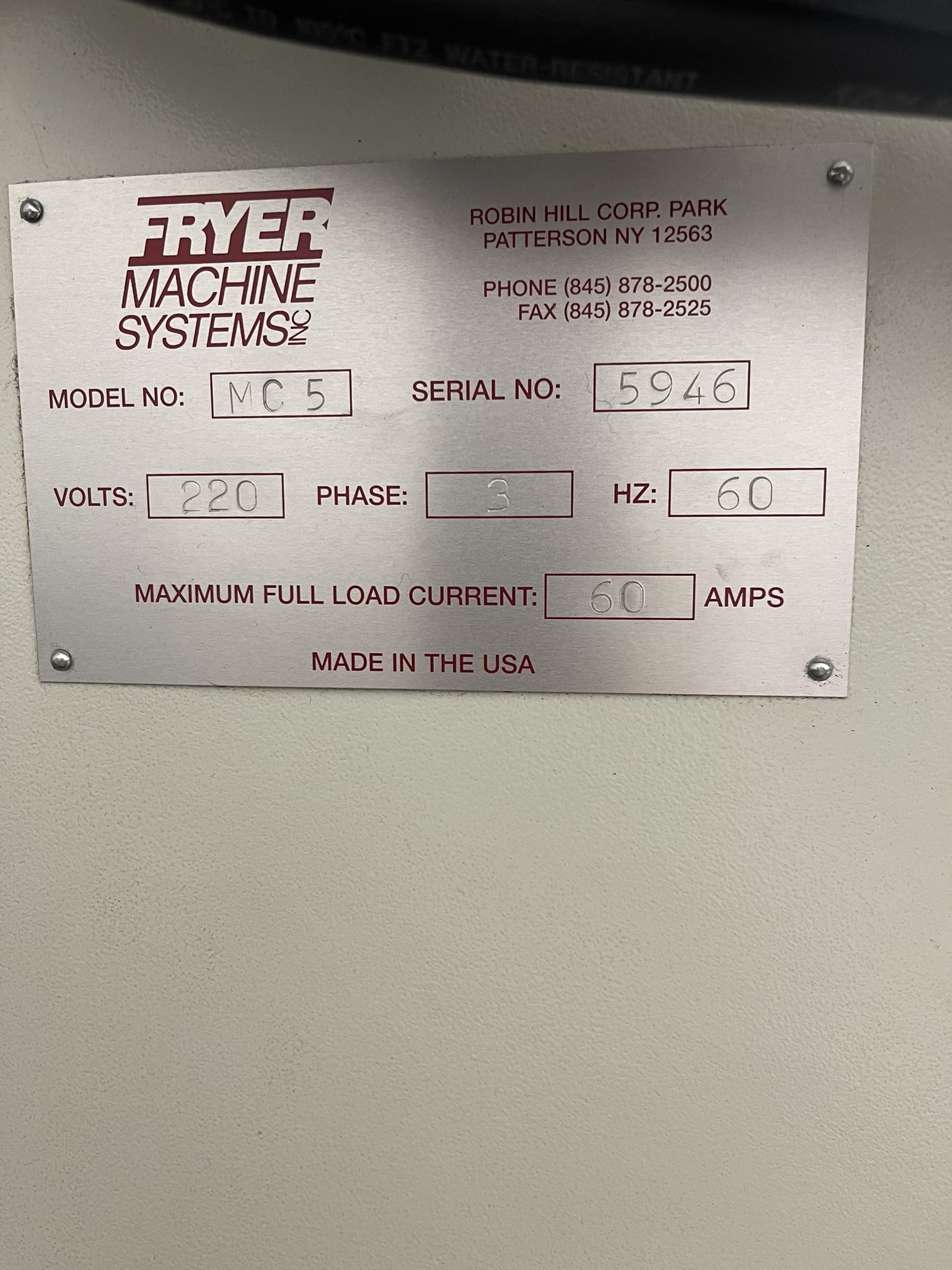

MODEL: MC-5, S/N: 05946, NEW: 2010

SPECIFICATIONS:
X AXIS TRAVEL ................... 22"
Y AXIS TRAVEL ................... 17"
Z AXIS TRAVEL ................... 19"

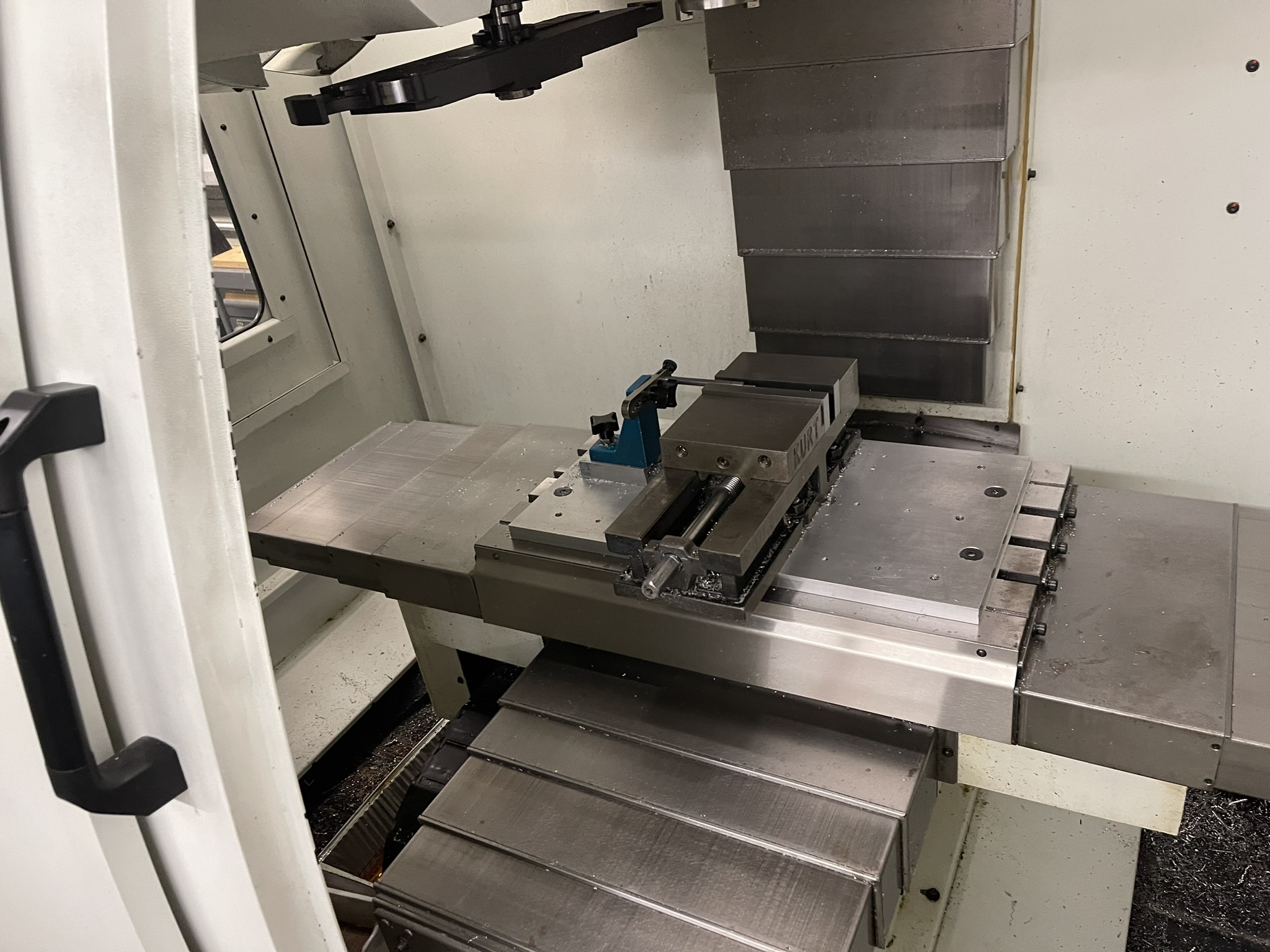

TABLE SIZE ...................... 25" X 14"
TABLE LOAD CAPACITY ............. 1500 LBS
SPINDLE NOSE TO TABLE ........... 3" – 25"
SPINDLE CENTER TO COLUMN ........ 16"
TABLE TOP TO FLOOR .............. 31"
RAPID TRAVERSE RATES (X,Y & Z) .. 800 IPM
CUTTING FEED RATE ............... 0.001 – 600 IPM

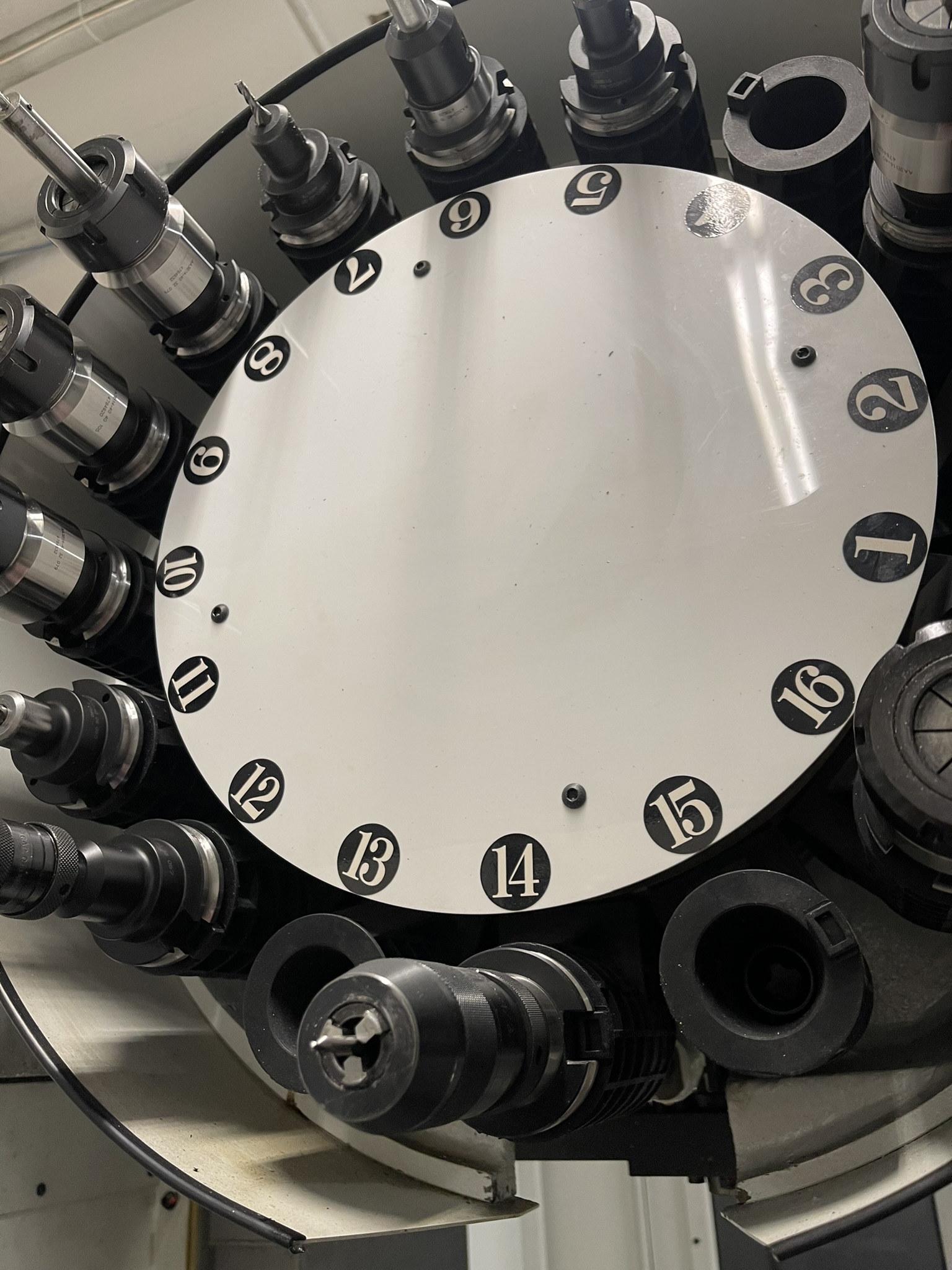

MAGAZINE CAPACITY ............... 16 ATC
TOOL CHANGE TIME ................ 2 SEC

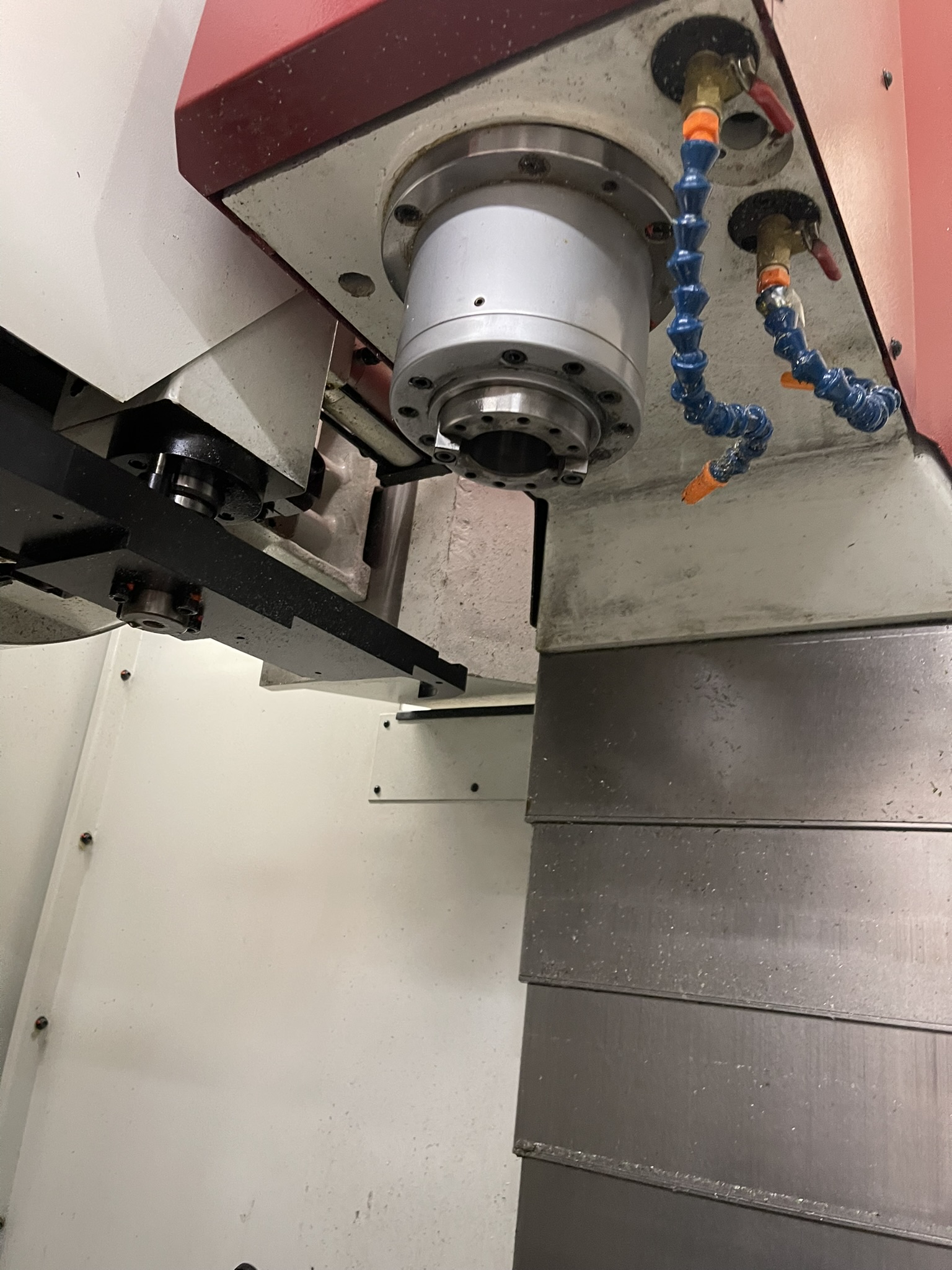

SPINDLE TAPER ................... #40 CAT
SPINDLE SPEED ................... 8,500 RPM
MAIN MOTOR ...................... 15 HP PEAK
MAX TOOL DIA .................... 3.2" W/ADJACENT TOOL
MAX. TOOL LENGTH / WEIGHT ....... 11" / 10.4 LBS.
FLOOR SPACE W/CHIP CONVEYOR ..... 74" X 70" X 75"
WEIGHT .......................... 5,500 LBS.

EQUIPPED WITH:

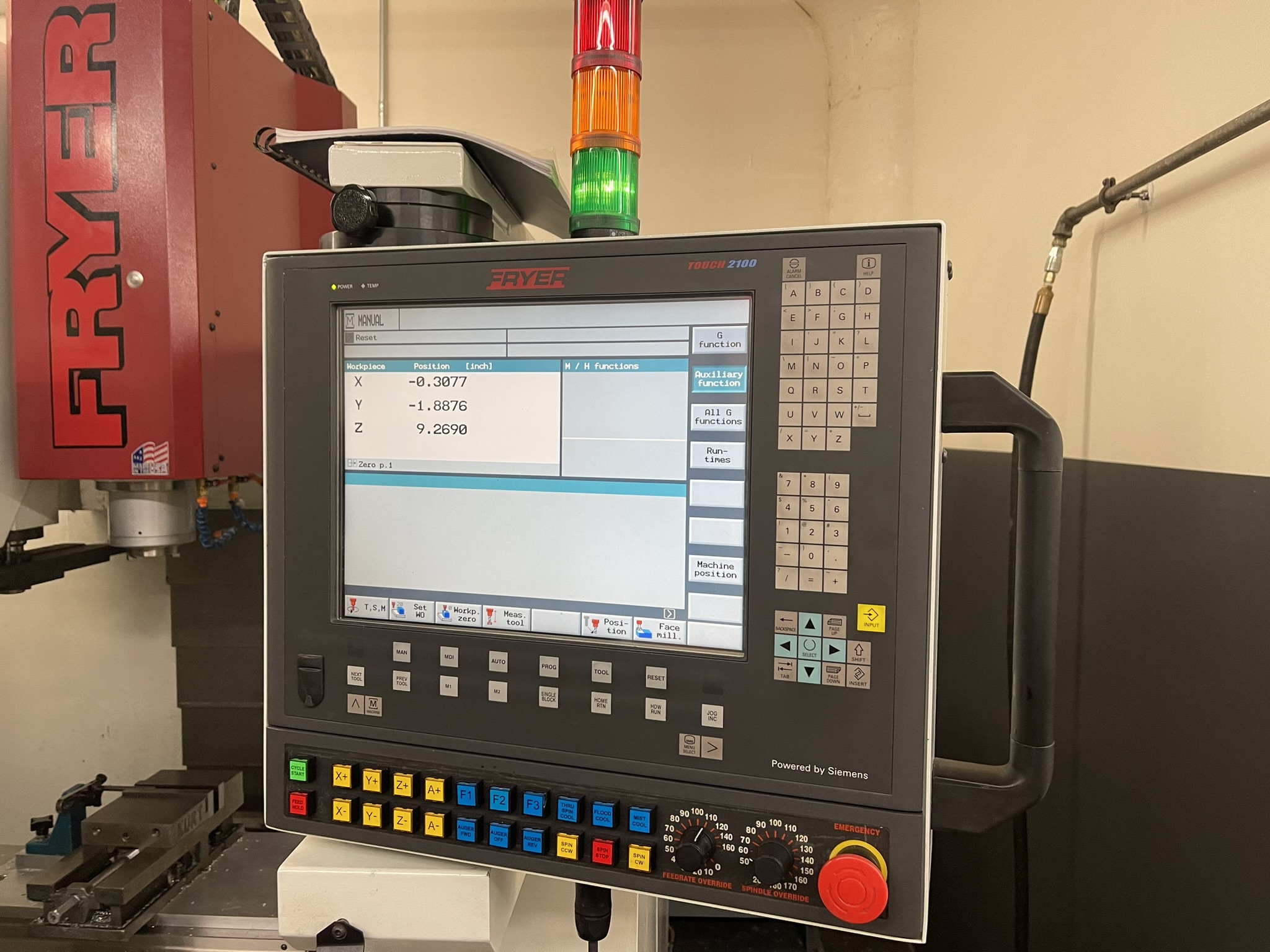

SIEMENS TOUCH 2100 CNC CONTROL
FLOOD COOLANT
REMOTE HANDWHEEL
15 HORSE POWER SPINDLE DRIVE

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
