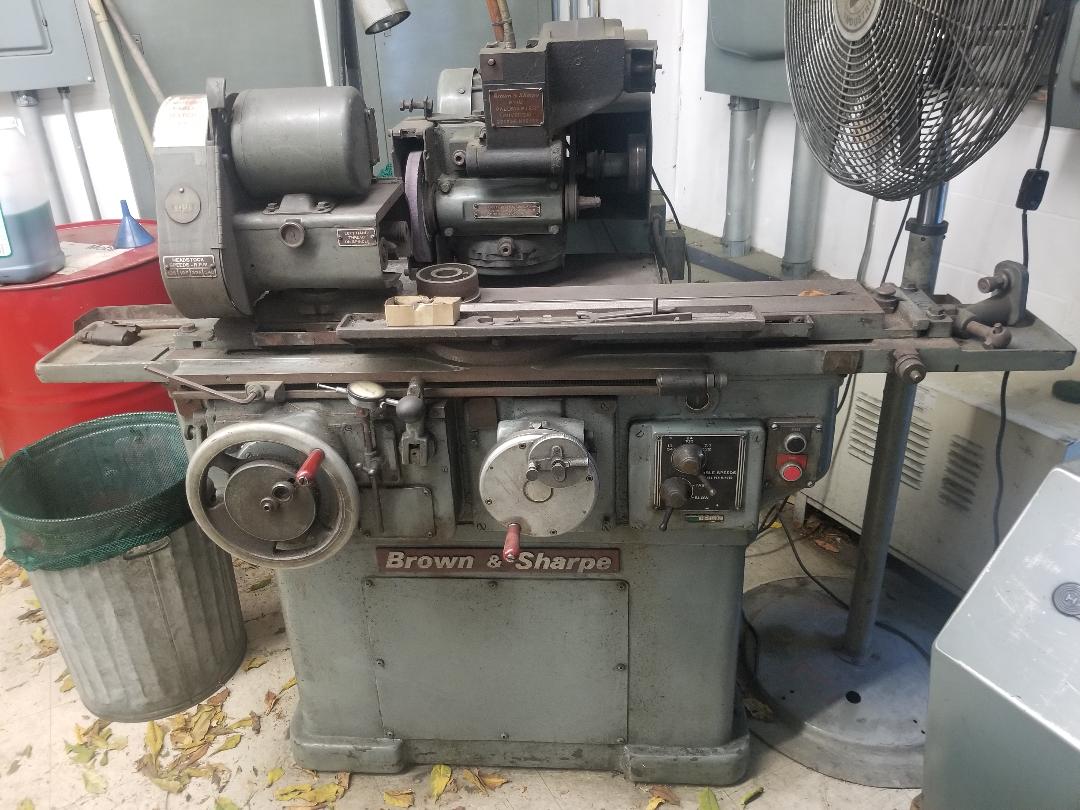

Brown & Sharpe 814 U VALUEMASTER, I.D. ATT., I.D. SPINDLE, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 814 U VALUEMASTER, I.D. ATT., I.D. SPINDLE,

Year:: 1978

Ref #:: 161297

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

  8" x 14" BROWN & SHARPE "PRECISION" UNIVERSAL
   I.D./O.D. CYLINDRICAL GRINDER
    ******* MADE IN USA *******

MODEL: 814U VALUEMASTER   S/N: 525-8144-2592    NEW: 1978

  CAPACITY:
- GRINDS WORK UP TO ........................... 8" DIAMETER
- GRINDS LENGTH ............................... 14"
- DISTANCE BETWEEN CENTERS .................... 24"

  WHEELHEAD:
- GRINDING WHEEL SIZE ......................... 5", 7" OR 10" DIAMETER

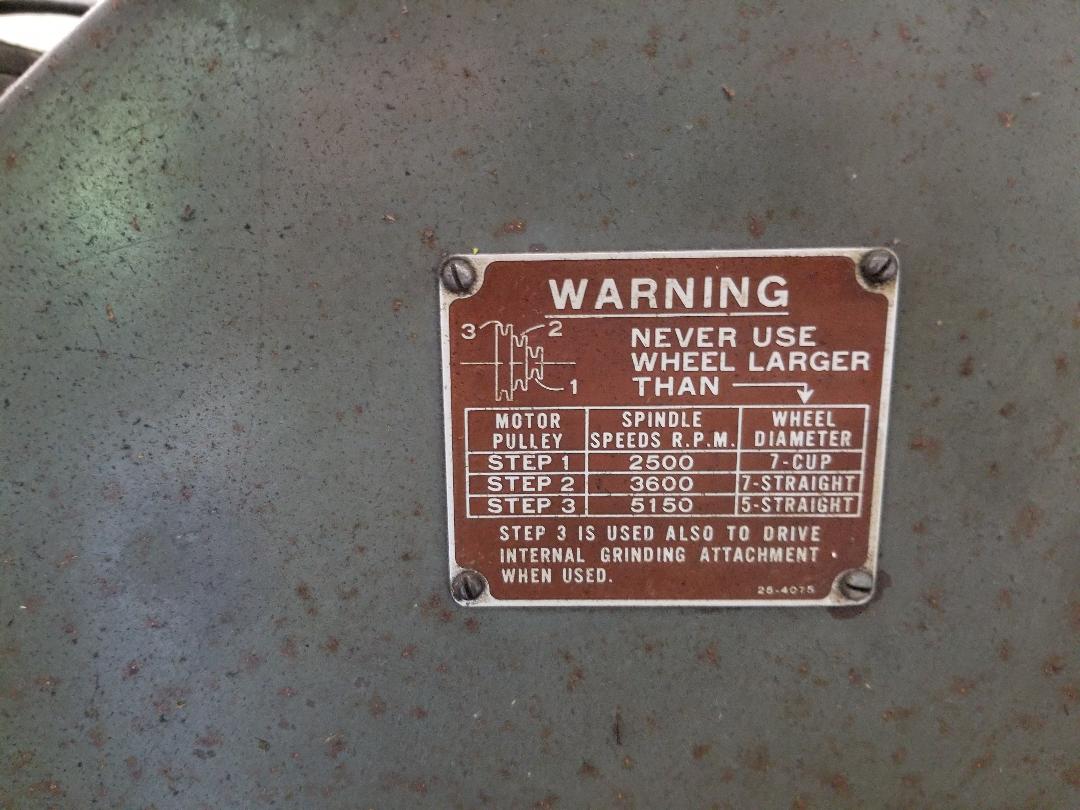

- GRINDING WHEEL SPEEDS (3) ................... 2500, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ............................ 9- 1/4"
- WHEELHEAD SWIVELS, LEFT & RIGHT ............. 110 DEGREES
- CROSS FEED HANDWHEEL, GRAD. ................. 0.0001"
- CROSS FEED, SMALL HANDWHEEL INCREMENTS ...... 0.00001"

SLIDING TABLE:
- MODEL "P" TRAVERSE BY HAND OR POWER ......... YES
- POWER TABLE TRAVERSE, (6) SPEEDS ............ 7- 3/4", 13", 24", 32"
                                                 54 AND 100" IPM
- TABLE TRAVEL PER REV. OF HANDWHEEL .......... SLOW 1/4"
                                                FAST 6- 1/4"

  SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT ............. 90 DEGREES
- FINE SCREW ADJ. FOR SETTING TAPERS UP TO .... 3" PER FT.
- TABLE TRAVEL ................................ 22"
- TRAVEL PER REV. OF HANDWHEEL ................ 1/4" SLOW
                                                6-1/4" FAST

  HEADSTOCK:
- SWIVELS LEFT & RIGHT ........................ 100 DEGREES
- SPINDLE SPEEDS, (4) ......................... 128, 196, 325 & 540 RPM
- SPINDLE TAPER ............................... B & S #7
- MOTO ........................................ 1/6 H.P.


APPROX. DIMS. ................................. 68" x 55" x 65"H
APPROX. WIGHT ................................. 2,900 LBS.

  EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH B & s I.D. GRINDNING SPINDLE
POWER TABLE TRAVERSE
DOUBLE ENDED WHEEL SPINDLE
CURRENTLY SET-UP WITH 7" GRINDING WHEEL
DUAL LIVE/DEAD HEADSTOCK SPINDLE
COLLET CHUCK
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
POSITIVE STOP OPTION FOR CROSS FEED
ANTI-FRICTION BEARING WHEELHEAD SPINDLE

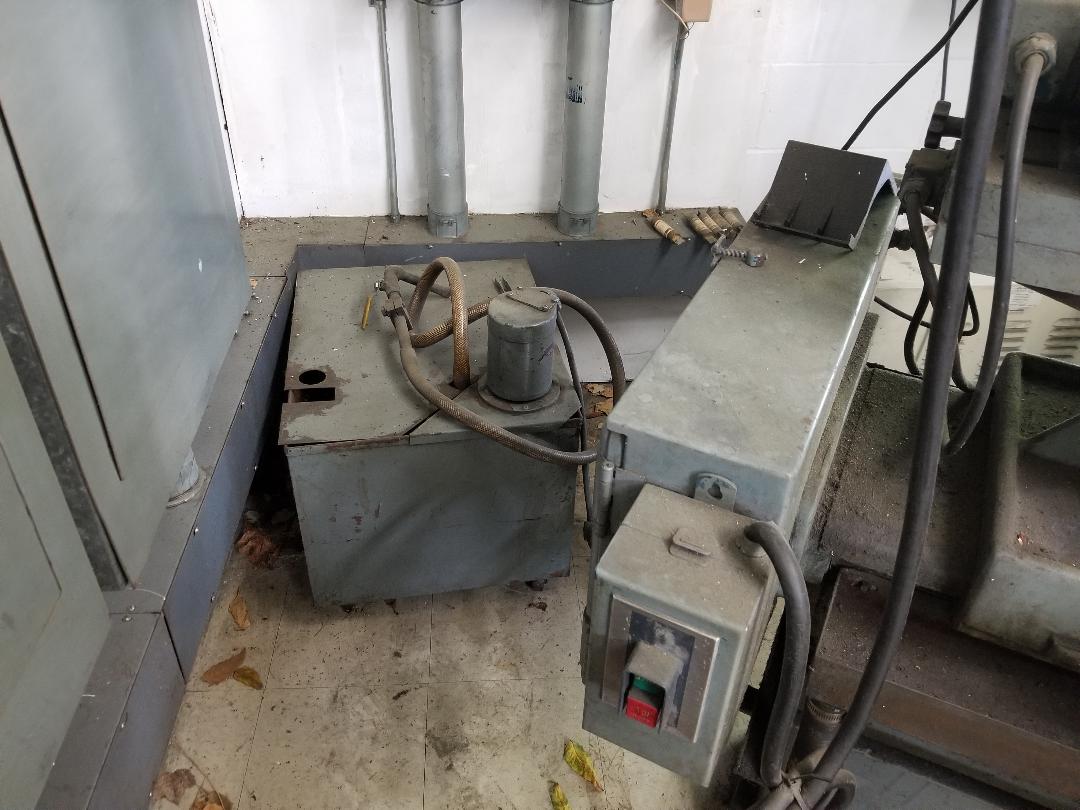

COOLANT PUMP & PIPING

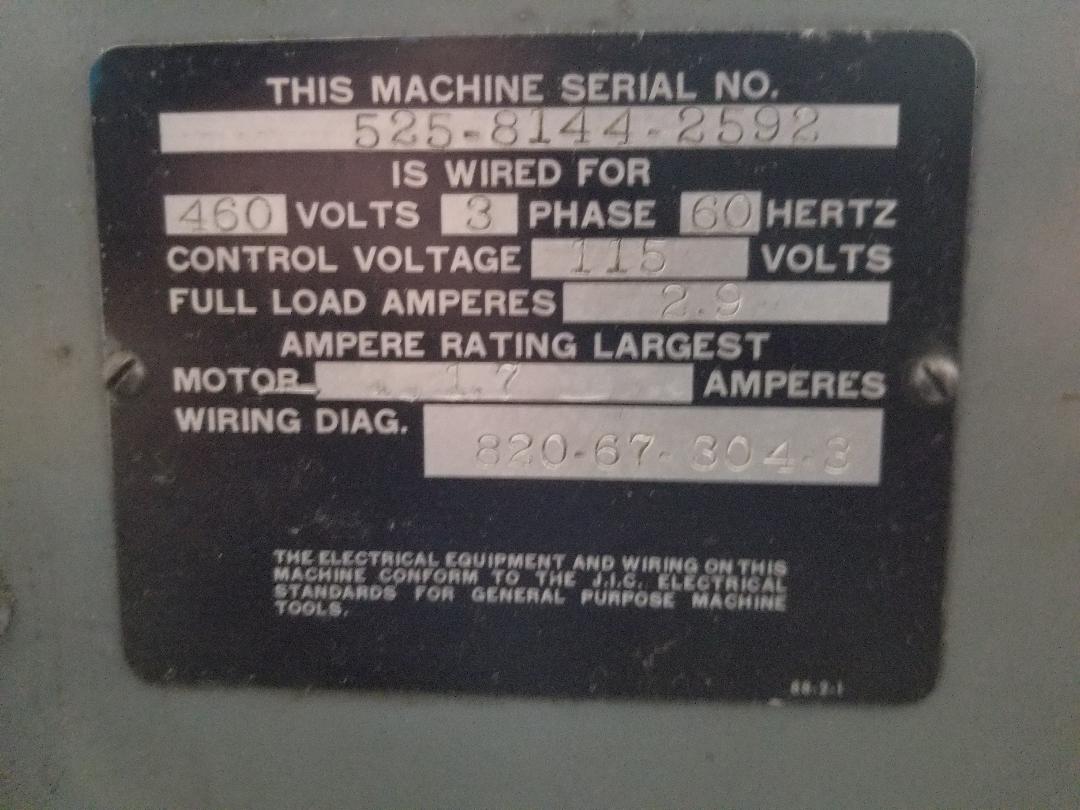

1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS


** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
