Brown & Sharpe 814U VALUEMASTER, I.D. ATTACH., POWER TABLE, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: 814U VALUEMASTER, I.D. ATTACH., POWER TABLE,

Year:: 1975

Ref #:: 173483

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

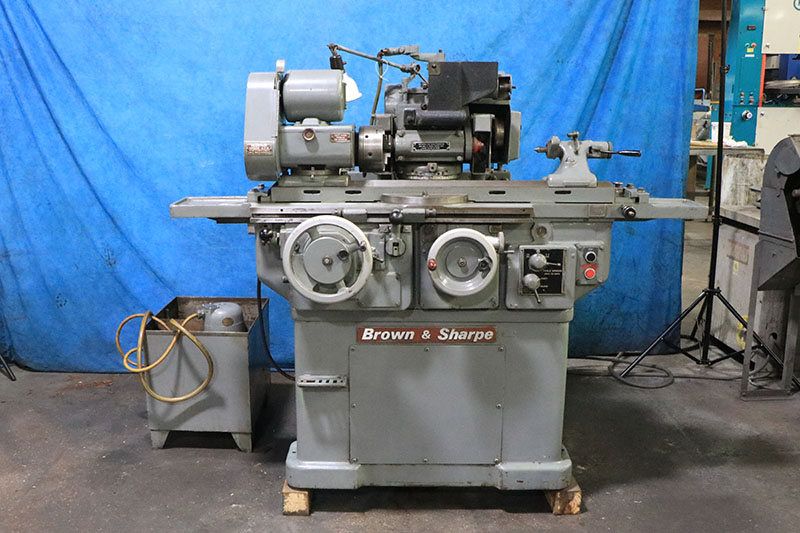

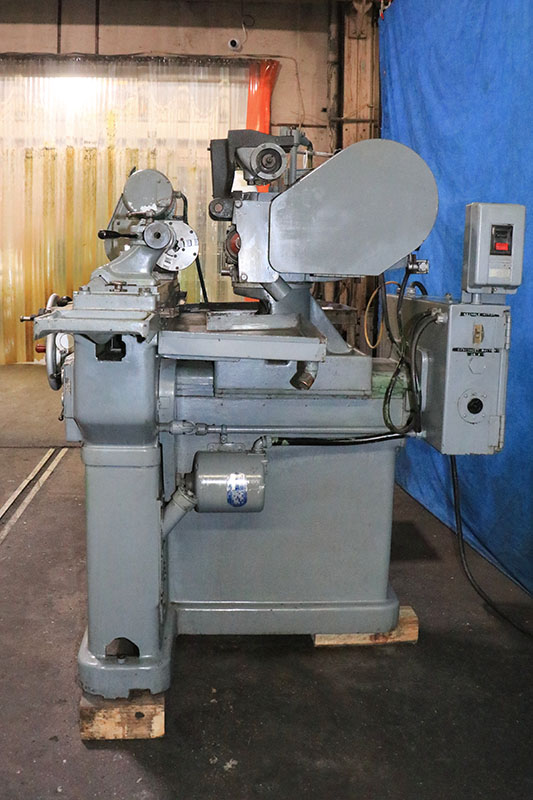

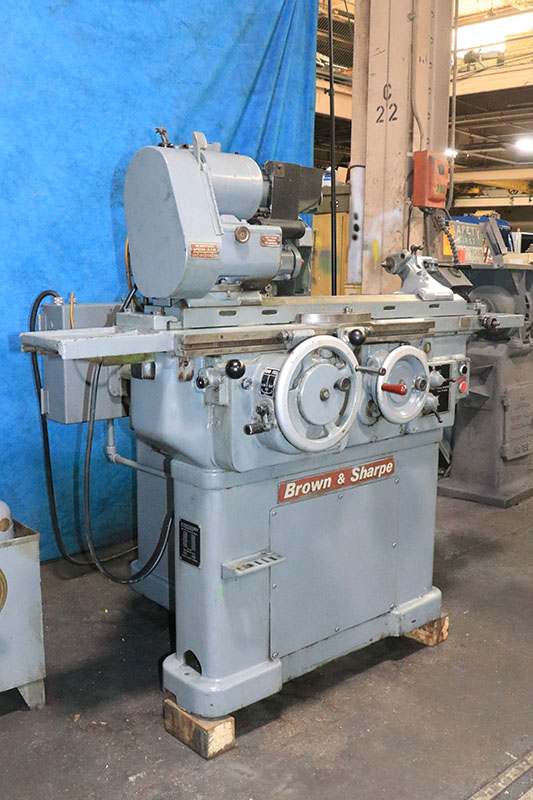

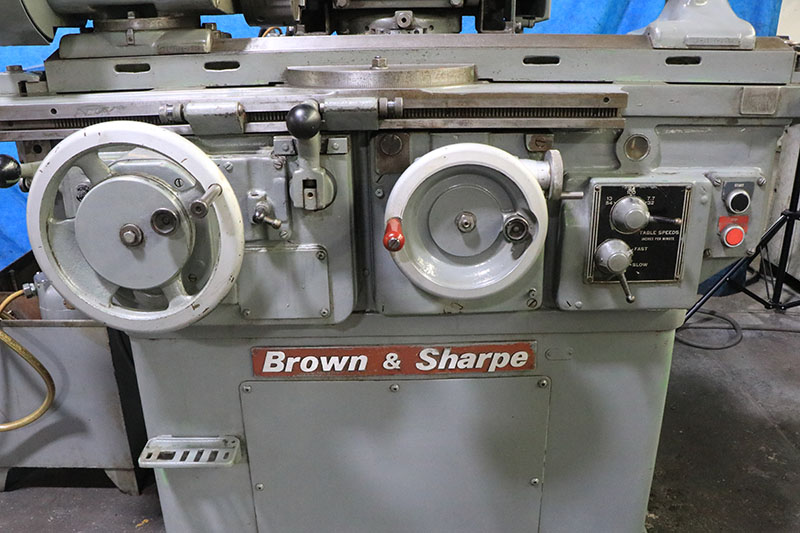

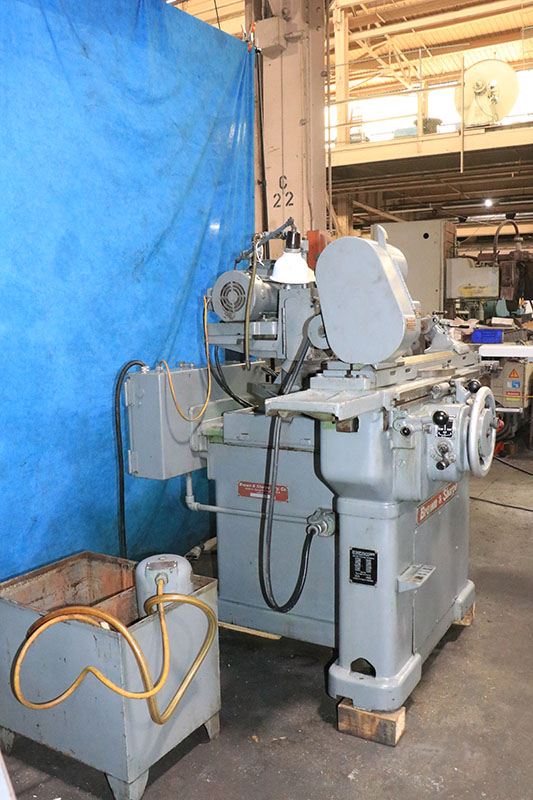

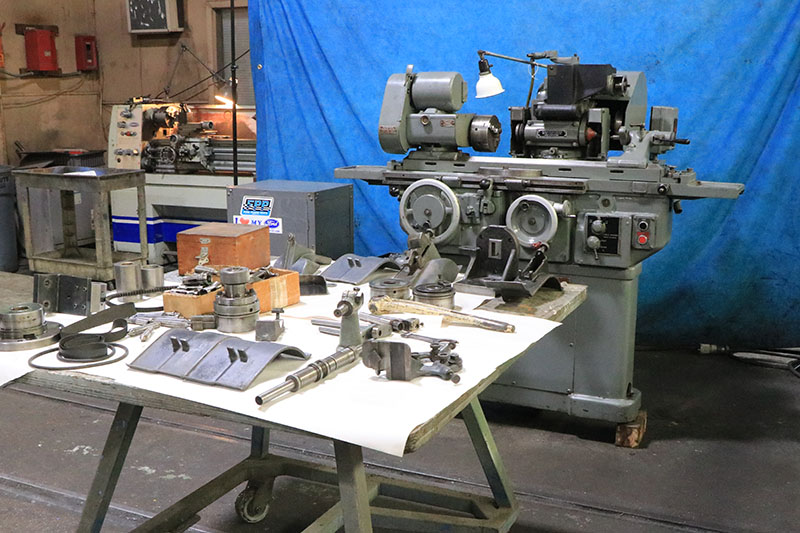

 BROWN & SHARPE "PRECISION"
  MODEL #814U VALUEMASTER
UNIVERSAL O.D./I.D. CYLINDRICAL GRINDER
WITH MANY ACCESSORIES (SEE DESCRIPTION BELOW)

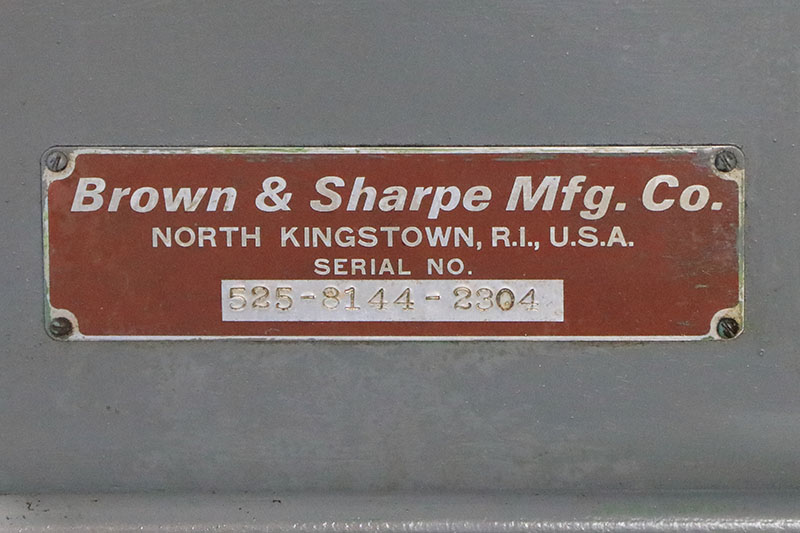

S/N: 525-8144-2304       NEW: 1975


  CAPACITY:
- GRINDS WORK UP TO .................. 8" DIAMETER
- GRINDS LENGTH ...................... 14"
- DISTANCE BETWEEN CENTERS ........... 24"

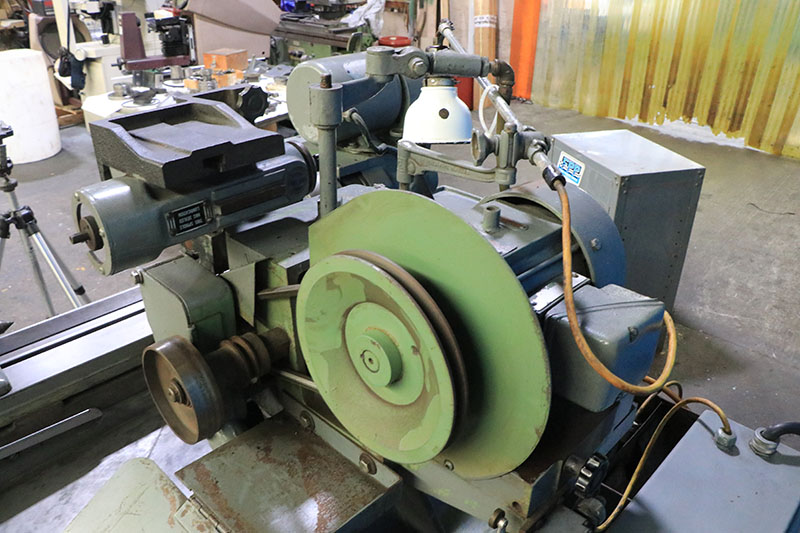

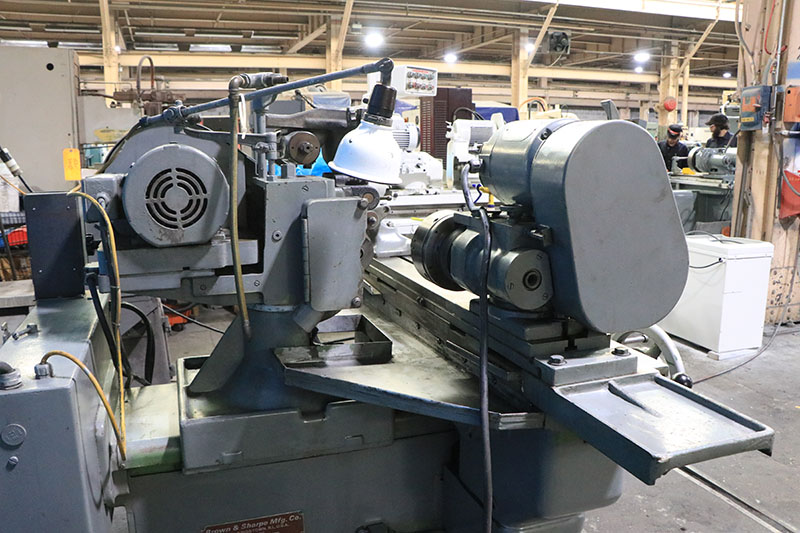

  WHEELHEAD:
- GRINDING WHEEL SIZE ......... 10", 7" OR 5" DIAMETER
- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM
- WHEELHEAD TRAVEL ................... 8-3/8"
- WHEELHEAD SWIVELS, LEFT & RIGHT .... 110°

  SWIVEL TABLE:
- ANGULAR SETTING TO LEFT & RIGHT .... 90°
- FINE SCREW ADJ. FOR SETTING TAPERS
    UP TO ............................ 3" PER FT.
- TABLE TRAVEL ....................... 22"

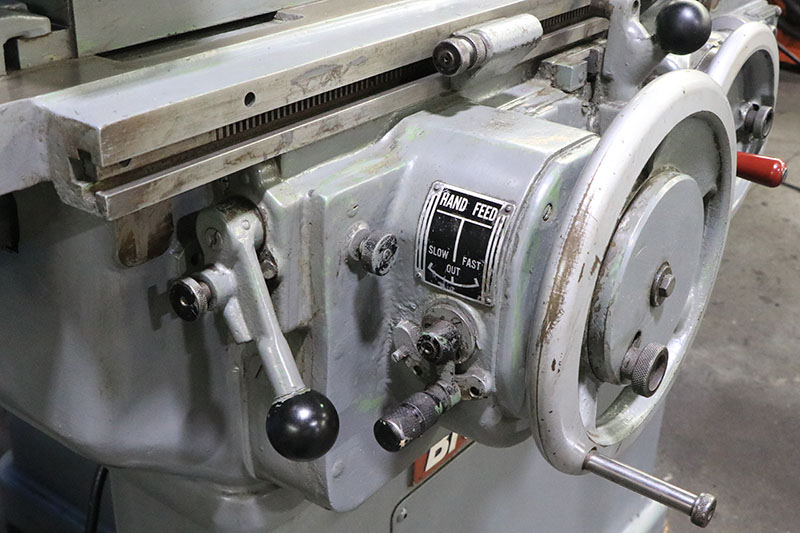

- TRAVEL PER REV. OF HANDWHEEL ....... 1/4" SLOW
                                       6-1/4" FAST

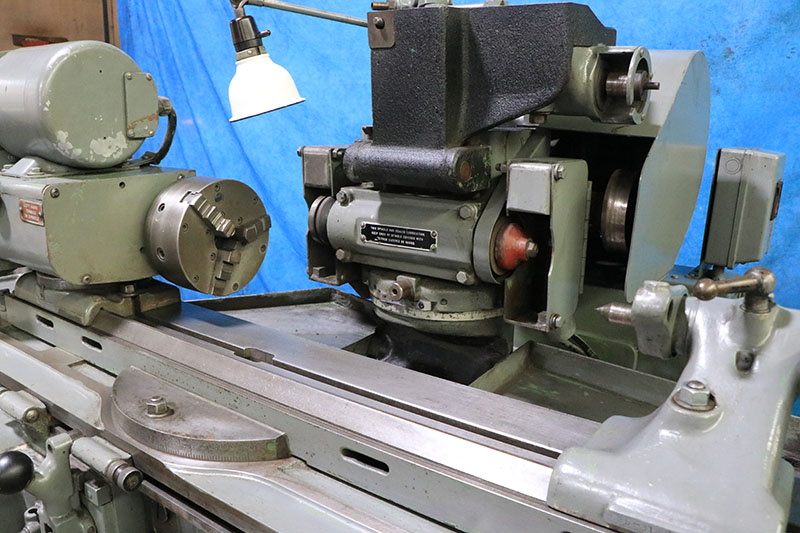

  HEADSTOCK:
- SWIVELS LEFT & RIGHT ............... 100°
- SPINDLE SPEEDS (4) ................. 128 TO 540 RPM

- APPROX. FLOOR SPACE ............... 68" x 55" x 65"H
- APPROX. WEIGHT ..................... 2,900 LBS.

MACHINE STANDARD FEATURES:
HAS ADDITIONAL TABLE SWIVEL FEATURE, FROM THE CENTER,
 FOR LARGE ADJUSTMENT OF 90°

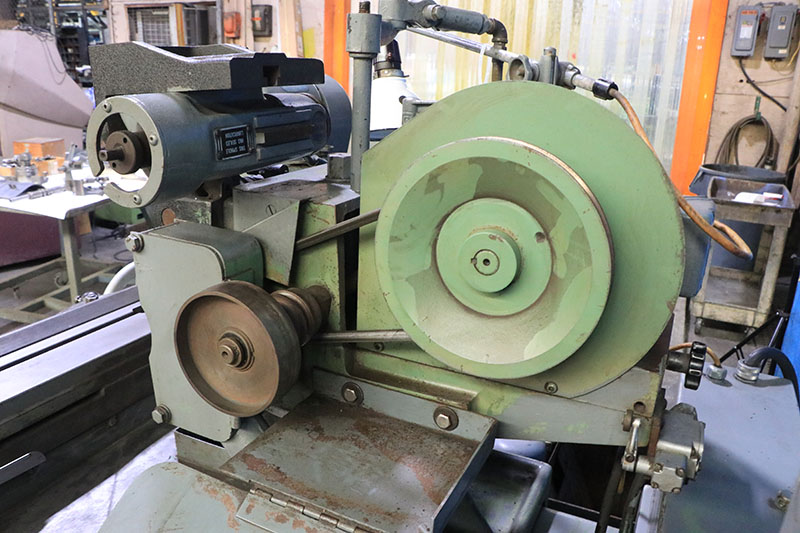

DOUBLE ENDED WHEEL SPINDLE, LEFT & RIGHT
PRESENTLY SET-UP WITH 10" O.D. GRINDING WHEEL
MACHINE CAN BE USED WITH 10", 7" OR 5" DIA. WHEELS
DUAL LIVE/DEAD HEADSTOCK SPINDLE
FINE CROSS FEED KNOB (.0001" ON WORK DIA.)
ANTI-FRICTION BEARING WHEELHEAD SPINDLE
TABLE MOUNTED WHEEL DRESSER

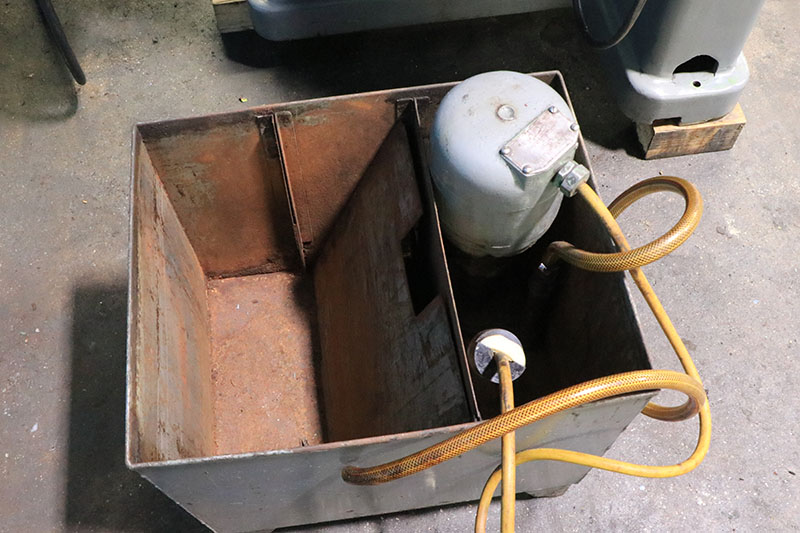

COOLANT PUMP & PIPING

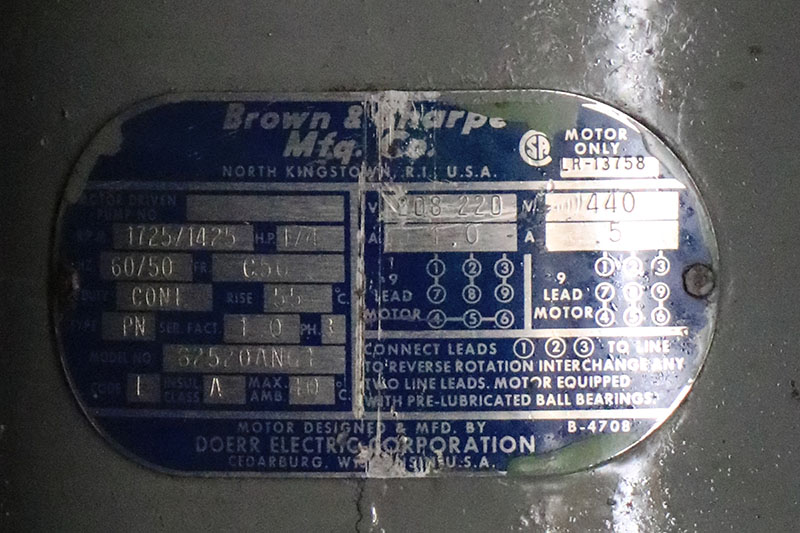

1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR
1/6 H.P. WORKHEAD MOTOR

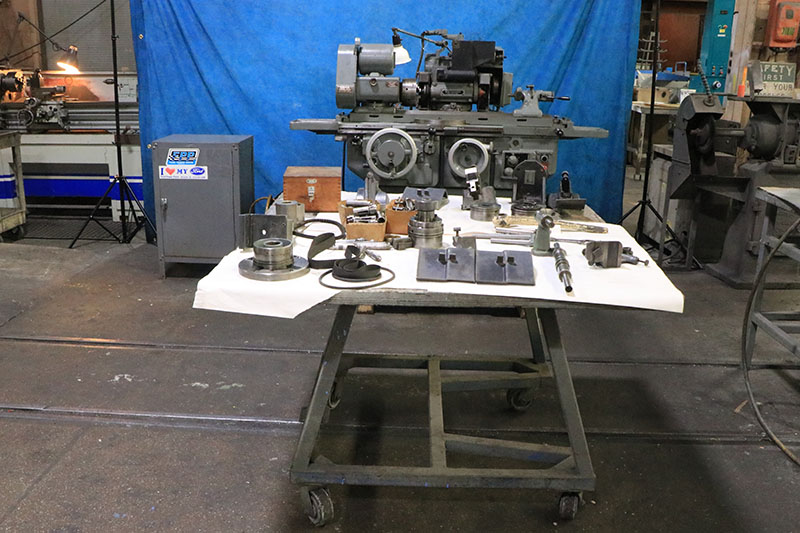

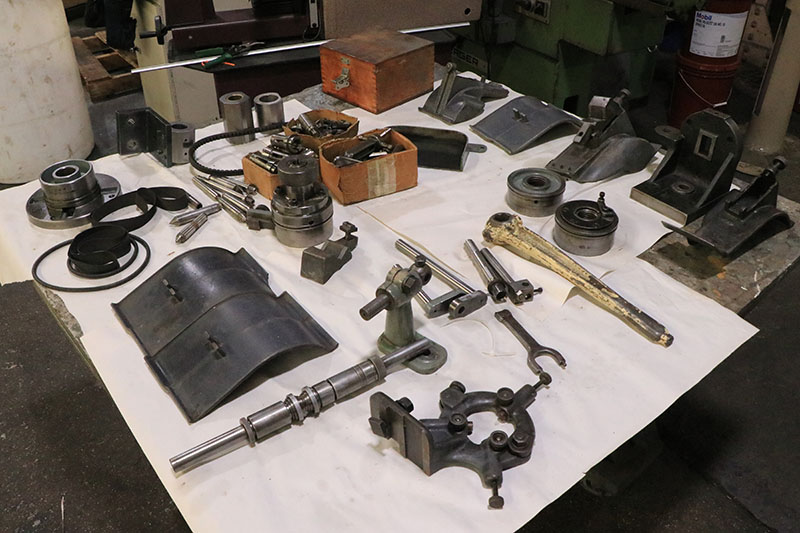

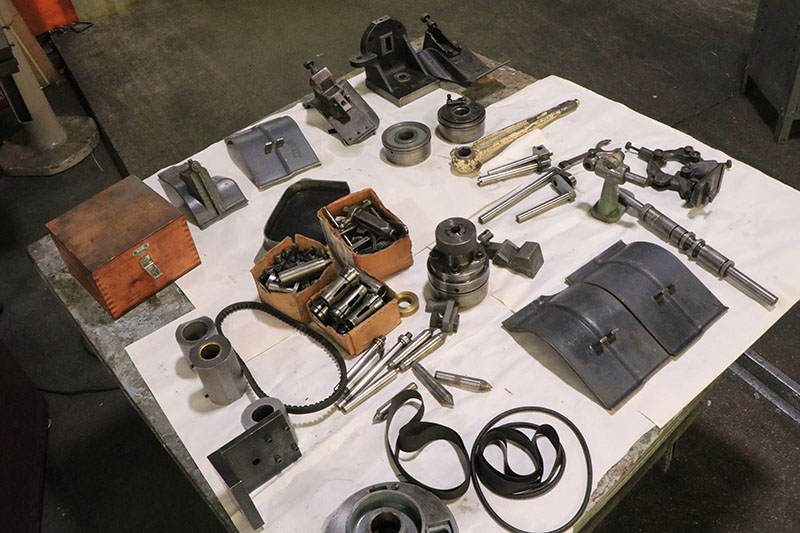

EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE

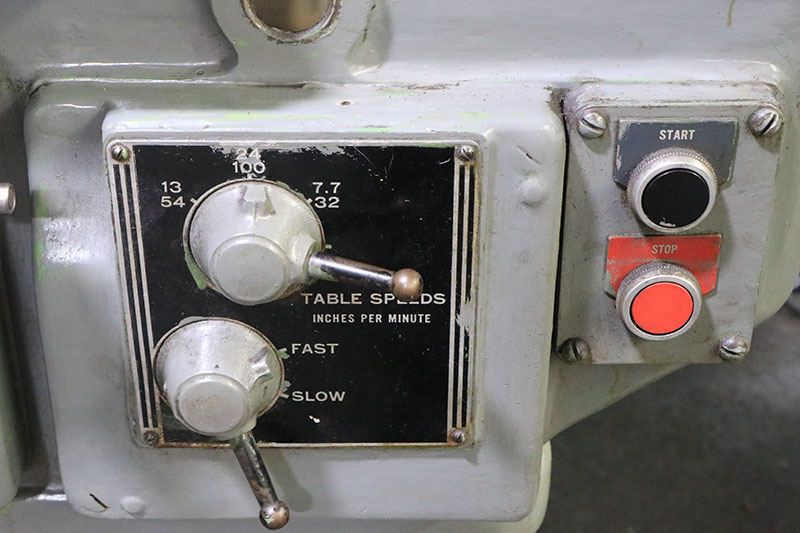

POWER TABLE TRAVERSE (OPTION)
R.H. & L.H. WHEEL GUARDS
TABLE MOUNTED WHEEL DRESSER
COOLANT PUMP & PIPING

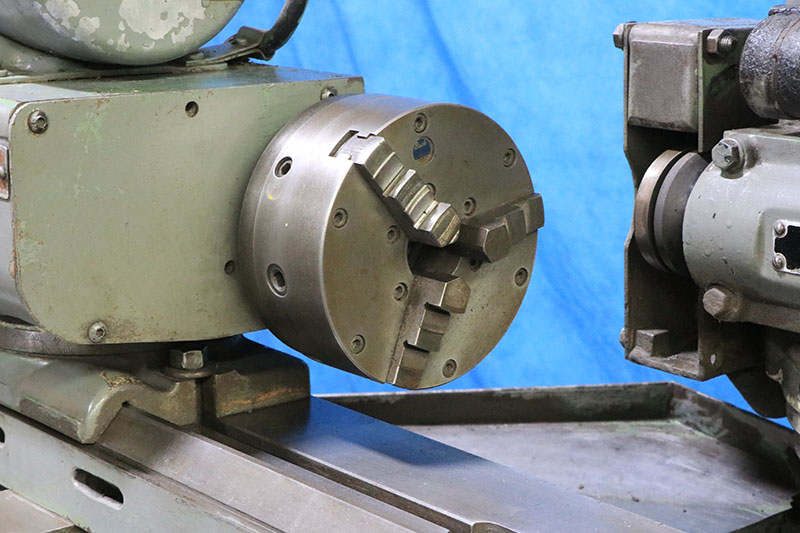

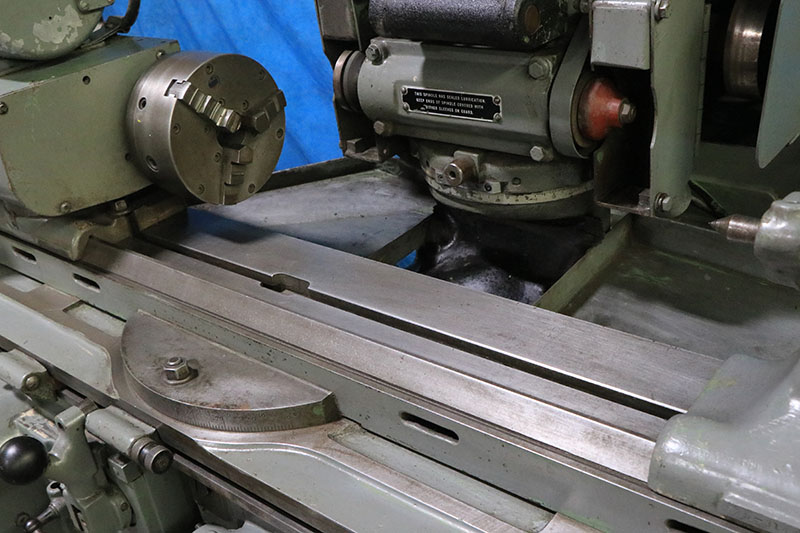

3-JAW CHUCK
FACE PLATE
COLLET ATTACHMENT
COLLETS

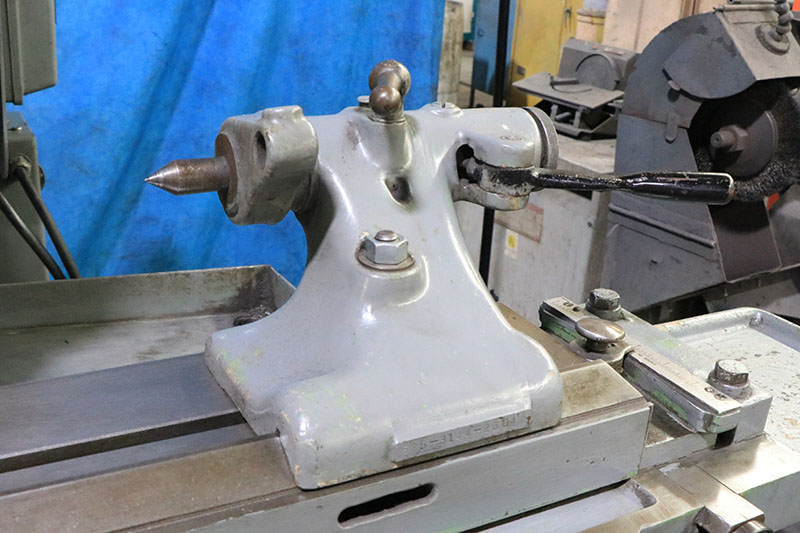

CENTERS
LIVE & DEAD WORKHEAD SPINDLE SET-UPS
3-POINT STEADY REST

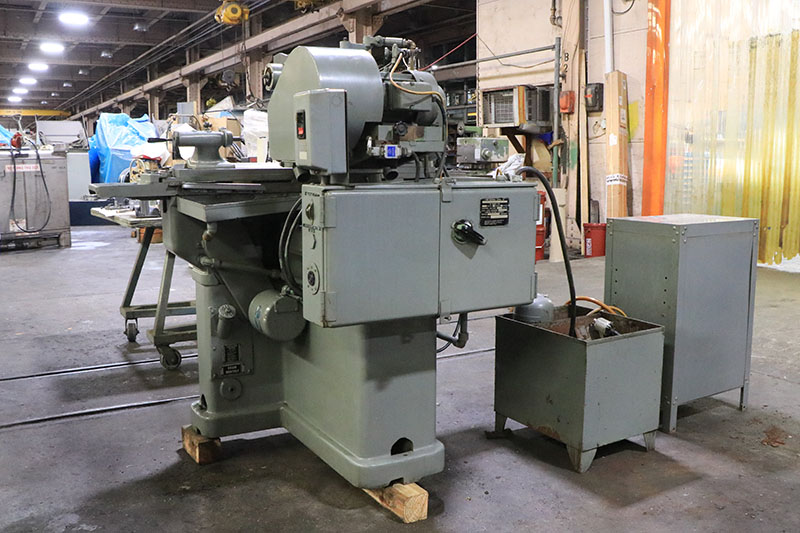

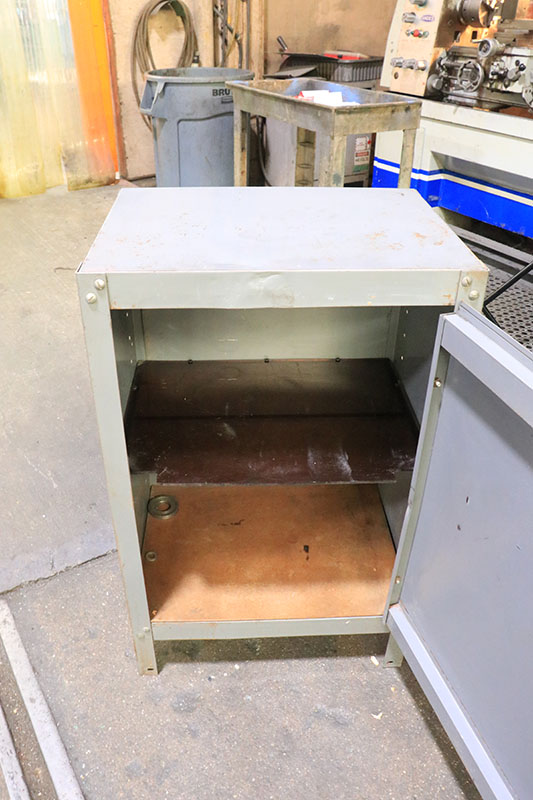

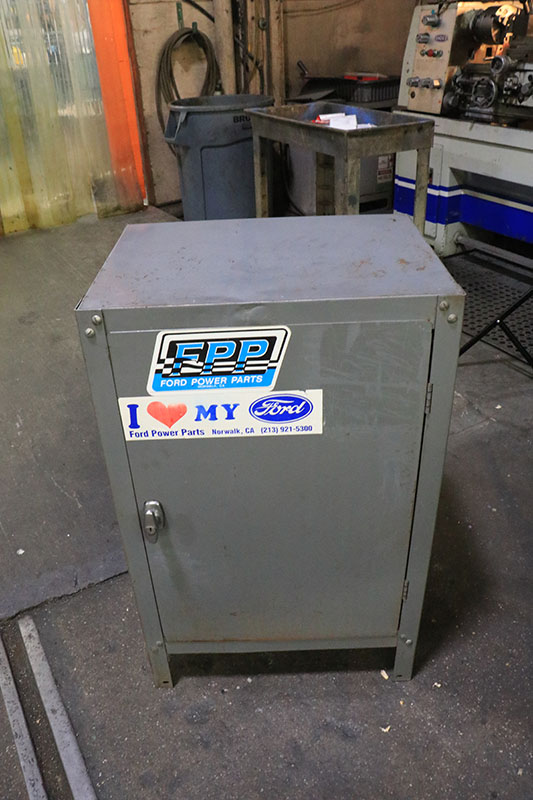

CABINET
WORK LIGHT

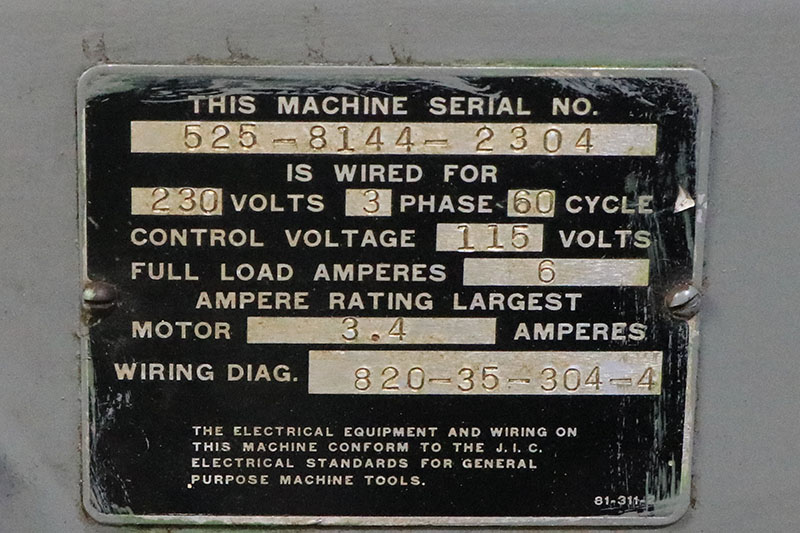

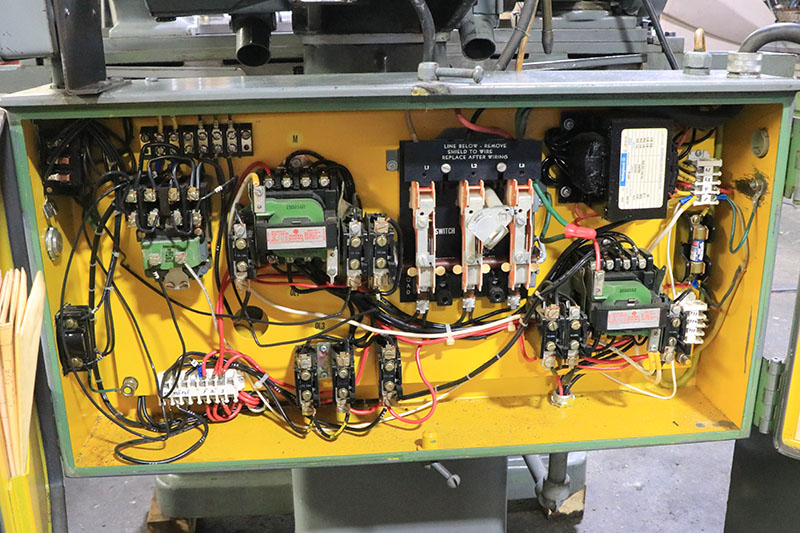

MACHINE IS PRESENTLY WIRED FOR 230 VOLTS/3/60, 6 FLA

 LINK TO VIDEO: https://youtu.be/XCWQfPw8fSo?si=KrFjV5A02QdHQKHh

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
