Brown & Sharpe No. 1, 521-1-272, I.D. ATT., CHUCK, ACCESSORIES, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Brown & Sharpe

Model:: No. 1, 521-1-272, I.D. ATT., CHUCK, ACCESSORIES,

Year:: 1955

Ref #:: 168928

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

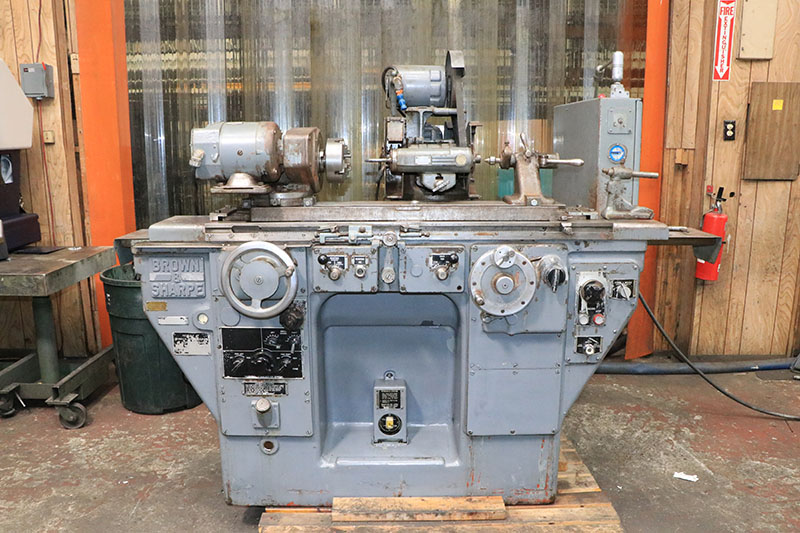

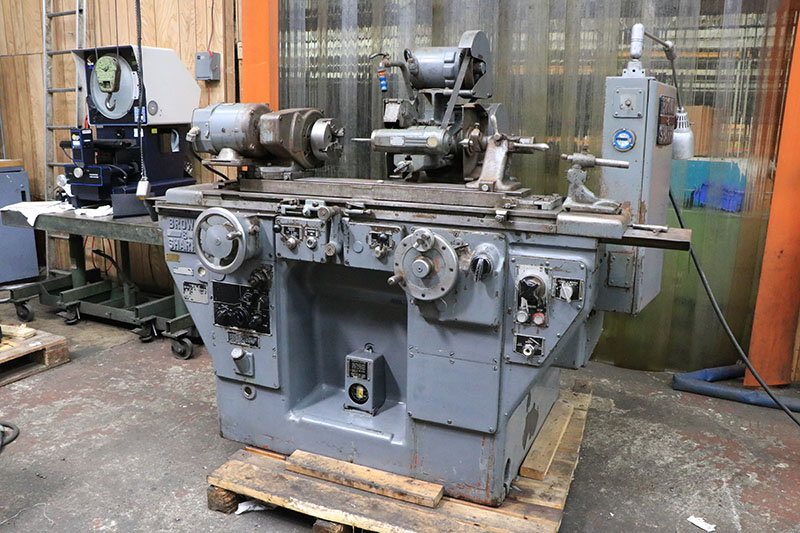

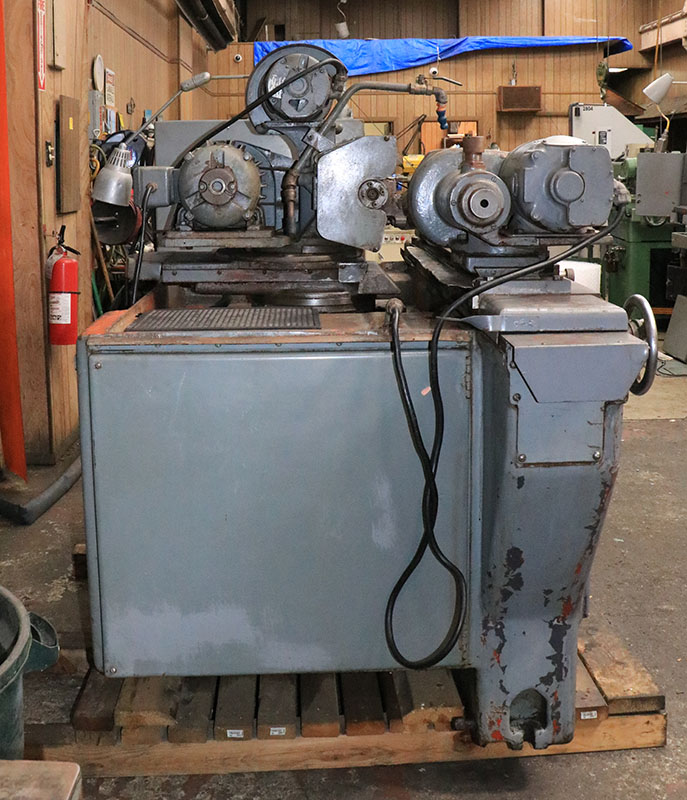

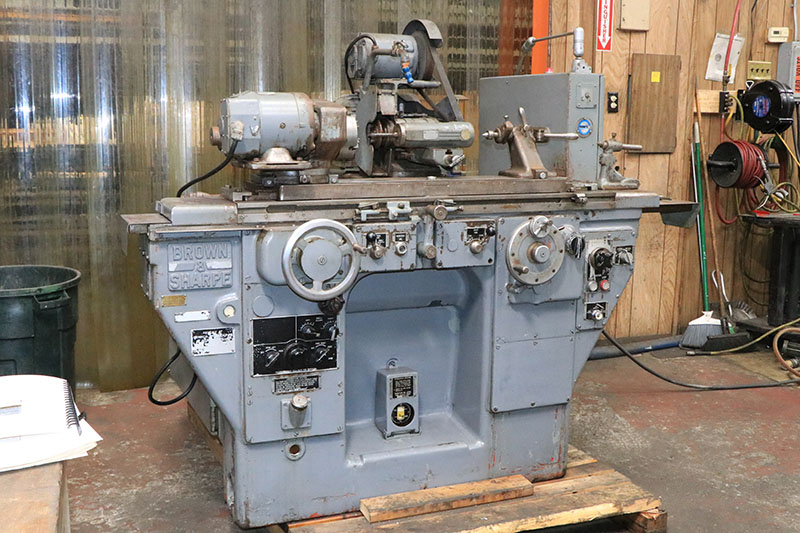

      10" X 20" BROWN & SHARPE
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** SPECIAL NOTE:  THIS MACHINE WAS ORIGINALLY OWNED
    BY THE UNITED STATES NAVY !! **

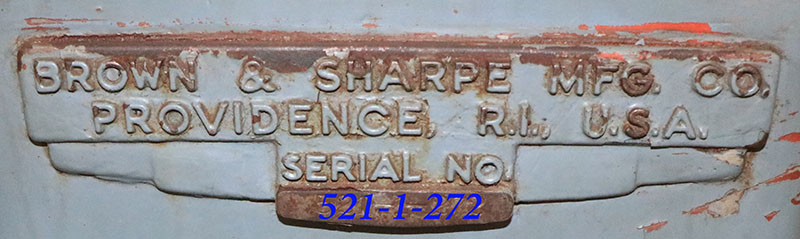

MODEL:  #1        S/N: 521-1-272     NEW:  1955

SWING OVER TABLE ........................... 10"
DISTANCE BETWEEN CENTERS, NOMINAL .......... 20"
DISTANCE BETWEEN CENTERS, MAXIMUM .......... 22-3/4"
GRINDING WHEEL MOTOR ....................... 2 HP
WHEELHEAD SPINDLE SPEEDS ................... INFINITELY VARIABLE
GRINDING WHEEL SIZE ........................ 10" X 1" X 3"
SWIVEL AT THE WHEELSLIDE ................... 90 DEG. EITHER WAY
WHEEL SPINDLE SWIVELS ...................... 90 DEG. EITHER WAY

HEADSTOCK MOTOR ............................ 1/4 HP
INFINITELY VARIABLE SPINDLE SPEEDS ......... 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ............... A2-5"
HEADSTOCK SWIVELS EITHER SIDE OF ZERO ...... 90 DEGREES

INFINITELY VARIABLE TABLE SPEED ............ 3" TO 150" IPM
TABLE PER REV. OF HANDWHEEL:
  SLOW ..................................... 0.1"
  FAST ..................................... 1.5"

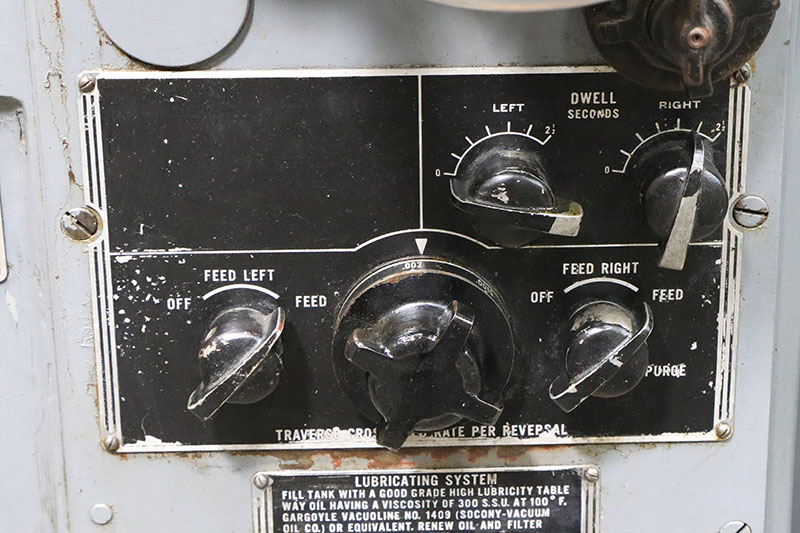

DWELL AT EACH OR ALTERNATE TABLE REV. ...... 0 - 2-1/2 SEC.
TABLE SWIVEL, SCALES FOR ANGULAR SETTING ... 8-1/4 DEG.
SCALES-TAPER PER FT. ....................... 3-1/2" (25%)
AUTOMATIC CROSS FEED, REDUCTION IN DIA. OR
  WORK AT EACH OR ALTERNATE REVERSALS ...... 0.0001" - .003"

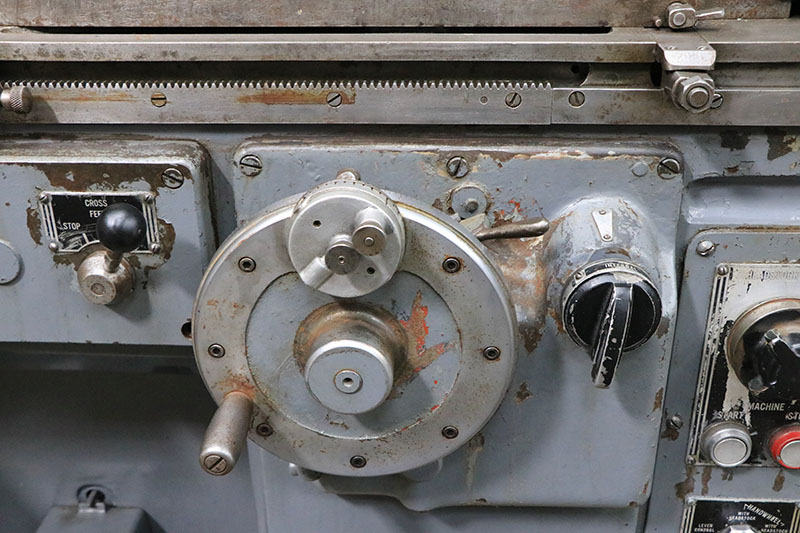

HAND FEED PER REV. OF HANDWHEEL:
  SLOW ..................................... 0.1"
  FAST ..................................... 0.3"

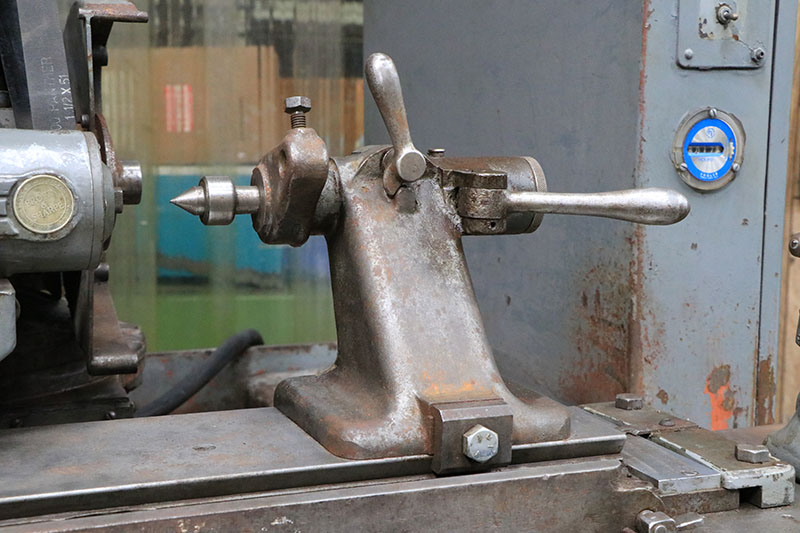

TAILSTOCK SPINDLE TAPER .................... #7 JARNO
TAILSTOCK SPINDLE TRAVEL ................... 5/8"

APPROXIMATE WEIGHT ......................... 5,100 LBS

MACHINE FEATURES:

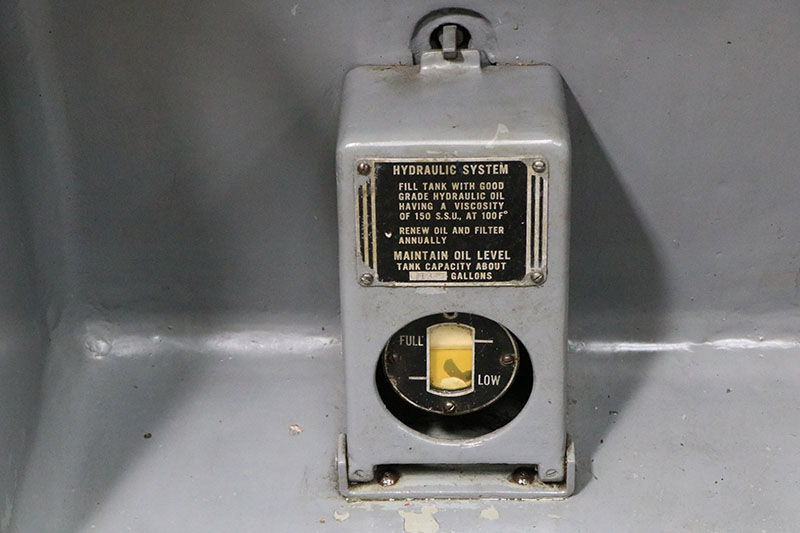

  HYDRAULIC TABLE TRAVERSE
  AUTO INFEED
  ADJUSTABLE TABLE DWELL
  RIGHT OR LEFT END WHEEL MOUNTING
  SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
   SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
   COMBINATION STRAIGHT AND TAPER GRINDING,
   EXTERNAL OR INTERNAL
  L.J. & R.H. GRINDING WHEEL COVERS
  DUAL DEAD/LIVE HEADSTOCK SPINDLE
  SELF-CONTAINED COOLANT SYSTEM
  3/60/220-440 VOLT MOTORS

EQUIPPED WITH:

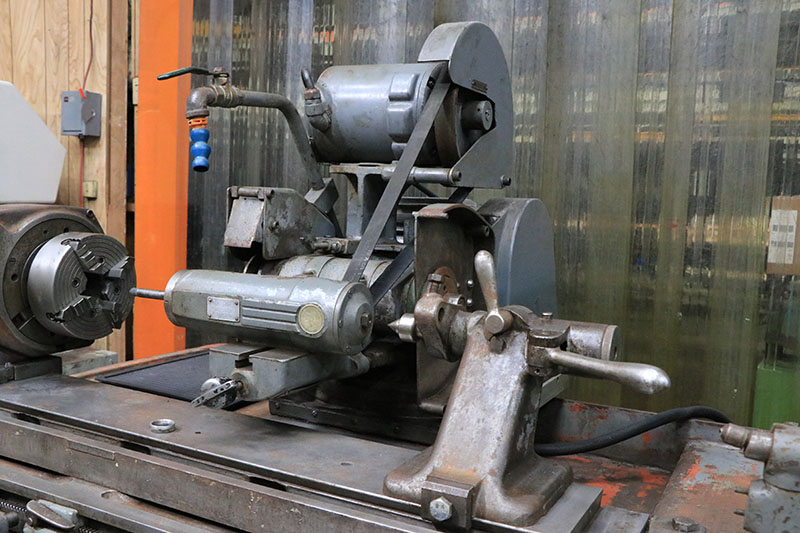

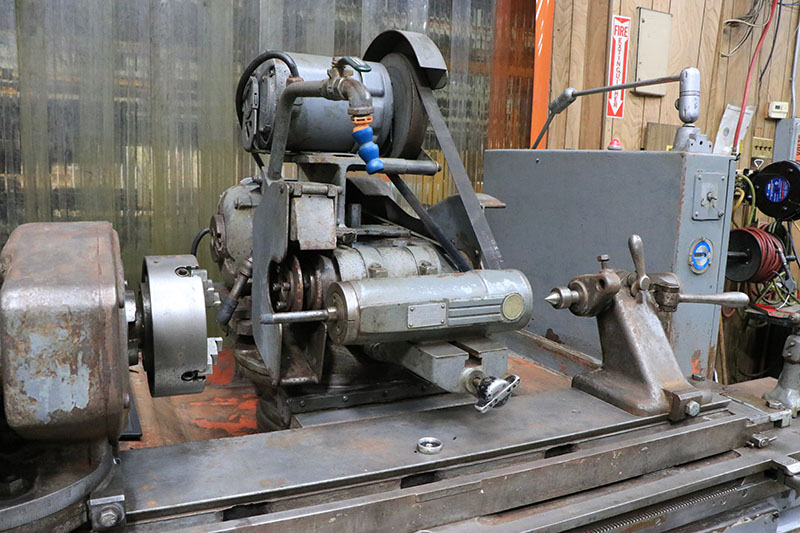

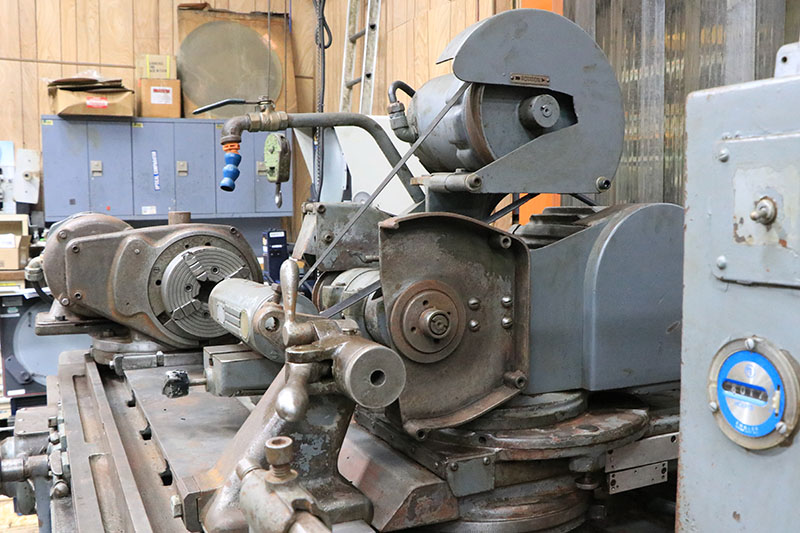

BROWN & SHARPE SWING DOWN I.D. ATTACHMENT

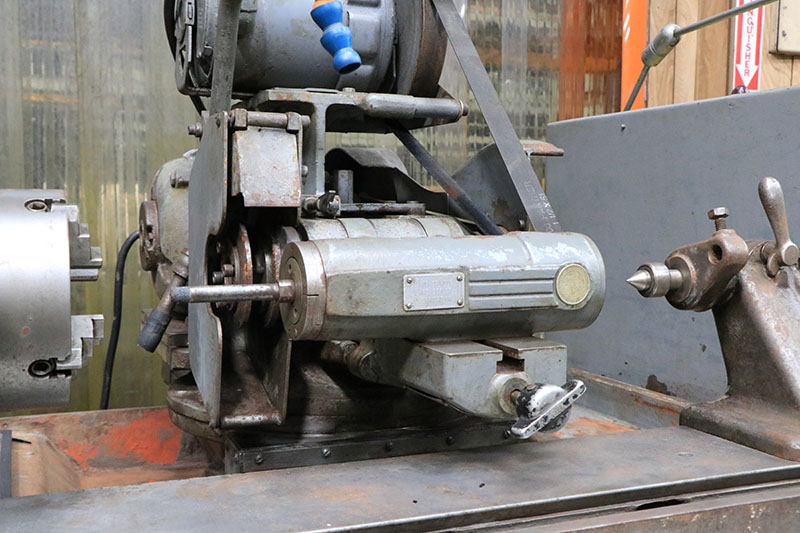

BROWN & SHARPE I.D. SPINDLE

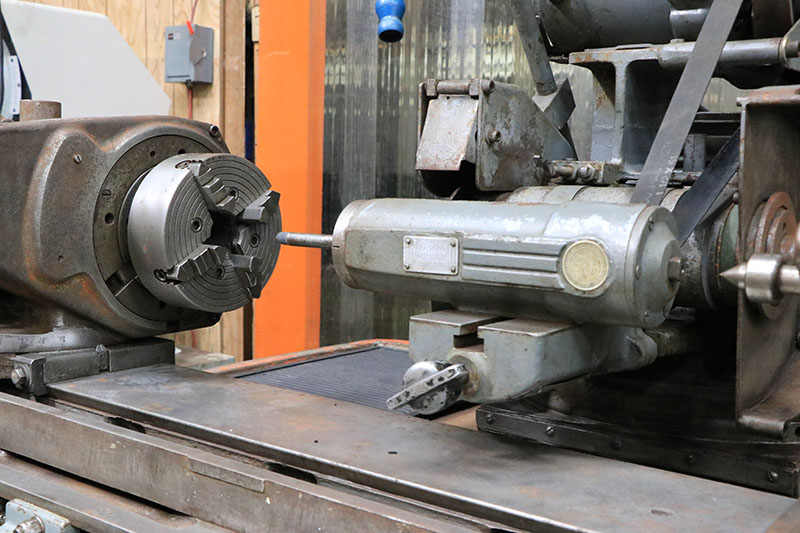

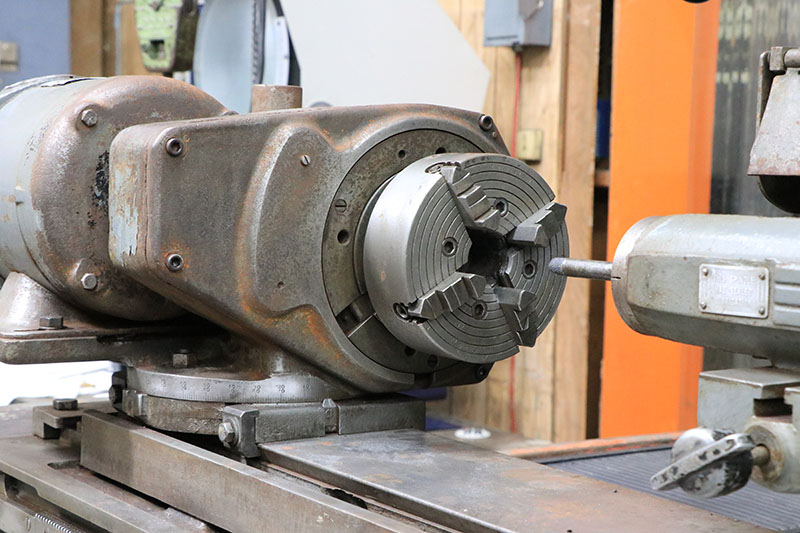

ADAPTOR & 6" 4-JAW CHUCK MOUNTED ON WORKHEAD

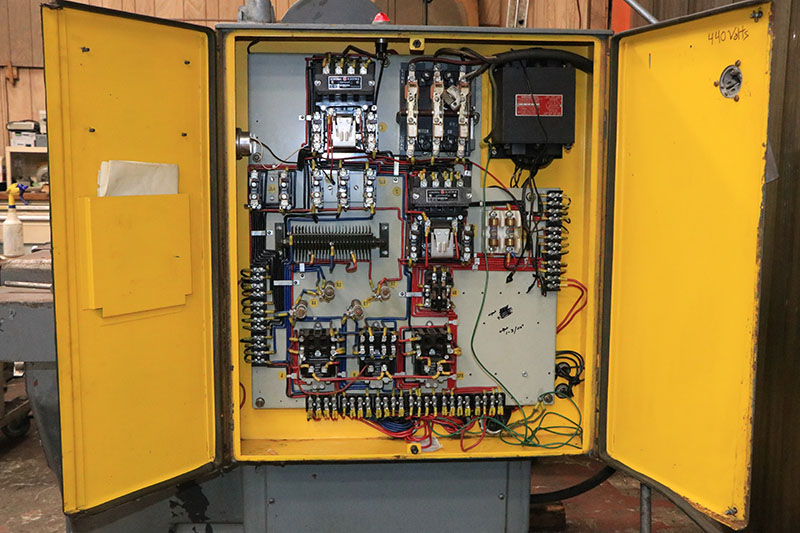

MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS OPERATION


UNIQUE TO BROWN & SHARPE GRINDERS FEATURE

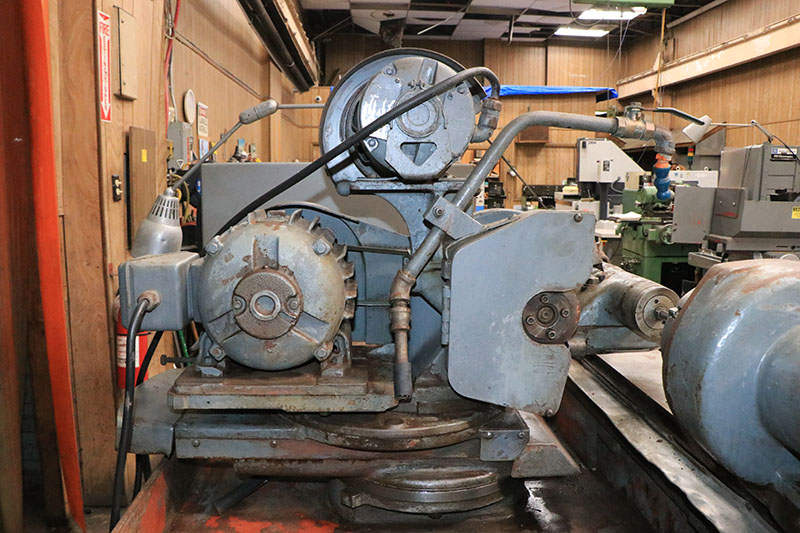

 - DOUBLE SWIVEL WHEELHEAD:
 THE WHEEL SPINDLE HEAD WHICH SUPPORTS THE EXTERNAL
  & INTERNAL  GRINDING SPINDLES CAN BE SWIVELED TO
  EITHER SIDE OF ZERO.  AN ADDITIONAL SWIVEL THROUGH
  90 DEGREES IS PROVIDED AT THE WHEEL SLIDE.
  ANY COMPOUND  SETTING REQUIRED IN COMBINATION
  STRAIGHT & TAPER OR DOUBLE TAPER GRINDING,
  O.D. OR I.D., CAN BE MADE QUICKLY & ACCURATELY.
 THE UNIVERSAL TURRET, WHICH SUPPORTS THE WHEEL
  SPINDLE HEAD, PROVIDES FURTHER  ADJUSTMENT FOR
  CHANGE OF WHEEL LOCATION.  THE TURRET SWIVELS
  ON THE WHEEL SLIDE, AND CAN BE LOCKED IN ANY
  OF FOUR POSITIONS.  EACH CHANGE MOVES THE
  WHEEL 2".  RIGHT HAND WHEEL MOUNTING PROVIDES
  FOUR ADDITIONAL WHEEL POSITIONS.



** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
**  PURCHASED FROM A TOOLROOM  **
**  EXCELLENT CONDITION & APPEARANCE **
