Brown & Sharpe NO 20 Rangemaster HORIZONTAL MILLING MACHINES w/ UNIVERSAL TABLE

$6,950

Make:: Brown & Sharpe

Model:: NO 20 Rangemaster

Year:

Ref #:: 178026

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

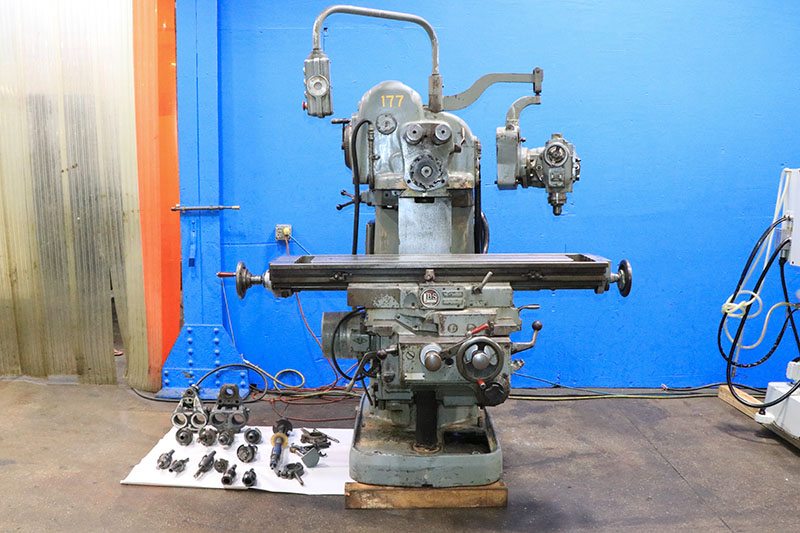

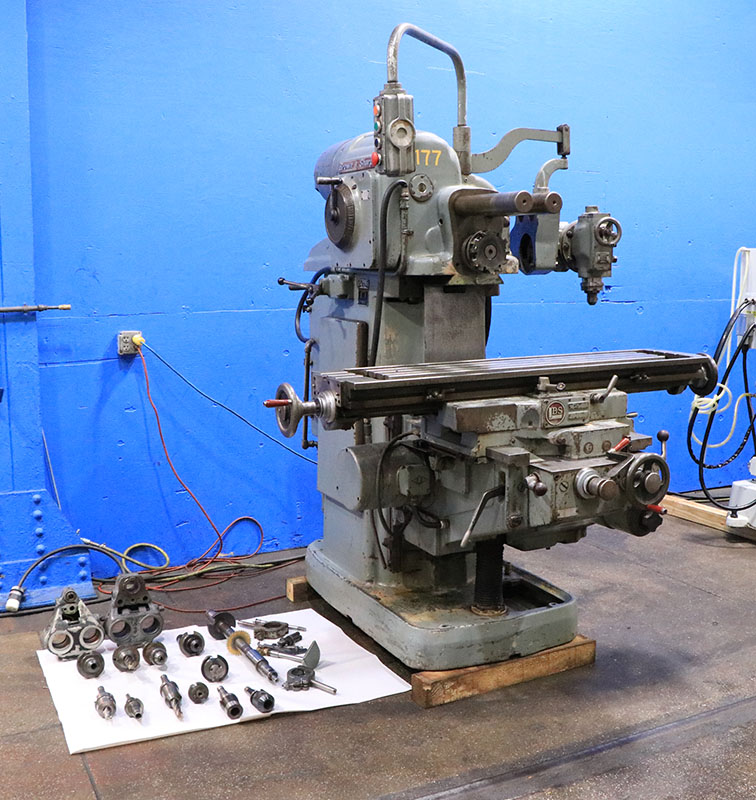

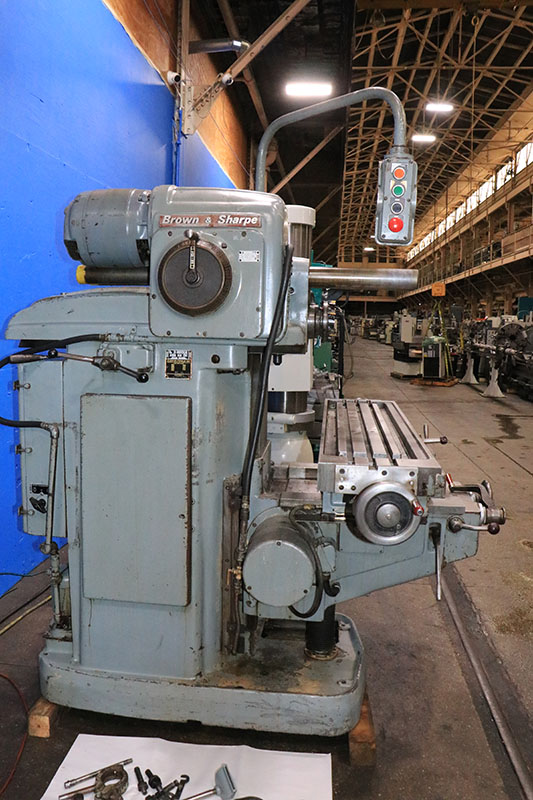

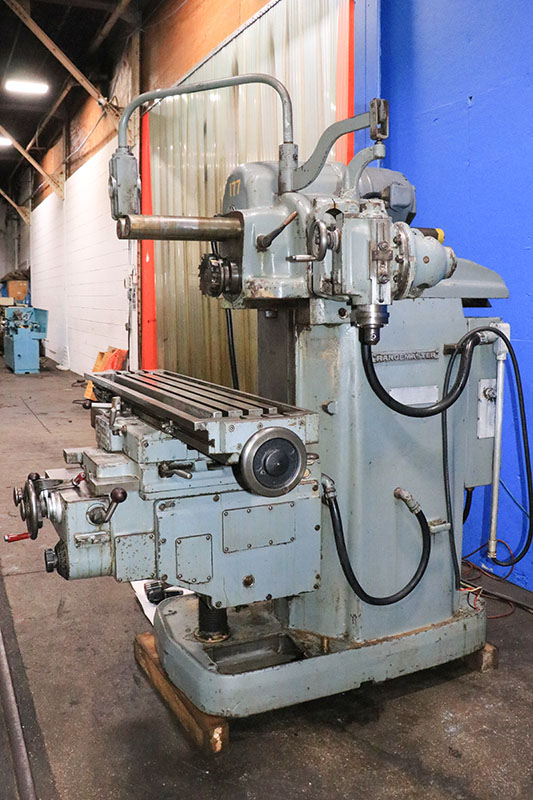

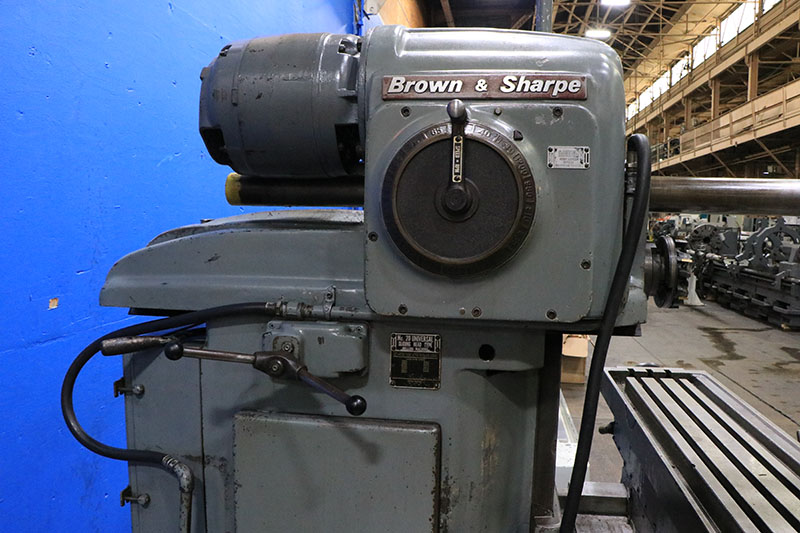

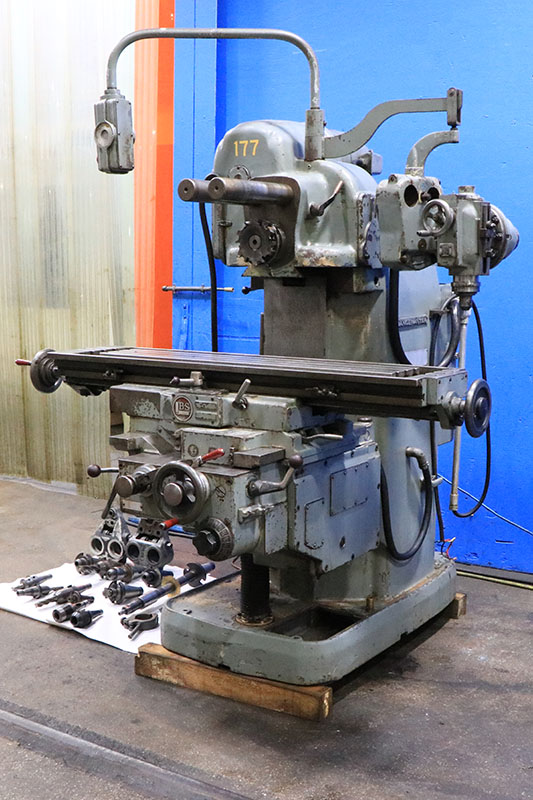

BROWN & SHARPE HORIZONTAL/UNIVERSAL MILL
WITH VERTICAL HEAD ATTACHMENT
MODEL: NO 20 RANGEMASTER,   S/N: 506-23-112

SPECIFICATIONS:
TABLE WORKING SURFACE ................... 54-3/8"  X  13"
TABLE SWIVELS LEFT TO RIGHT OF CENTER ... 50 DEGREES
TABLE AND KNEE TRAVELS:
   LONGITUDINAL ......................... 28"
   CROSS    ............................. 12"
   VERTICAL, KNEE ....................... 21-1/4"
SLIDING HEAD TRAVEL ..................... 22-7/8"

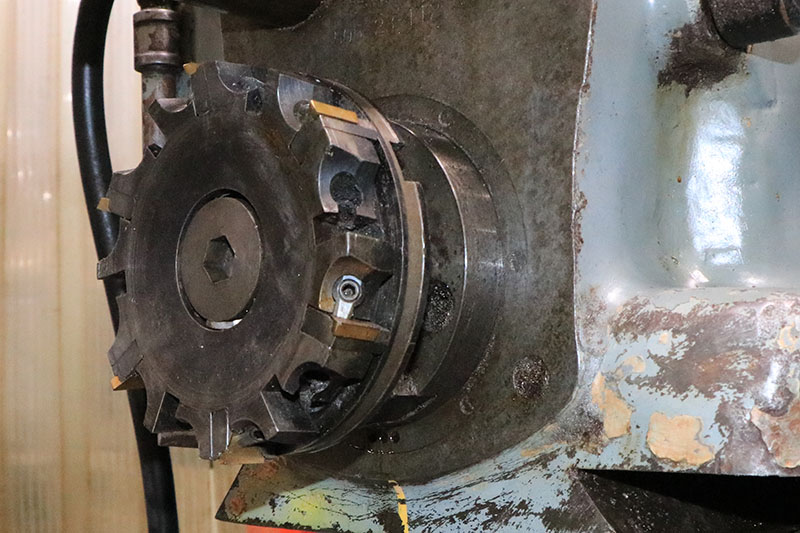

TAPER IN HORIZONTAL SPINDLE ............. #50 N.S.T.
SPINDLE SPEEDS (18) ..................... 40 - 1,530 R.P.M.
TAPER IN UNIVERSAL MILLING HEAD ......... #40 N.S.T.
SPINDLE SPEED RANGE (18) ................ 80 - 3,000 RPM
SPINDLE FEED MANUAL ..................... 3-1/2"
LONGITUDINAL AND CROSS FEEDS (18) ....... 1/4 - 32 I.P.M.
VERTICAL FEEDS (18) ..................... 1/8 - 16 I.P.M.
RAPID TRAVERSE RATE:
   LONGITUDINAL AND CROSS ............... 150 I.P.M.
   VERTICAL ............................. 75 I.P.M.
APPROXIMATE WEIGHT ...................... 6,500 L.B.S.

EQUIPPED WITH:

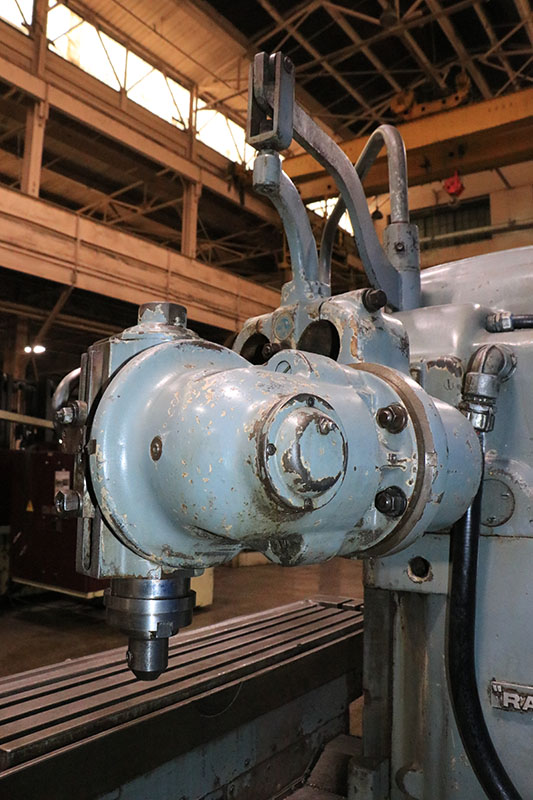

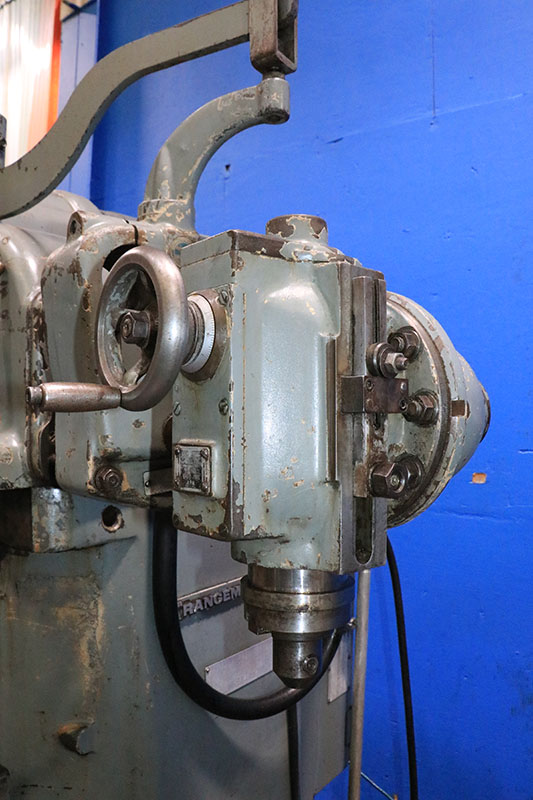

- UNIVERSAL VERTICAL MILLING ATTACHMENT #40 TAPER
     WITH DOUBLE SWIVEL & 3-1/2" QUILL TRAVEL

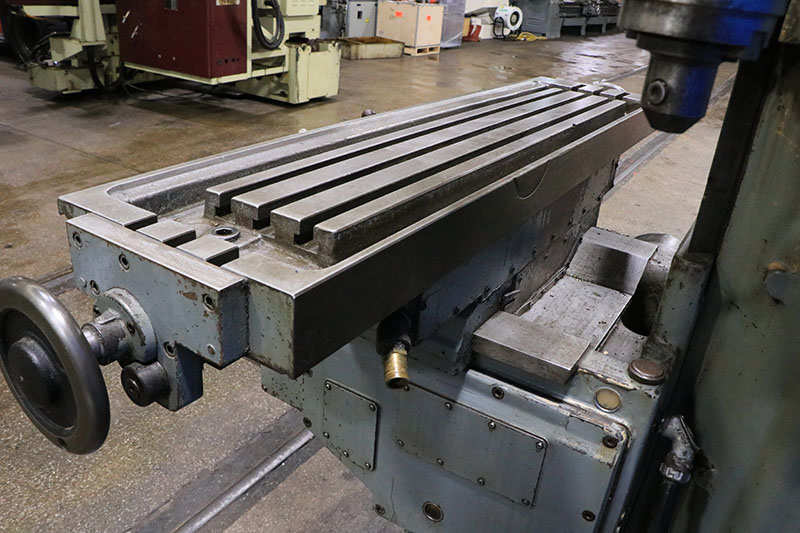

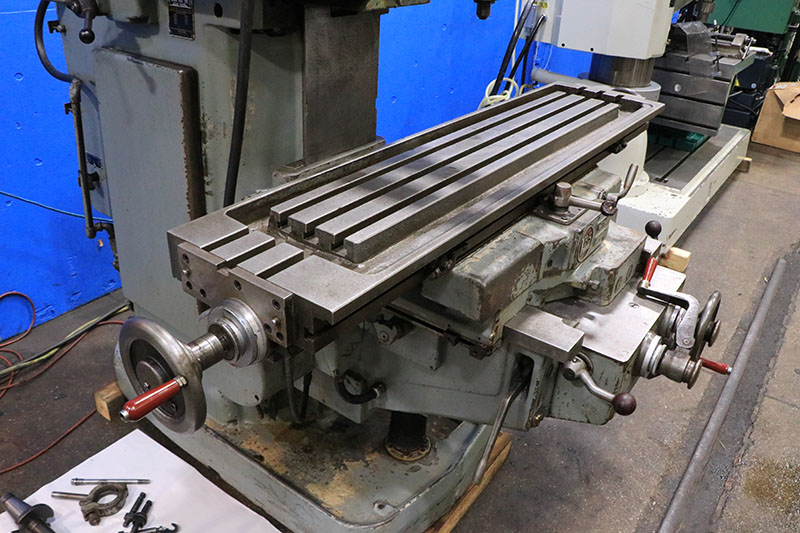

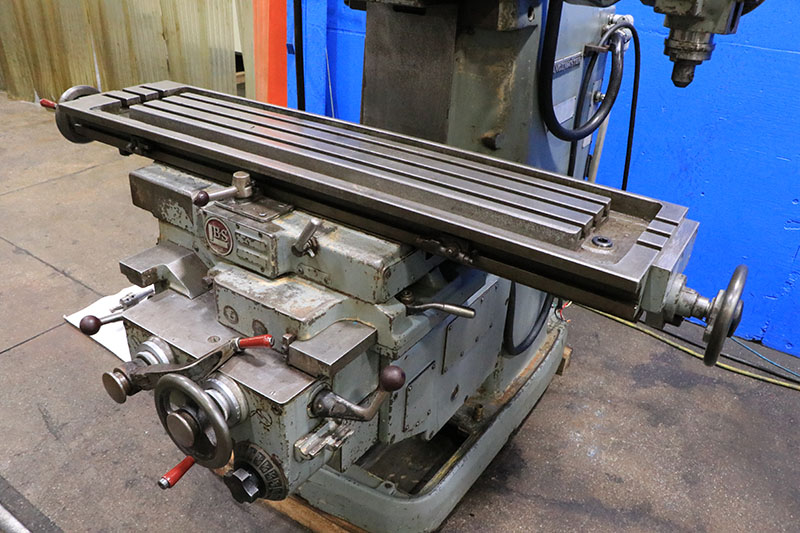

- UNIVERSAL TABLE
- SLIDING HEAD

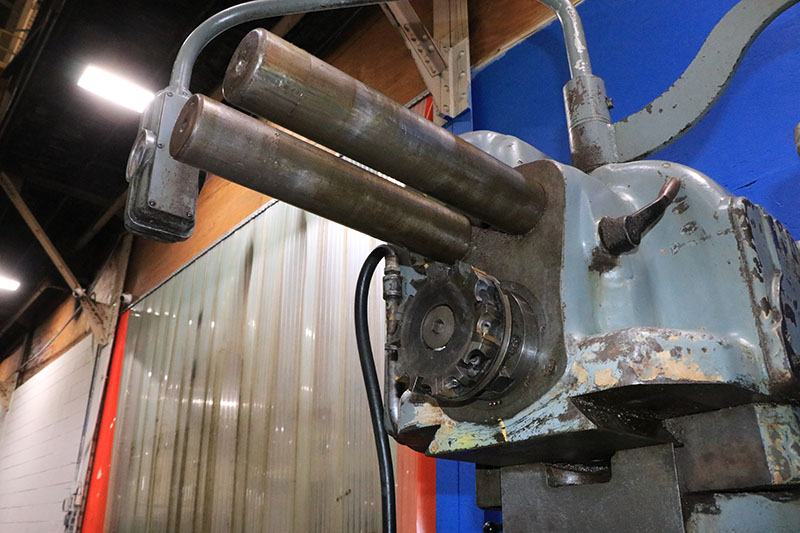

- DOUBLE ROUND OVERARM WITH (2) ARBOR SUPPORTS & ARBOR

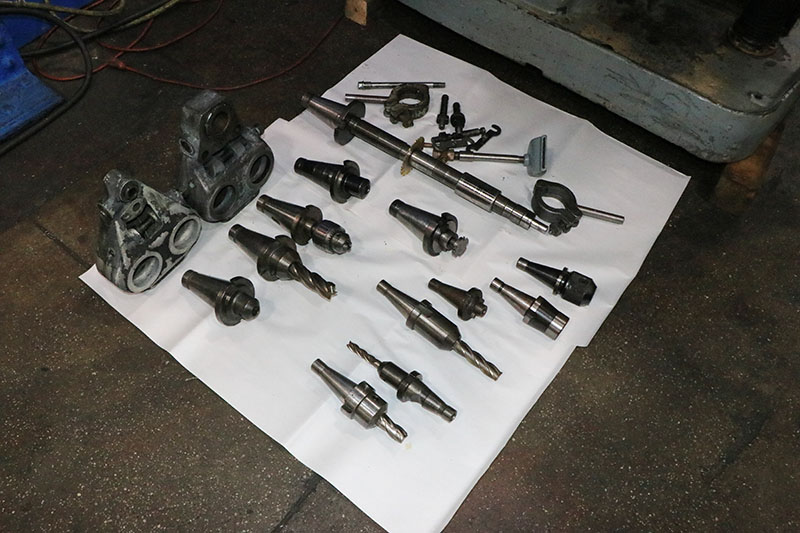

- ASSORTMENT OF #40 & #50 TAPER TOOL HOLDERS
- SELF-CONTAINED COOLANT SYSTEM
- 1 HORSE POWER FEED MOTOR
- 3 HORSE POWER SPINDLE DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
