EMCO FB-3L Universal Mill HORIZONTAL MILLING MACHINES w/ UNIVERSAL TABLE

$27,500

Make:: EMCO

Model:: FB-3L Universal Mill

Year:: 2020

Ref #:: 174509

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

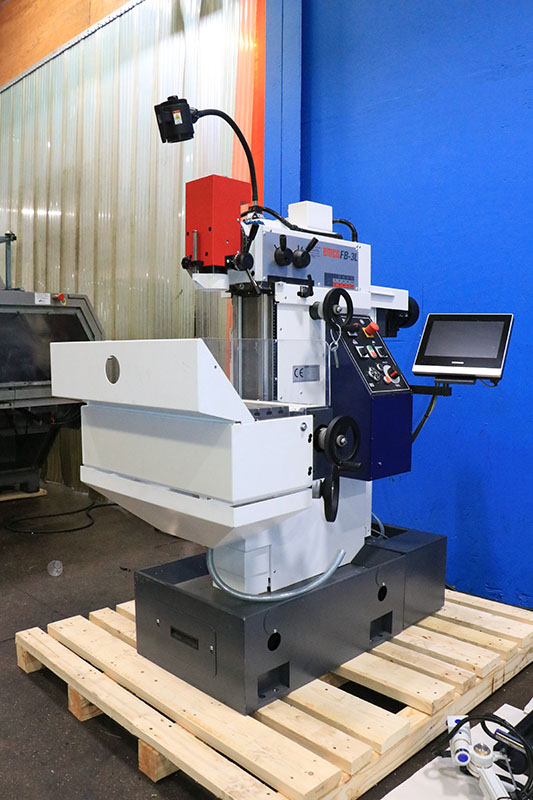

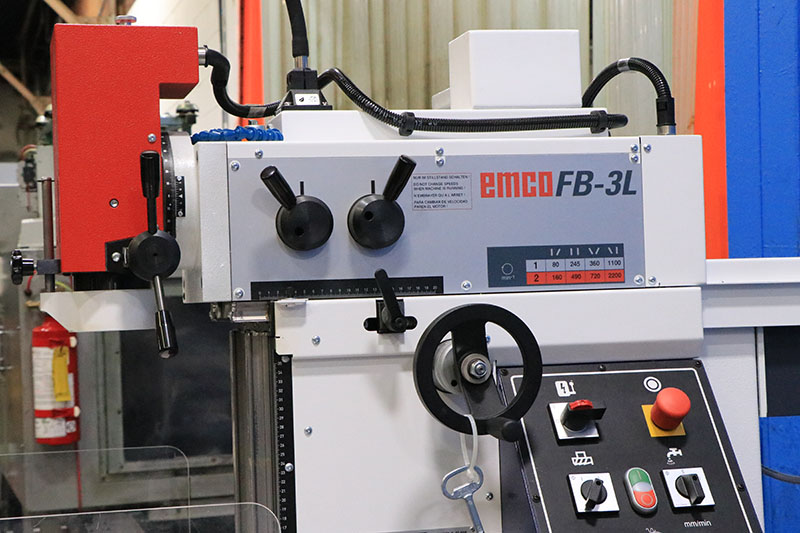

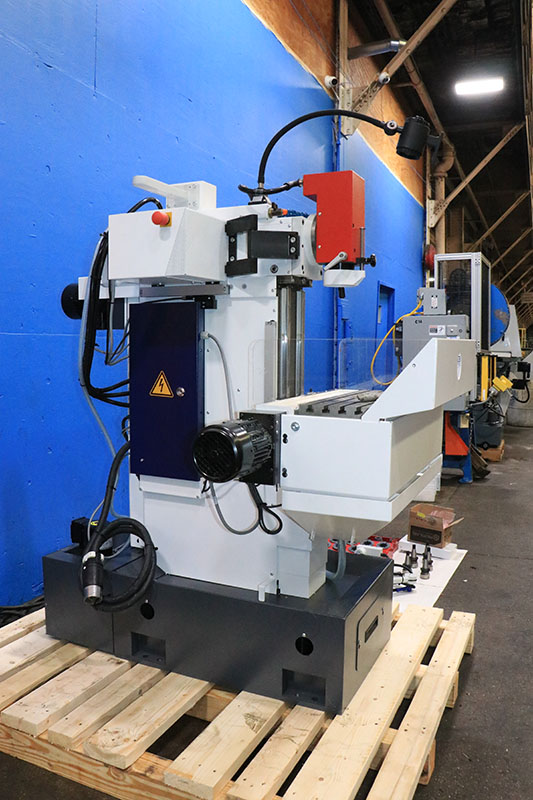

EMCO UNIVERSAL MILLING MACHINE

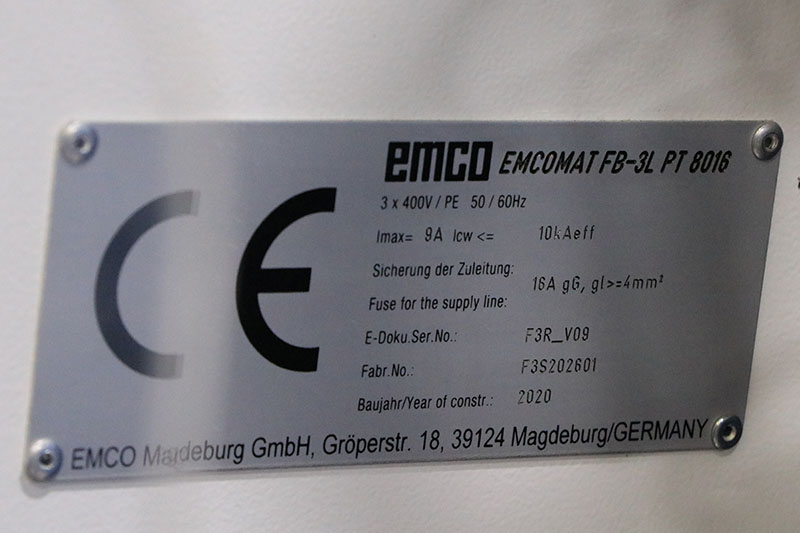

MODEL: FB-3L, S/N: F3S202601, NEW: 2020

SPECIFICATIONS:
WORK AREA LONGITUDINAL TRAVEL(X) ..... 11.8"(300mm)
WORK AREA VERTICAL TRAVEL(Z) ......... 13.8"(350mm)
HORIZONTAL CROSS FEED(Y) ............. 7.9"(200mm)
TABLE:
CLAMPING AREA VERTICAL TABLE ......... 23.6" x 7.1"
                                       (600x180mm)
CLAMPING AREA RIGID ANGLE TABLE ...... 23.6" x 7.9"
                                       (600x200mm)
FEED RATES INFINITELY VARIABLE........ 50 - 550 mm/MIN
RAPID TRAVERSE ....................... 1200 mm/MIN

HORIZONTAL MILLING SPINDLE:
SPINDLE TAPER ........................ SK30 DIN 2080
SPEED RANGE .......................... 80 - 2200 RPM

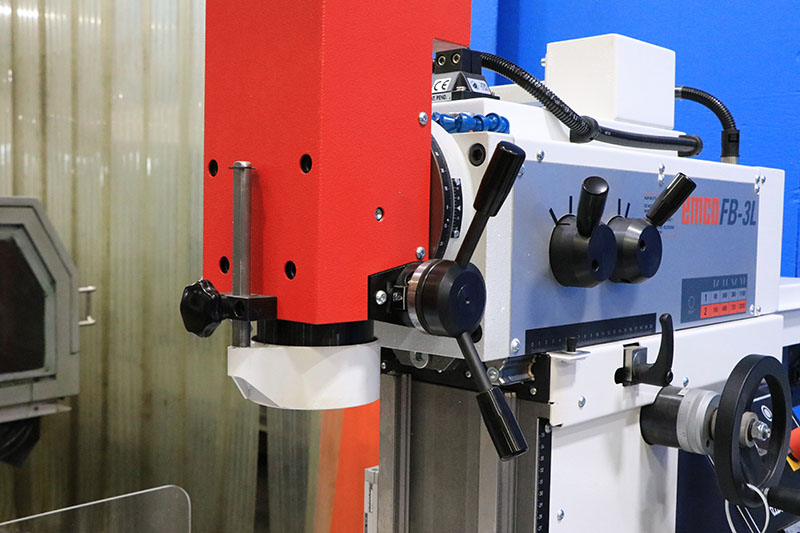

VERTICAL SPINDLE:
SPINDLE SPEED RANGE .................. 80 - 2,200 R.P.M.
SPINDLE TAPER ........................ SK30 DIN 2080
QUILL STROKE (VERTICAL) .............. 1.8" (45mm)

APPROXIMATE FLOOR SPACE .............. 60" x 50"
OVERALL HEIGHT OF MACHINE WITH
  VERTICAL SPINDLE HEAD .............. 61 IN.
APPROXIMATE WEIGHT OF MACHINE ........ 1,700 LBS

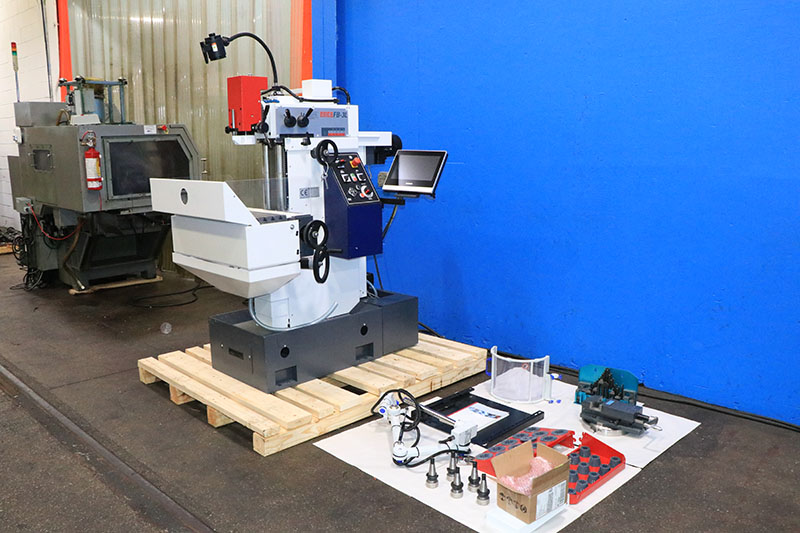

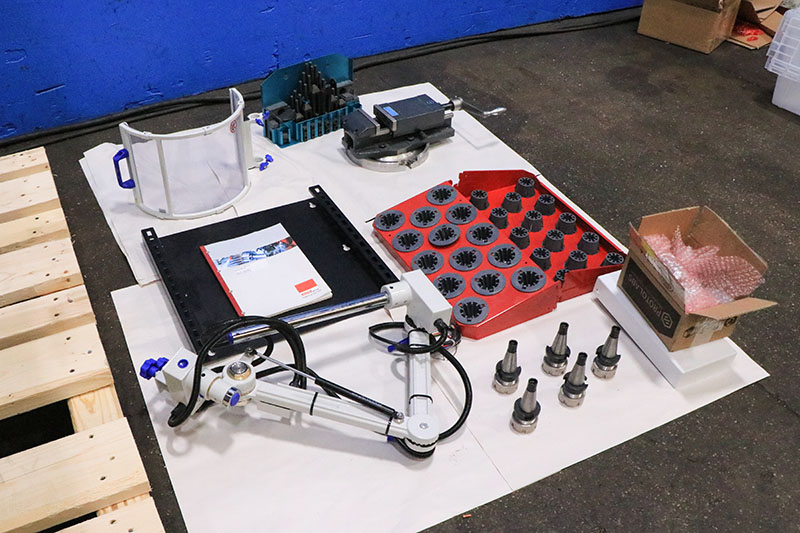

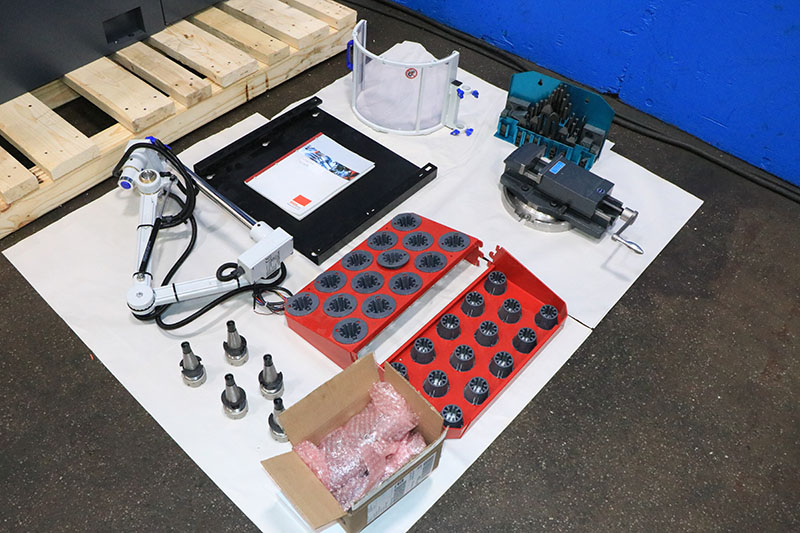

EQUIPPED WITH:

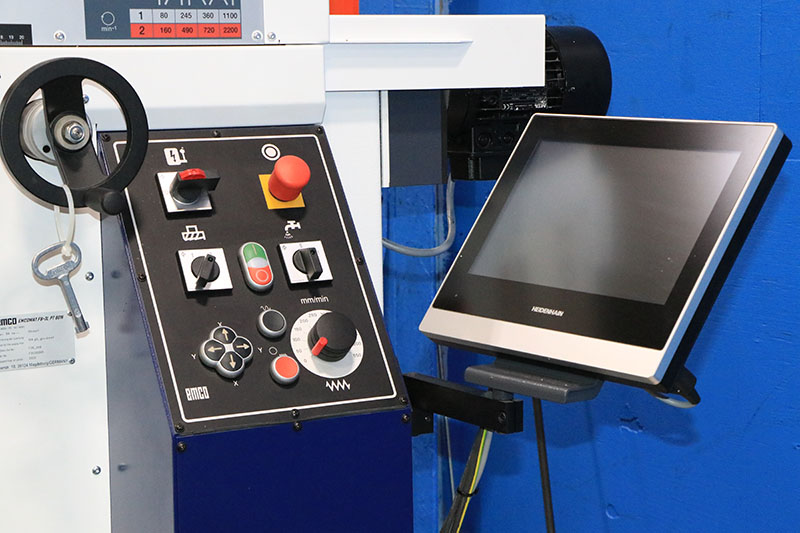

- HEIDENHAIN MULTI-AXIS DIGITAL READOUT

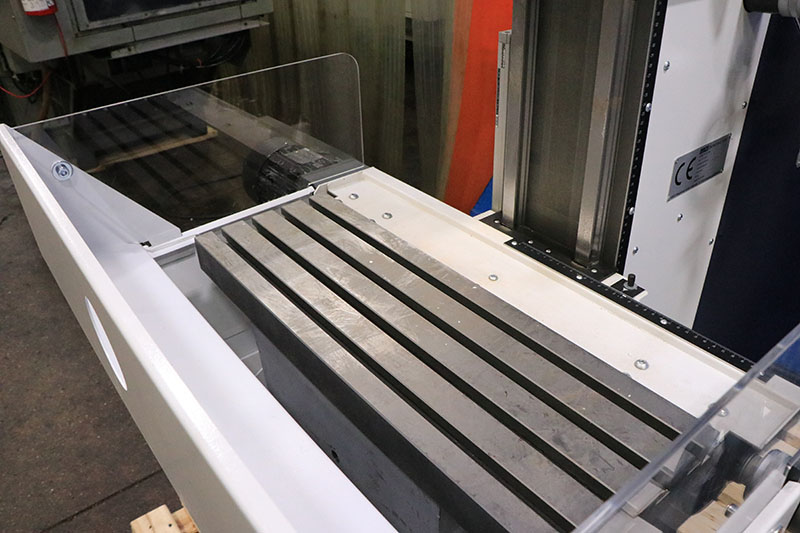

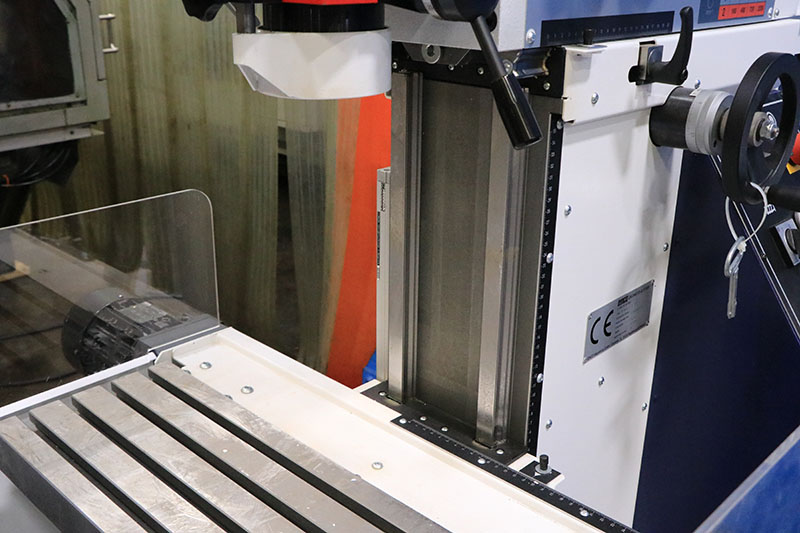

- T-SLOTTED RIGID ANGLED WORK TABLE
- HORIZONTAL SPINDLE
- VERTICAL SPINDLE HEAD WITH QUILL
- MACHINE VISE
- SPINDLE MOTOR 1.9 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION:   ***  LIKE NEW  ***
