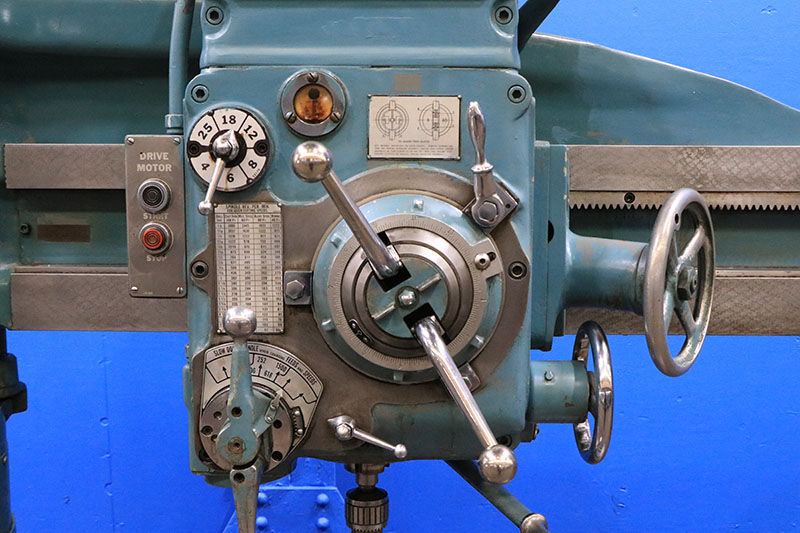

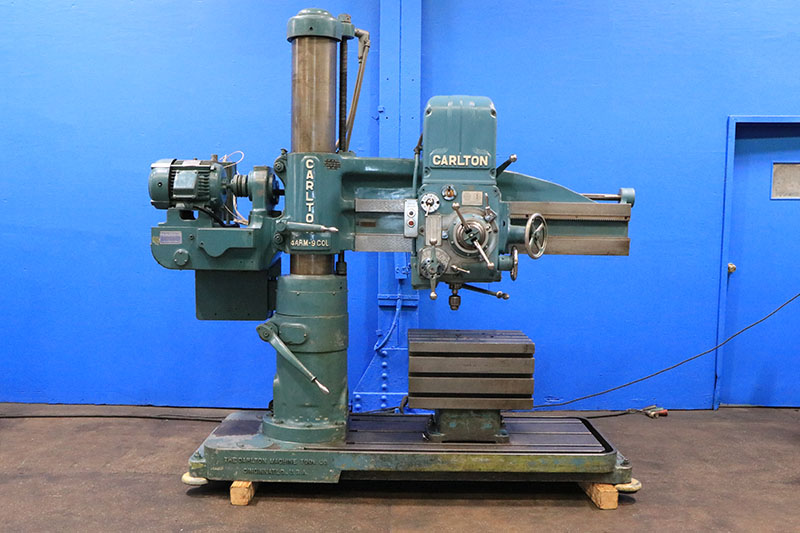

Carlton 1A 4'x9" RADIAL ARM DRILLS

$8,950

Make:: Carlton

Model:: 1A 4'x9"

Year:: 1966

Ref #:: 167723

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

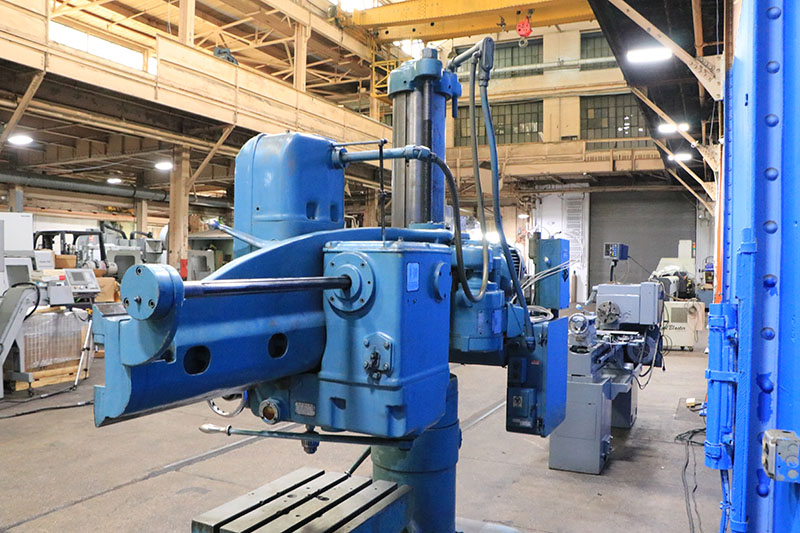

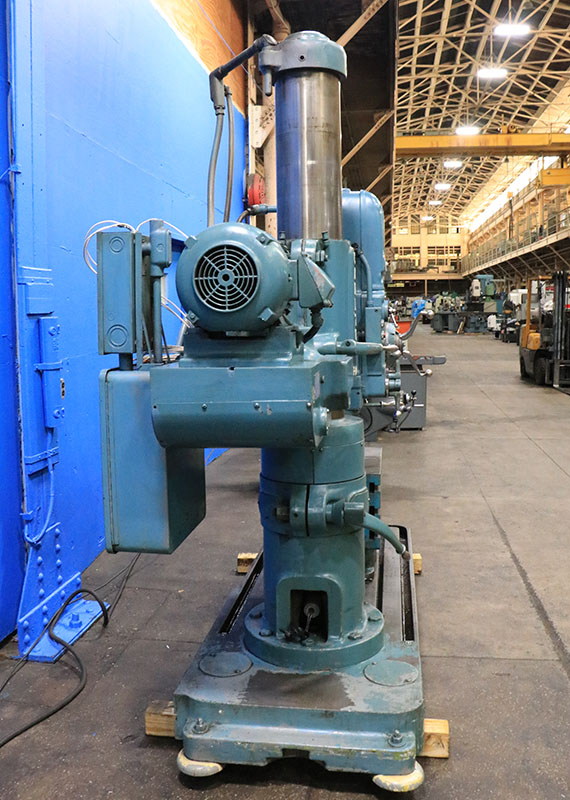

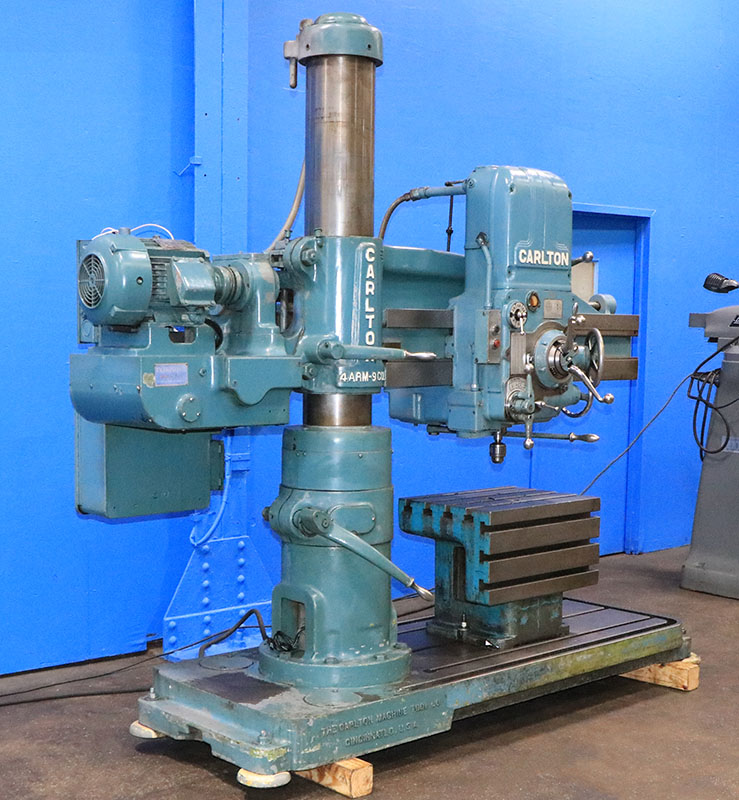

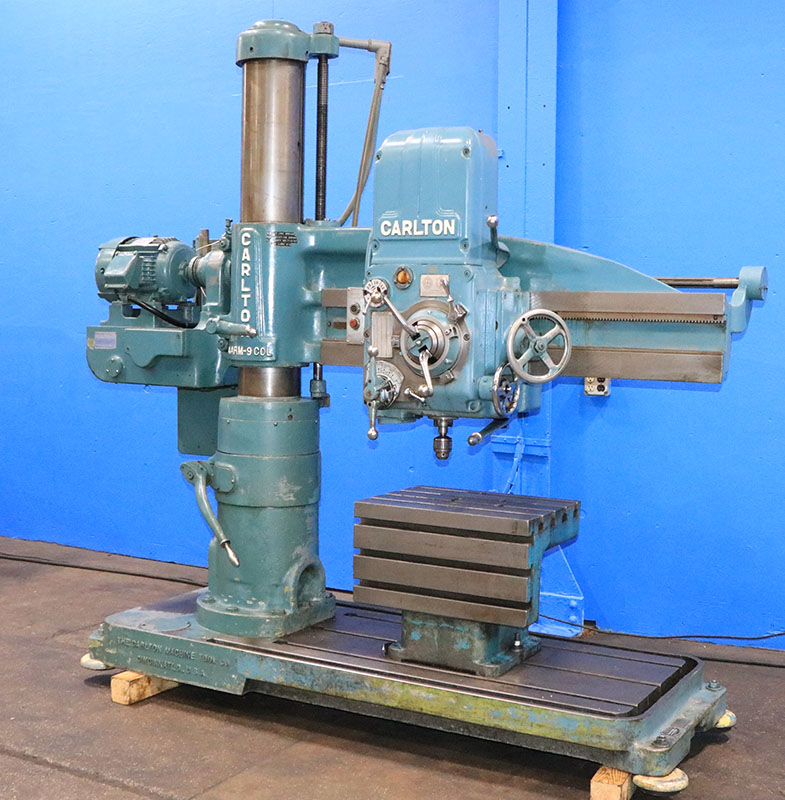

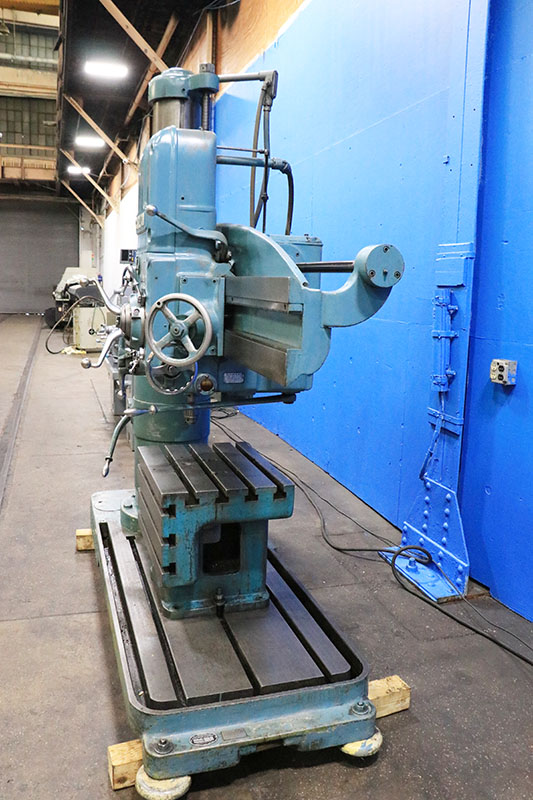

4' X 9" CARLTON RADIAL DRILL

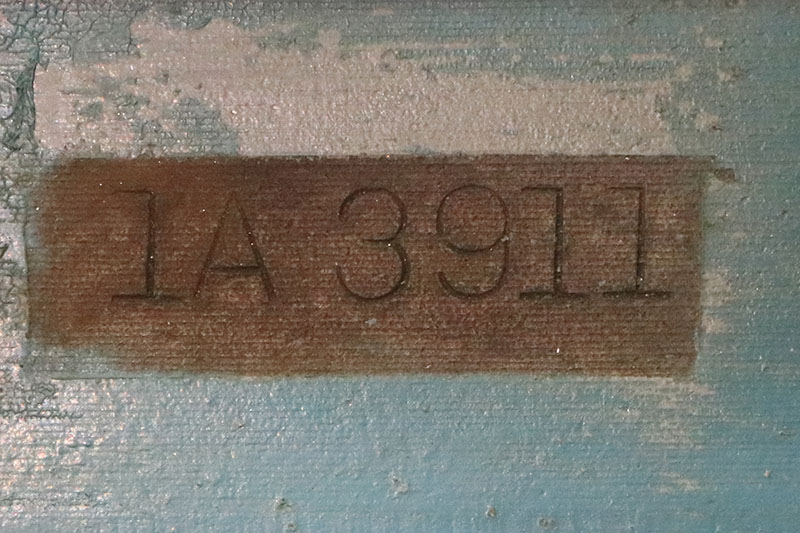

MODEL: 1A, S/N: 1A-3911, NEW: 1966

SPECIFICATIONS:
ARM LENGTH .................................... 4'
DIAMETER OF COLUMN............................. 9"
MAX. / MIN. SPINDLE RADIUS .................... 4'7" / 16"

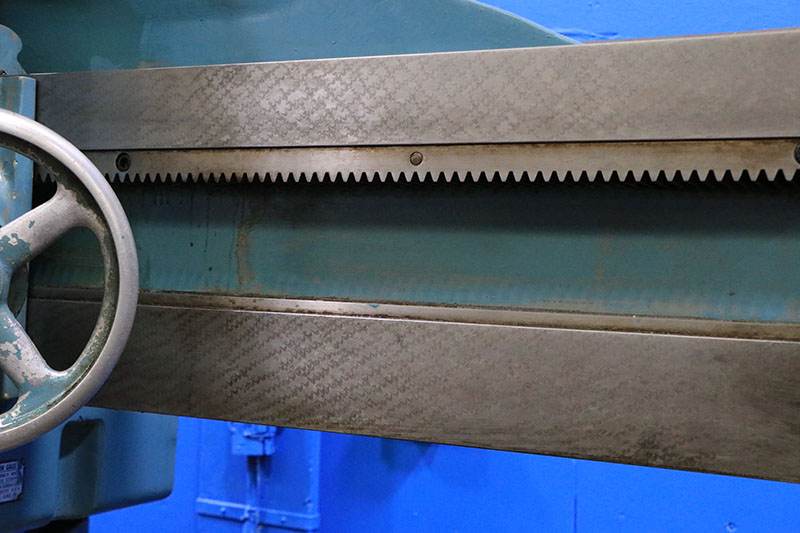

TRAVERSE OF SPINDLE HEAD ON ARM................ 39"
TRAVERSE OF ARM ON COLUMN ..................... 27"
  MAX. DISTANCE BETWEEN SPINDLE AND BASEPLATE.. 4'5"
  MIN. DISTANCE BETWEEN SPINDLE AND BASEPLATE.. 14"
SPINDLE:
  TRAVERSE OF SPINDLE........................... 12"
  TAPER IN SPINDLE.............................. #4 MT
  DIAMETER OF SPINDLE .......................... 2-1/2"
  RANGE OF SPINDLE SPEEDS(12) .................. 60 - 1500 RPM
  RANGE OF FEEDS (6)................ 6,8,11,15,20 & 25 PER REV
APPROXIMATE BASE WORKING SURFACE .............. 53"L x 30"W
APPROXIMATE MACHINE DIMENSIONS ......... 86"L x 30"W x 91"H
APPROXIMATE MACHINE WEIGHT .................... 7,500 LBS.

EQUIPPED WITH:
 POWER ELEVATION OF ARM ON COLUMN

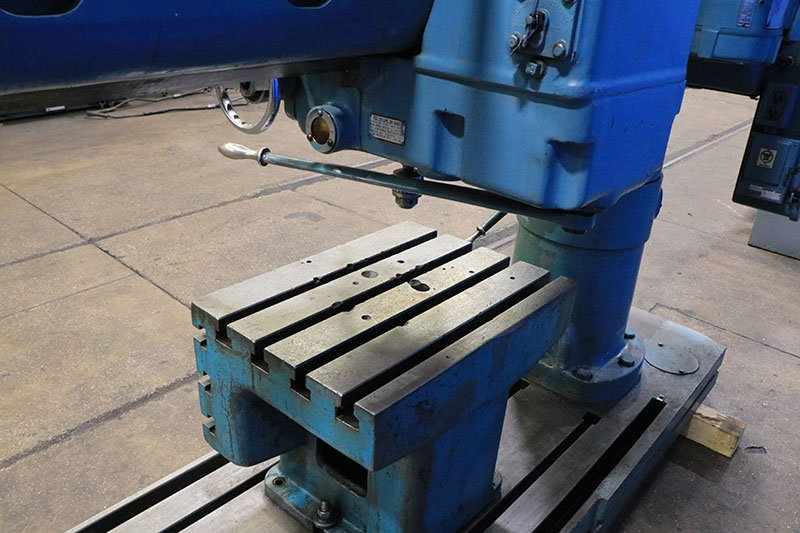

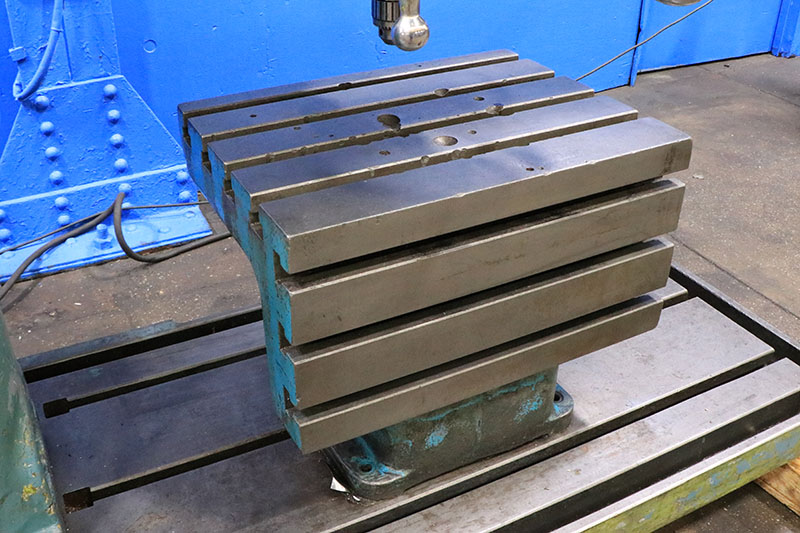

 T-SLOTTED TILTING BOX TABLE
 T-SLOTTED BASE
 COOLANT SYSTEM PUMP
 5 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ****   SUPERB   ****
