Victor 1363H RADIAL ARM DRILLS

Price on Request

Make:: Victor

Model:: 1363H

Year:: 2011

Ref #:: 177830

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

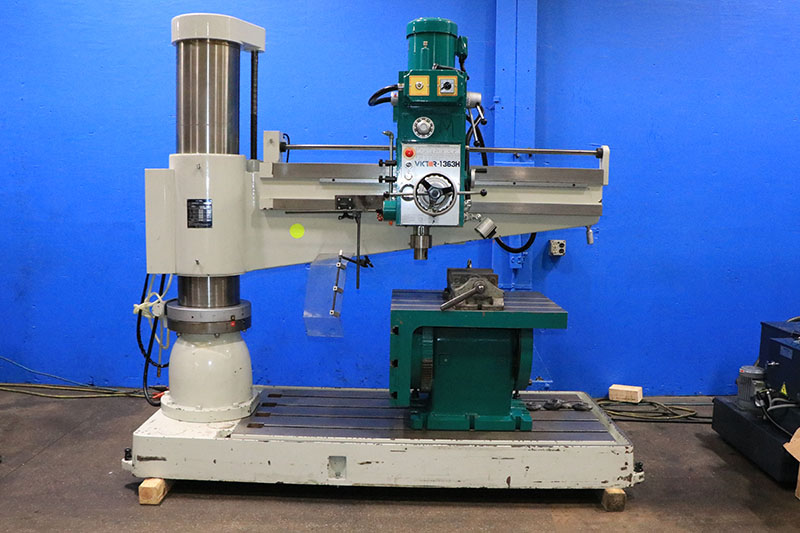

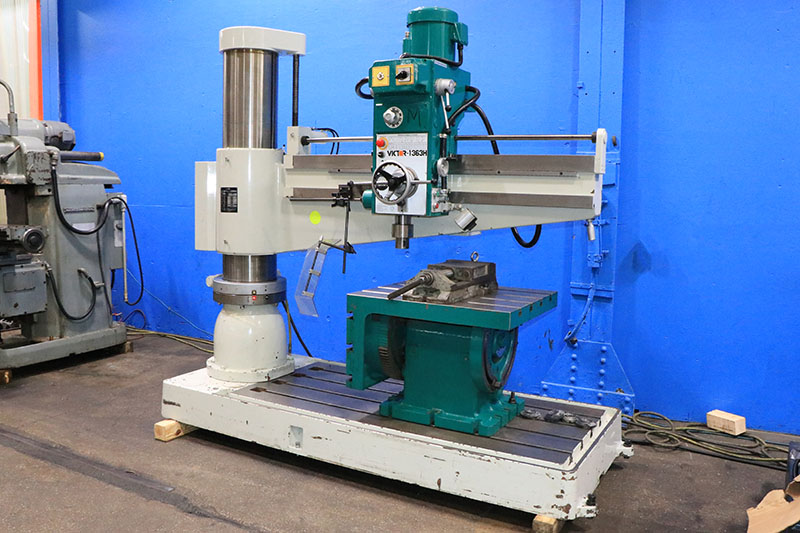

5' X 13" VICTOR RADIAL DRILL

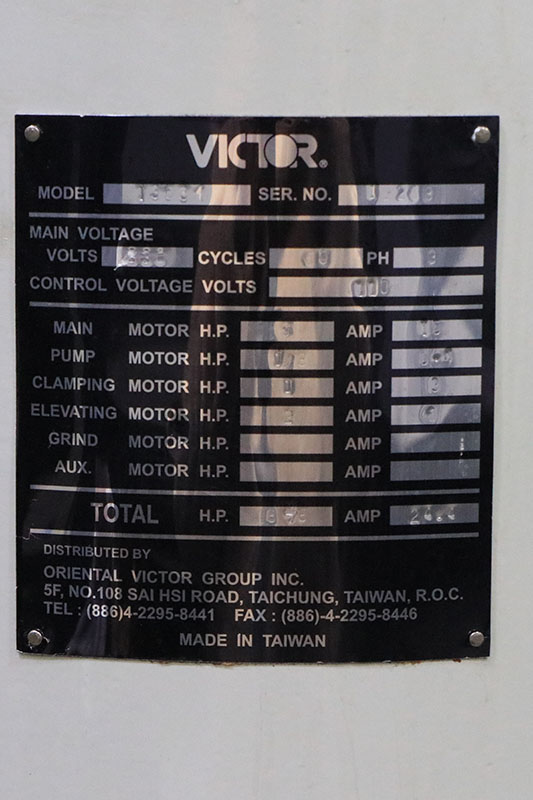

MODEL: 1363H,  S/N: 19628,  NEW: 2011

SPECIFICATIONS:
COLUMN DIAMETER ....................... 12.6"
DISTANCE SPINDLE TO COLUMN ............ 13.78" - 63" MIN/MAX
TRAVEL OF SPINDLE HEAD ................ 49.21"
DISTANCE SPINDLE TO BASE  ............. 18.31" - 55.71" MIN/MAX
VERTICAL TRAVEL OF ARM ................ 26.77"
VERTICAL TRAVEL OF SPINDLE IN HEAD .... 10-63"
TAPER IN SPINDLE ...................... #5 MT
SPINDLE FEEDS (3) ..................... .0024, .0039,
                                         & .0079 IPR

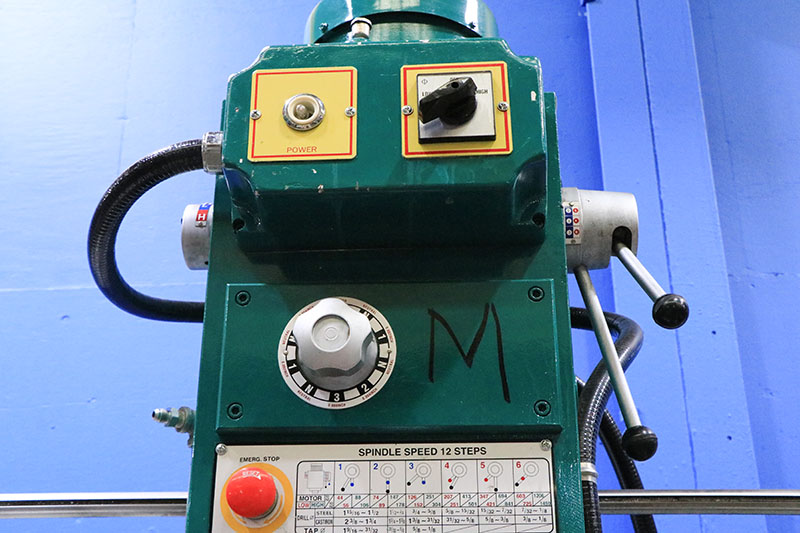

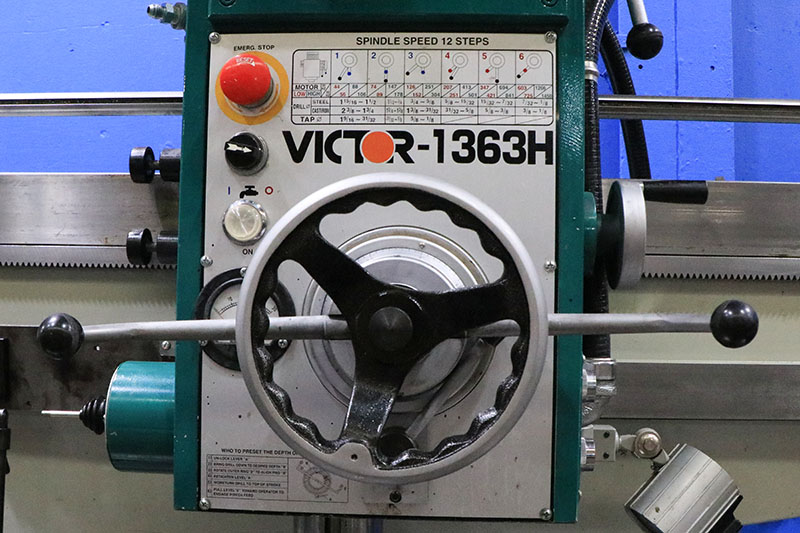

SPINDLE SPEEDS (12) ................... 56 TO 1450 RPM
DRILLING CAPACITY:
MILD STEEL ............................ 1.97"
CAST IRON ............................. 2.36"
APPROXIMATE WEIGHT .................... 7,350 LBS
OVERALL DIMENSIONS HEAD DOWN .........  45"W x 106"L x 95"H

EQUIPPED WITH:

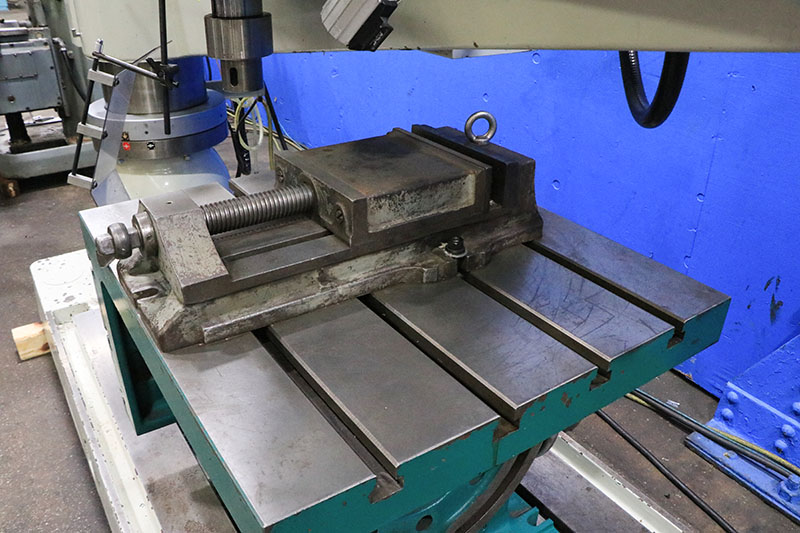

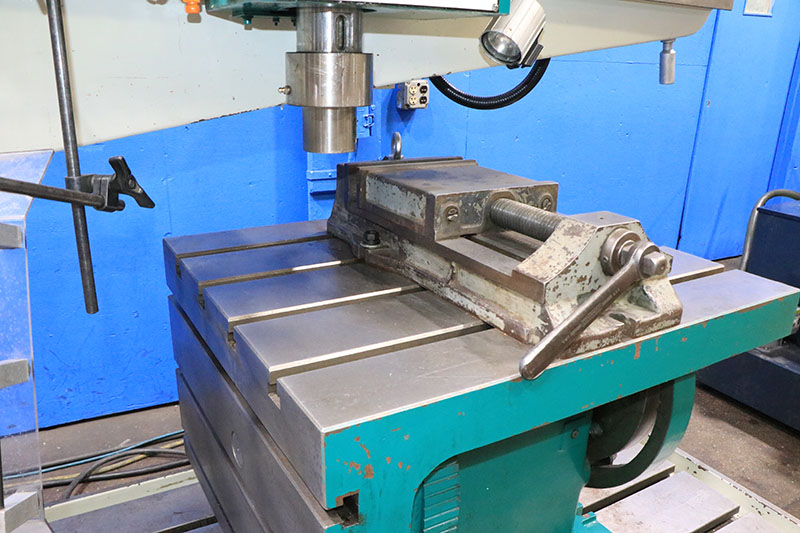

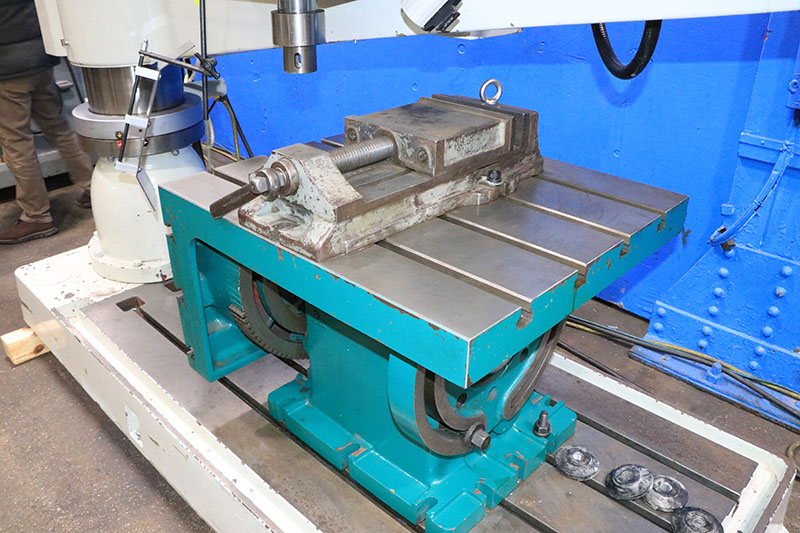

- T-SLOTTED BOX TABLE
- T-SLOTTED BASE

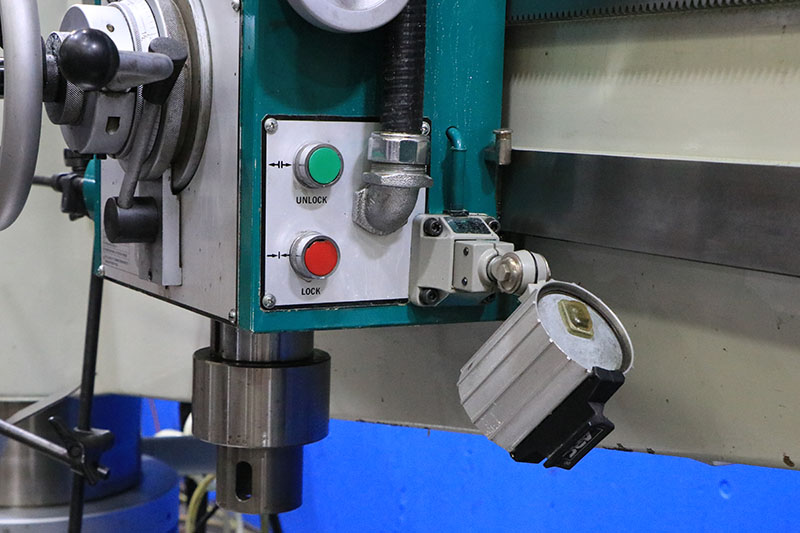

- POWER CLAMPING OF ARM ON COLUMN
- POWER ELEVATION OF ARM ON COLUMN

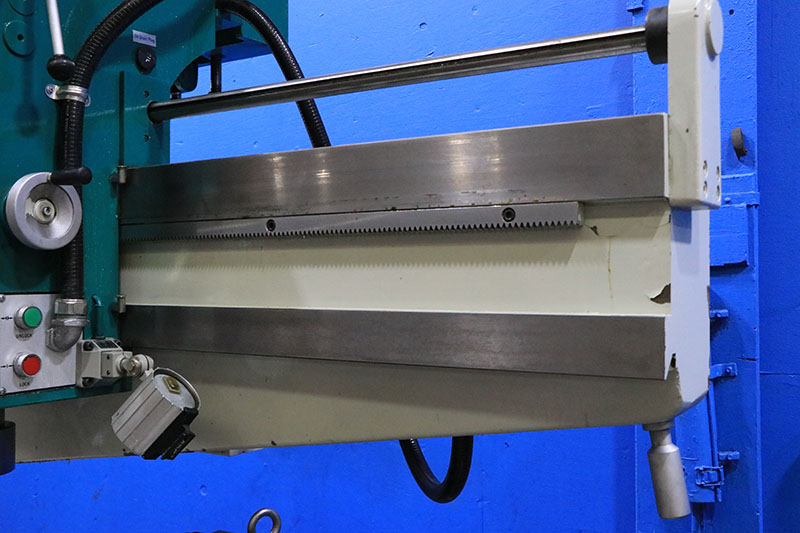

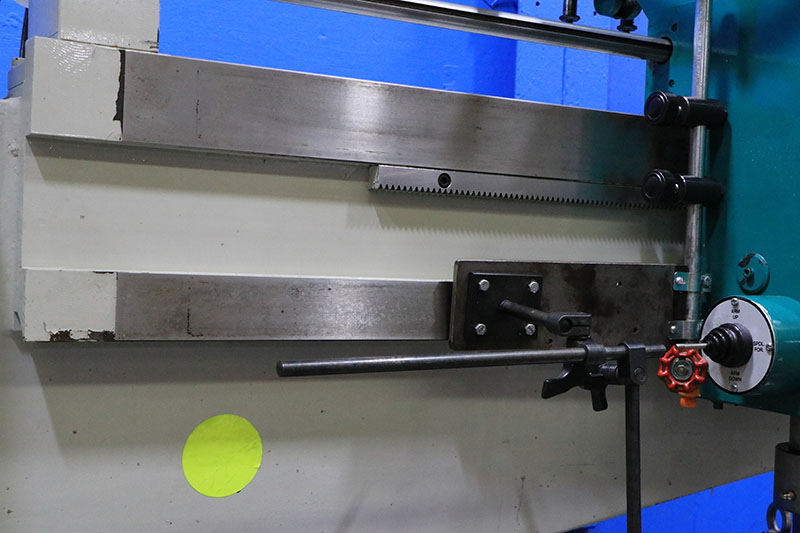

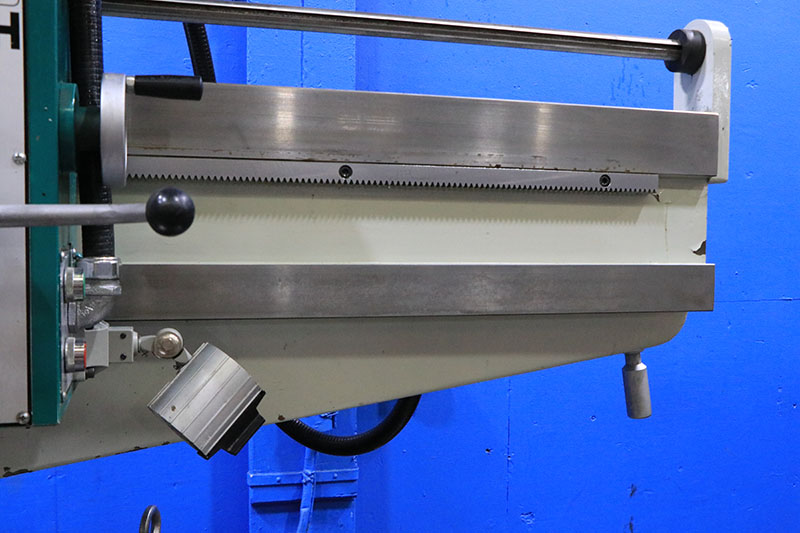

- PRECISION HARDENED COLUMN AND ARM WAYS
- COOLANT SYSTEM
- 5 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
