Chevalier GU1124A, New 1992, Swing Down I.D., Full Auto Feed UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Chevalier

Model:: GU1124A, New 1992, Swing Down I.D., Full Auto Feed

Year:: 1992

Ref #:: 169021

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

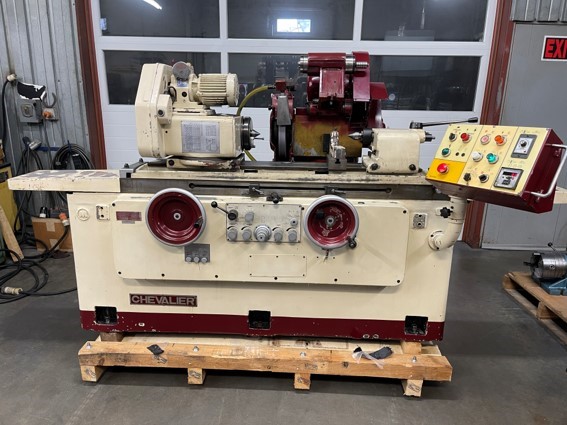

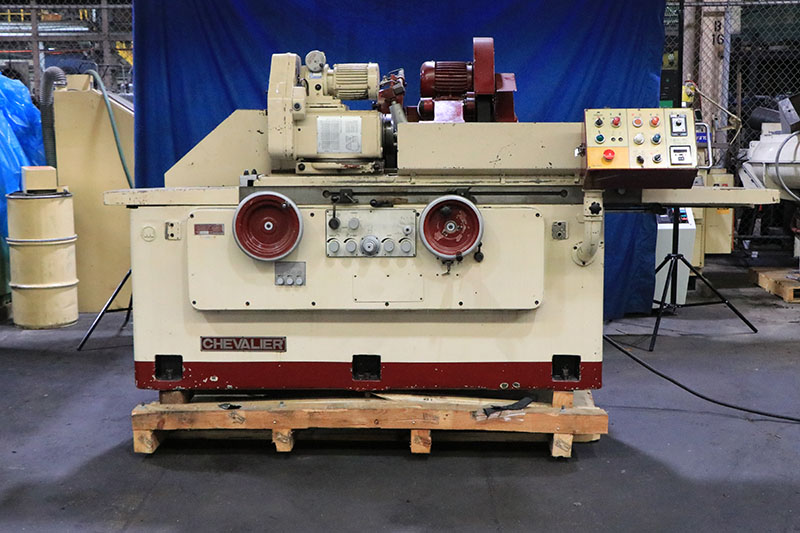

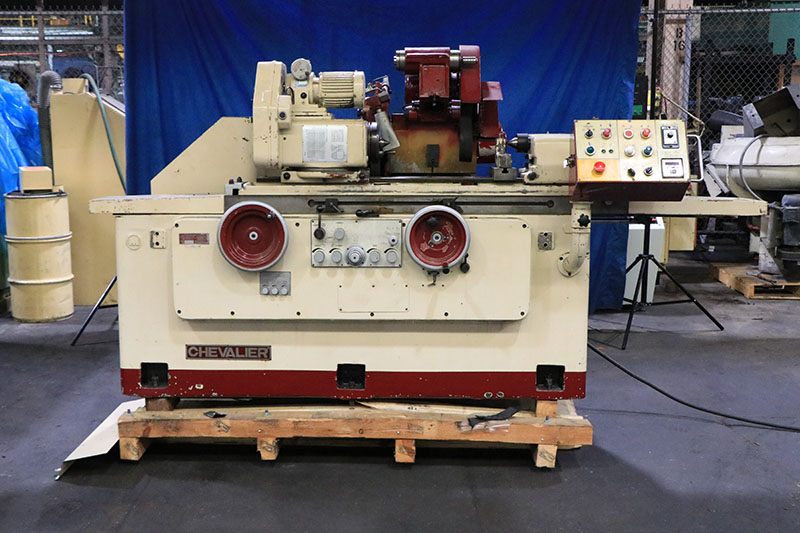

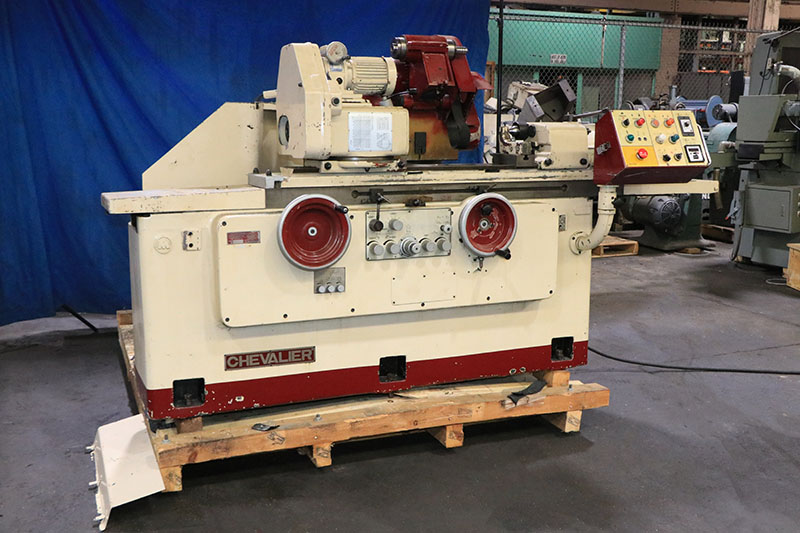

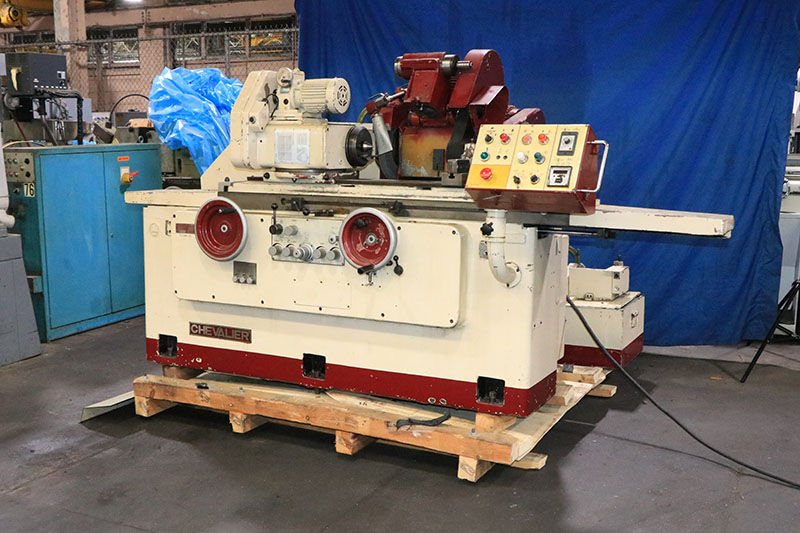

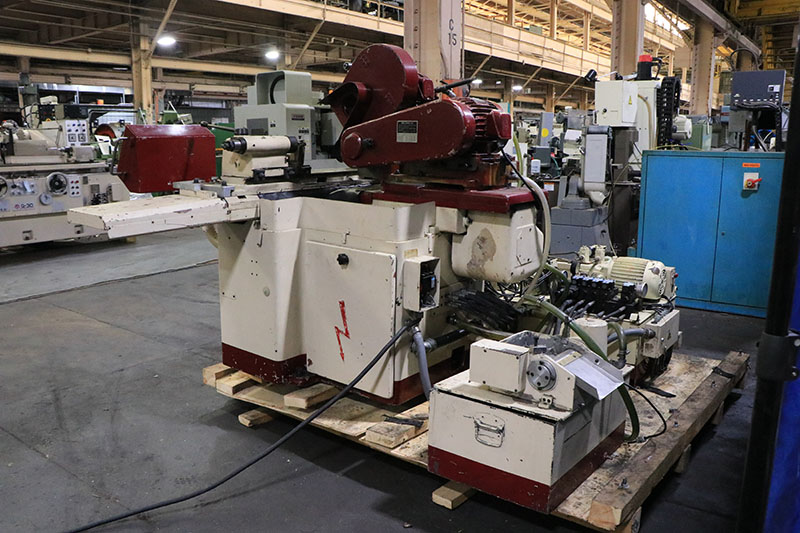

    10.6" x 23.6" Chevalier Universal
    I.D./O.D. Cylindrical Grinder

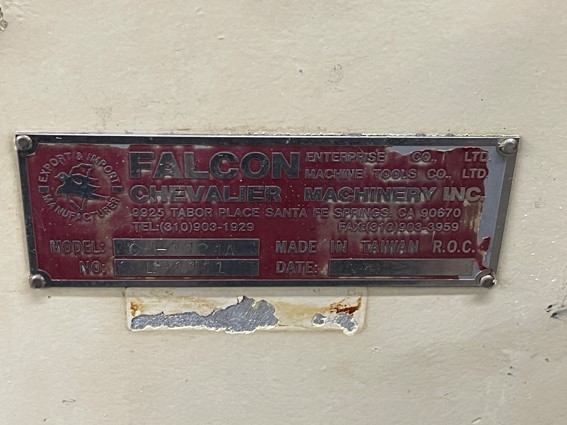

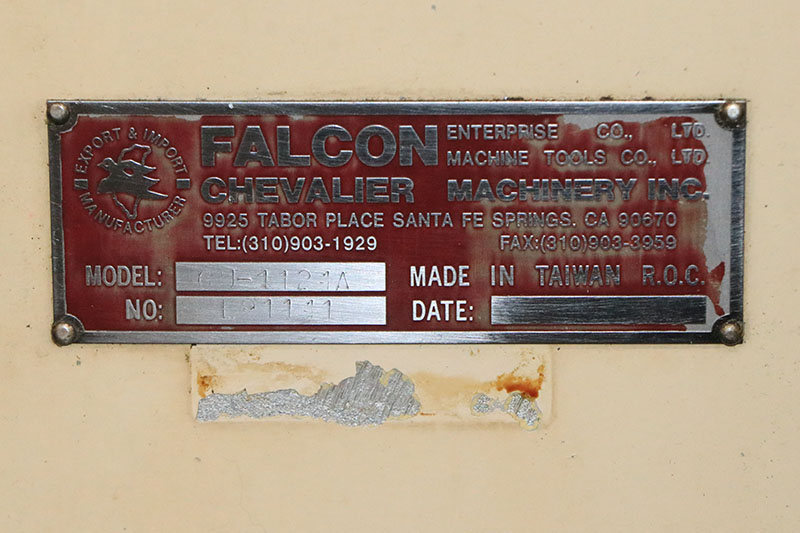

Model GU-1124A  S/N: L91141    New:1992

Max. swing over table:................ 10.6"
Distance between centers:............. 23.6
Max.  Work Piece weight:.............. 286 Lbs.

Work Carriage
Traverse speed:....................... 2 to 157 IPM
Table swivels, clockwise/ccw:......... 9°/4°

Wheelhead & WheelFeed
Grinding wheel size, stancard:........ 14" dia.
                                      x 2" wide x 5" bore

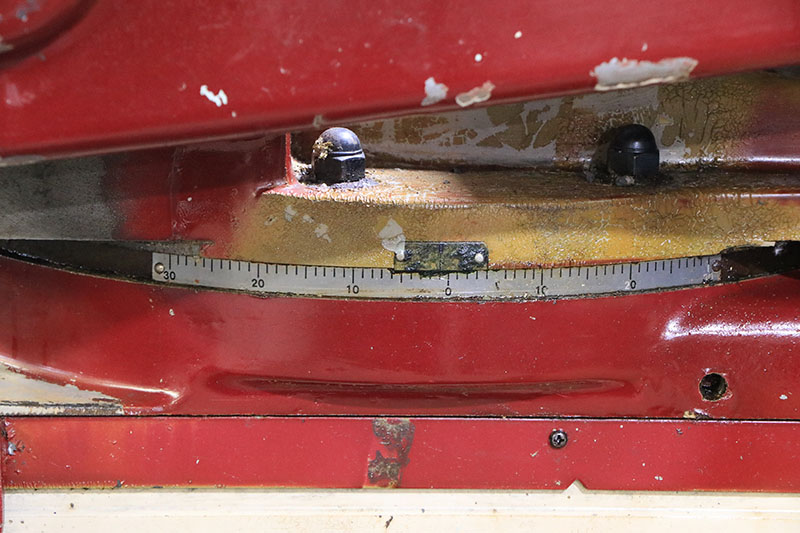

Wheel head swivels left &
 right of center:..................... 30°
(2) Grinding wheel spindle speeds:.... 1600 & 1900 rpm

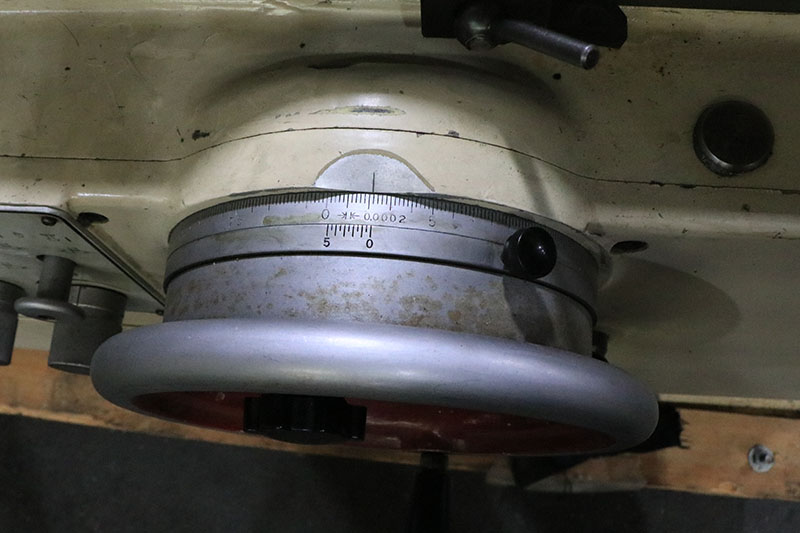

Wheelhead displacement per rev.
  of handwheel (coarse/fine):......... 0.0625"/0.0000625"
Rapid Hydraulic infeed stroke:........ 1.57"
Maximum infeed travel:................ 7.87"
Infeed handwheel per revolution:...... 0.039"
Max. automatic infeed travel:......... 0.029"
Auto infeed (rough)increment:......... 0.0002"-.0016"
Auto infeed (fine) increment:......... 0.0001" - .0002"
Auto plunge (rough) feed:............. 0.0004"-.059"
Auto plunge (fine):................... 0.00004"-.0004"

Motorized Workhead & Tailstock

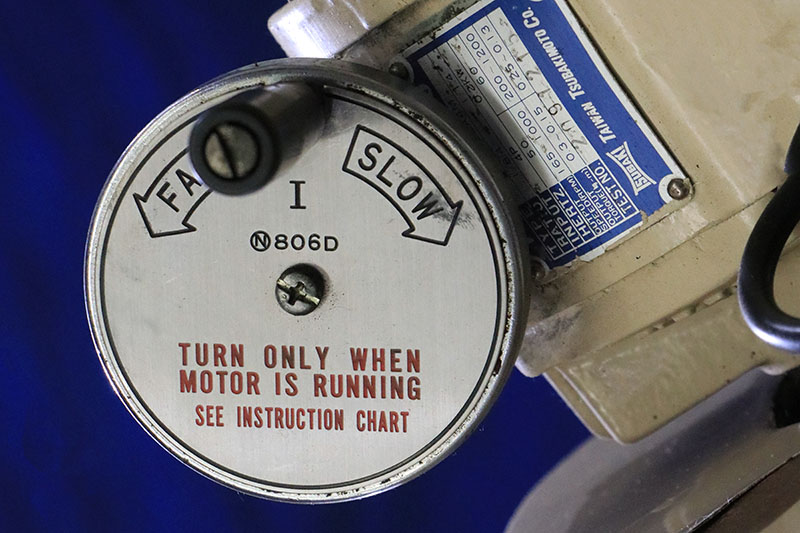

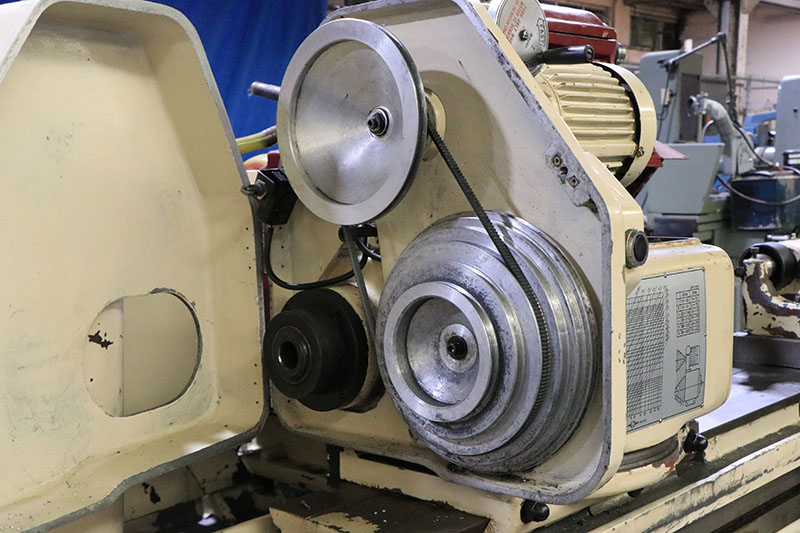

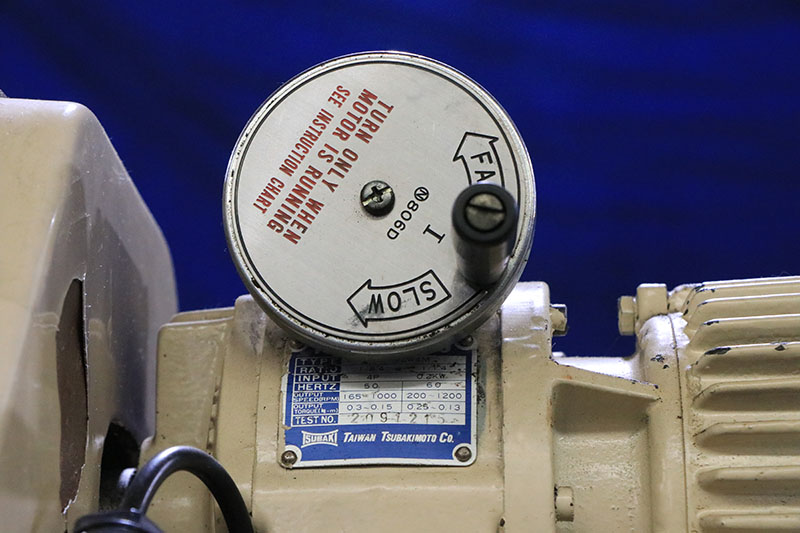

Infinitely variable workhead
Spindle speeds (6-Ranges):............ 10 TO 507 RPM
Workhead spindle taper:............... #4 Morse
Workhead Swivel Range:................ 120°
                                       (90° ccw, 30° CW)

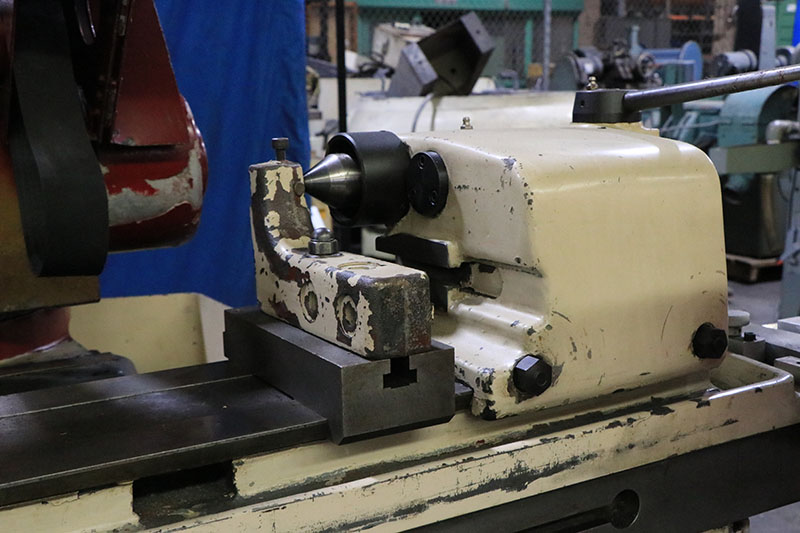

Tailstock spindle taper:.............. #4 morse
Tailstock spindle travel:............. 1.18"

APPROX. MACHINE WEIGHT ............... 5,525 LBS.

Equipped with:

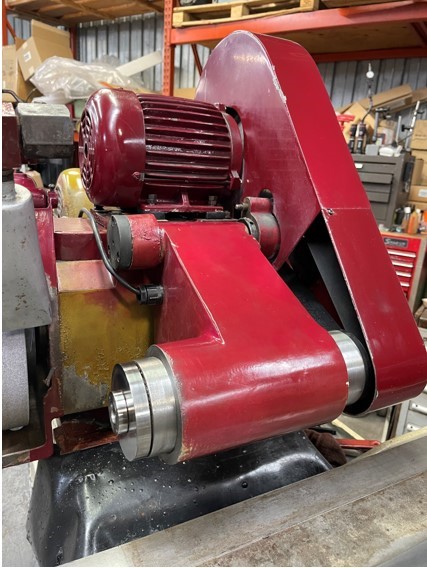

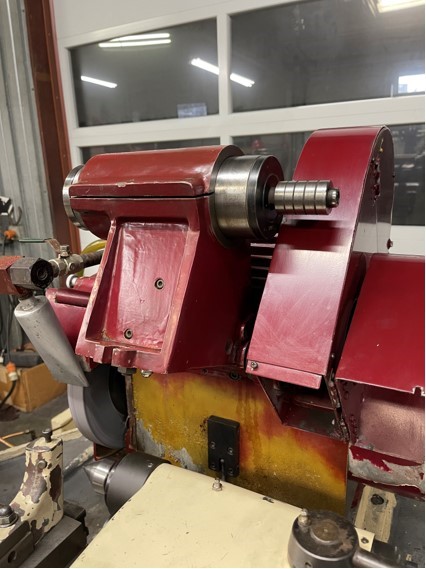

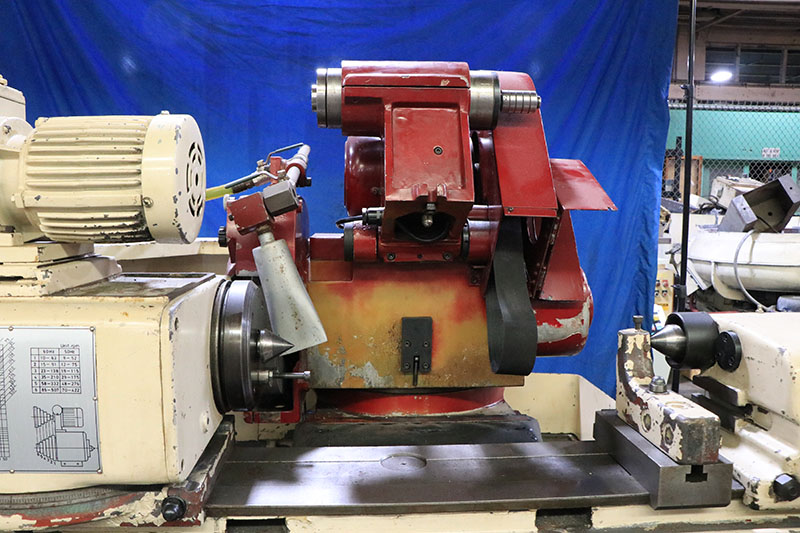

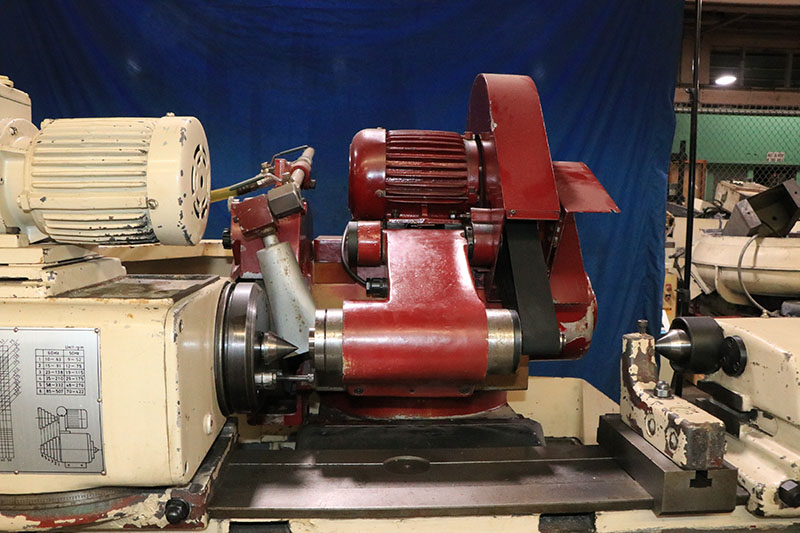

Swing Down I.D. Grinding Attachment
 with I.D. Grinding Spindle
Hydraulically actuated longitudinal table traverse
Dual rate automatic infeed at table reversal
Dual rate automatic plunge feed
Sparkout timer
Hydraulically actuated rapid wheelhead advance
  and retraction
Swing-down internal grinding attachment with spindle

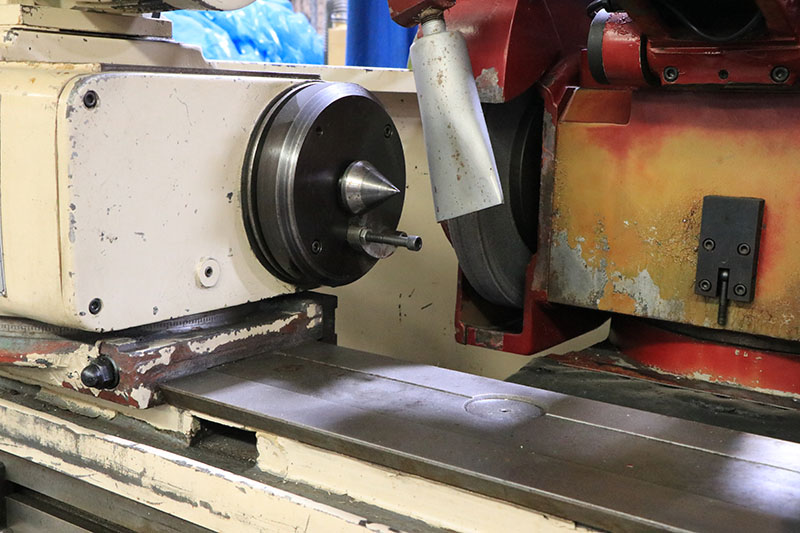

Dual live/dead headstock spindle
Center in Workhead

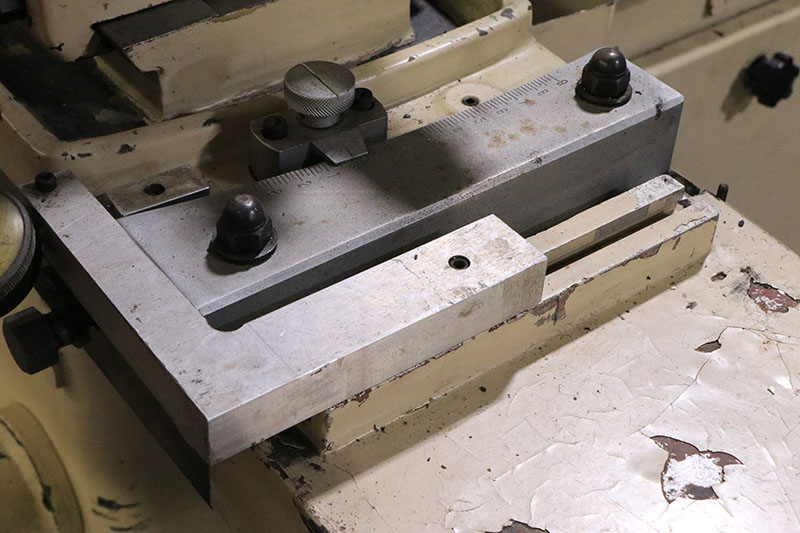

Table mounted single point wheel dresser
Halogen work light
Operating manual and parts list

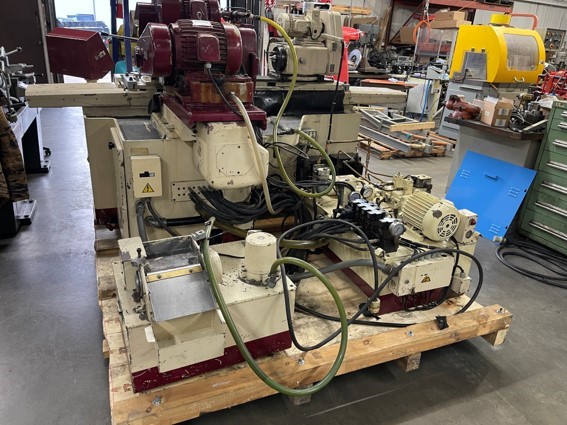

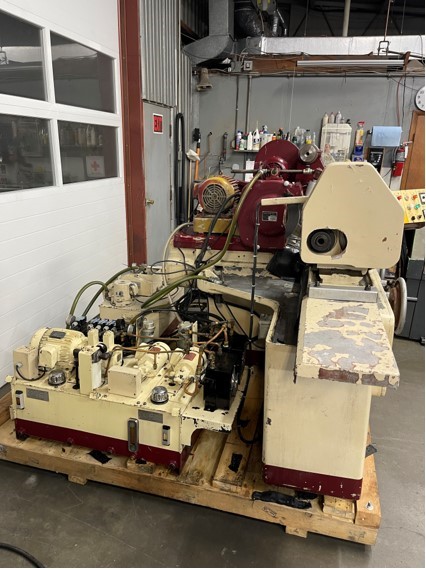

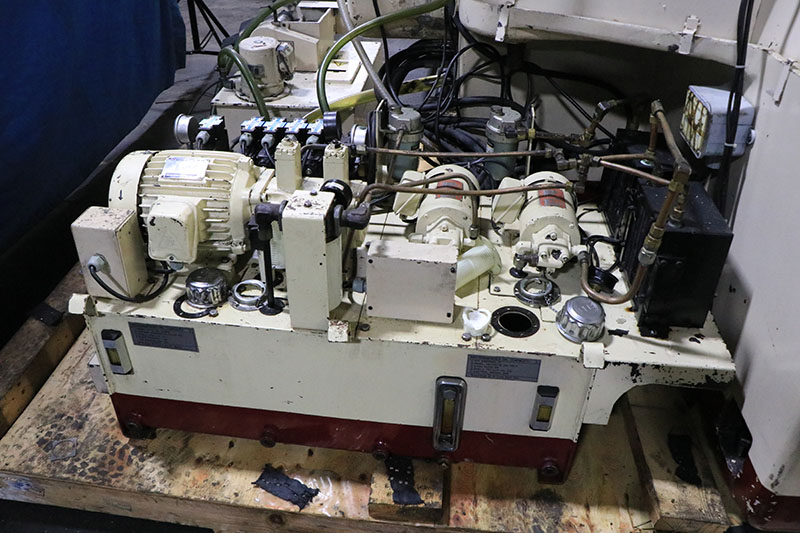

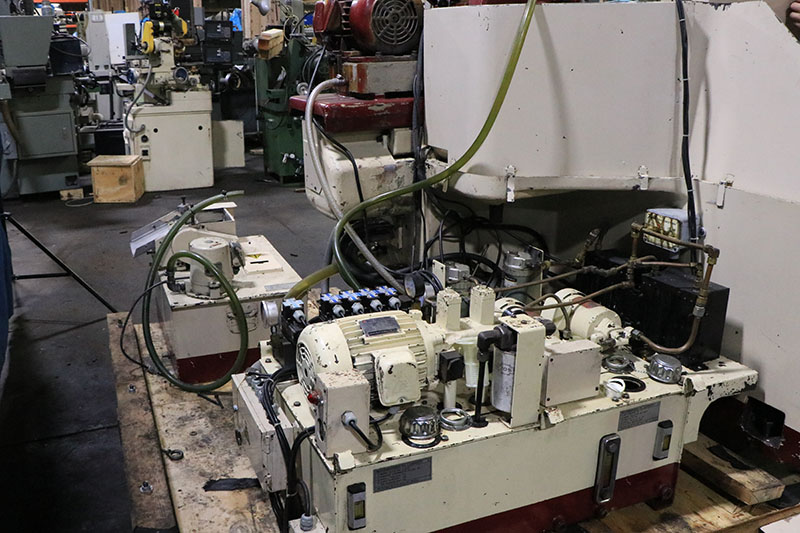

External hydraulic pump and tank

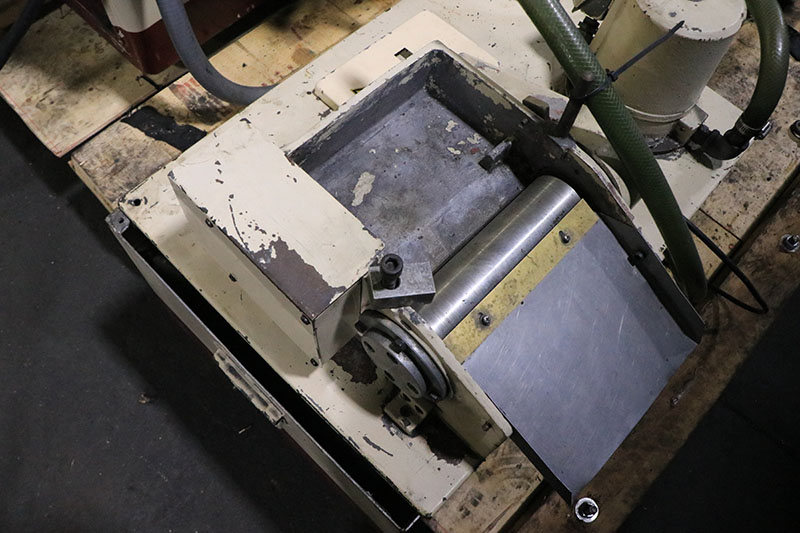

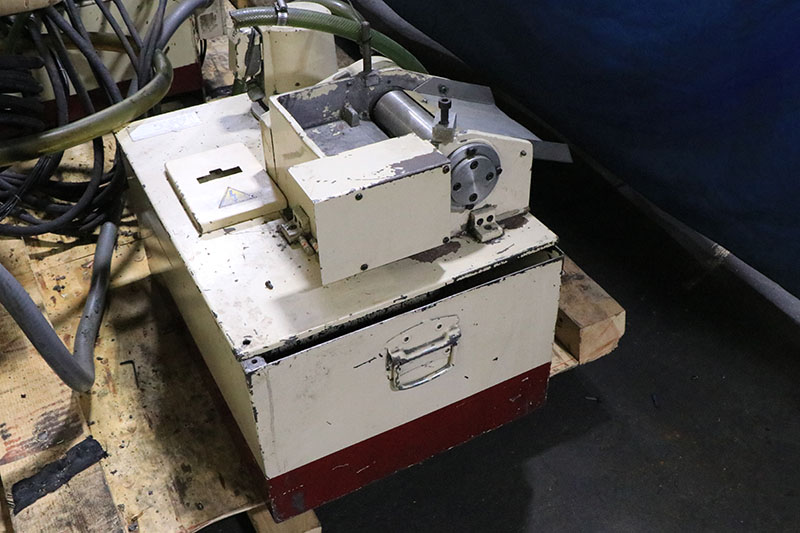

External coolant pump and tank

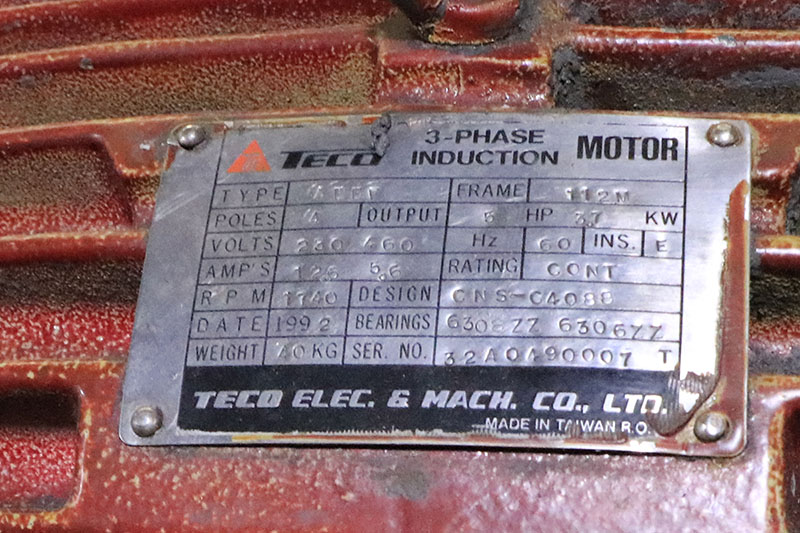

5 H.P. wheelhead drive motor

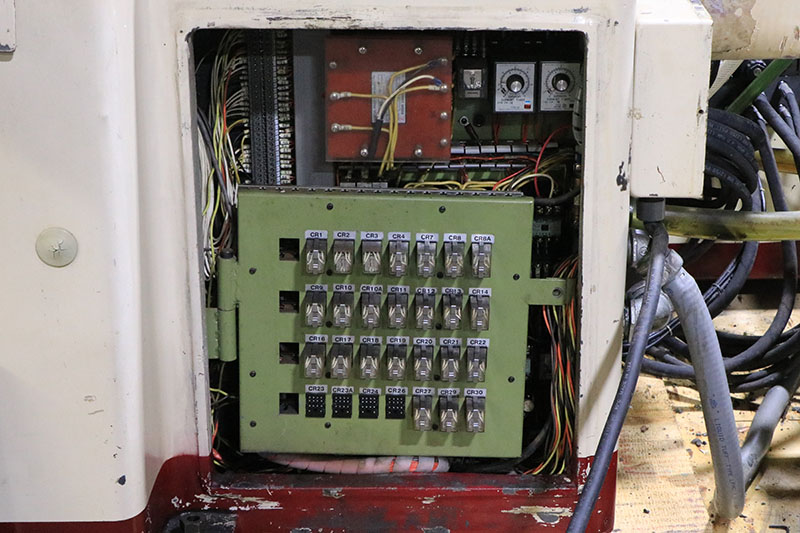

Machine is wired for 230 volt operation.

** Superb Condition & Appearance **
** Inspect Under Power in our Harrison, NJ Warehouse **
