Dake Cut 250 Manual *Made in Italy* NEW COLD SAWS

Price on Request

Make:

Dake

Model:

Cut 250 Manual *Made in Italy*

Year:

NEW

Ref #:

153208

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

DAKE CUT 250

MANUAL COLD SAW



*MADE IN ITALY*



The Dake Cut 250 model manual cold saw uses up to 10" circular cold saw blades, has a 1.2 hp motor, and mounts on an included pedestal that houses a built-in coolant tank and pump. The blade rotates at 44 rpm. The saw head pivots up and down to cut, and rotates 45 degrees to the right and left of center for miter cuts. The saw drive has an oversized steel spindle and a tapered bronze roller bearing gear assembly for heavy-duty use. The hardened and ground spindle shaft has ball bearing support for reliability. The saw is wired for single-phase, 110 volt AC operation.



FEATURES

Head rotates 45º right and left of center for mitering.

Dependable oversized spindle and gear assembly with steel spindle and bronze gear.

Bronze gear with tapered roller bearing support.

Reliable mechanical coolant pump with flow control adjustment.

Adjustable hinged pivot.

Additional ball bearing support of hardened and ground spindle shaft to prevent failure.



STANDARD EQUIPMENT

Blade

Pedestal base

Tool kit

Gallon of coolant

Adjustable positive stop



SPECIFICATIONS

Maximum blade diameter ............................ 10

Motor horsepower .................................. 1.2

Voltage ........................................... 110-volt

Phase ............................................. 1

Speeds ............................................ 44

Weight ............................................ 378

Solid round 90° capacity (inches) ................. 1-1/4

Solid round 45° capacity (inches) ................. 1

Tube 90° capacity (inches) ........................ 2-3/4

Tube 45° capacity (inches) ........................ 2-3/8

Square 90° capacity (inches) ...................... 2-1/2

Square 45° capacity (inches) ...................... 2-1/8

Rectangle 90° capacity (inches) ................... 3-7/8 x 1-3/4

Rectangle 45° capacity (inches) ................... 2-1/2 x 1-7/8

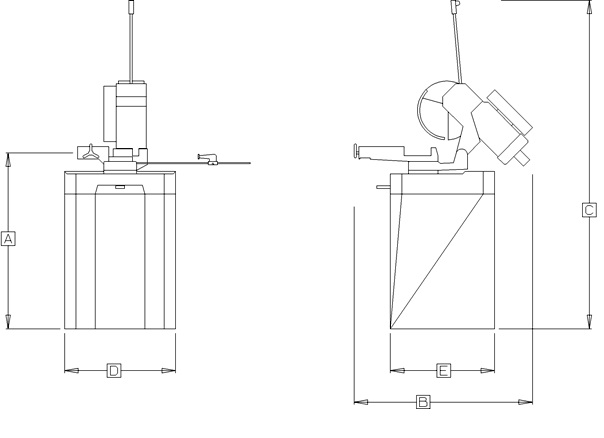

DIMENSIONS

A Work height ..................................... 37"

B Overall front to back head up ................... 35"

C Height .......................................... 61"

D Floor space left to right ....................... 21"

E Floor space front to back ....................... 20-1/4"
