New Dake Super Cut 315 Manual Cold Saw



PRODUCT FEATURES:

• Heavy-duty low production saw, comes with one standard HSS blade.
• Capable of near milled finish cuts.
• Large pivot point for extreme rigidity
• Heavy-duty gearbox for long dependable life.  All steel and bronze gears. No plastic gears to break.
• CE Certified electronics.  Low voltage hand control with dead man switch.  Thermo over load protection, low voltage protection with emergency stop button.  This all housed in a watertight electrical enclosure.
• Miters right and left up to 45 degrees, and all angles in between.  Set-up is precise using the scribed scale on the vise pivot.  Vise face can be adjusted close to the blade for maximum holding power.  Vise incorporates an anti-burr arm, for burr free cuts.
• Hardened and serrated steel vise faces for sure clamping and long life.
• Vise is hand wheel adjustable and cam lever activated for repetitious clamping.
• Heavy gauge oversized steel base.
• Blade guard completely covers the blade.
• Stock stop gauge for repetitive cutting.
• Tool kit for quick blade changes.
• Complete CE approved English owner's manual, and blade pitch calculator.
• One gallon of coolant.



PRODUCT SPECIFICATIONS

Machine Type: Pivot head cold saw

Maximum Blade Size: 12-½ inches with 32 mm

Minimum Blade Size: 12 inches with 32 mm arbor

Spindle Speeds:

 Single Phase = 1 speed

 Three Phase = 2 speed

Minimum/Maximum spindle RPM:

 Single Phase = 44 PRM

 Three Phase = 22 RPM / 44 RPM

Head Feed: Manual

Vise: Manual, cam activated

Maximum Vise Opening: 4-5/8 inches

Miter Cutting Capabilities: 45° right / 45° left

Controls:

 CE Certified 24-volt - Handle mounted trigger switch

Horsepower: 1.5 - 2.5 HP

Weight: 450 pounds

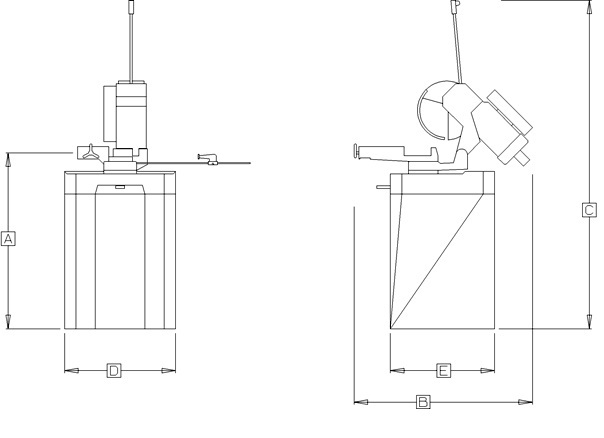

Work Height: 38-½ inches

Overall Height: 59 inches

Base Width: 26 inches

Depth: 36 inches

Lubricant:

 Flood type unit built into the machine (Mechanical)

Voltage:

 Available 120-volt single phase

 Available 230-volt three phase

 Available 460-volt three phase (external transformer) *Machine should be wired to main service by a qualified Electrician*

AMP:

 20-amp service for 120-volt & 230-volts machines

 16-amp service for 460-volt machines

Operating Temperature:

 No special operating temperature level



CUTTING CAPACITIES

90°

Round: 3-5/8"

Square: 3-1/4"

Flat: 4-1/4" X 2-3/4"



45° Right

Round: 3-1/2"

Square: 3-1/8"

Flat: 3-1/4" x 2-3/4"



OPTIONS:

• Blade starter pack, Three HSS 12” blades (120, 180, and 280 tooth) Part# 79845
• 78” Loading Table – In-bound Part #301644
• 78” Unloading Table – Out-bound with scale and adjustable positive stop Part #301645
• Pneumatic vise Part# AAL3100L
