Doosan Puma 2600SY Multi-Axis CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Doosan

Model:: Puma 2600SY Multi-Axis

Year:: 2011

Ref #:: 177935

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

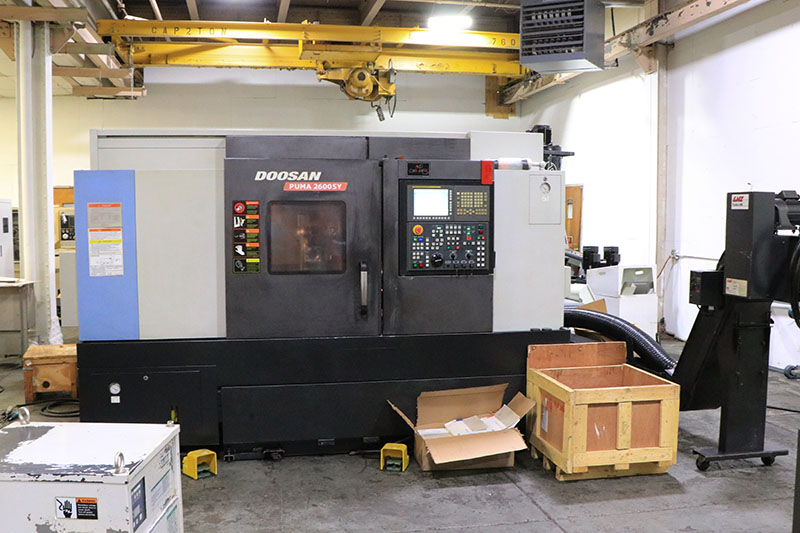

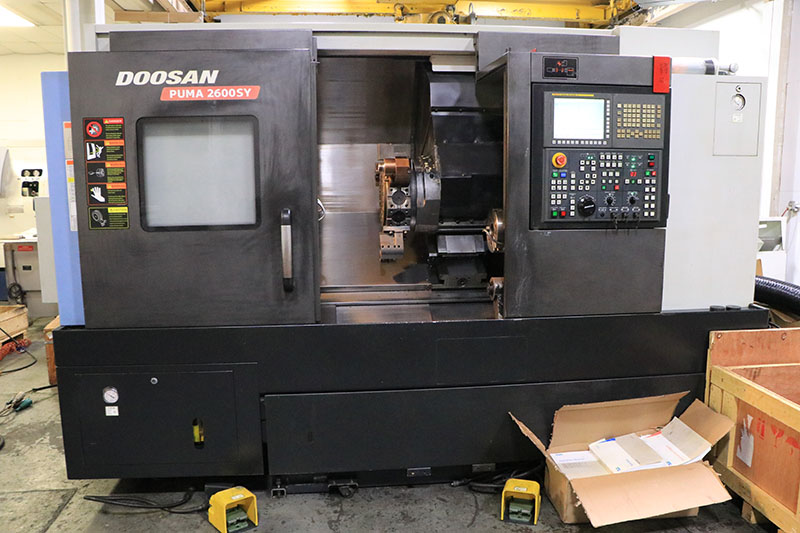

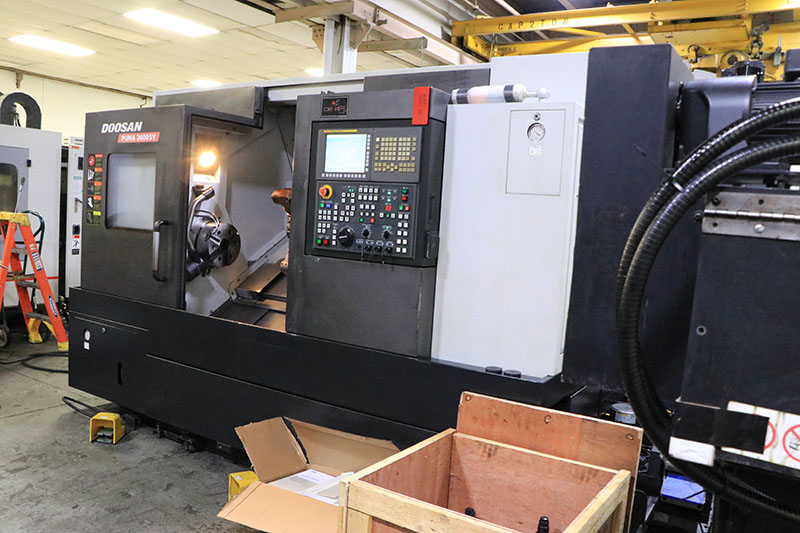

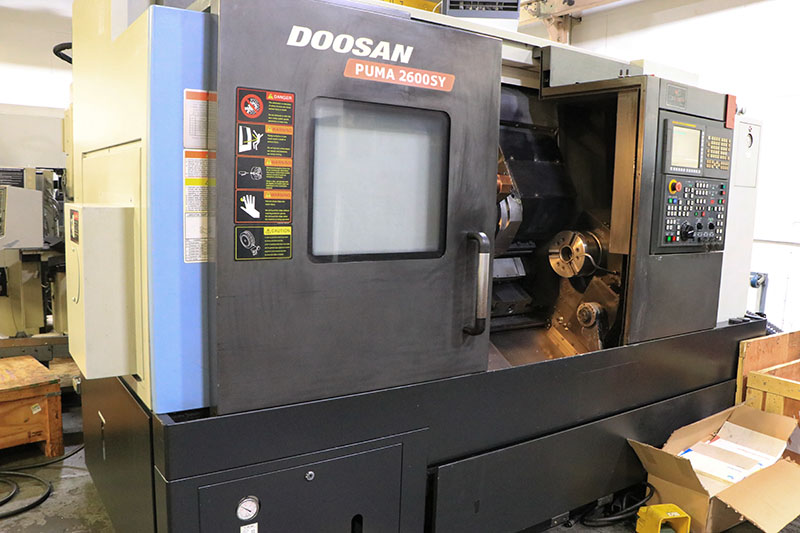

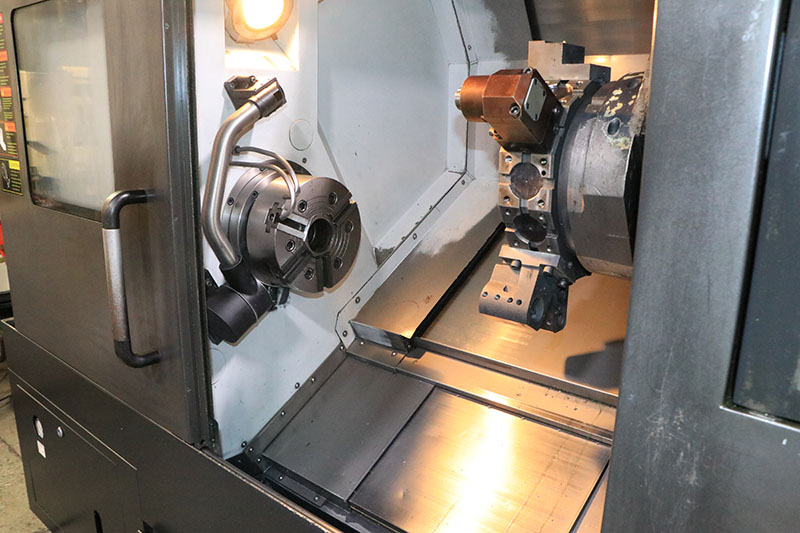

DOOSAN PUMA 2600SY MULTI AXIS CNC TURNING CENTER
NEW: 2011

SPECIFICATIONS:
Swing over bed ............................ 30.7"
Swing over front door ..................... 26.8"
Swing over carriage ....................... 24.8"
Standard chuck through hole I.D. .......... 3.03"
Max turning diameter, main spindle ........ 14.8"
Max turning length ........................ 29.92"
Distance between main & subspindle nose ... 43.46"
Spindle speed ............................. 4,000 RPM
Spindle nose .............................. ASA-A2-8
Draw tube I.D. ............................ 3.03"
Spindle bore diameter ..................... 3.38"
AC high torque spindle motor (30 min) ..... 30 HP
Minimum programmable angle (degrees) ...... 0.001
Rapid traverse rate ....................... 200 RPM
C-axis contouring torque .................. 112 ft-lbs
C-axis braking torque ..................... 663 ft-lbs
X axis travel ............................. 10.23"
Z axis travel ............................. 32.67"
X & Z axis rapid traverse rate ............ 1,181 IPM
Number of tools ........................... 12
Number of index positions ................. 24
Tool holder type .......................... BMT 65P
Turning tool shank size ................... 1.0"
Boring bar diameter, main spindle ......... 2.0"
Boring bar diameter, sub spindle .......... 1.0"
Tool selection ............................ Bi-directional
Rotating tool RPM ......................... 5,000 RPM
Rotating tool spindle motor (15min) ....... 7.5 Hp
Rotating tool torque (15 min rating) ...... 34.7 ft-lbs
Rotating tool collet type ................. ER32
Milling collet capacity ................... 1/8" to 3/4"
Y-axis travel ............................. 4.13" (±2.065")
Y-axis rapid traverse rate ................ 394 IPM
B axis travel (sub-spindle) ............... 32.6"
B axis rapid traverse rate ................ 1.181 IPM
Sub-spindle guideway span ................. 13.2"
Spindle speed ............................. 6,000 RPM
Spindle motor (30 min. rating) ............ 20 HP
Spindle bore .............................. 2.44"
Draw tube ID .............................. 1.97"
Rapid traverse rate ....................... 1181 IPM
Minimum programmable angle ................ 0.001 deg
Floor space (Length X Width) .............. 153" x 74"
Machine height ............................ 85"
Height from floor to spindle center ....... 43.7"
Approx.Net weight ......................... 14,220 lbs

EQUIPPED WITH:

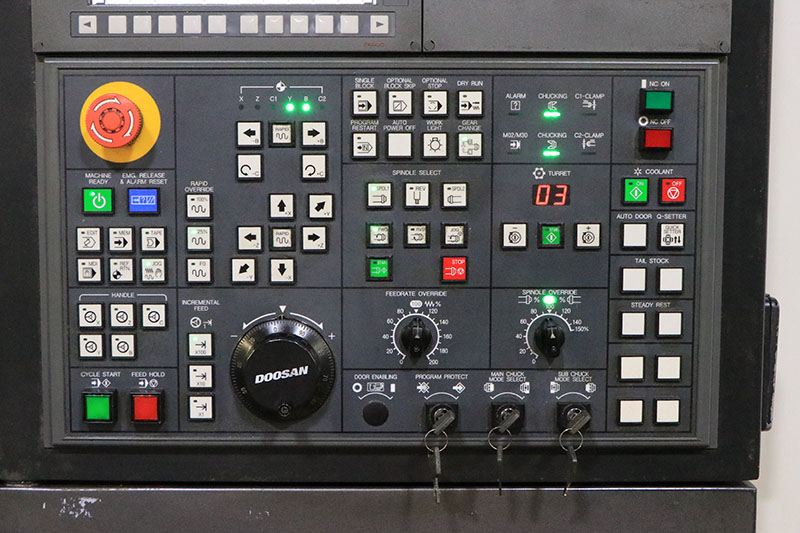

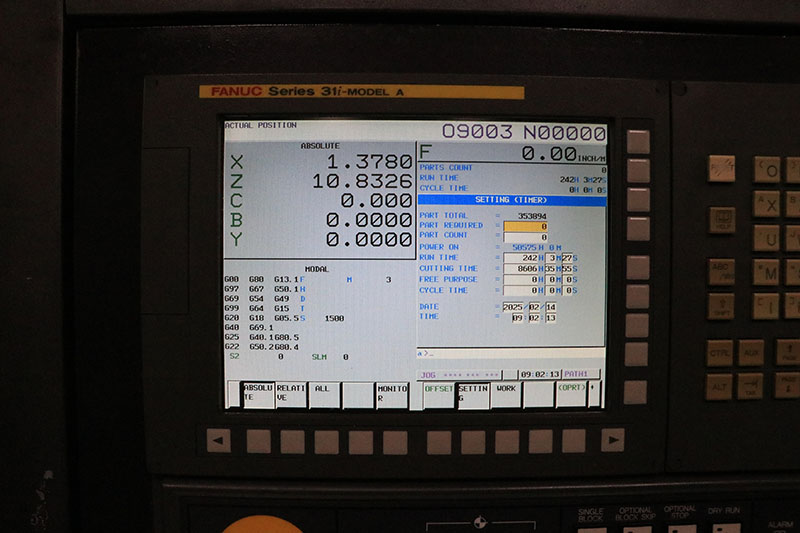

  - FANUC 31iT CNC CONTROL
  - TOOLSETTER
  - 10" 3-JAW HYD. CHUCK ON MAIN SPINDLE
  - 8" 3-JAW HYD. CHUCK ON SUBSPINDLE
  - PARTS CATCHER, PARTS CONVEYOR

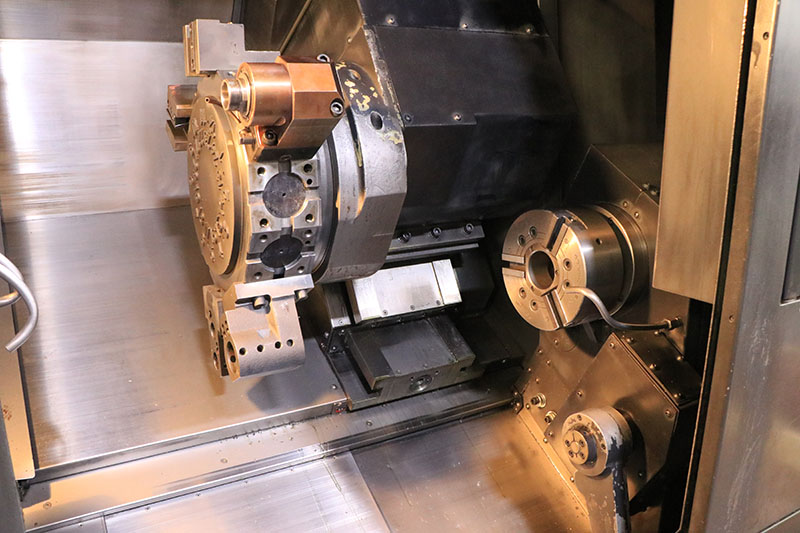

  - 12 STATION TURRET w/24 POSITION INDEXING

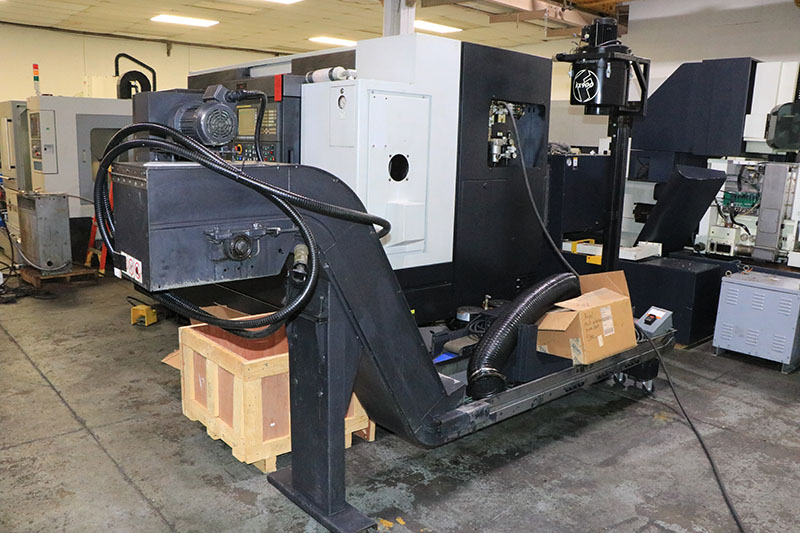

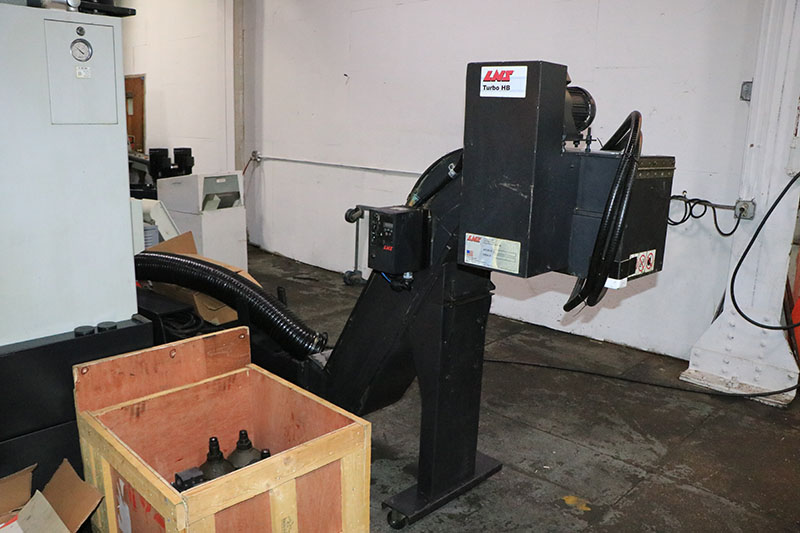

  - CHIP CONVEYOR

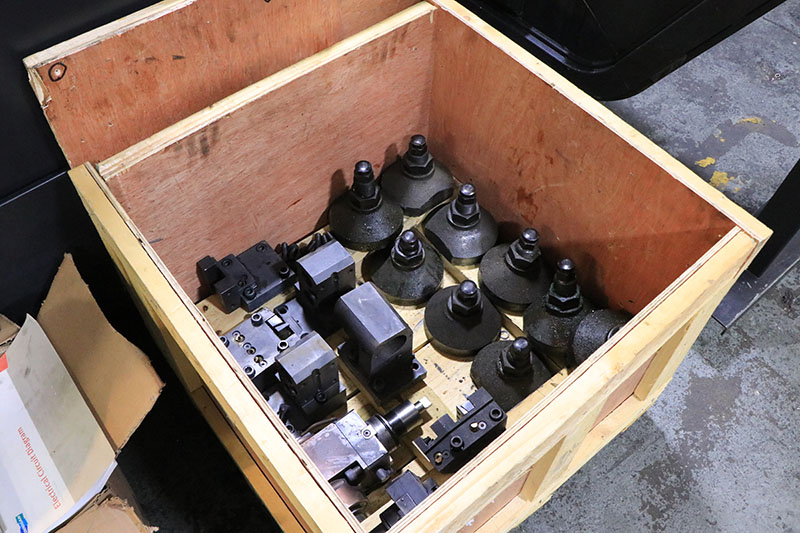

  - ALL AVAILABLE LIVE & STATIC TOOLHOLDERS
